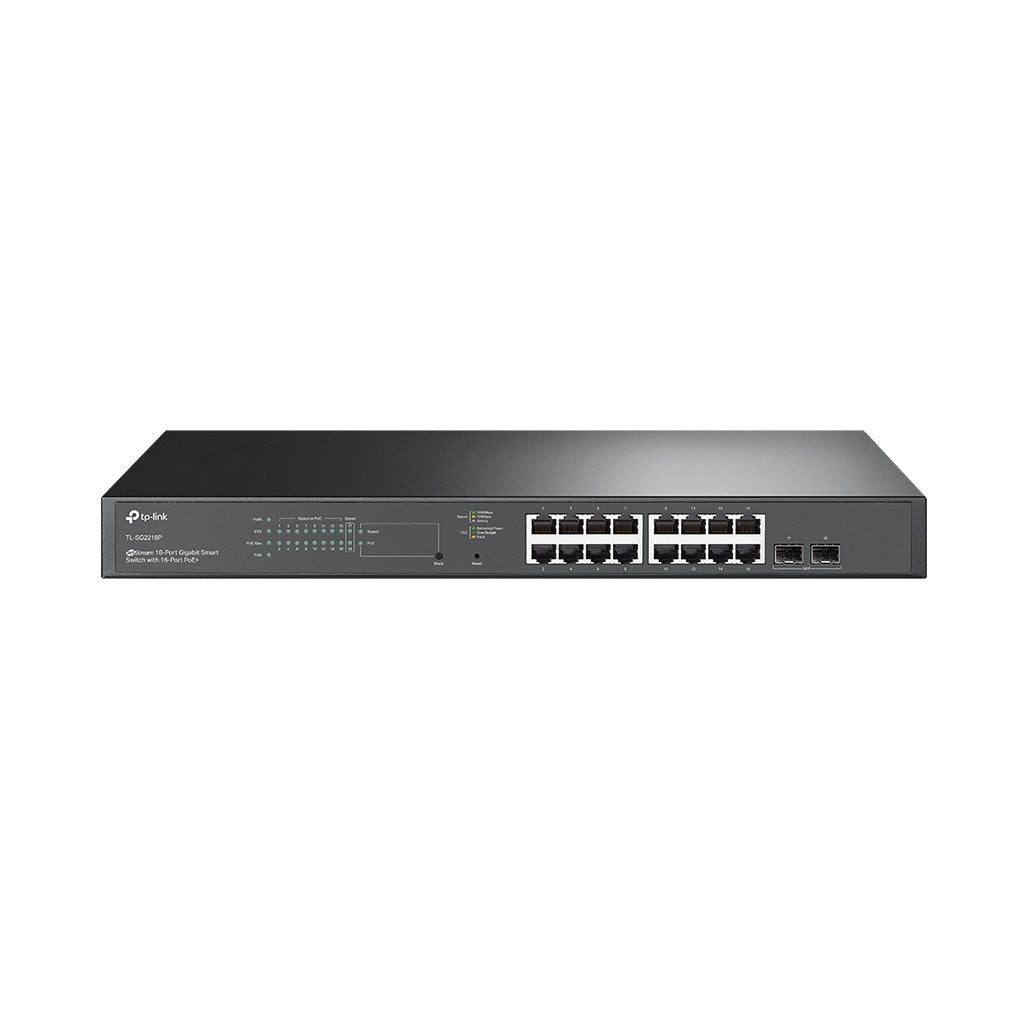

TP-Link TL-SG2218P JetStream 18-Port Gigabit Smart Switch with 16 PoE+ Ports and Omada SDN Integration

The TP-Link TL-SG2218P JetStream 18-Port Gigabit Smart Switch offers exceptional performance with its 16 PoE+ ports and advanced software-defined networking (SDN) capabilities. This high-capacity switch features a 150W PoE budget, supporting up to 16 devices with power-over-Ethernet connectivity. Ideal for diverse applications such as hospitality, education, retail, and offices, the TL-SG2218P ensures seamless integration with Omada's SDN platform for centralized, cloud-based management.

With full Gigabit connectivity, including 16 gigabit PoE+ ports and 2 SFP slots, the switch provides high-speed data transfer for efficient network operation. Integrated into the Omada SDN ecosystem, it supports Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent network monitoring, simplifying deployment and management. The centralized Omada app further enhances convenience, offering comprehensive control over network performance and configuration.

The TL-SG2218P includes robust security features such as IP-MAC-Port Binding, ACL, and advanced DoS protection to safeguard network integrity. Quality of Service (QoS) functionalities, including L2/L3/L4 QoS and IGMP snooping, ensure optimized performance for voice and video applications. IPv6 support is also integrated, with dual IPv4/IPv6 stack and various IPv6 features for future-proofing your network infrastructure.

Key Features:

1. High-Power PoE+ Ports: Provides 16 PoE+ ports with a total power budget of 150W, compatible with 802.3at/af standards, suitable for powering IP cameras, access points, and other PoE-enabled devices.

2. Advanced SDN Integration: Utilizes Omada's SDN platform for centralized cloud management, including Zero-Touch Provisioning (ZTP) and intelligent monitoring, streamlining network setup and maintenance.

3. Full Gigabit Performance: Equipped with 16 gigabit RJ45 ports and 2 gigabit SFP slots, delivering high-speed connectivity and flexible network expansion.

4. Robust Security Features: Includes IP-MAC-Port Binding, ACL, DoS Defend, and other advanced security measures to protect against network threats and unauthorized access.

5. Optimized QoS: Supports L2/L3/L4 QoS and IGMP snooping to ensure smooth and efficient performance for voice and video traffic.

6. IPv6 Support: Features dual IPv4/IPv6 stack, MLD snooping, and IPv6 neighbor discovery, ensuring compatibility with modern network protocols and future-proofing.

7. User-Friendly Management: Offers centralized management via the Omada app, cloud-based controllers, and web-based GUI for easy configuration and monitoring.

Rewritten Specifications:

Hardware Features

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interface:
  • 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 2× Gigabit SFP Slots
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (max 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (max 100m)
  • 1000BASE-X: MMF, SMF
• Fan Quantity: 1
• Power Supply: 100-240V AC, 50/60Hz
• PoE Ports (RJ45):
  • Standard: 802.3at/af compliant
  • PoE+ Ports: 16 Ports
  • PoE Power Budget: 150 W
• Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting: Rack Mountable
• Max Power Consumption:
  • 181.4 W (110 V/60 Hz) with 150 W PD connected
  • 178.3 W (220 V/50 Hz) with 150 W PD connected
• Max Heat Dissipation:
  • 619.06 BTU/hr (110 V/60 Hz) with 150 W PD connected
  • 608.52 BTU/hr (220 V/50 Hz) with 150 W PD connected

Software Features

• Quality of Service:
  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode (SP, WRR)
  • Queue Weight Configuration
  • Bandwidth Control (Port/Flow-based Rating Limit)
  • Storm Control (Broadcast/Multicast/Unknown-Unicast Control)
• L2 and L2+ Features:
  • 16 IP Interfaces (IPv4/IPv6)
  • Static Routing (32 IPv4/IPv6 Routes)
  • DHCP Server, Relay (Interface/VLAN)
  • Static ARP, Proxy ARP, Gratuitous ARP
  • Link Aggregation (Static/802.3ad LACP)
  • Spanning Tree Protocol (STP/RSTP/MSTP)
  • Loopback Detection, Flow Control
  • Mirroring (Port, CPU, Flow-Based)
  • Device Link Detect Protocol (DLDP), LLDP/LLDP-MED
• VLAN:
  • VLAN Group (Max. 4K Groups)
  • 802.1Q tag VLAN
  • MAC VLAN, Protocol VLAN, GVRP, Voice VLAN
• Access Control List:
  • Up to 230 entries, Time-Based ACL
  • MAC/ IP ACL, IPv6 ACL
  • Policy Actions: Mirror, Rate Limit, Redirect, QoS Remark
  • ACL Rules Binding (Port/VLAN)
• Security:
  • AAA, 802.1X Authentication (Port/MAC-based)
  • IP/IPv6-MAC Binding, DHCP Snooping, ARP Inspection
  • IP Source Guard, IPv6 Source Guard
  • DoS Defend, Port Security, Storm Control
  • Secure management (HTTPS, SSH)
• IPv6:
  • IPv6 Static Routing, ACL, Dual IPv4/IPv6 Stack
  • MLD Snooping, Neighbor Discovery, ICMPv6
  • IPv6 applications (Ping6, Tracert6, Telnet6)
• Advanced Features:
  • Automatic Device Discovery, Batch Configuration
  • Firmware Upgrading, Intelligent Network Monitoring
  • Abnormal Event Warnings, Unified Configuration
  • Reboot Schedule

Management:

• Omada App: Yes, with Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Centralized Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes, through Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Zero-Touch Provisioning: Yes, with Omada Cloud-Based Controller
• Management Features: Web-based GUI, CLI (telnet), SNMPv1/v2c/v3, SNMP Trap/Inform, RMON, SDM Template, DHCP/BOOTP Client, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log

Others:

• Certification: CE, FCC, RoHS
• Package Contents: TL-SG2218P, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
• System Requirements: Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux
• Environment:
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

Conclusion:

The TP-Link TL-SG2218P JetStream 18-Port Gigabit Smart Switch offers high-performance networking with 16 PoE+ ports and robust software-defined networking features. Integrated into Omada’s SDN platform, it provides centralized management, advanced security, and enhanced QoS for seamless network operation. Suitable for various environments, this switch delivers reliable performance and comprehensive control, making it an excellent choice for organizations seeking efficient and secure network solutions.
