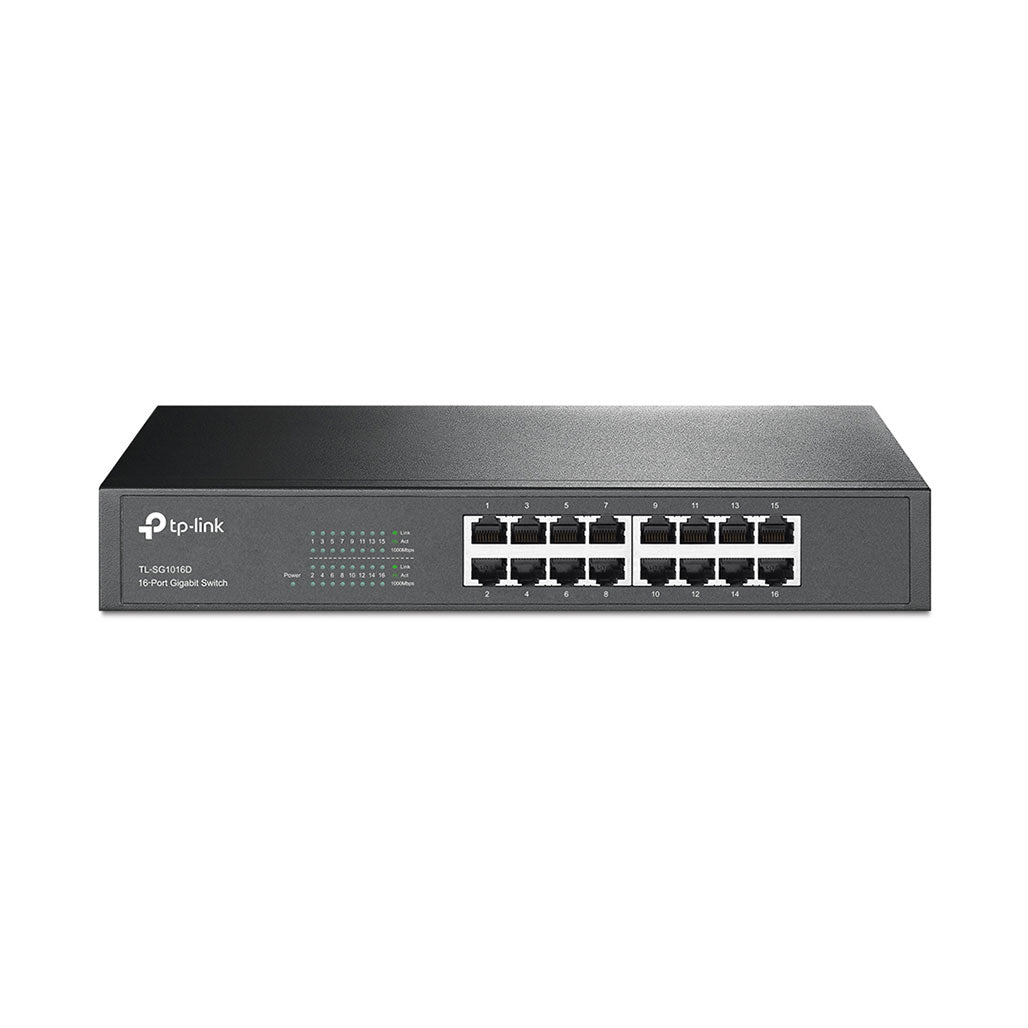

TP-Link TL-SG1016D - 16-Port Gigabit Desktop/Rackmount Switch

The TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch is designed to boost the performance of your network with its high-speed, energy-efficient capabilities. Equipped with 16 auto-negotiation RJ45 ports, this switch provides Gigabit Ethernet connections, allowing seamless integration into your existing setup without the need for complex configurations. Whether mounted on a desktop or installed in a rack, the TL-SG1016D offers the flexibility to meet diverse networking needs in both small office and business environments.

Engineered with TP-Link's innovative Green Technology, the TL-SG1016D minimizes power consumption by automatically adjusting its energy usage based on link status and cable length. This not only reduces operational costs but also lessens the carbon footprint of your network, making it a sustainable choice for expanding network capacity. With its fanless design, the switch operates quietly, ensuring a noise-free environment, which is ideal for workspaces.

Key Features

• 16 Gigabit Ports: The switch features 16× 10/100/1000 Mbps RJ45 ports with Auto MDI/MDIX, offering easy plug-and-play installation without the need for crossover cables.
• Energy-Efficient Technology: Utilizes TP-Link Green Technology to optimize power usage, reducing power consumption and operating costs while supporting eco-friendly networking.
• High Performance: The switch boasts a 32 Gbps switching capacity, a 23.8 Mpps packet forwarding rate, and supports Jumbo Frames up to 10KB, ensuring smooth and efficient data transfer across the network.
• Versatile Design: The compact and fanless design allows for quiet operation, making it suitable for desktop use, while the included rackmount kits provide the option for rack installation in larger setups.
• Ease of Use: Features like Auto MDI/MDIX and auto-negotiation simplify installation, allowing the switch to intelligently adjust link speeds for optimal performance.

Specifications

Hardware Features

• Standards and Protocols:
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
• Interface:
  • 16× 10/100/1000 Mbps RJ45 Ports
  • Auto Negotiation/Auto MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e, or above cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Power Consumption: Maximum: 9.26W (220V/50Hz)
• Dimensions (W x D x H): 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
• Max Power Consumption: 9.95W (220V/50Hz)
• Max Heat Dissipation: 33.93 BTU/h

Performance

• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10KB
• Green Technology: Yes
• Transfer Method: Store-and-Forward

Others

• Certification: FCC, RoHS
• Package Contents:
  • 16-Port Gigabit Desktop/Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch is an ideal solution for those seeking to expand their network with a reliable, high-performance switch that is easy to use and environmentally conscious. With its versatile design, robust performance features, and energy-efficient operation, this switch provides a seamless networking upgrade that supports both productivity and sustainability.
