Ubiquiti POE Adapter Gigabit 24V 1.25A (30W) | POE-24-30W-G-WH | High Efficiency Power over Ethernet

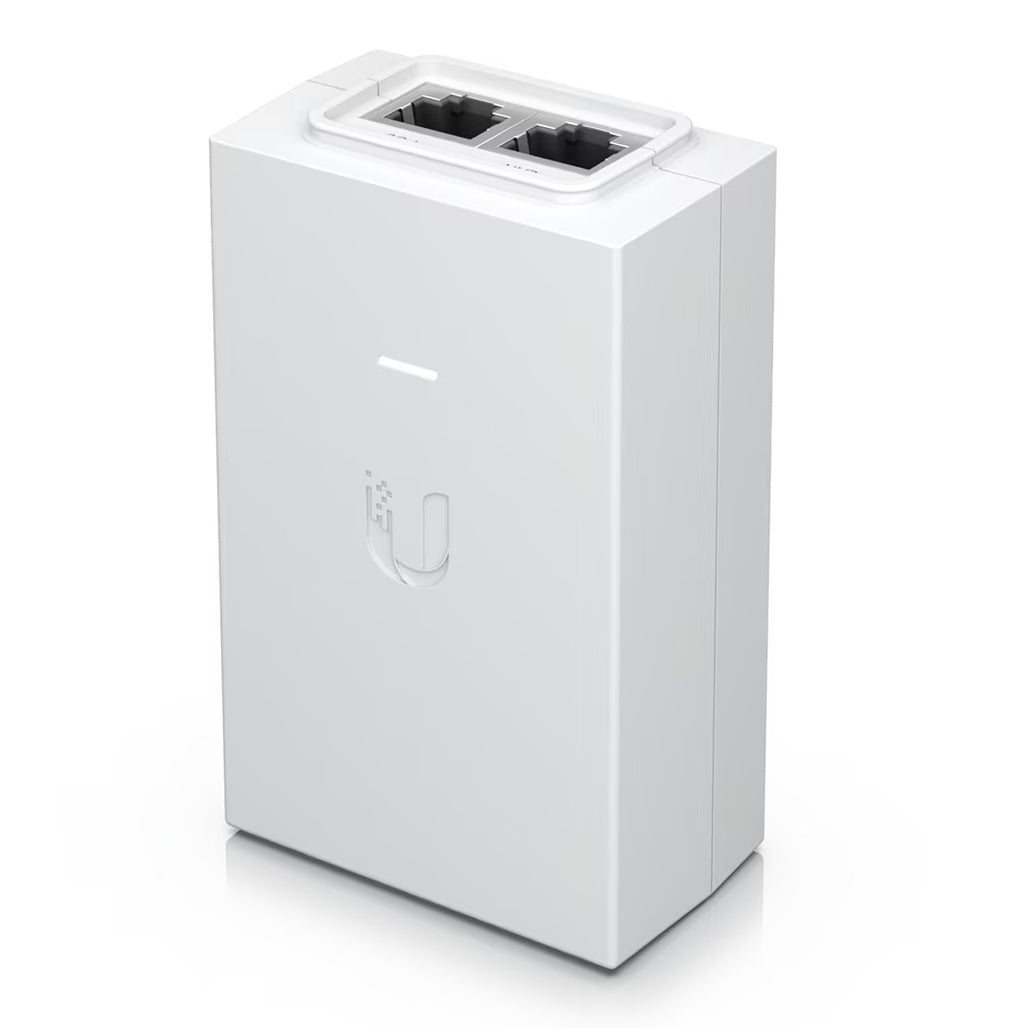

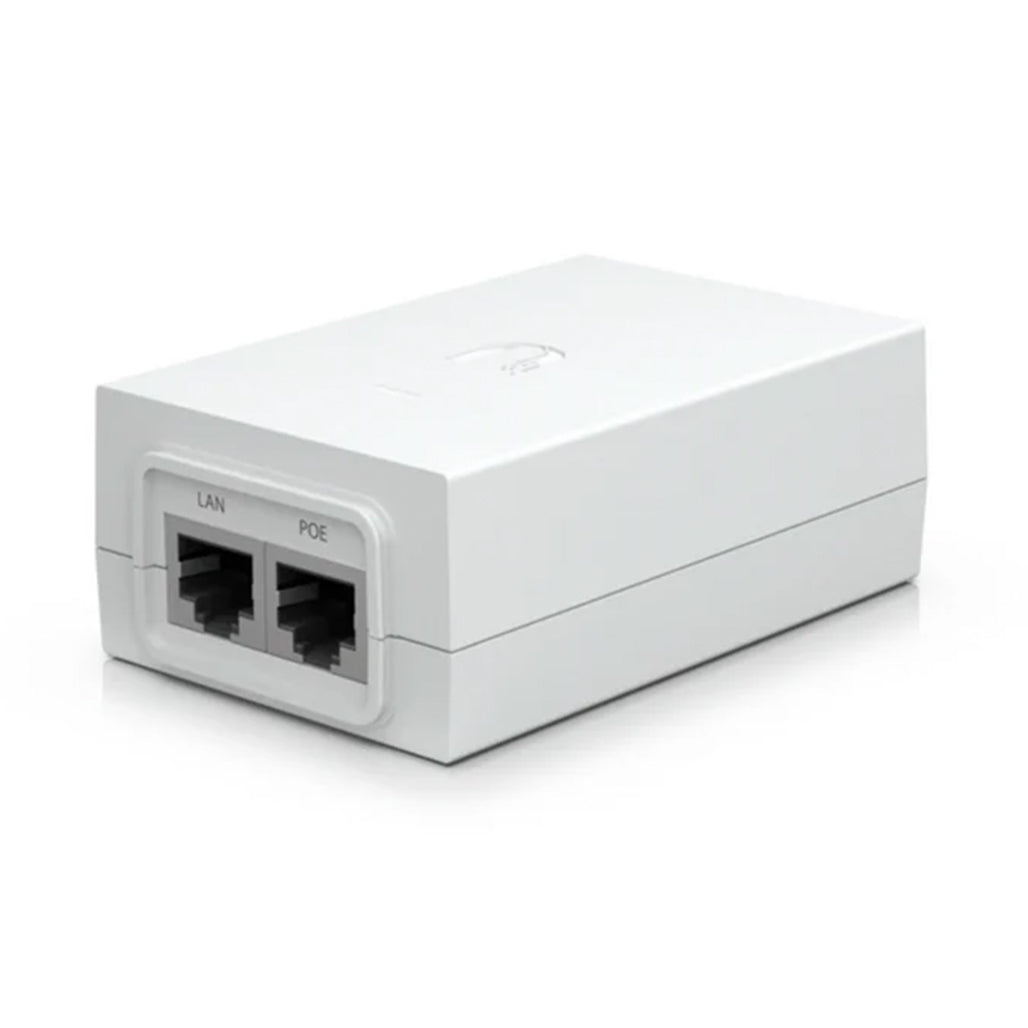

The Ubiquiti POE-24-30W-G-WH is a high-performance Power over Ethernet (PoE) adapter designed to deliver reliable power and data connectivity with precision. This gigabit PoE adapter supports 24V output and provides up to 30W of power, making it ideal for powering network devices in various environments.

With a compact design measuring 94 x 60 x 33 mm (3.70 x 2.36 x 1.30 inches) and weighing just 156 grams (5.5 oz), the adapter is engineered for efficiency and durability. It features a gigabit LAN port for high-speed data transfer and operates with an input voltage range of 100-240VAC at 50/60Hz, ensuring compatibility with a wide range of power sources.

Key Features:

1. High Efficiency:

   • Achieves an efficiency rating of 83%, minimizing energy waste and ensuring reliable performance.

2. Gigabit LAN Port:

   • Equipped with a gigabit LAN port to support high-speed data transfer, crucial for maintaining optimal network performance.

3. Compact Design:

   • Its small form factor (94 x 60 x 33 mm) and lightweight build (156 g) make it easy to integrate into various setups without occupying excessive space.

4. Robust Surge Protection:

   • Provides robust surge protection with 1500A max surge discharge for power and 36A peak pulse current for data, ensuring device safety against power surges.

5. Wide Operating Temperature Range:

   • Operates efficiently within a temperature range of 0 to 40°C (32 to 104°F), and can be stored in conditions ranging from -30 to 70°C (-22 to 158°F).

6. High Voltage and Current Ratings:

   • Delivers an output voltage of 25VDC @ 1.25A and supports inrush currents of <60A peak @ 120VAC and <120A peak @ 230VAC.

7. Durable Construction:

   • Designed with a rugged IEC-320 C6 AC connector and RJ45 shielded socket for reliable power and data connectivity.

8. Safety Certifications:

   • Certified by CE, FCC, IC, and UL, ensuring compliance with international safety standards.

9. Protection Features:

   • Includes differential and common mode surge protection, clamping protection of 11V for data and 60V for power, and a response time of <1 ns to safeguard against electrical disturbances.

Specifications:

• Model: POE-24-30W-G-WH
• Dimensions: 94 x 60 x 33 mm (3.70 x 2.36 x 1.30")
• Weight: 156 g (5.5 oz)
• Output Voltage: 25VDC @ 1.25A
• Gigabit LAN Port: Yes
• Efficiency: 83%
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% Noncondensing
• AC Connector: IEC-320 C6
• Data IN / PoE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Certifications: CE, FCC, IC, UL

In The Box:

• POE Adapter: Ubiquiti POE-24-30W-G-WH Gigabit 24V 30W Adapter
• Guide: Quick Start Guide

The Ubiquiti POE-24-30W-G-WH offers a reliable and efficient solution for delivering power and data to your network devices, with advanced protection features and a compact, robust design.
