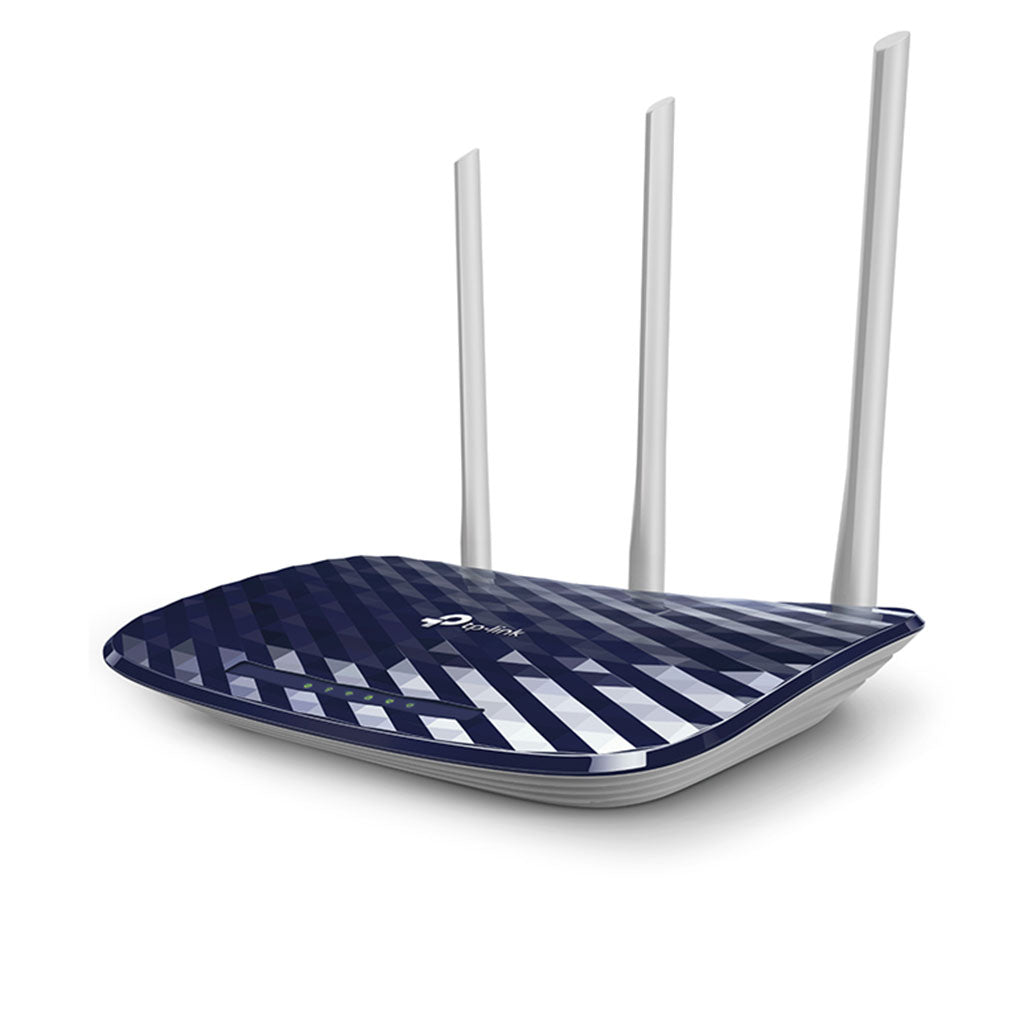

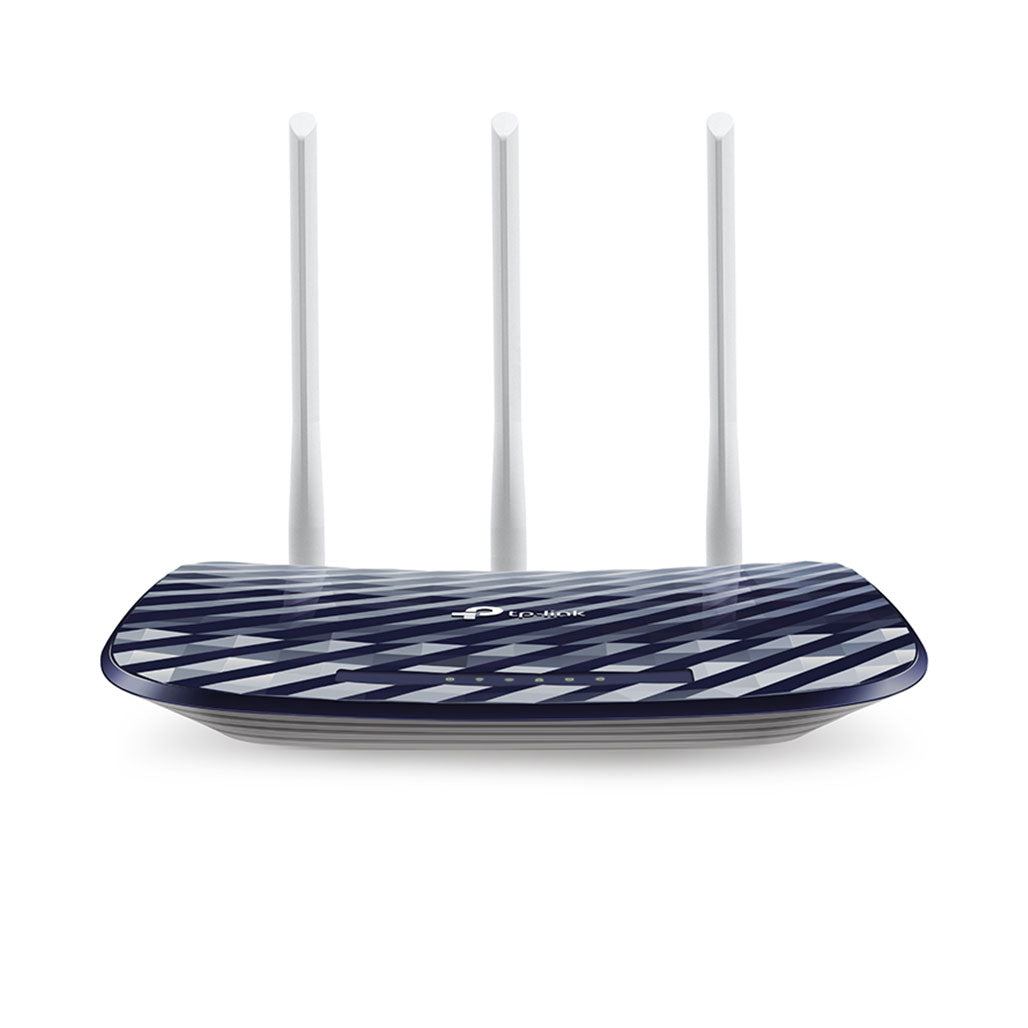

TP-Link Archer C20 - AC750 Wireless Dual Band Router

The TP-Link Archer C20 AC750 Wireless Dual Band Router offers reliable, high-speed connectivity with its dual-band capabilities and versatile features. Designed for efficient internet distribution, this router provides a balance of speed and coverage with its 5 GHz and 2.4 GHz bands. Ideal for medium-sized homes, it supports speeds up to 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, ensuring smooth performance for streaming, gaming, and browsing.

Equipped with three fixed antennas, the Archer C20 enhances signal strength and range, making it suitable for 2-bedroom houses. It supports multiple working modes, including Router, Access Point, and Range Extender modes, providing flexibility to adapt to various networking needs. The router also features comprehensive security options, including WPA/WPA2 encryption and a SPI firewall, to protect your network from unauthorized access.

Key Features:

1. Dual-Band Performance:

   • Supports both 5 GHz and 2.4 GHz bands, with speeds of up to 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, allowing for high-speed internet access and reduced interference.

2. Enhanced Coverage:

   • Three fixed antennas are used to create a broad coverage area, effectively boosting the signal in larger spaces and improving connectivity throughout the home.

3. Flexible Working Modes:

   • The router can be configured in Router, Access Point, or Range Extender modes, offering various options to meet different networking requirements.

4. Robust Security Features:

   • Includes multiple encryption methods (WEP, WPA, WPA2) and network security options such as SPI firewall, Access Control, and IP & MAC Binding to safeguard the network.

5. Guest Network Support:

   • Provides separate guest networks for both 5 GHz and 2.4 GHz bands, ensuring that guests can access the internet securely without compromising the main network.

6. Management and Controls:

   • Managed via the Tether app or web interface, the router includes features such as parental controls, QoS, and DHCP for customized network management.

Specifications:

• Standards:
  • Wi-Fi 5 (IEEE 802.11ac/n/a for 5 GHz, IEEE 802.11n/b/g for 2.4 GHz)
• Wi-Fi Speeds:
  • AC750 (5 GHz: 433 Mbps, 2.4 GHz: 300 Mbps)
• Wi-Fi Range:
  • Suitable for 2 Bedroom Houses
• Antennas:
  • 3× Fixed Antennas
• Wi-Fi Capacity:
  • Medium
• Working Modes:
  • Router Mode
  • Access Point Mode
  • Range Extender Mode
• Processor:
  • Single-Core CPU

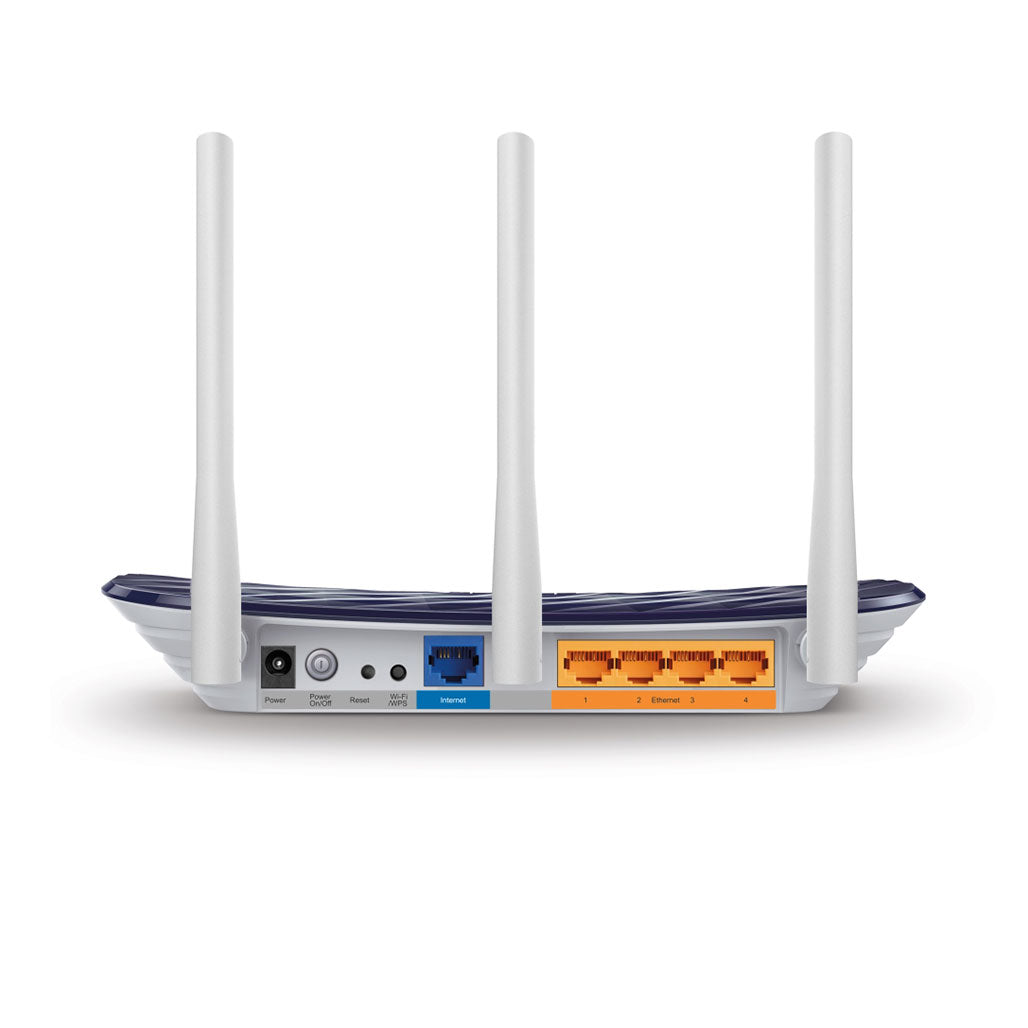

• Ethernet Ports:
  • 1× 10/100 Mbps WAN Port
  • 4× 10/100 Mbps LAN Ports
• Buttons:
  • WPS/Wi-Fi Button
  • Power On/Off Button
  • Reset Button
• Power:
  • 9 V ⎓ 0.6 A
• Wi-Fi Encryption:
  • WEP
  • WPA
  • WPA2
  • WPA/WPA2-Enterprise (802.1x)
• Network Security:
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
• Guest Network:
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
• Protocols:
  • IPv4
  • IPv6
• Parental Controls:
  • URL Filtering
  • Time Controls
• WAN Types:
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
• Quality of Service:
  • QoS by Device
• NAT Forwarding:
  • Virtual Server
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
• IPTV:
  • IGMP Proxy
  • IGMP Snooping
• DHCP:
  • Address Reservation
  • DHCP Client List
  • Server
• DDNS:
  • NO-IP
  • Comex
  • DynDNS
• Management:
  • Tether App
  • Webpage

The TP-Link Archer C20 AC750 Wireless Dual Band Router delivers robust performance with its dual-band capability and multiple operational modes, making it a versatile choice for various home networking needs. Its high-speed wireless connectivity and comprehensive security features ensure a reliable and secure internet experience.
