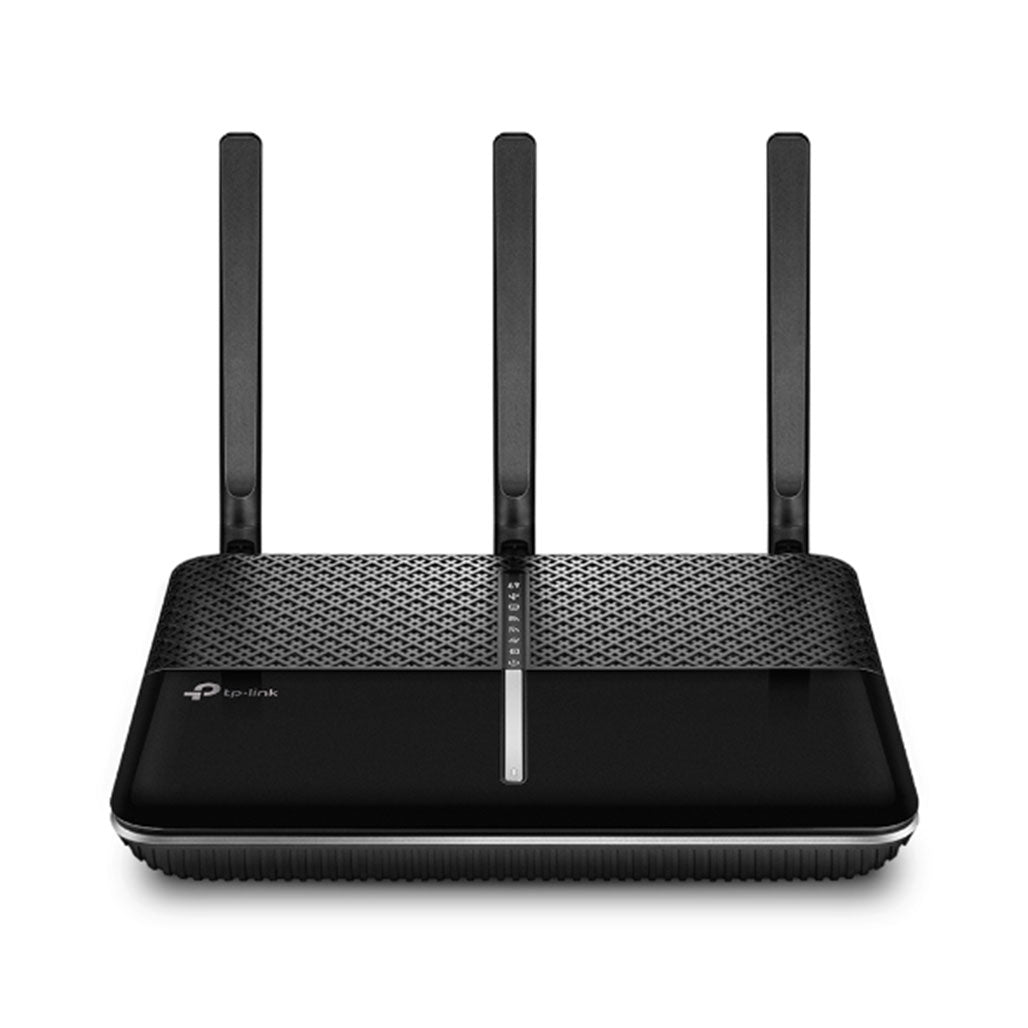

The TP-Link Archer VR2100 AC2100 Wireless MU-MIMO VDSL/ADSL Modem Router is designed to deliver exceptional connectivity and high-speed internet access for both VDSL and ADSL networks. With its advanced features and high-performance capabilities, this modem router provides a seamless online experience for various applications, from streaming and gaming to heavy data usage.

Featuring dual-band wireless technology, the Archer VR2100 supports speeds of up to 1733 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. The inclusion of three external dual-band antennas, alongside an internal 5 GHz antenna, ensures broad coverage and reliable signal strength throughout your home. The device supports multiple wireless standards, including IEEE 802.11ac and IEEE 802.11n, to ensure compatibility with a wide range of devices.

The Archer VR2100 is equipped with a variety of ports, including three Gigabit LAN ports, one Gigabit LAN/WAN port, one RJ11 port, and one USB port, providing flexibility for various connectivity needs. The modem router also features comprehensive security options, including NAT and SPI firewalls, access control, and VPN support, ensuring a secure and protected network environment.

Key Features

• High-Speed Dual Band WiFi: Achieves speeds of up to 1733 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, accommodating high-demand internet activities.
• Comprehensive Connectivity: Includes three Gigabit LAN ports, one Gigabit LAN/WAN port, one RJ11 port, and one USB port for versatile connectivity options.
• Advanced Antenna System: Equipped with three external dual-band antennas and one internal 5 GHz antenna for enhanced wireless coverage and stability.
• Robust Security Features: Provides NAT firewall, SPI firewall, access control, and support for OpenVPN, PPTP VPN, and IPSec VPN for secure network management.
• Flexible Operating Modes: Functions as a VDSL/ADSL modem router, 3G/4G router, and wireless router, accommodating various network setups.

Specifications

Hardware

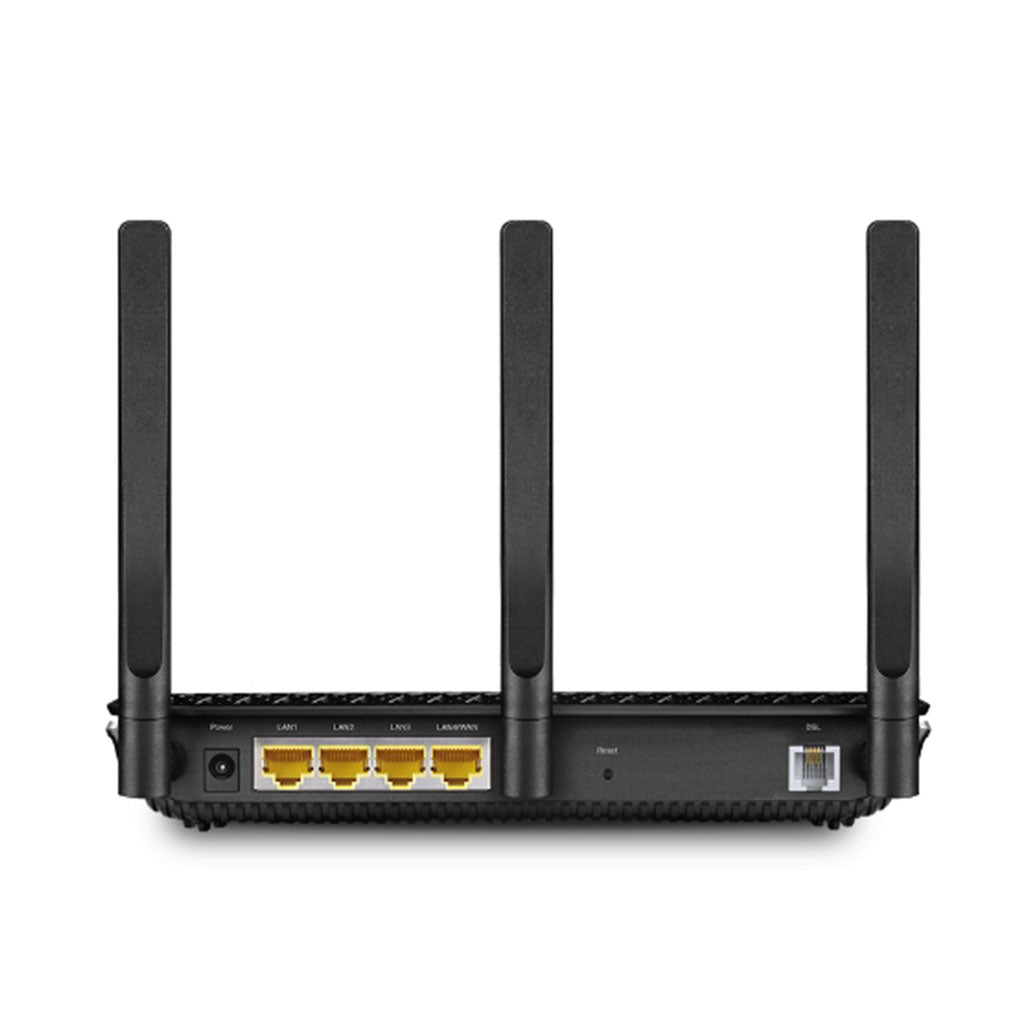

• Ports: 3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port, 1 USB Port
• Button: WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED On/Off Button
• External Power Supply: 12V/1.5A
• IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab
• VDSL2 Standards: ITU G.993.2, Up to 35b profile (POTS), ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
• ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite)
• ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis)
• ADSL2+ Standards: ITU-T G.992.5
• Dimensions (W x D x H): 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm)
• Antenna Type: 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna

Wireless

• Standards: IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate:
  • 5 GHz: 1733 Mbps
  • 2.4 GHz: 300 Mbps
• Transmit Power: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Wireless Schedule: Support 2.4 GHz and 5 GHz Wireless Schedule

Software

• Security: NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
• Operating Modes: VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router
• Management: Web-Based Configuration (HTTP / HTTPS), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
• DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
• Dynamic DNS: DynDns, NO-IP, TP-Link
• VPN: OpenVPN, PPTP VPN, IPSec VPN
• Protocols: Supports IPv4 and IPv6
• ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER/IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
• Advanced Features: Parental Controls, Network Address Translation (NAT), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
• Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
• IPSec VPN: Supports up to 10 IPSec VPN tunnels

Other

• Certification: CE, RCM, RoHS
• Package Contents: DSL Modem Router, External Splitter, RJ11 DSL Cable, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser; Subscription with an internet service provider (for internet access)
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link Archer VR2100 AC2100 Wireless MU-MIMO VDSL/ADSL Modem Router is a powerful solution for users needing both high-speed internet and versatile connectivity options. With its dual-band wireless capabilities, extensive port selection, and robust security features, it caters to a range of networking needs, from everyday browsing to demanding applications. The modem router’s comprehensive management options and support for multiple operating modes further enhance its flexibility and performance, making it a valuable asset for any home or small office network.
