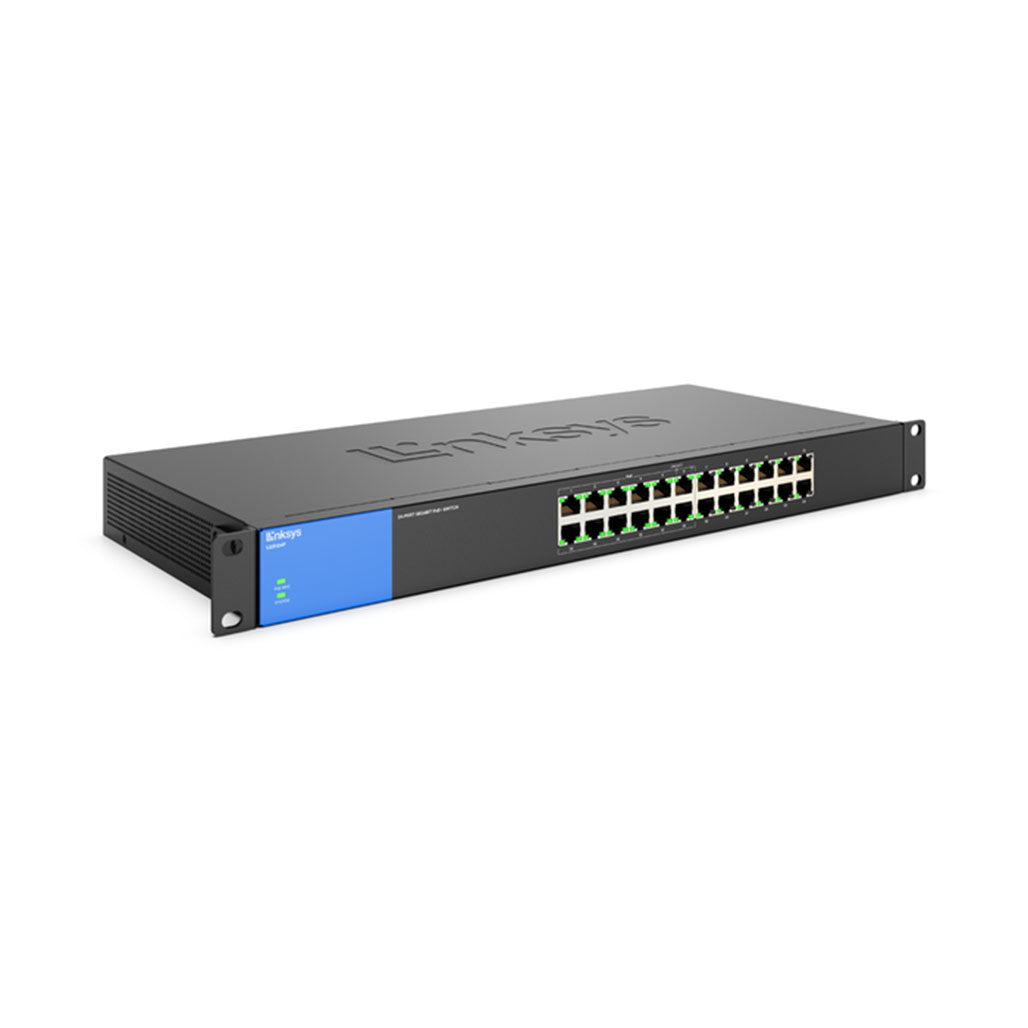

Linksys LGS124P - 24-Port Business Gigabit PoE+ Switch

The Linksys 24-Port Business Gigabit PoE+ Switch LGS124P is designed to optimize your wired network, offering unparalleled performance and reliability. This switch enables seamless data transfer with its 24 Gigabit Ethernet ports, ensuring that every device connected to your network can operate at full speed. The integration of Power over Ethernet Plus (PoE+) support allows for efficient power distribution to compatible devices, reducing the need for additional power sources and simplifying installation.

With features like Quality of Service (QoS) and compliance with the Energy Efficient Ethernet (EEE) 802.3az standard, this switch not only enhances network performance but also contributes to energy savings. The plug-and-play setup ensures that the switch can be easily integrated into your existing network infrastructure, making it an ideal choice for businesses looking to expand or upgrade their network capabilities.

Key Features:

• Gigabit Ethernet Performance: Supports wired connection speeds up to 1,000 Mbps, ensuring fast and stable data transfer across your network.
• 24 Autosensing Ports: All ports are capable of automatically detecting network speeds, optimizing connectivity for each device.
• Power over Ethernet Plus (PoE+): Provides power to compatible devices directly through Ethernet cables, reducing the need for separate power sources.
• Energy Efficiency: Complies with EEE 802.3az standards, which help to reduce energy consumption without sacrificing performance.
• Quality of Service (QoS): Ensures that critical network traffic, such as voice or video, is prioritized for smoother operation.
• Easy Installation: The switch is designed for easy plug-and-play installation, allowing for quick and hassle-free setup.

Specifications (Rewritten):

• Power Consumption: Operates at 7.79 W for typical use, with a maximum of 17.65 W.

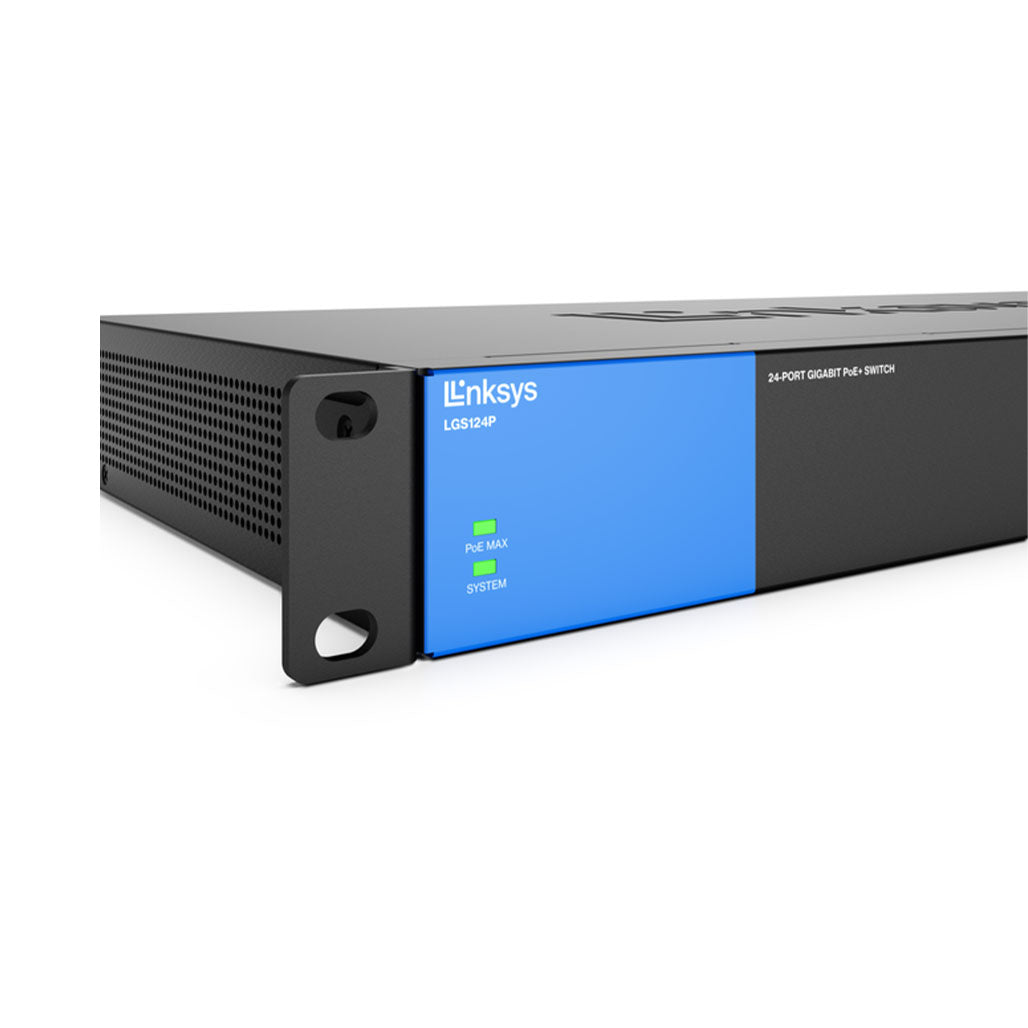

• LED Indicators: Features LEDs for link, speed, activity, and PoE status.
• Dimensions: Measures 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.).
• Weight: Weighs 2.758 kg (6.08 lbs).
• System Requirements: Requires devices with Ethernet connectivity and Ethernet cables.
• Operating Conditions: Functions optimally at humidity levels of 10–90% (non-condensing) and temperatures between 0–50°C (32–122°F).
• Ports Configuration: Includes 24 ports, with 12 PoE+ enabled ports (ports 1–6 and 13–18) and a dedicated PoE power budget of 120 W.
• Mounting Options: Suitable for rack mounting.
• Power Input: Operates on 100–240 VAC, 50/60 Hz.
• Quality of Service: Supports 802.1p and DSCP standards.
• Storage Conditions: Can be stored at temperatures ranging from -40–70°C (-40–158°F) and humidity levels of 10–90% (non-condensing).
• MAC Address Table: Capable of handling up to 8,000 entries.
• Performance: Delivers 0.01488 Mpps for 10M ports, 0.1488 Mpps for 100M ports, and 1.488 Mpps for 1000M ports.
• Regulatory Compliance: Adheres to FCC Class A, CE, UL, and CB standards.
• Maximum Power Consumption: 8.69 W for typical use, with a peak of 19.27 W.
• Cooling: Equipped with one fan.
• Power Saving Features: Includes cable detection and sleep mode to conserve energy.
• Supported Network Standards: Compatible with 802.3at (PoE+), IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x standards.
• Bandwidth: Offers a non-blocking bandwidth of 48 Gbps.

Conclusion: The Linksys 24-Port Business Gigabit PoE+ Switch LGS124P is an essential addition for any business looking to enhance network efficiency and reliability. With its advanced features, energy-saving capabilities, and robust performance, this switch ensures that your network is always operating at its best.
