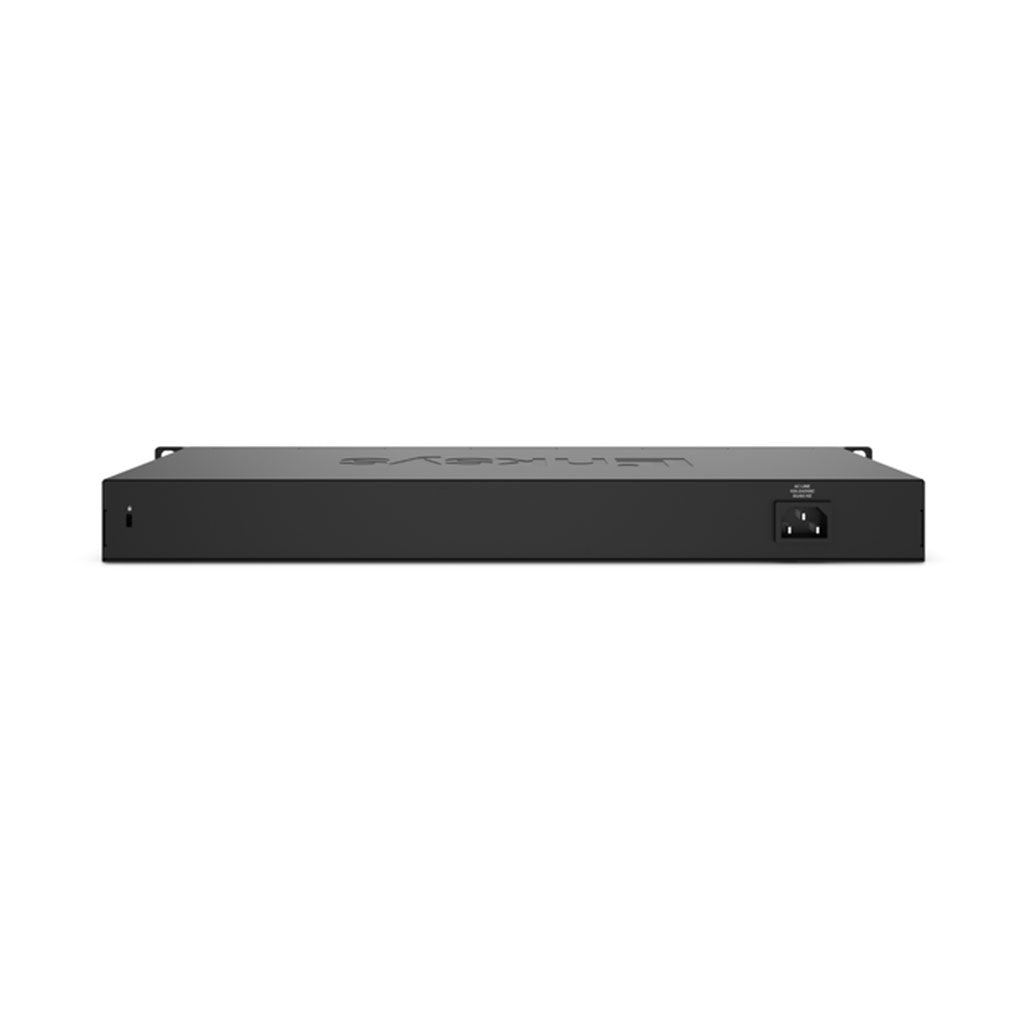

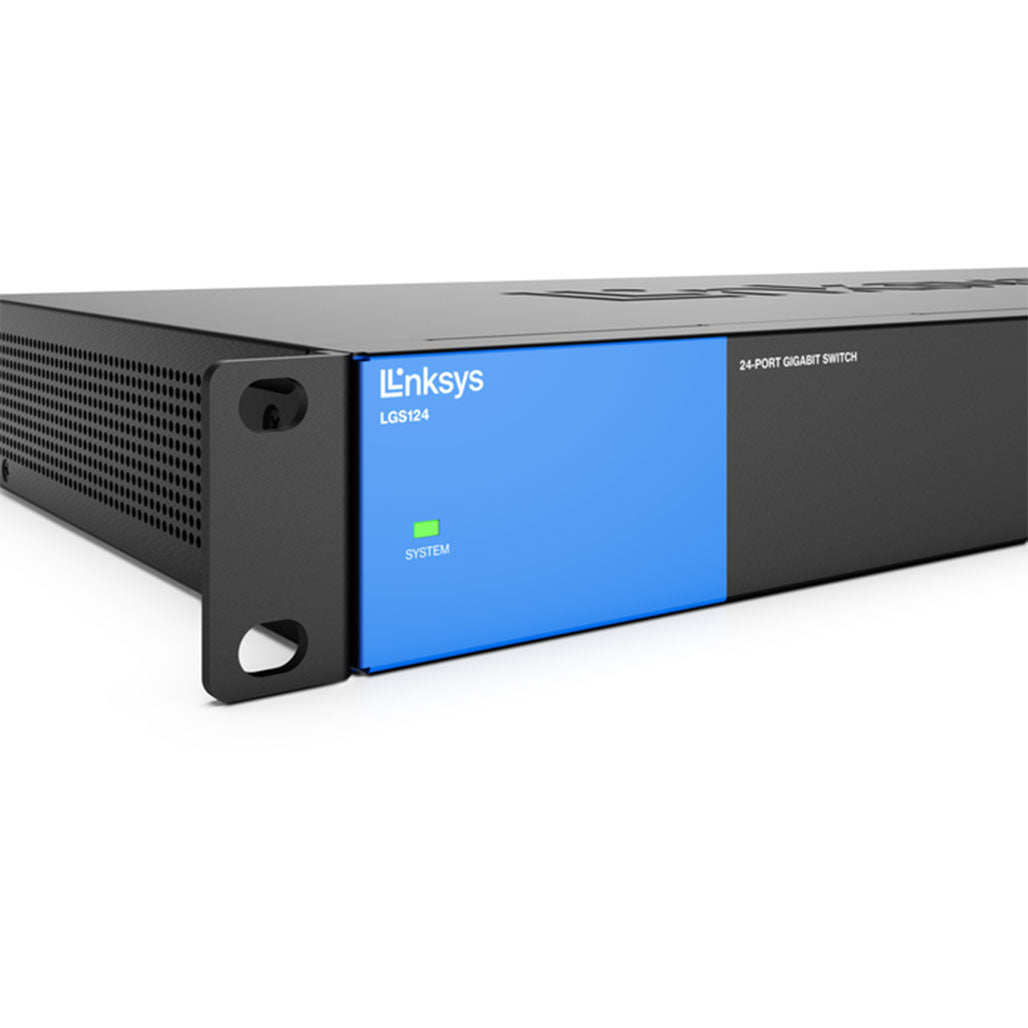

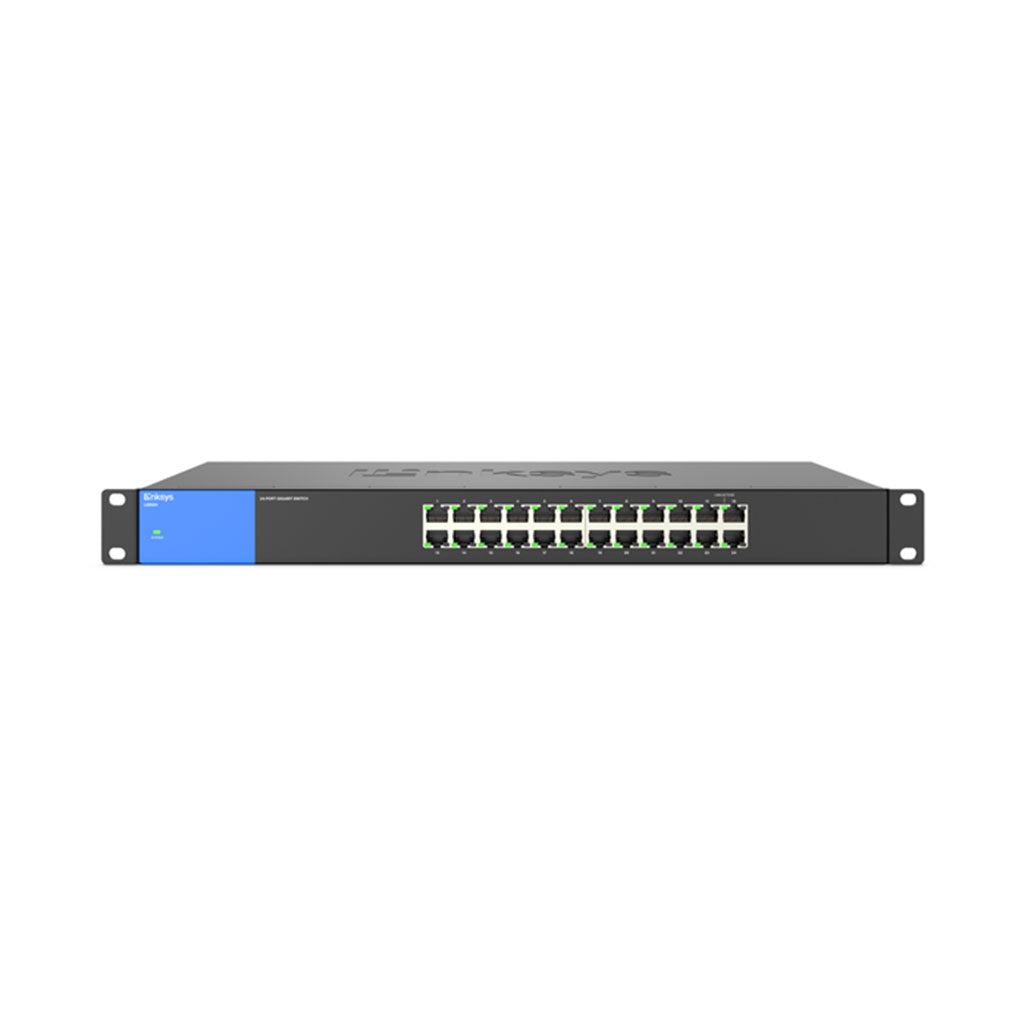

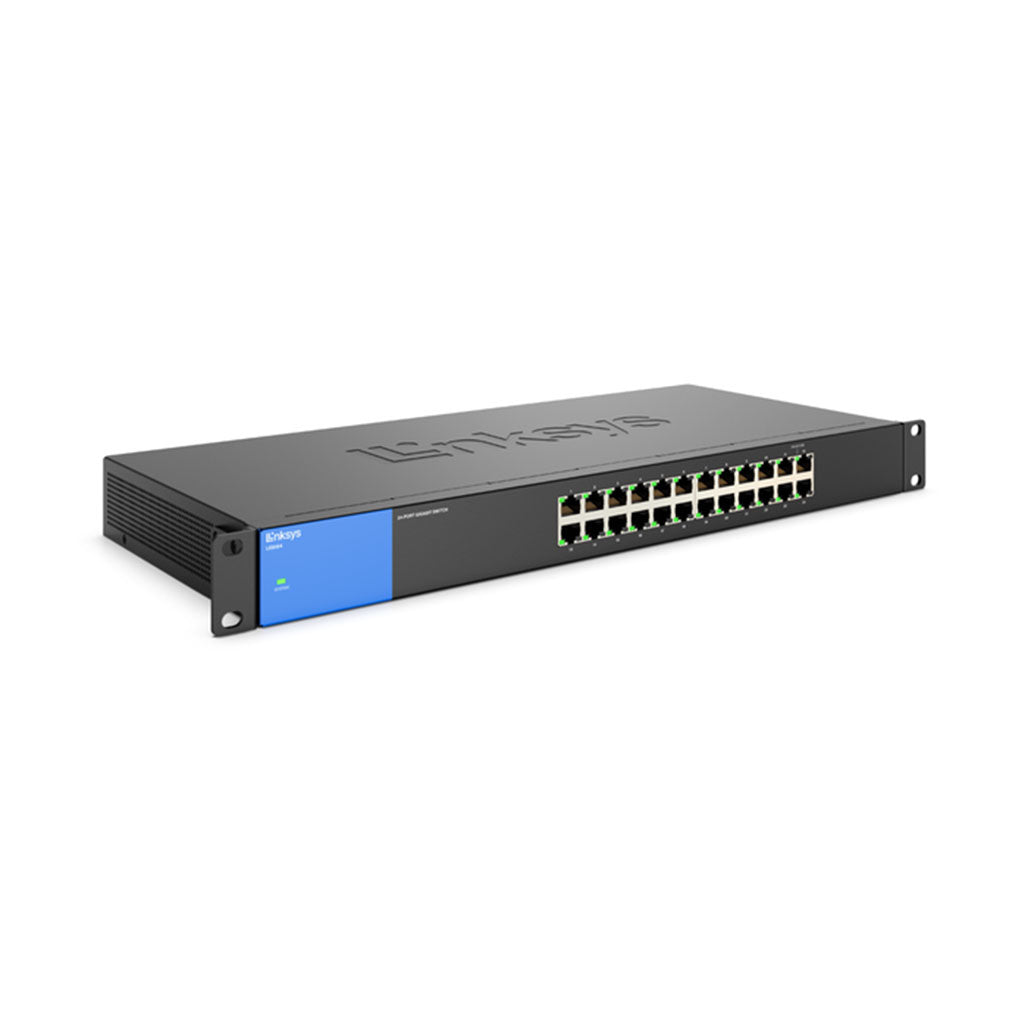

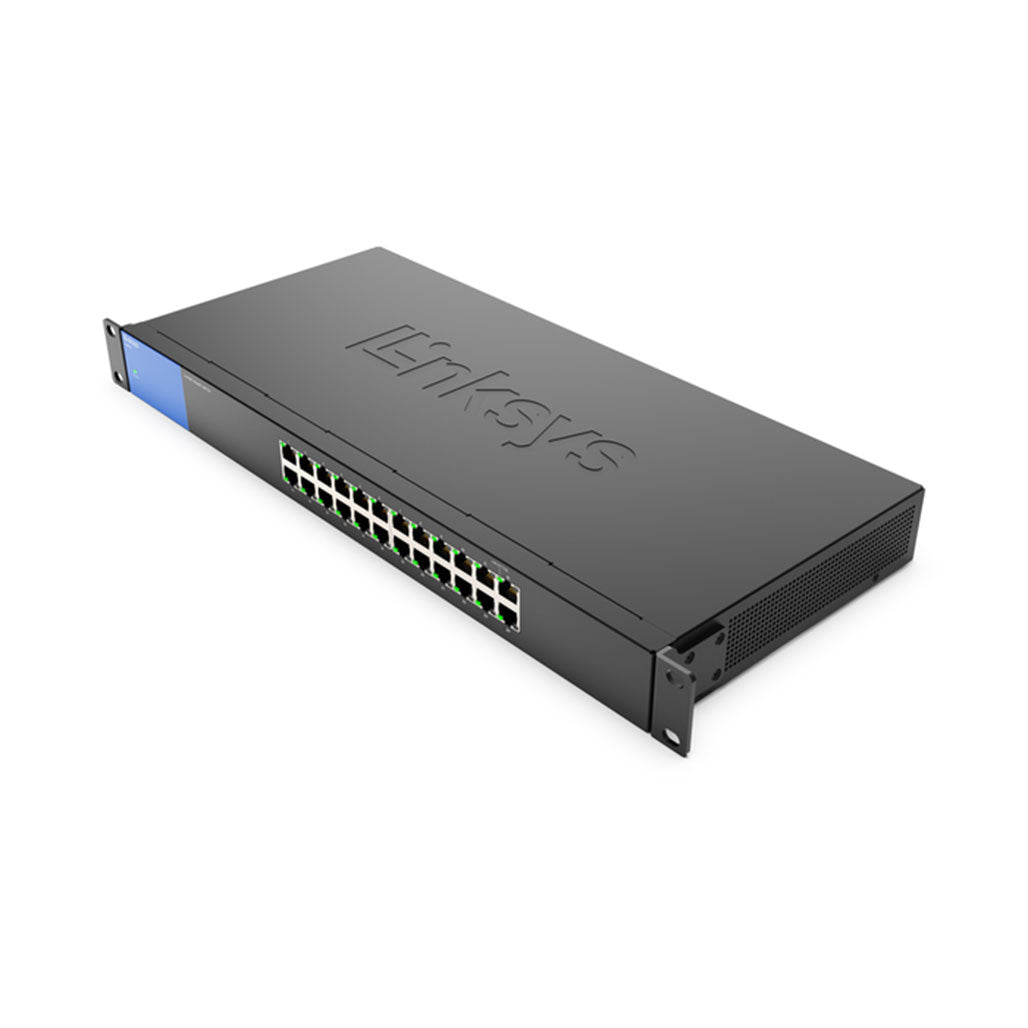

Linksys LGS124 - 24-Port Business Gigabit Unmanaged Switch

The Linksys LGS124 24-Port Business Gigabit Unmanaged Switch offers a powerful and efficient networking solution for growing businesses. With its 24 auto-sensing Gigabit Ethernet ports, this switch ensures seamless data transfers at speeds up to 1000 Mbps, making it an ideal choice for high-bandwidth applications. Designed to simplify network setup, the switch features a plug-and-play configuration that eliminates the need for complex installations, allowing for immediate use.

Supporting the Energy Efficient Ethernet (EEE) 802.3az standard, the Linksys LGS124 helps reduce power consumption without sacrificing performance. The Quality of Service (QoS) feature prioritizes traffic, ensuring that critical applications receive the bandwidth they need, maintaining smooth and reliable network performance. This switch is perfect for businesses that require a robust and easy-to-manage network infrastructure.

Key Features:

• High-Speed Connectivity: Wired connection speeds of up to 1000 Mbps ensure fast and reliable data transfers, suitable for demanding business applications.
• 24 Gigabit Ports: The switch is equipped with 24 auto-sensing Gigabit Ethernet ports, providing ample connectivity for a wide range of devices, enhancing overall network efficiency.
• Plug-and-Play Configuration: The easy plug-and-play setup allows for quick deployment, eliminating the need for specialized network configurations.
• Energy Efficient Ethernet (EEE): Compliant with the IEEE 802.3az standard, the switch optimizes energy usage, reducing power consumption while maintaining high performance.
• Quality of Service (QoS): Ensures that important data traffic is prioritized, providing consistent performance for essential business operations.

Specifications:

• Switch Type: Unmanaged
• Switch Ports: 24
• Power Consumption: 3.62W/11.89W
• LEDs: Link, speed, and activity indicators
• Dimensions (LxWxH): 440 x 201 x 44mm
• Weight: 2.290 kg
• Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables
• Operating Humidity: 10–90% (non-condensing)
• Operating Temperature: 0–50°C
• Ports: 24 Gigabit Ethernet (10/100/1000) Ports
• Mounting: Rack
• Quality Of Service: 802.1p and DSCP
• Storage Temperature: -40–70°C
• MAC Address Table Size: 8,000 entries
• Performance:
  • 0.01488 Mpps for 10M port
  • 0.1488 Mpps for 100M port
  • 1.488 Mpps for 1000M port
  • Full line rate and forwarding rate of 64B frame at
• Power: 110–240 VAC, 50/60 Hz
• Regulatory Compliance: FCC Class A, CE
• Fans: None
• Power Consumption: 4.39 W / 14.16 W
• Storage Humidity: 10–90% (non-condensing)
• Power Saving: Cable connected detection, sleep mode
• Network Standards:
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
• Bandwidth: 48 Gbps (non-blocking)

Conclusion:

The Linksys LGS124 24-Port Business Gigabit Unmanaged Switch is a reliable and energy-efficient choice for businesses looking to enhance their network infrastructure. With its high-speed connectivity, easy setup, and robust performance features, this switch is well-suited to support the growing demands of any business environment.
