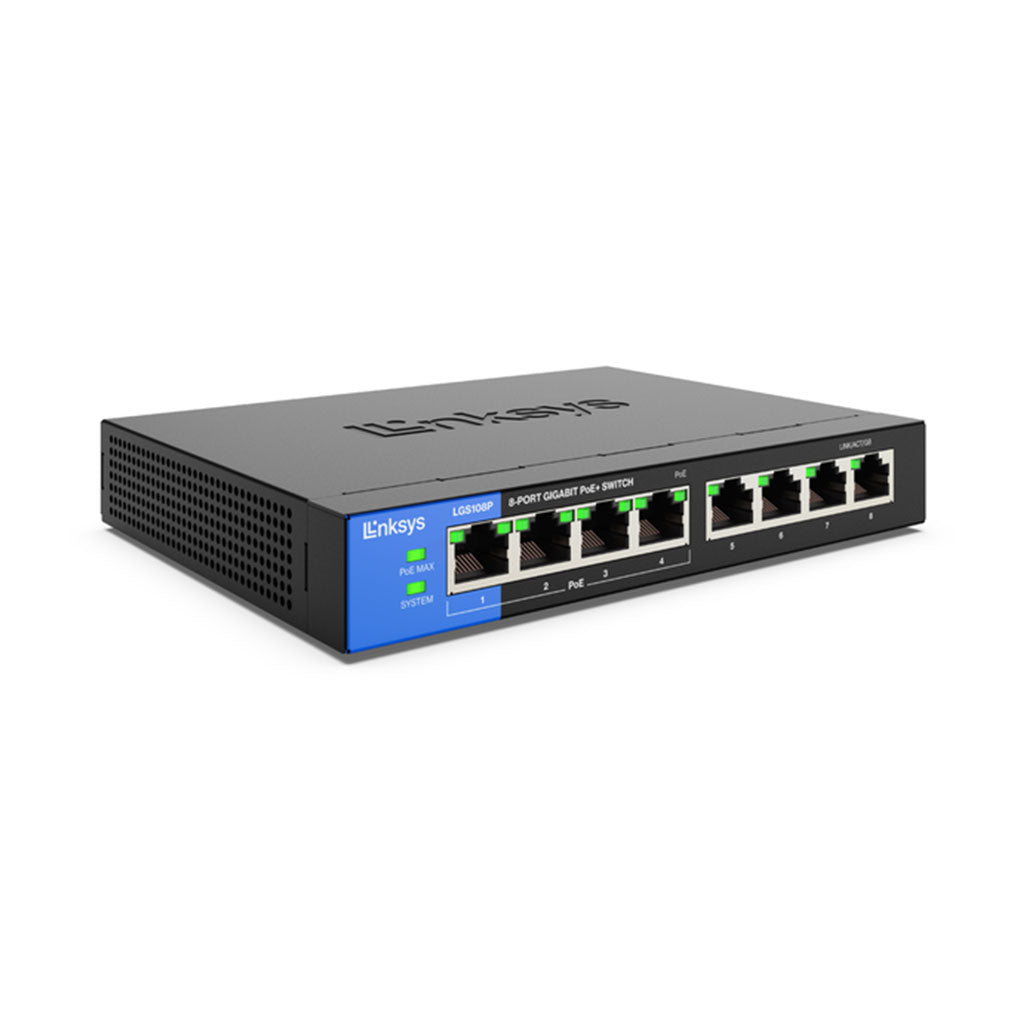

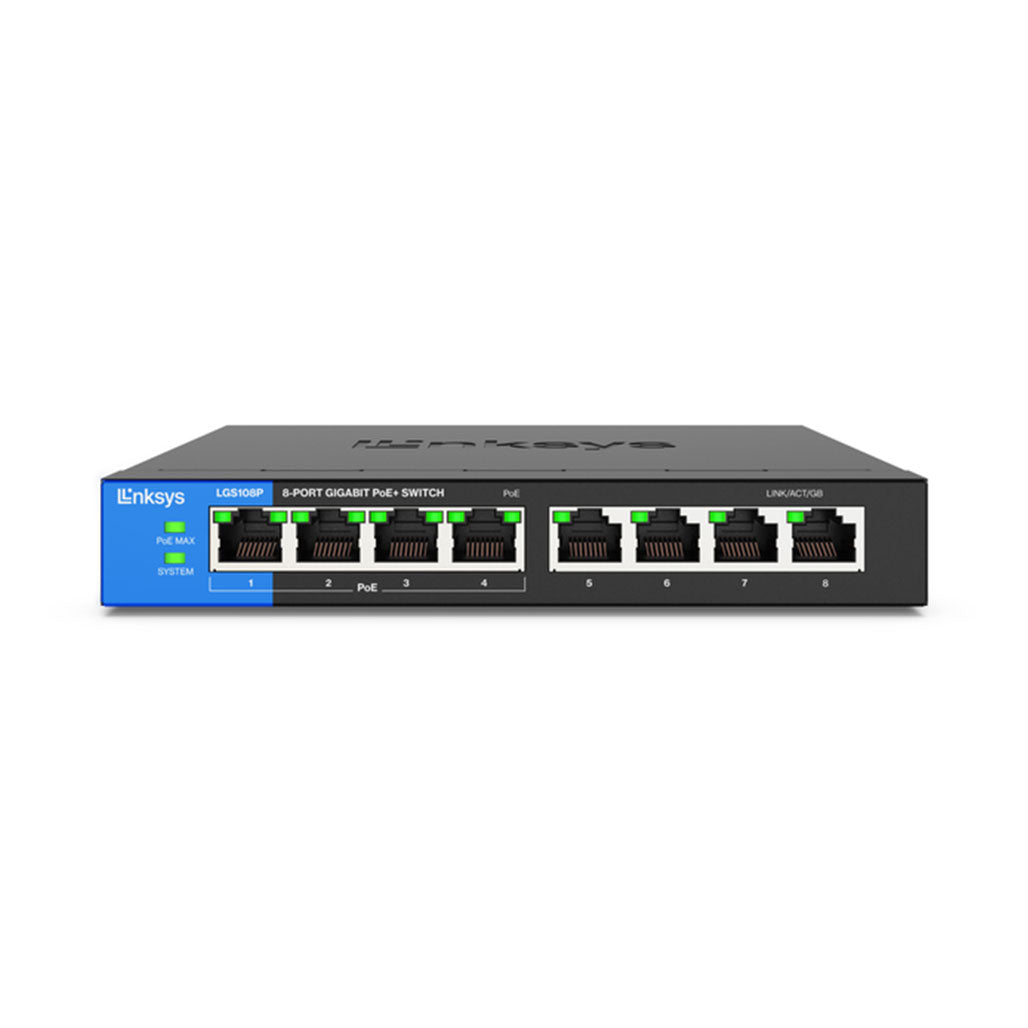

Linksys LGS108P - 8-Port Gigabit Unmanaged PoE+ Switch with 50W Power Budget

The Linksys LGS108P 8-Port Gigabit Unmanaged PoE+ Switch delivers reliable and fast network connectivity, making it an essential addition to any business environment. Designed to handle high-bandwidth applications, this switch allows seamless data transfers and supports Power over Ethernet (PoE+) to power compatible devices directly through the Ethernet cables. This eliminates the need for additional power sources, reducing clutter and simplifying setup. Whether managing IP cameras, VoIP phones, or wireless access points, this switch ensures smooth operations and enhances productivity.

With its plug-and-play setup, the Linksys LGS108P is user-friendly and requires minimal configuration. The switch is built to meet the Energy Efficient Ethernet (EEE) 802.3az standard, ensuring reduced power consumption without compromising performance. The Quality of Service (QoS) feature prioritizes network traffic, allowing critical data to flow smoothly and ensuring that your business operations remain uninterrupted.

Key Features:

• High-Speed Connectivity: Supports wired connection speeds up to 1,000 Mbps, enabling rapid data transfer for demanding applications.
• Power over Ethernet (PoE+): Equipped with 4 PoE+ ports, this switch provides a 50W power budget to power compatible devices, simplifying installations and reducing the need for additional power adapters.
• Ease of Use: The plug-and-play feature allows for a quick and hassle-free setup, ideal for users who require reliable networking without the complexity of configuration.
• Energy Efficiency: Compliant with the IEEE 802.3az standard, this switch is designed to minimize power consumption, making it a cost-effective solution for your networking needs.
• Quality of Service (QoS): Ensures that high-priority traffic is delivered efficiently, maintaining optimal performance for critical applications.

Specifications:

• Switch Type: Unmanaged
• Switch Ports: 8
• PoE+ Budget: 50W
• PoE Support: Yes
• Power Consumption: 3.83 W / 7.0 W
• LEDs: Link, speed, activity, and PoE indicators
• Dimensions (LxWxH): 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)
• Weight: 0.50 kg (1.10 lbs)
• Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables
• Operating Humidity: 10–90% (non-condensing)
• Operating Temperature: 0–50°C (32–122°F)
• Ports: 8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W
• Mounting: Wall
• Quality Of Service: 802.1p and DSCP
• Storage Temperature: -40–70°C (-40–158°F)
• MAC Address Table Size: 8,000 entries
• Performance: 0.01488 Mpps for 10M port, 0.1488 Mpps for 100M port, 1.488 Mpps for 1000M port
• Power: 54 VDC, 1.2 A
• Regulatory Compliance: FCC Class A, CE
• Maximum Power Consumption: 1.71 W / 5.08 W
• Fans: None
• Storage Humidity: 10–90% (non-condensing)
• Power Saving: Cable connected detection, sleep mode
• Network Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at (PoE+), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Bandwidth: 16 Gbps (non-blocking)

Conclusion:

The Linksys LGS108P 8-Port Gigabit Unmanaged PoE+ Switch is an excellent choice for businesses looking to enhance their network's efficiency and performance. Its robust features, combined with ease of use and energy efficiency, make it a valuable asset for any network infrastructure.
