Logitech Tap Scheduler – 10.1” Meeting Room Scheduling Panel

A professional meeting room scheduling solution is provided by the Logitech Tap Scheduler in Graphite, designed to improve workspace efficiency and simplify room booking management. A clear 10.1-inch touchscreen display is featured, allowing meeting availability to be viewed instantly and rooms to be reserved for both ad hoc and scheduled meetings. Seamless integration is supported with leading platforms such as Microsoft Teams Rooms, Zoom Rooms, and other enterprise scheduling systems, ensuring a unified collaboration environment across modern workplaces.

A clean and professional installation is achieved through flexible mounting options and integrated cable management, making the device suitable for glass, wall, and mullion installations. A purpose-built design is maintained with a slim profile, oleophobic coating, and availability lighting for quick visibility. Reliable performance is ensured through enterprise-grade hardware, Power over Ethernet connectivity, and remote management capabilities via Logitech Sync, making it suitable for scalable deployment across office environments.

Key Features:

• A 10.1-inch IPS capacitive multi-touch display is provided for clear visibility and smooth interaction.

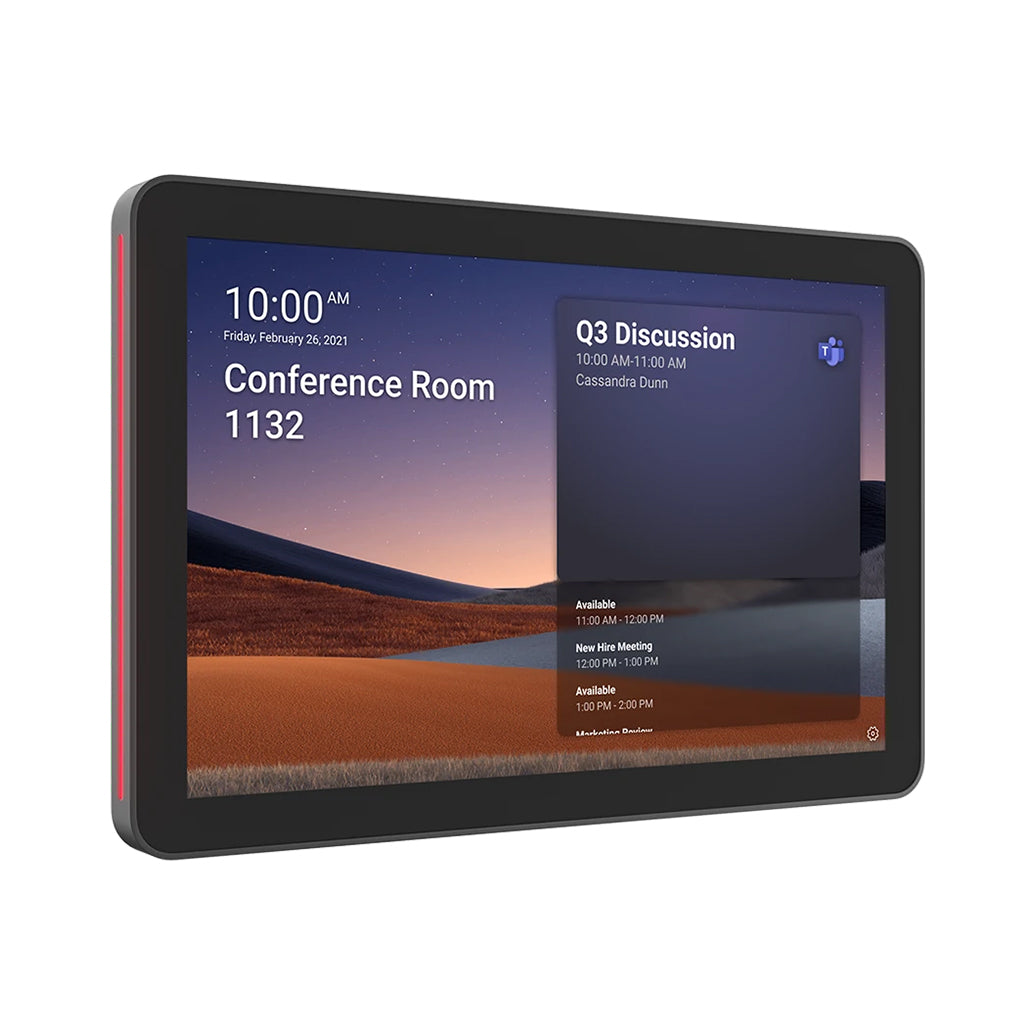

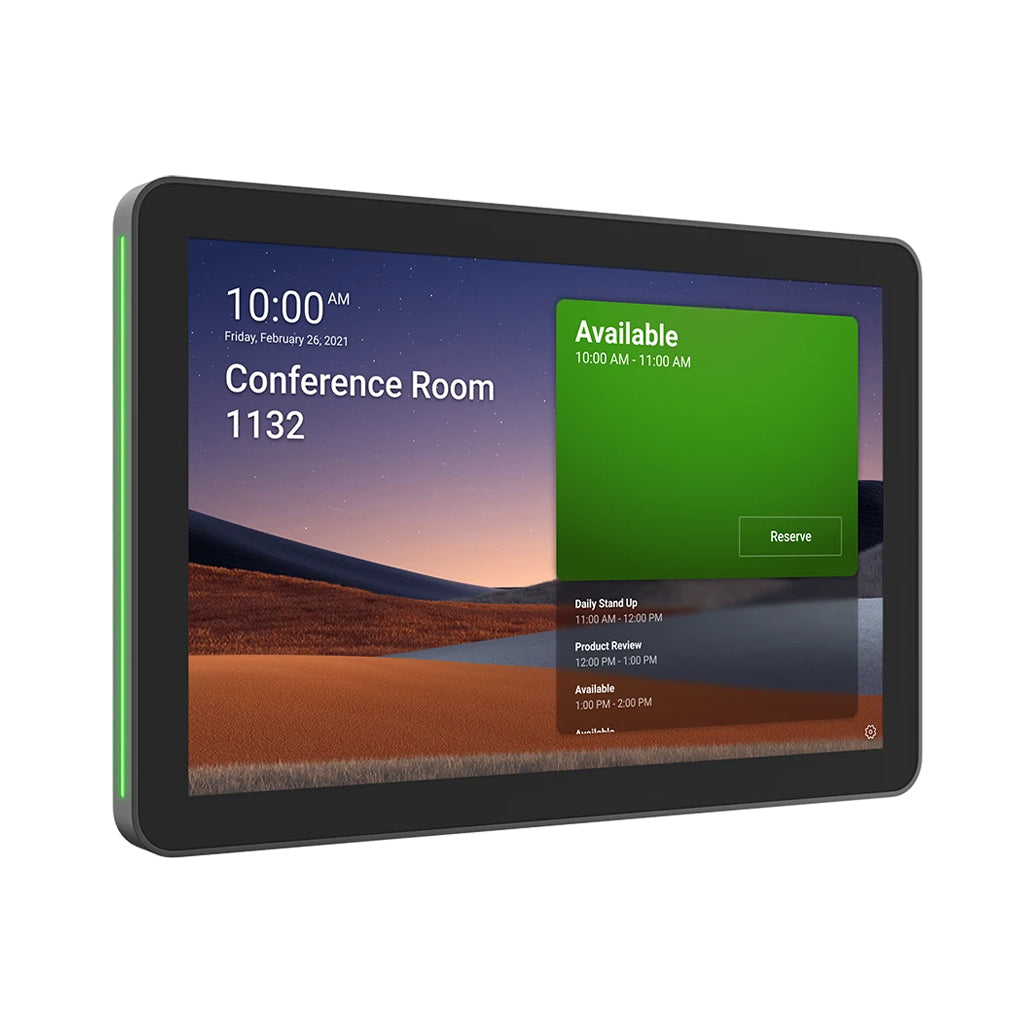

• Meeting room availability is displayed in real time using integrated status lighting.
• Installation flexibility is enabled through glass, wall, and mullion mounting options.
• A clean appearance is maintained with flush mounting and integrated cable management.
• Smudge resistance is improved through an oleophobic anti-fingerprint coating.
• Remote management and monitoring are supported via Logitech Sync.
• Enterprise deployment is simplified through Power over Ethernet (PoE) connectivity.
• Compatibility is ensured with Microsoft Teams Rooms, Zoom Rooms, and multiple scheduling platforms.

Specifications & Details:

Part Number
Graphite : 952-000091

Dimensions
Device-only
Height: 6.5 in (165 mm)
Width: 9.69 in (246.2 mm)
Depth: 1.12 in (28.5 mm)
Weight: 700 g (24.7 oz)

Surface-mounted
Height: 6.5 in (165 mm)
Width: 9.69 in (246.2 mm)
Depth: 1.24 in (31.4 mm)

Mullion-mounted
Height: 6.5 in (165 mm)
Width: 11.52 in (292.6 mm)
Depth: 1.75 in (44.5 mm)

Technical Specifications
Screen
Size: 10.1” (256.54 mm) diagonal
IPS (In-Plane Switching)
LCD Panel with LED Backlighting
Resolution: 1280 x 800 resolution
Touch: Capacitive, 10 points multi-touch
Brightness: 400 nits
Contrast: 1000:1
Anti Fingerprint: Oleophobic coating
Viewing angle: 85 degrees (U/D/L/R)
Position angle: 0 degrees (flat on mounting surface)

General Specifications
Integrated accelerometer
Integrated ambient light sensor
100 mm x 100 mm VESA FDMI
Cable exits: horizontal / vertical / center

COMPATIBILITY AND CERTIFICATIONS
Logitech Room Booking
Microsoft Teams Panel
Zoom Rooms Scheduling Display
Robin-Powered scheduling panel
Appspace
RICOH Spaces
Envoy Rooms
Korbyt Booking
Comeen

CollabOS platform support and Logitech Sync remote management are enabled for centralized control.

Power and Cables
Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device.
Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

PORTS AND INTERFACES
Ethernet: 10/100 Mbps
WiFi: 802.11a/b/g/n/ac/ax
Bluetooth 5.0 (inactive, reserved for future use)

Environmental
Operating temperature: 0 to 40°C
Storage temperature: -40 to 70°C
Humidity: 10-95%

Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Key Protection: Arm TrustZone

Sustainability
Graphite plastics: 54% post-consumer recycled material

In the Box
Logitech Tap Scheduler
Multi-surface mount (glass/drywall)
Corner mount accessory
Mullion mount
Mounting hardware
Documentation

Conclusion:
A streamlined and intelligent scheduling experience is delivered through a dedicated room panel designed for modern workplaces. Clear room visibility, reliable performance, and enterprise-grade integration are combined to support efficient space utilization and improved meeting coordination across professional environments.
