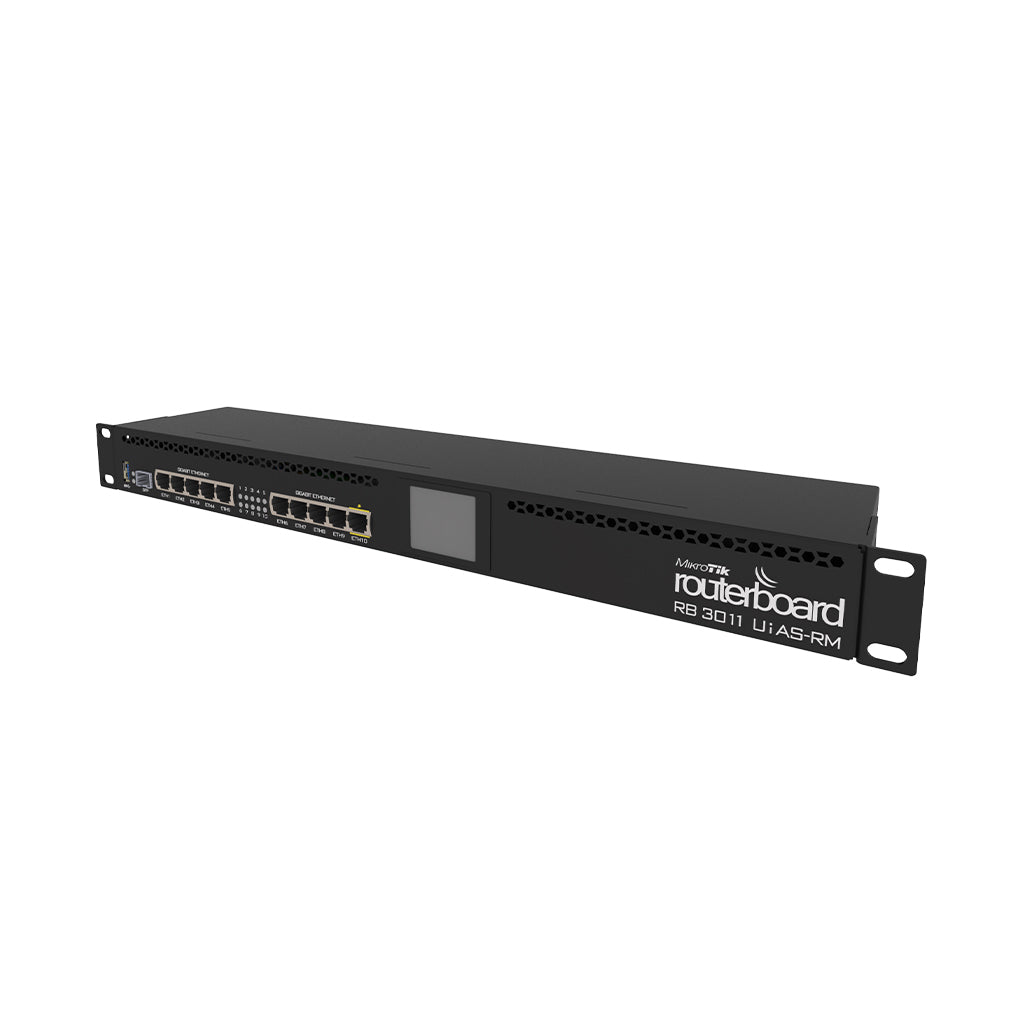

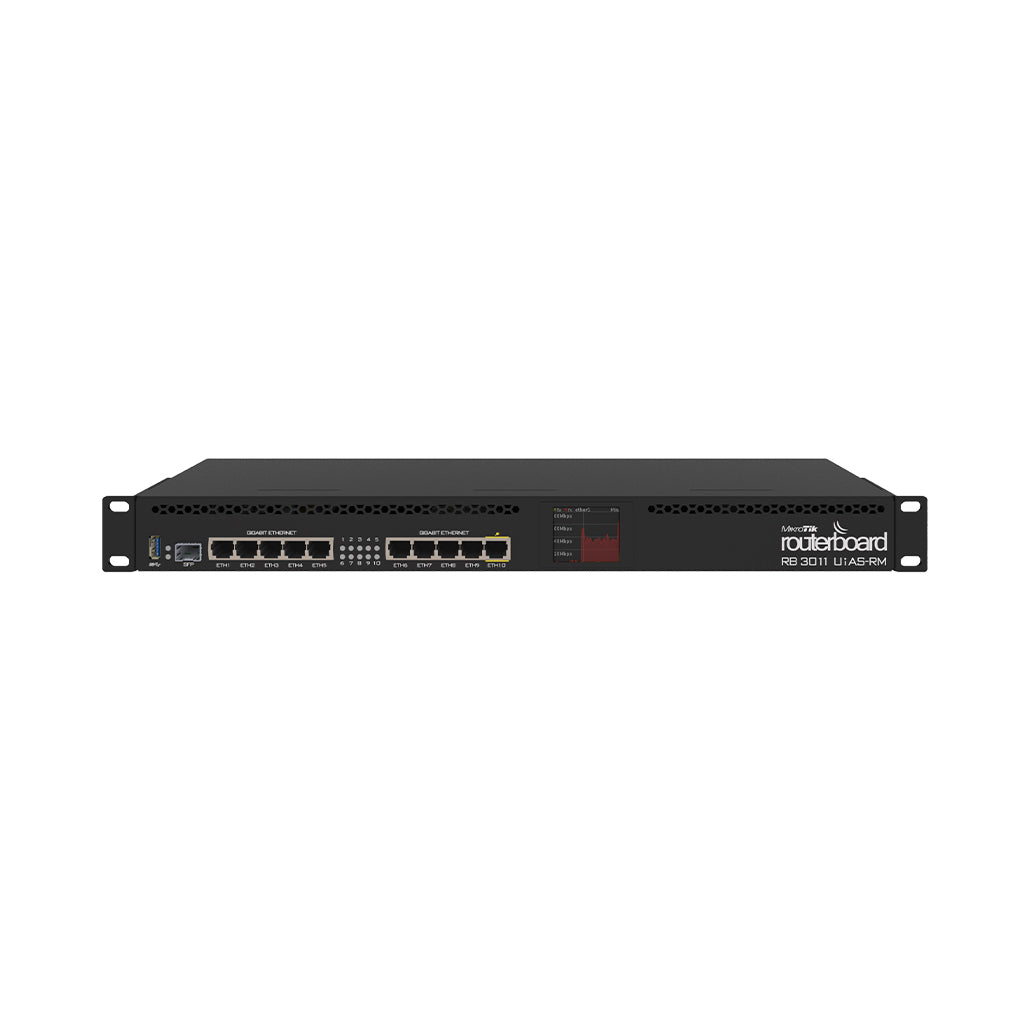

The Mikrotik RB3011UiAS-RM is a high-performance 1U rackmount router designed for efficient network management and connectivity. Featuring ten Gigabit Ethernet ports divided into two switch groups, an SFP cage, and a SuperSpeed USB 3.0 port, this router delivers robust performance for various networking needs. The device is powered by an ARM architecture CPU, specifically the IPQ-8064, which provides enhanced processing power with its 2 cores running at 1.4 GHz. This advanced architecture enables superior performance compared to previous models, making it ideal for handling demanding network environments.

In addition to its impressive port array, the RB3011UiAS-RM includes a touchscreen LCD panel for easy monitoring and management, a serial console port for configuration, and PoE output functionality on the last Ethernet port. The unit is housed in a 1U rackmount enclosure, which allows for efficient use of rack space in server environments. With a passive cooling system and support for IPsec hardware acceleration, the RB3011UiAS-RM ensures reliable and secure operation in various temperature conditions. This router represents a balanced solution for high-speed network connectivity and performance.

Key Features:

• 10 Gigabit Ethernet Ports: Provides extensive high-speed connectivity options for network devices.
• SFP Cage: Offers additional flexibility for fiber connections.
• USB 3.0 Port: Allows for connecting storage devices or external 3G/4G modems, expanding the router’s functionality.
• ARM CPU IPQ-8064: Features a dual-core processor running at 1.4 GHz, enhancing performance and efficiency.
• Touchscreen LCD Panel: Facilitates easy monitoring and configuration of network settings.
• PoE Output Functionality: Provides passive PoE on the last Ethernet port, supporting powered devices.
• Passive Cooling System: Ensures quiet and reliable operation without active cooling components.
• PoE-In and PoE-Out: Supports passive PoE with adjustable input voltage and output current.

Specifications:

• Product Code: RB3011UiAS-RM
• Architecture: ARM 32bit
• CPU: IPQ-8064
• CPU Core Count: 2
• CPU Nominal Frequency: 1.4 GHz
• Switch Chip Model: QCA8337
• Dimensions: 443 x 92 x 44 mm
• RouterOS License: 5
• Operating System: RouterOS
• Size of RAM: 1 GB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 70°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of DC Inputs: 2 (DC jack, PoE-IN)
• DC Jack Input Voltage: 10-30 V
• Max Power Consumption: 30 W
• Max Power Consumption Without Attachments: 10 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 10-30 V

PoE-Out:

• PoE-Out Ports: Ether10
• PoE Out: Passive PoE
• Max Out per Port Output (Input 18-30 V): 600 mA
• Max Total Out (A): 600 mA

Ethernet:

• 10/100/1000 Ethernet Ports: 10

Fiber:

• SFP Ports: 1

Peripherals:

• Serial Console Port: RJ45
• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB 3.0 type A
• Max USB Current (A): 1

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The Mikrotik RB3011UiAS-RM offers a comprehensive solution for robust network management with its extensive array of connectivity options and advanced features. The inclusion of ten Gigabit Ethernet ports, an SFP cage, and a USB 3.0 port enhances its flexibility and functionality. With its ARM-based CPU and efficient cooling system, the RB3011UiAS-RM ensures reliable performance in diverse operating conditions. The device's rackmount design and advanced monitoring capabilities make it a practical choice for professional networking environments, providing a balance of performance, functionality, and value.
