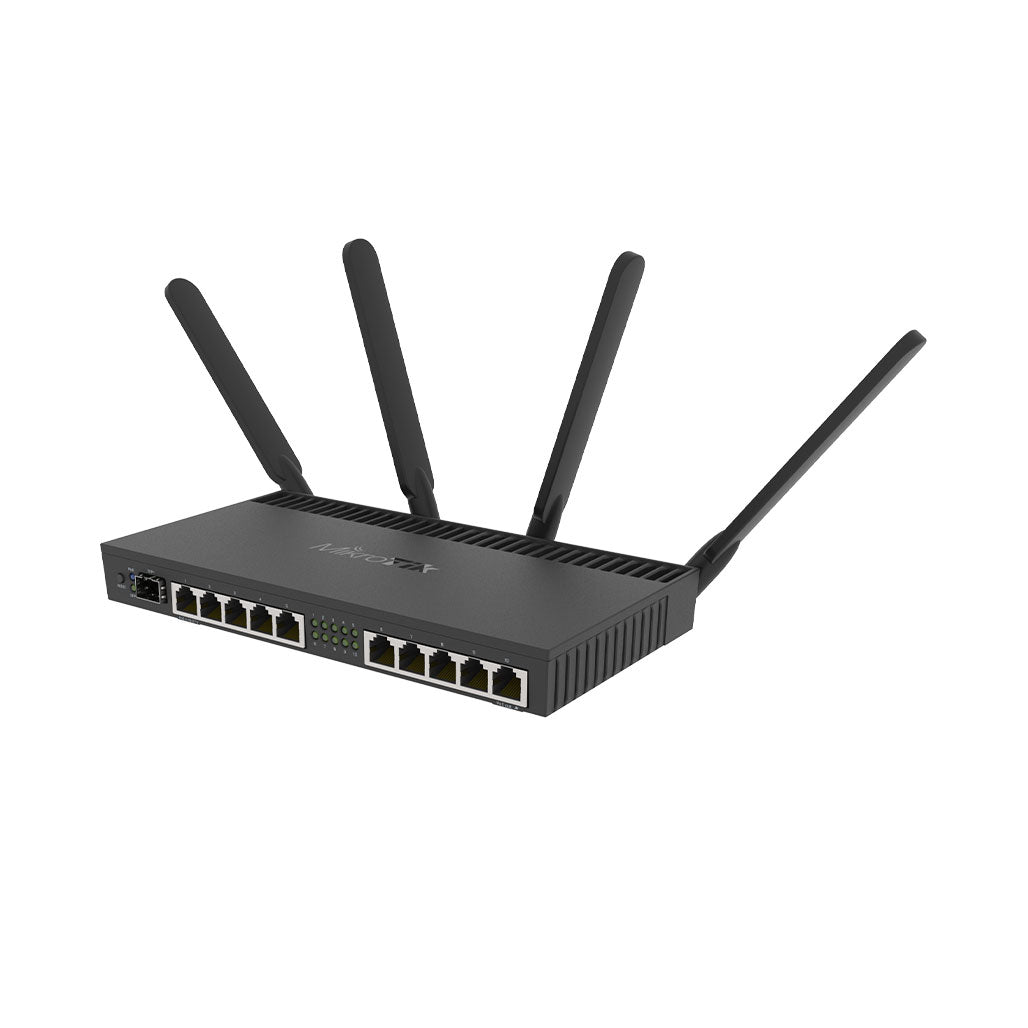

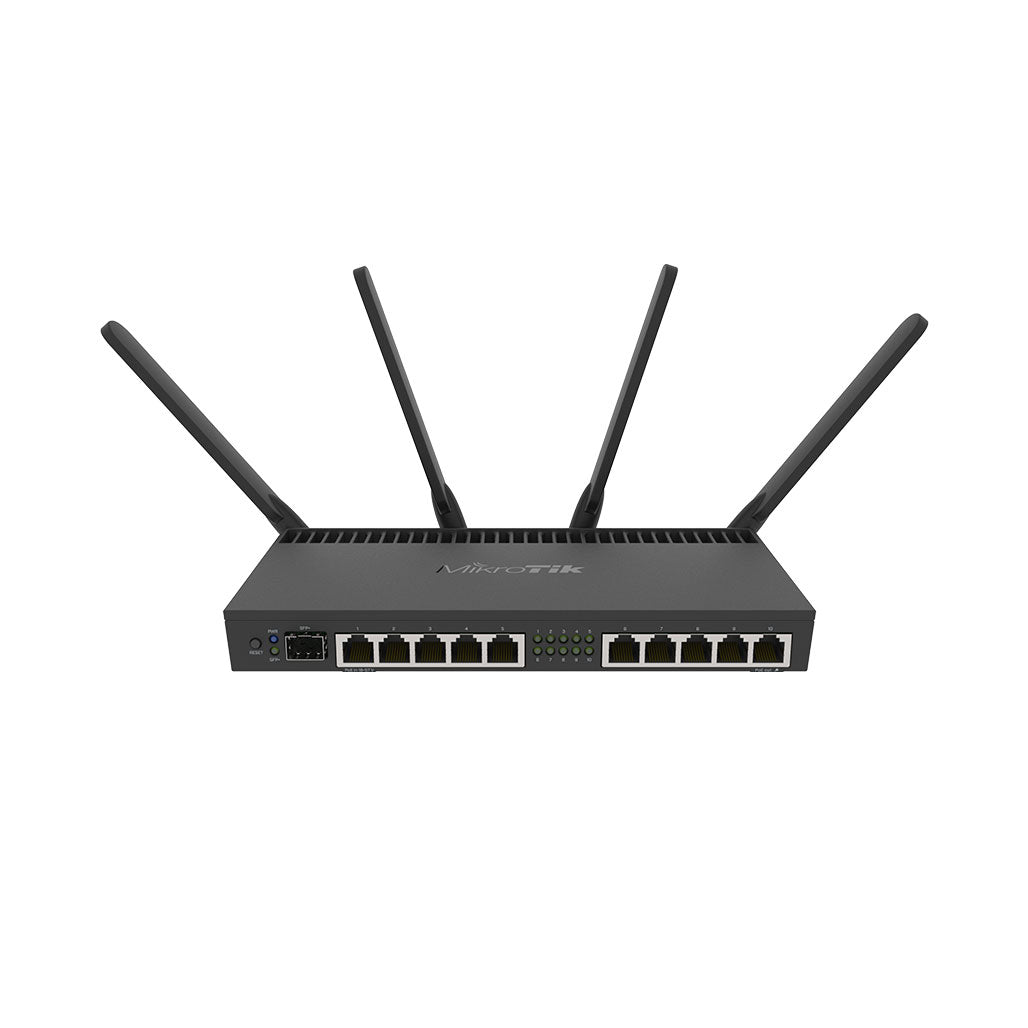

The MikroTik RB4011iGS+5HacQ2HnD-IN is a high-performance router designed to meet the needs of demanding network environments. With ten Gigabit Ethernet ports and a powerful 1.4GHz quad-core Cortex A15 CPU, this router delivers exceptional speed and reliability. It features a sleek, matte black metal enclosure that adds a professional touch to any setup.
Equipped with an SFP+ 10Gbps interface, the RB4011 provides blazing-fast fiber connectivity. The router supports advanced IPsec hardware acceleration, ensuring efficient handling of encrypted traffic. The unit's dual-band wireless capabilities include a 4x4 MIMO 5GHz wireless system with a maximum data rate of up to 1733 Mbps and a 2x2 2.4GHz wireless system with a maximum data rate of 300 Mbps.
For added versatility, the RB4011 includes a miniPCI-e slot for expansion and a PoE output capability on port #10. It operates on RouterOS v7, offering a robust set of features and configuration options for optimizing network performance.
Key Features:
-
High-Speed Connectivity: Ten Gigabit Ethernet ports and an SFP+ 10Gbps cage provide comprehensive and high-speed network options.
-
Powerful Processor: Quad-core Cortex A15 CPU running at up to 1.4GHz delivers impressive performance.
-
Dual-Band Wireless: 4x4 MIMO 5GHz wireless with up to 1733 Mbps and 2x2 2.4GHz wireless with up to 300 Mbps.
-
Advanced Hardware: IPsec hardware acceleration for efficient processing of encrypted traffic.
-
Versatile Power Options: Supports PoE output on port #10 and passive PoE input with a wide voltage range.
-
Compact and Professional Design: Solid metal enclosure in matte black for a sleek appearance.
Specifications:
-
Product Code: RB4011iGS+5HacQ2HnD-IN
-
Architecture: ARM 32bit
-
CPU: AL21400
-
CPU Core Count: 4
-
CPU Nominal Frequency: Up to 1.4 GHz
-
Switch Chip Model: RTL8367SB
-
Dimensions: 228 x 120 x 30 mm
-
RouterOS License: 5
-
Operating System: RouterOS v7
-
RAM Size: 1 GB
-
Storage Size: 512 MB
-
Storage Type: NAND
-
MTBF: Approximately 200,000 hours at 25°C
-
Tested Ambient Temperature: -40°C to 45°C
-
IPsec Hardware Acceleration: Yes
Wireless Capabilities:
-
5 GHz:
-
Max Data Rate: 1733 Mbps
-
Number of Chains: 4
-
Standards: 802.11a/n/ac
-
Antenna Gain: 3 dBi
-
Chip Model: QCA9984
-
2.4 GHz:
-
Max Data Rate: 300 Mbps
-
Number of Chains: 2
-
Standards: 802.11b/g/n
-
Antenna Gain: 3 dBi
-
Chip Model: R11e-2HnD
-
WiFi Speed: AC2000
Ethernet:
-
10/100/1000 Ethernet Ports: 10
Fiber:
Peripherals:
-
MiniPCI-e Slots: 1
-
Serial Console Port: RJ45
Powering:
-
Number of DC Inputs: 2 (DC Jack, PoE-IN)
-
DC Jack Input Voltage: 12-57 V
-
Max Power Consumption: 44 W
-
Max Power Consumption Without Attachments: 23 W
-
Cooling Type: Passive
-
PoE In: Passive PoE
-
PoE In Input Voltage: 18-57 V
PoE-Out:
-
PoE-Out Ports: Ether10
-
PoE Out: Passive PoE up to 57V
-
Max Out per Port Output (Input 18-30 V): 600 mA
-
Max Out per Port Output (Input 30-57 V): 420 mA
-
Max Total Out (A): 600 mA
Certification & Approvals:
-
Certification: CE, FCC, IC, EAC, ROHS
-
IP Rating: IP20
Other:
-
PCB Temperature Monitor: Yes
-
Voltage Monitor: Yes
Conclusion:
The MikroTik RB4011iGS+5HacQ2HnD-IN offers robust performance and extensive features in a compact and durable design. With its powerful quad-core CPU, high-speed connectivity options, and dual-band wireless capabilities, it is an excellent choice for demanding network environments. The inclusion of advanced hardware acceleration and versatile power options further enhances its suitability for a wide range of applications.
