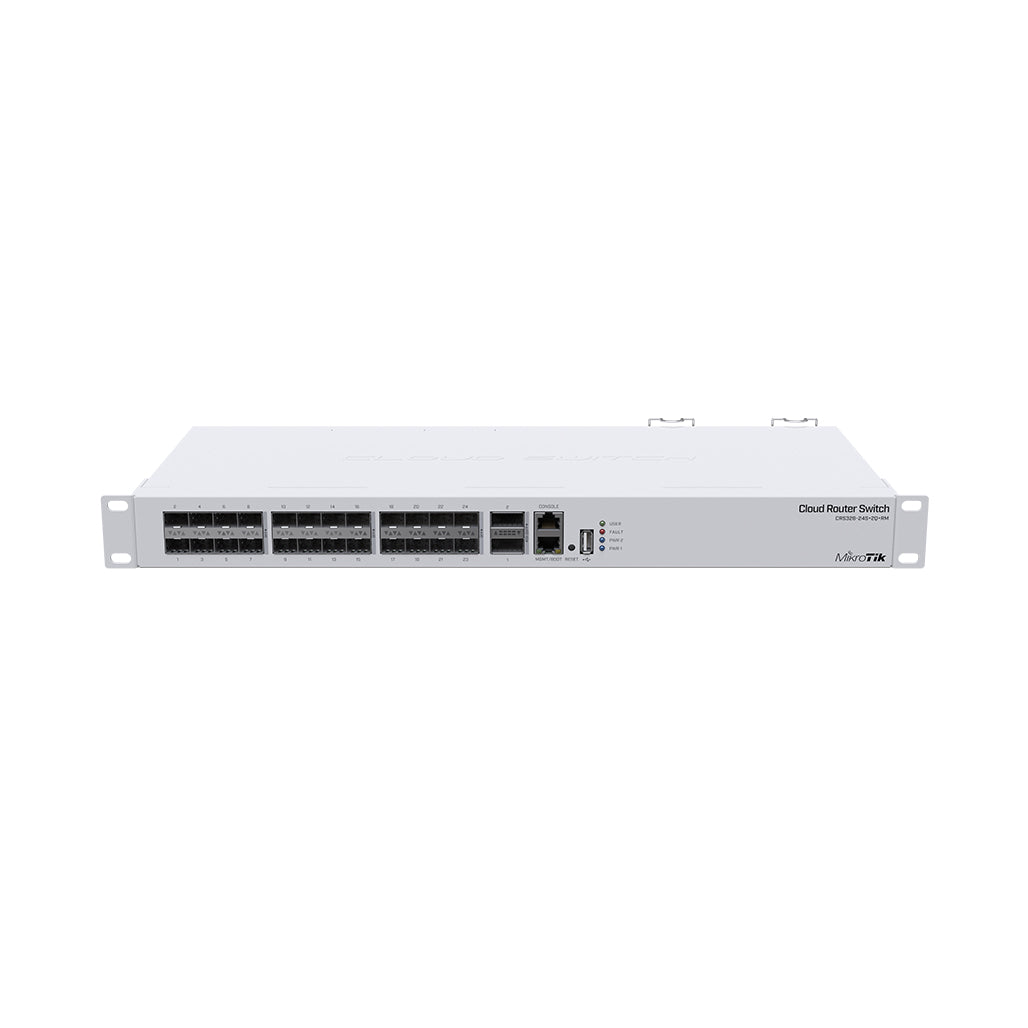

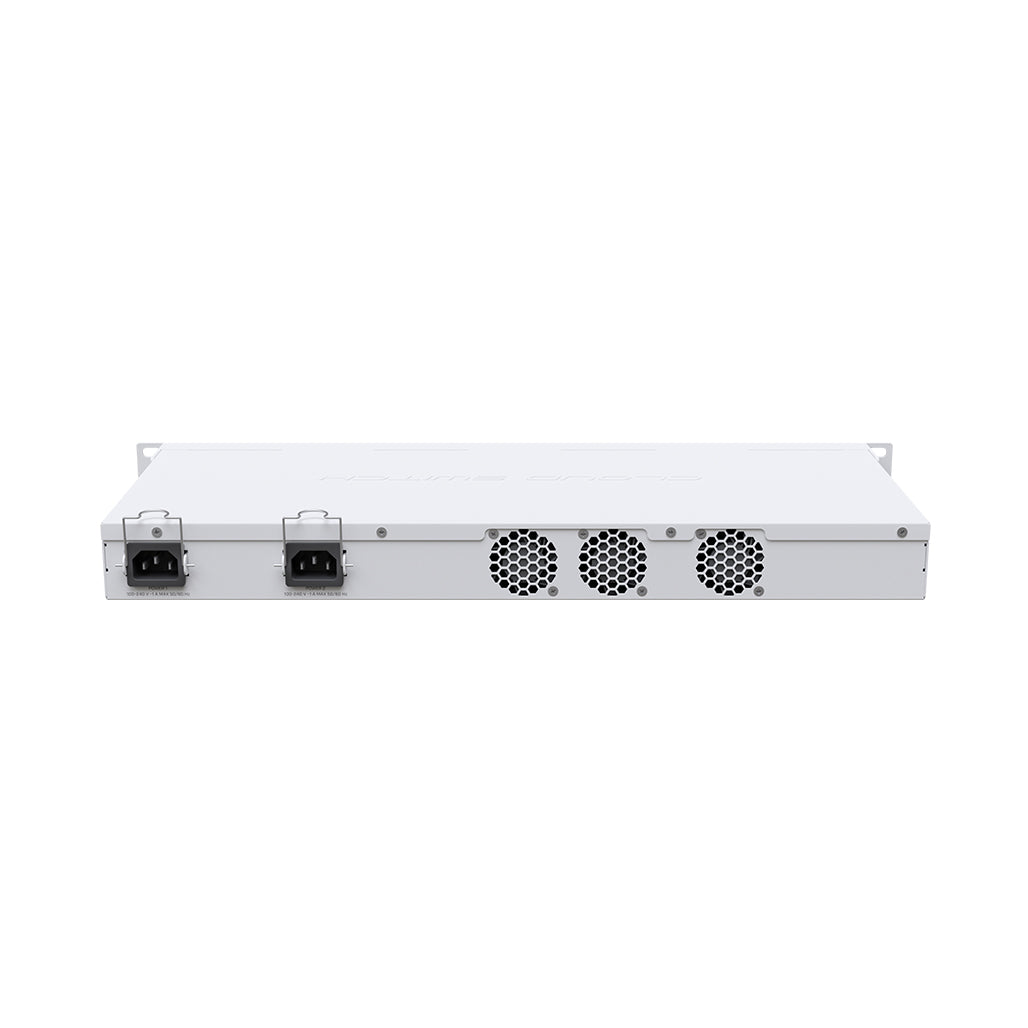

MikroTik CRS326-24S+2Q+RM - 24-Port 10G Switch with 40G QSFP+ Ports and Dual Power Supplies

Upgrade your high-speed network infrastructure with the MikroTik CRS326-24S+2Q+RM, a state-of-the-art switch designed for large-scale data centers and high-demand environments. This advanced switch features twenty-four 10G SFP+ ports and two 40G QSFP+ ports, delivering exceptional performance with a total non-blocking throughput of 320 Gbps, a switching capacity of 640 Gbps, and a forwarding rate of 252 Mpps.

The CRS326-24S+2Q+RM ensures uninterrupted service with its dual power supplies, providing redundancy and minimizing downtime. The switch is easily manageable via its full-size USB port for configuration and supports both RouterOS v7 for advanced Layer 3 features or SwOS for a more streamlined interface.

Designed for reliability and efficiency, this switch is perfect for handling substantial data traffic and ensuring robust fiber connections.

Key Features:

• High-Speed Connectivity: Twenty-four 10G SFP+ ports and two 40G QSFP+ ports for superior data throughput.
• Exceptional Performance: 320 Gbps non-blocking throughput, 640 Gbps switching capacity, and 252 Mpps forwarding rate.
• Dual Power Supply: Ensures redundancy and reliable operation.
• Flexible Software Options: Choose between RouterOS v7 for advanced features or SwOS for a simpler interface.
• Efficient Cooling: Equipped with three fans to maintain optimal operating temperatures.

Specifications:

• Product Code: CRS326-24S+2Q+RM
• Architecture: MIPSBE
• CPU: QCA9531
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• Switch Chip Model: 98DX8332
• Dimensions: 443 x 200 x 44 mm
• RouterOS License: 5
• Operating System: RouterOS v7 / SwitchOS
• Size of RAM: 64 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C

Powering:

• Number of AC Inputs: 2
• AC Input Range: 100-240 V
• Max Power Consumption: 69 W
• Max Power Consumption without Attachments: 42 W
• Cooling Type: 3 Fans

Ethernet:

• 10/100 Ethernet Ports: 1

Fiber:

• SFP+ Ports: 24
• 40G QSFP+ Ports: 2

Peripherals:

• Serial Console Port: RJ45
• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB Type A
• Max USB Current (A): 1

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP: IP20

Conclusion:

The MikroTik CRS326-24S+2Q+RM provides a robust solution for managing substantial data traffic and maintaining high-speed connectivity in demanding environments. With its powerful 10G and 40G ports, dual power supplies, and advanced cooling system, this switch offers reliability, efficiency, and exceptional performance for professional network setups.
