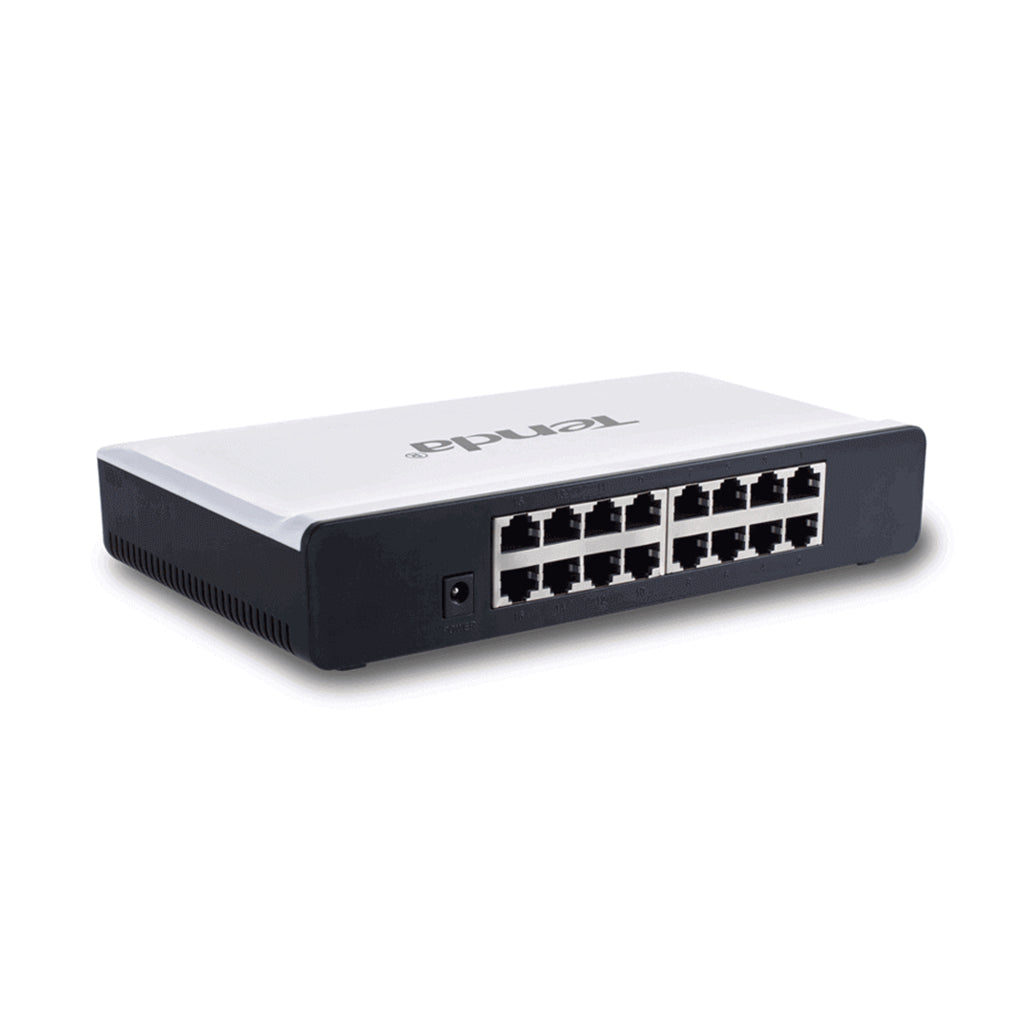

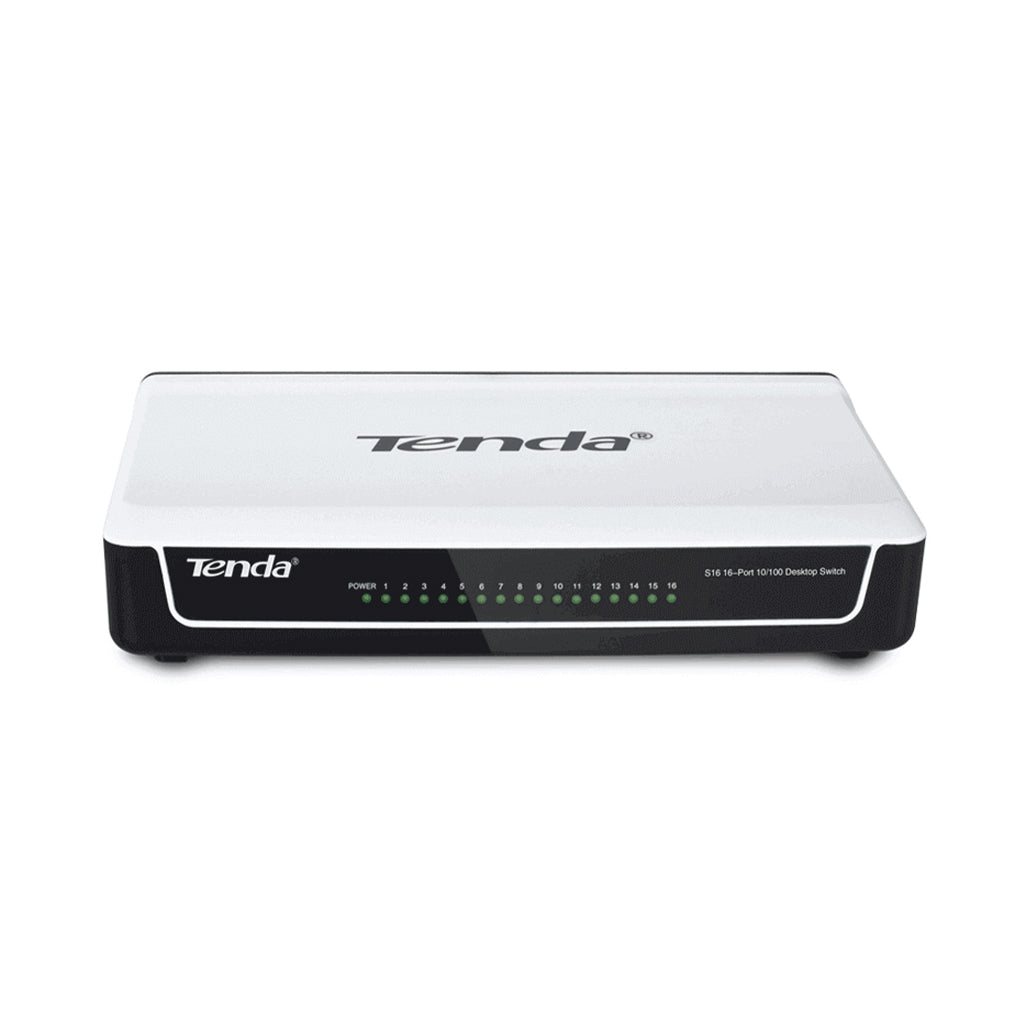

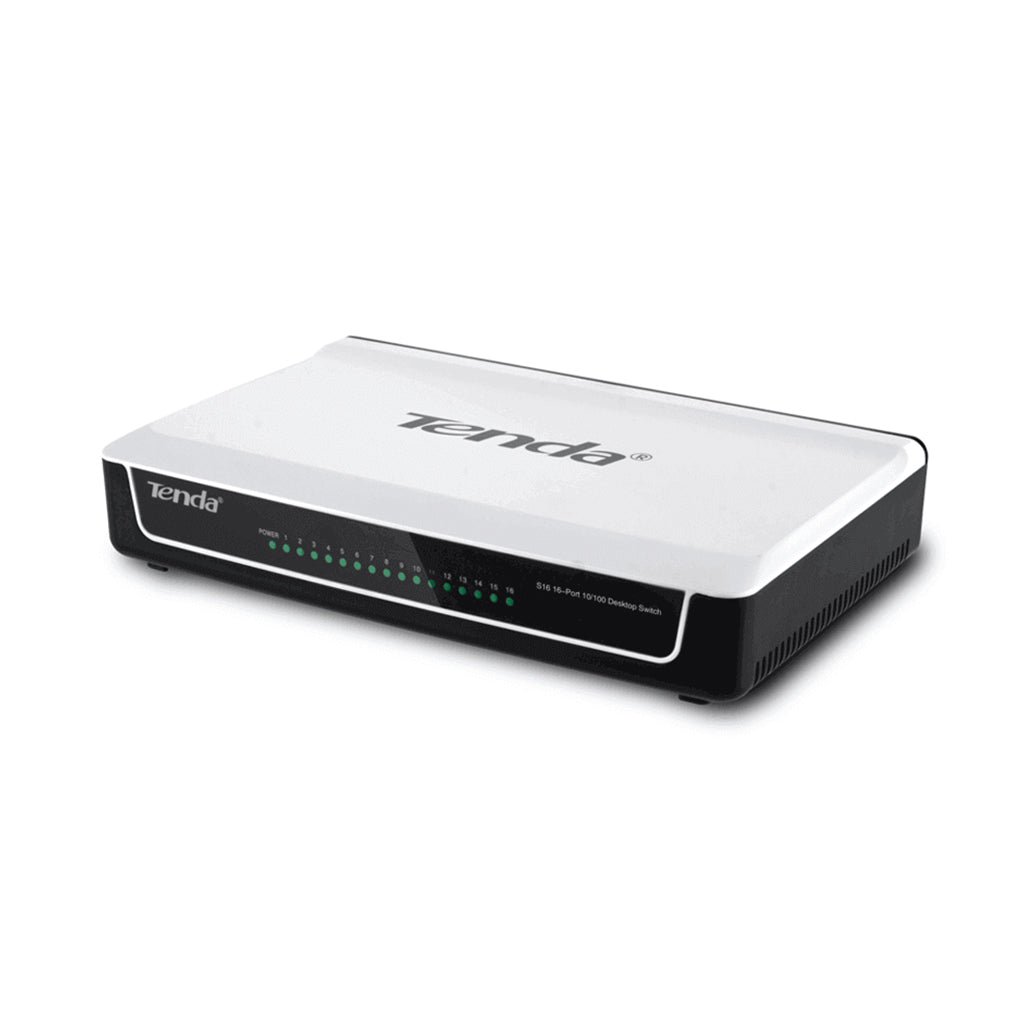

Tenda S16 16-Port Fast Ethernet Switch – Unmanaged 10/100 Mbps for Home & Office Networks

A seamless network expansion is provided by the Tenda S16, built to support wired devices in homes, small offices, or multi-room setups. This unmanaged switch offers sixteen 10/100 Mbps Fast Ethernet ports, enabling connection of printers, IP cameras, PCs, NAS, or VoIP phones without complexity. It operates passively—no configuration is required, making it ideal for users who want plug-and-play functionality and reliable wired networking.

Compact size and low power consumption are combined in its design, and Auto MDI/MDIX is included on all ports so that any type of Ethernet cable works without worrying about crossover wiring. LED indicators for link/activity are provided on each port, enabling status monitoring at a glance. For desktop or wall-mounted usage, the S16 delivers stable, unmanaged switching with consistent performance under typical indoor conditions.

Key Features and Explanations

• Sixteen 10/100 Mbps Ports: Many wired devices can be connected directly without requiring multiple smaller switches, increasing network capacity.

• Auto MDI/MDIX Support: Port connectors adapt automatically to cable type—straight or crossover—simplifying cable management.

• Unmanaged, Plug-and-Play Operation: Setup is minimized; the switch functions immediately when powered and connected, with no software or configuration required.

• Compact and Mountable Form: The physical design allows for both desktop placement and wall mounting, adapting to different space constraints.

• LED Link/Activity Indicators: Visual feedback is provided for each port to show active connections or traffic status.

• Low Power, Efficient Design: Power requirements are modest, reducing energy costs and thermal output, especially when used continuously.

Specifications

• Port Count: 16 × 10/100 Mbps RJ-45 Fast Ethernet ports

• Auto-Negotiation: Supported on all ports

• Auto MDI/MDIX: Supported on all ports, eliminating need for crossover cables

• Switching Capacity: Each port supports full duplex traffic at 10/100 Mbps

• Case Type: Plastic enclosure, desktop or wall-mountable

• LEDs: Power LED; Link/Activity LED for each port

• Power Input: External power adapter (9 V, 1 A)

• Power Consumption: Low, typical under light-to-medium load

• Operating Temperature: 0 °C to ~40 °C

• Storage Temperature: ≈ -30 °C to +70 °C

• Humidity: Standard non-condensing humidity ranges expected for indoor use

Conclusion

Reliable wired connectivity is ensured by the Tenda S16 switch, making it a suitable backbone for networks with many Ethernet-connected devices. Simplicity is prioritized in its unmanaged design, paired with useful features like Auto MDI/MDIX and flexible mounting. For users needing to expand wired infrastructure without complexity, the S16 offers consistent, dependable performance.
