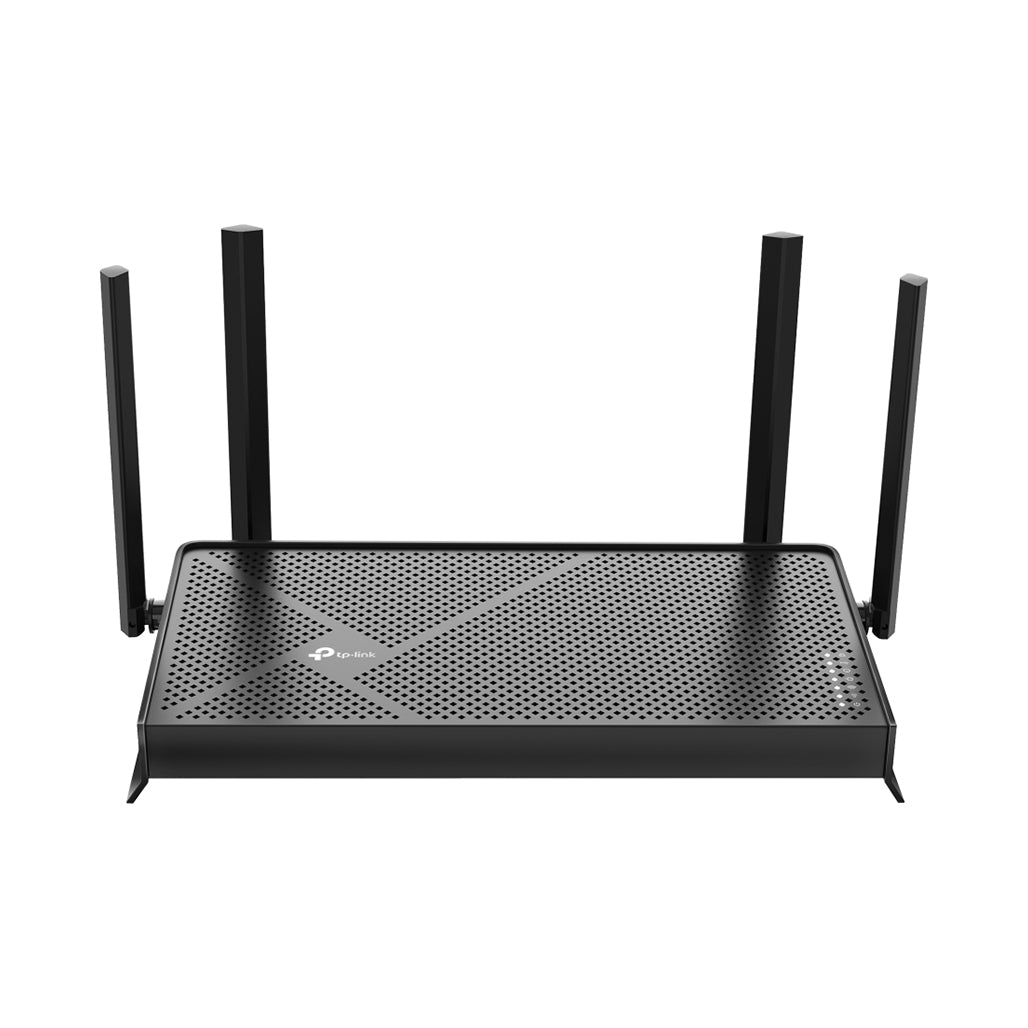

TP-Link Archer BE230 - BE3600 Dual-Band Wi-Fi 7 Router

The TP-Link Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router delivers next-generation connectivity with speeds up to 3.6 Gbps, designed to support streaming, gaming, and smart home devices with maximum efficiency. Equipped with dual 2.5G ports, advanced MU-MIMO, OFDMA, and Beamforming technology, this Wi-Fi 7 router ensures stable and fast connections across multiple devices. Its wide coverage is supported by four external antennas, high-power FEM, and EasyMesh compatibility, providing seamless Wi-Fi throughout the home.

Enhanced with TP-Link HomeShield, the Archer BE230 offers real-time IoT protection, intrusion prevention, and advanced parental controls, making it a secure and family-friendly solution. It supports all Wi-Fi generations and internet service providers, ensuring broad compatibility. With the Tether app and intuitive management features, setup and monitoring are simple, giving users control over performance, security, and smart home integration.

Key Features

• 3.6 Gbps Wi-Fi 7 Speeds: Dual-band connectivity provides ultra-fast speeds across both 2.4 GHz and 5 GHz bands.

• Next-Gen Ports: Equipped with 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port, and 3× 1 Gbps LAN ports for high-speed wired performance.

• Wider Coverage: Four external antennas, Beamforming, and High-Power FEM boost signal range and strength.

• EasyMesh-Compatible: Forms a whole-home mesh system for uninterrupted connectivity.

• TP-Link HomeShield Security: Defends against online threats with advanced protection for IoT and home networks.

• Smart Compatibility: Works with Alexa, Google Assistant, and supports all Wi-Fi generations.

• Simple Setup: Easy configuration and management through the TP-Link Tether app.

Specifications

WIRELESS

• WiFi Speeds: BE3600
   • 5 GHz: 2882 Mbps (802.11be)
   • 2.4 GHz: 688 Mbps (802.11ax)

• WiFi Range: 3 Bedroom Houses
   • 4× External Antennas
   • Beamforming
   • High-Power FEM

• WiFi Capacity: High
   • Dual-Band
   • 2×2 MU-MIMO
   • OFDMA
   • Airtime Fairness
   • DFS
   • 4 Streams

• Advanced Features: Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, EasyMesh-Compatible, Alexa & Google Assistant, IoT Network

• Wireless Mode: Router Mode, Access Point Mode

SECURITY

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

• HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Protection, Home Network Scanner

• Guest Network: 1× 5 GHz, 1× 2.4 GHz

• VPN Server: OpenVPN, PPTP, L2TP, WireGuard

• VPN Client: OpenVPN, PPTP, L2TP, WireGuard

• WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

HARDWARE

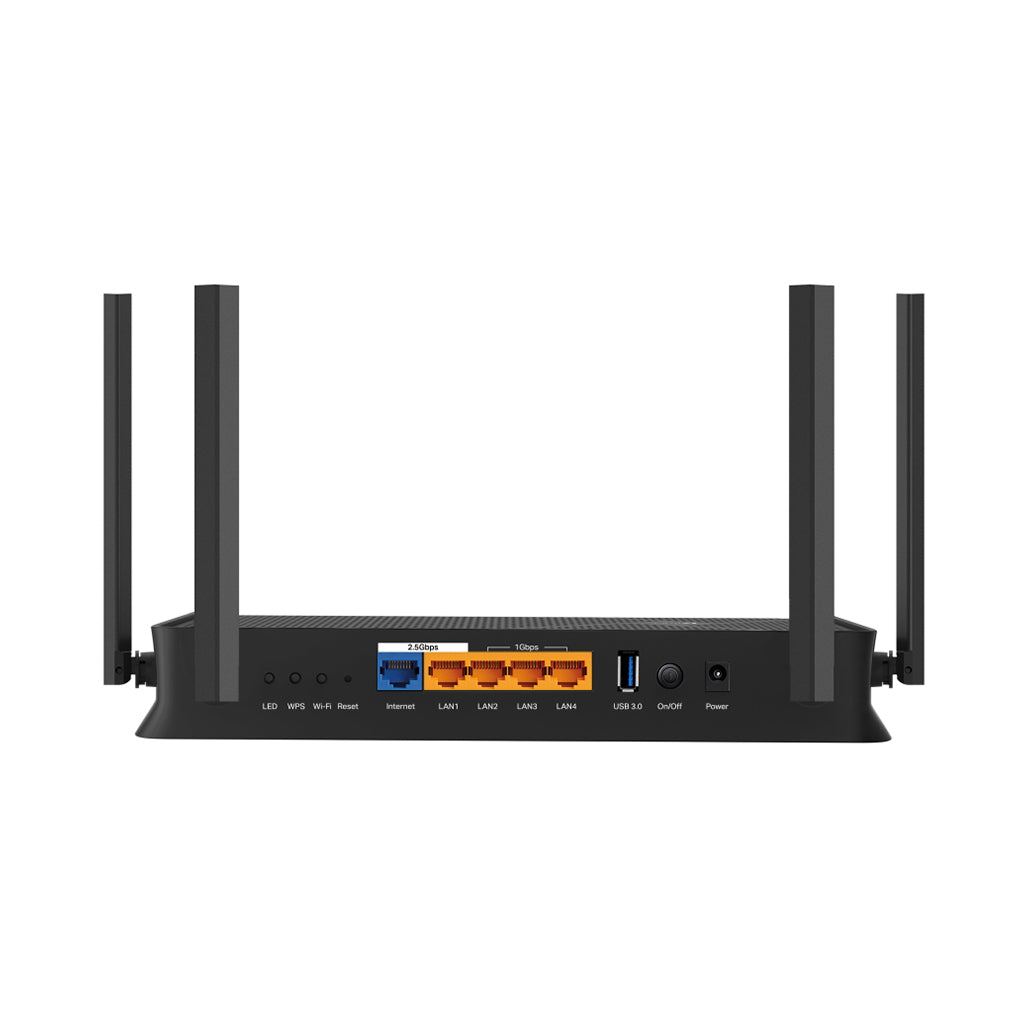

• Ethernet Ports: 1× 2.5 Gbps WAN, 1× 2.5 Gbps LAN, 3× 1 Gbps LAN

• USB Support: 1× USB 3.0 (NTFS, exFAT, HFS+, FAT32) with FTP, Media, and Samba server functions

• Buttons: Power, Wi-Fi On/Off, LED, WPS, Reset

• Power: 12 V ⎓ 2 A

SOFTWARE

• Protocol: IPv4, IPv6

• Service Kit: HomeShield

• EasyMesh: Supported

• Parental Controls: HomeShield with custom profiles, content filtering, time limits, and reports

• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

• QoS: Device-based

• Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS

• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP

• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

• DHCP: Address Reservation, Client List, Server

• DDNS: TP-Link, NO-IP, DynDNS

• Management: Tether App, Web interface

OTHER

• Default Network Services: Web server (HTTP/HTTPS), DNS, DHCP Server, App management

• System Requirements: Modern JavaScript-enabled browser; Cable/DSL Modem; Active ISP subscription

• Certifications: CE, FCC, RoHS

• Environment: 0℃~40℃ operating temp, 10%~90% humidity

Conclusion

The TP-Link Archer BE230 BE3600 Wi-Fi 7 Router provides fast, secure, and reliable internet performance for modern homes. With dual 2.5G ports, multi-device efficiency, seamless mesh support, and advanced HomeShield security, it is a future-ready networking solution that ensures smooth streaming, gaming, and browsing experiences across all connected devices.
