The TP-Link Archer NX200 5G AX1800 Dual-Band Gigabit Router is engineered to harness next-generation 5G speeds, offering an exceptional internet experience for homes, vacation properties, and temporary installations. Designed with Wi-Fi 6 technology, this powerful router delivers ultra-fast wireless speeds of up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ensuring seamless 4K video streaming, low-latency gaming, and high-bandwidth tasks across multiple devices.
Built for flexibility and simplicity, the Archer NX200 includes a Nano SIM card slot for plug-and-play 5G access—ideal for locations lacking wired broadband. With EasyMesh compatibility, it enables the creation of a whole-home mesh Wi-Fi system with unified SSID. Additionally, a Gigabit WAN/LAN port allows the router to serve as a traditional wireless router, compatible with cable, fiber, and DSL connections, while offering 5G backup connectivity for uninterrupted internet service.
Key Features:
Ultra-Fast 5G Speeds: Supports download speeds up to 4.67 Gbps using advanced 5G networks, dramatically reducing lag and increasing performance for streaming and file transfers.
AX1800 Wi-Fi 6 Performance: Delivers up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band using 1024-QAM modulation for better speed and coverage.
Plug & Play SIM Support: Simplifies setup with a built-in Nano SIM slot—no broadband setup needed. Perfect for remote or mobile setups like vacation homes and pop-up stores.
EasyMesh Support: Integrates with other EasyMesh devices to eliminate Wi-Fi dead zones and ensure seamless whole-home wireless coverage.
Gigabit Ethernet Port: Functions as a standard router via WAN/LAN port and provides fallback internet using 5G/LTE if the wired connection fails.
Broad Network Compatibility: Works with 5G, 4G LTE-A, 4G LTE, and multiple global bands, offering wide coverage and reliability.
Advanced Security & Management: Equipped with firewalls, parental control, VPN support, guest networks, and TP-Link Cloud remote management for full control and safety.
Technical Specifications:
Hardware Features

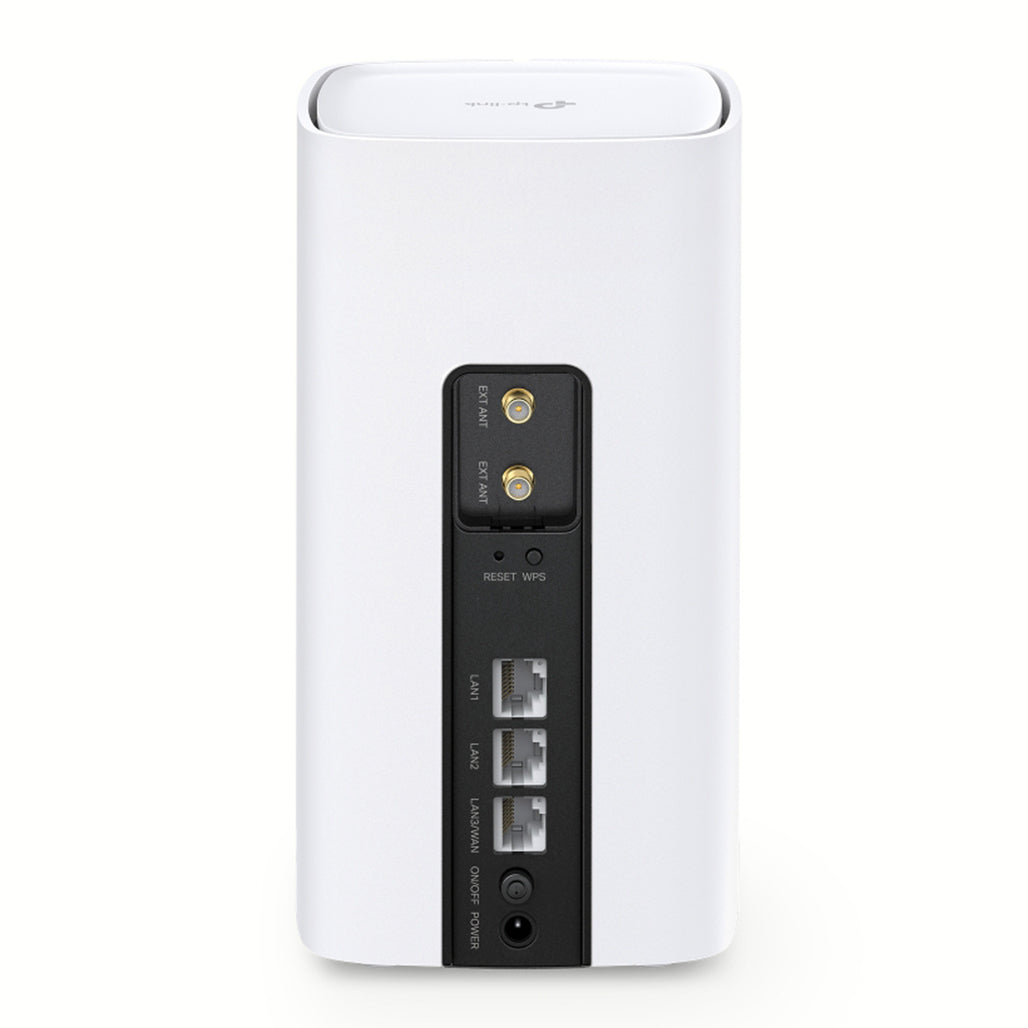

Interfaces: 1× 10/100/1000 Mbps LAN/WAN, 2× 10/100/1000 Mbps LAN, 1× Nano SIM, 2× 5G/4G antenna ports
Buttons: WPS, Reset, Power On/Off, Wi-Fi On/Off
Power Adapter: Input 100-240V~50/60Hz 0.6A; Output 12VDC 2A
Antenna: 8× 5G/LTE Internal, 2× Wi-Fi Internal
Dimensions: 3.9 × 3.9 × 7.5 in (99 × 99 × 190 mm)
Wireless Features
Standards: IEEE 802.11ax/ac/n/a (5GHz), IEEE 802.11ax/n/b/g (2.4GHz)
Frequency: 2.4 GHz and 5 GHz
Speeds: 574 Mbps (2.4 GHz), 1201 Mbps (5 GHz)
Transmit Power: <23 dBm (5.15–5.35 GHz), <30 dBm (5.47–5.71 GHz), <20 dBm (2.4 GHz)
Security: WPA/WPA2, WPA-PSK/WPA2-PSK, WEP encryption
WAN Failover: Supported
Mesh: EasyMesh-Compatible
Cellular Network Support
5G Bands: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
FDD-LTE Bands: B1/B3/B5/B7/B8/B20/B28/B32
TDD-LTE Bands: B38/B40/B41/B42/B43
3G Bands: B1/B5/B8
Software Features
QoS: Traffic prioritization by device or app
VPN: PPTP, IPSec, OpenVPN
Security: DoS Protection, SPI Firewall, MAC/IP Binding
DNS & Port Forwarding: DynDNS, UPnP, Virtual Server, DMZ
Guest Network: Dual-band Guest Wi-Fi
Protocols: IPv4, IPv6
Parental Control & Access: Enabled
Management: Local, Remote, TP-Link Cloud
Other
Certifications: CE, RoHS
System Requirements: Windows, macOS, Linux, Java-enabled browser
Package Contents: NX200 Router, Power Adapter, RJ45 Cable, Quick Guide
Environment:
Operating Temp: 0℃~40℃
Storage Temp: -40℃~70℃
Operating Humidity: 10%~90% (non-condensing)
Storage Humidity: 5%~90% (non-condensing)
Conclusion:
The TP-Link Archer NX200 5G AX1800 Router has been designed to deliver high-speed internet using the latest Wi-Fi 6 and 5G technologies. With support for both SIM card connectivity and wired broadband, this dual-mode router provides unmatched flexibility, easy deployment, and consistent performance. Its robust feature set makes it an ideal solution for smart homes, mobile workspaces, vacation properties, and beyond.
