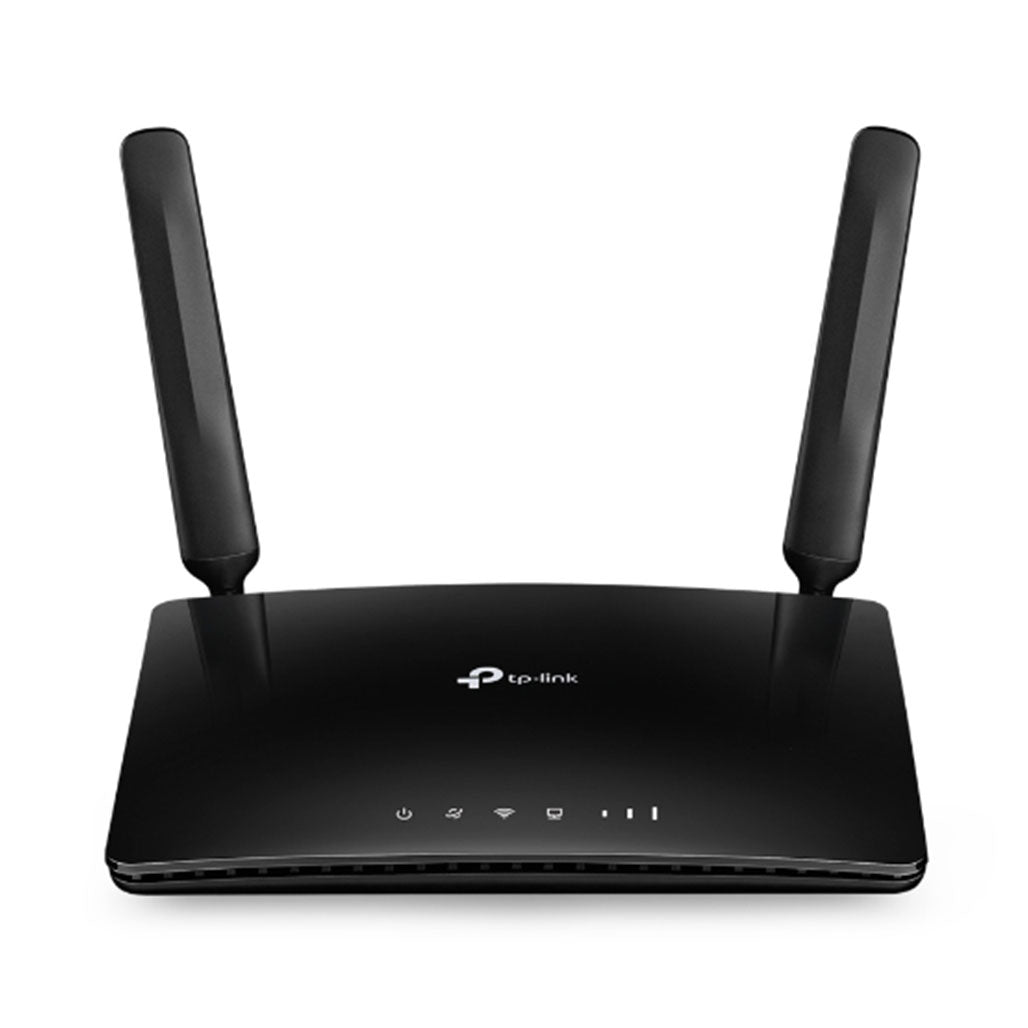

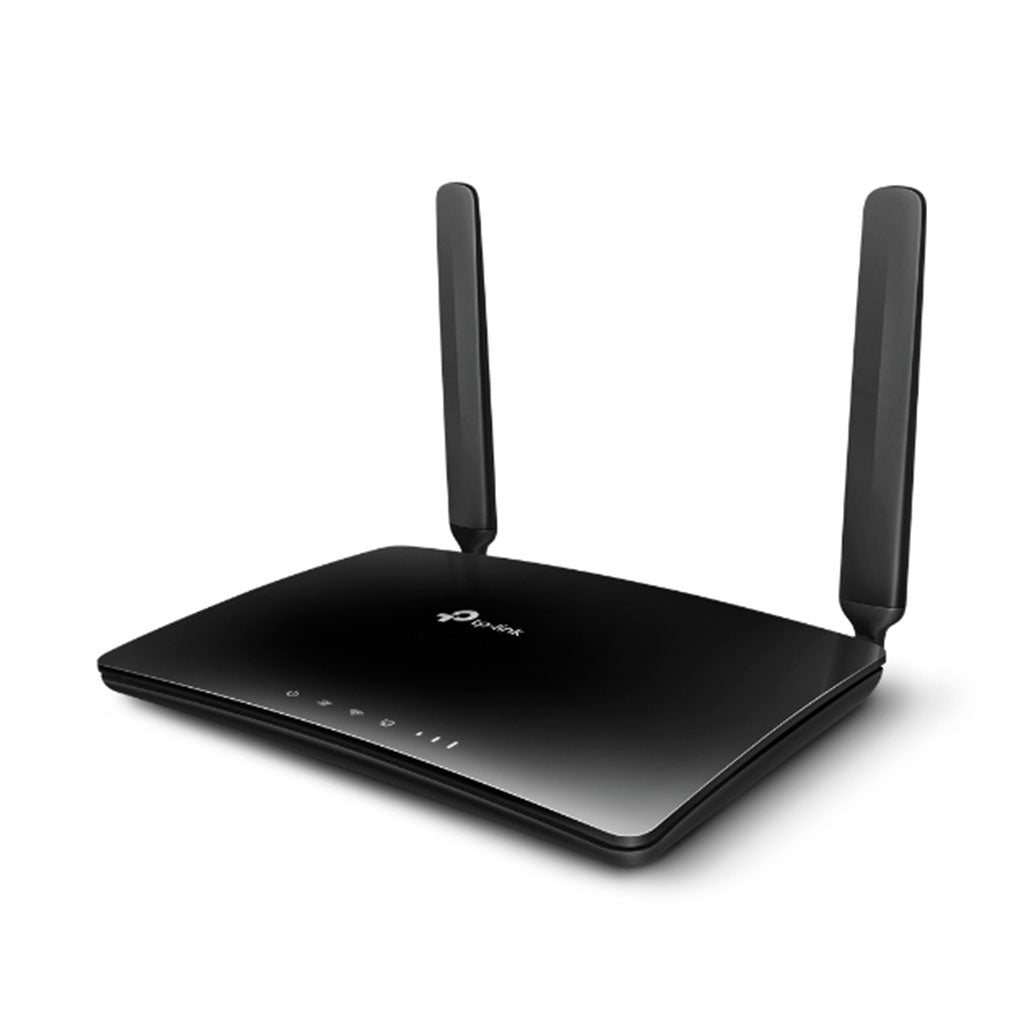

TP-Link Archer MR400 - AC1200 Wireless Dual Band 4G LTE Router

The TP-Link Archer MR400 AC1200 Wireless Dual Band 4G LTE Router offers a seamless solution for both high-speed wireless connectivity and reliable 4G LTE access. Designed to support up to 64 devices simultaneously, this router provides download speeds of up to 150 Mbps over 4G LTE networks. With AC1200 dual-band WiFi, users can experience speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, ensuring a smooth internet experience whether for casual browsing or high-demand activities.

The Archer MR400 features two detachable 4G LTE antennas that enhance connection stability and range, allowing for consistent performance across various devices. The router supports plug-and-play functionality with SIM cards from over 100 countries, eliminating the need for complicated setup procedures. In addition to its 4G capabilities, the router can function as a traditional WiFi router via an Ethernet connection if 4G service is unavailable.

Key Features

• High-Speed 4G LTE: Provides up to 150 Mbps download speeds and supports up to 64 devices simultaneously, perfect for sharing internet access across multiple users.
• AC1200 Dual-Band WiFi: Delivers speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, accommodating a range of internet needs from browsing to streaming.
• Detachable Antennas: Includes two advanced LTE antennas for enhanced connectivity and stability.
• Plug-and-Play SIM Card Slot: Easily use SIM cards from over 100 countries without extensive configuration.
• Ethernet Connectivity: Switches to WiFi router mode with an Ethernet cable for additional flexibility if 4G service is not available.
• Quality of Service: Prioritizes network traffic by device or application for optimized performance.
• Comprehensive Security: Features WPA/WPA2 encryption, firewall security, and VPN support to ensure a safe browsing environment.

Specifications

Wireless

• Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz
• Reception Sensitivity: 5GHz: 11a 54M: -74dBm, 11ac HT20: -67dBm, 11ac HT40: -64dBm, 11ac HT80: -60dBm, 11n HT20: -71dBm, 11n HT40: -70dBm; 2.4GHz: 11g 54M: -76dBm, 11n HT20: -73dBm, 11n HT40: -67dBm
• Transmit Power: CE: <20dBm (2.4GHz), <23dBm (5GHz)
• Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

• 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
• 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)

Hardware

• Interface: 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Micro SIM Card Slot
• Button: WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
• External Power Supply: 12V/1A
• Dimensions (W x D x H): 7.95 x 5.55 x 1.32 in (202 x 141 x 33.6 mm)
• Antenna: V2: 2 Internal 4G LTE Antennas, V3/V1: 2 Detachable 4G LTE Antennas

Software

• Quality of Service: Prioritizes network traffic by device or application
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
• Management: Access Control, Local Management, Remote Management, Reboot Schedule
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP
• VPN: PPTP VPN, IPSec VPN, OpenVPN
• Access Control: Parental Control, Local Management Control
• Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
• IPSec VPN: Supports up to 10 IPSec VPN tunnels

Other

• Certification: CE, RoHS
• Package Contents: AC1200 Wireless Dual Band 4G LTE Router, Archer MR400, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers, Micro SIM Card
• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link Archer MR400 AC1200 Wireless Dual Band 4G LTE Router stands out as a versatile networking solution, combining high-speed 4G LTE access with robust dual-band WiFi capabilities. Its easy SIM card setup, detachable antennas, and flexible connectivity options make it a reliable choice for both mobile and stationary internet needs. Whether you need to connect numerous devices or require failover options, the Archer MR400 delivers excellent performance and security in a compact, user-friendly package.
