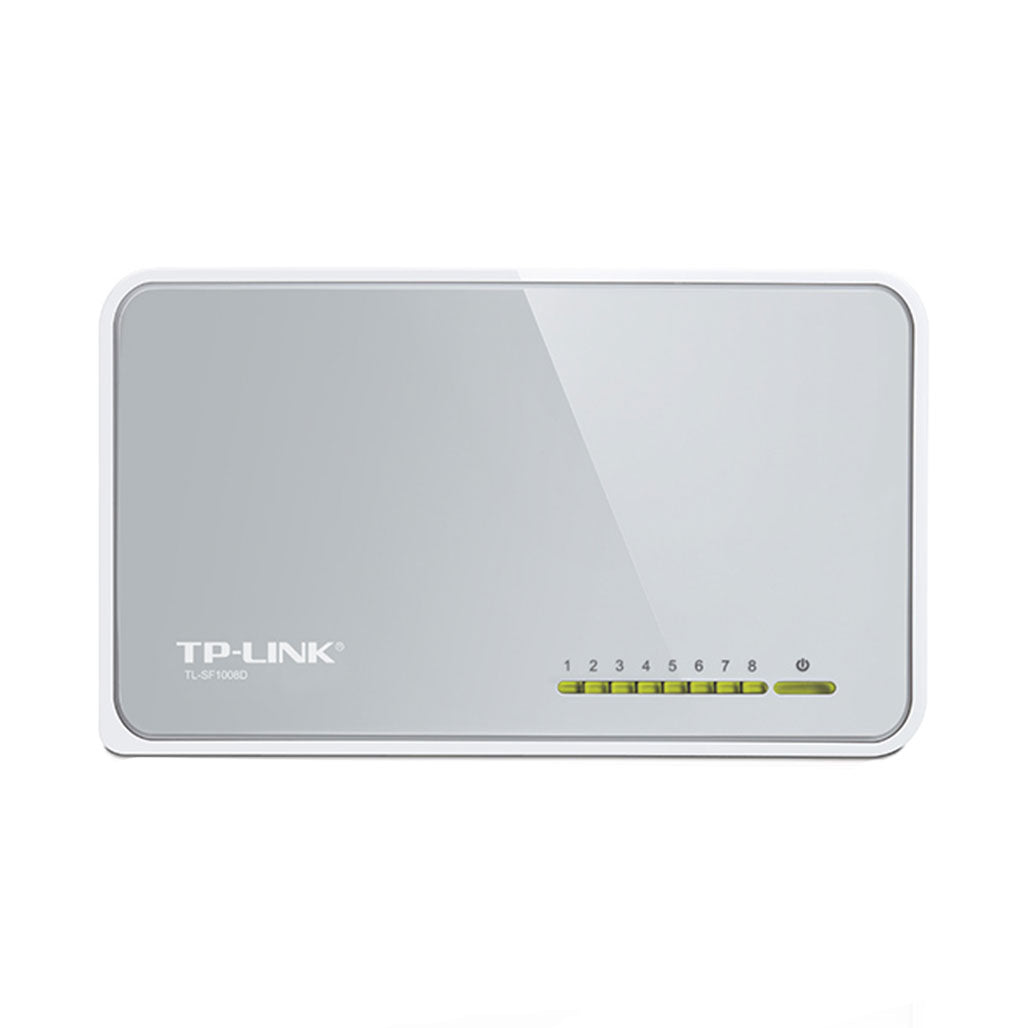

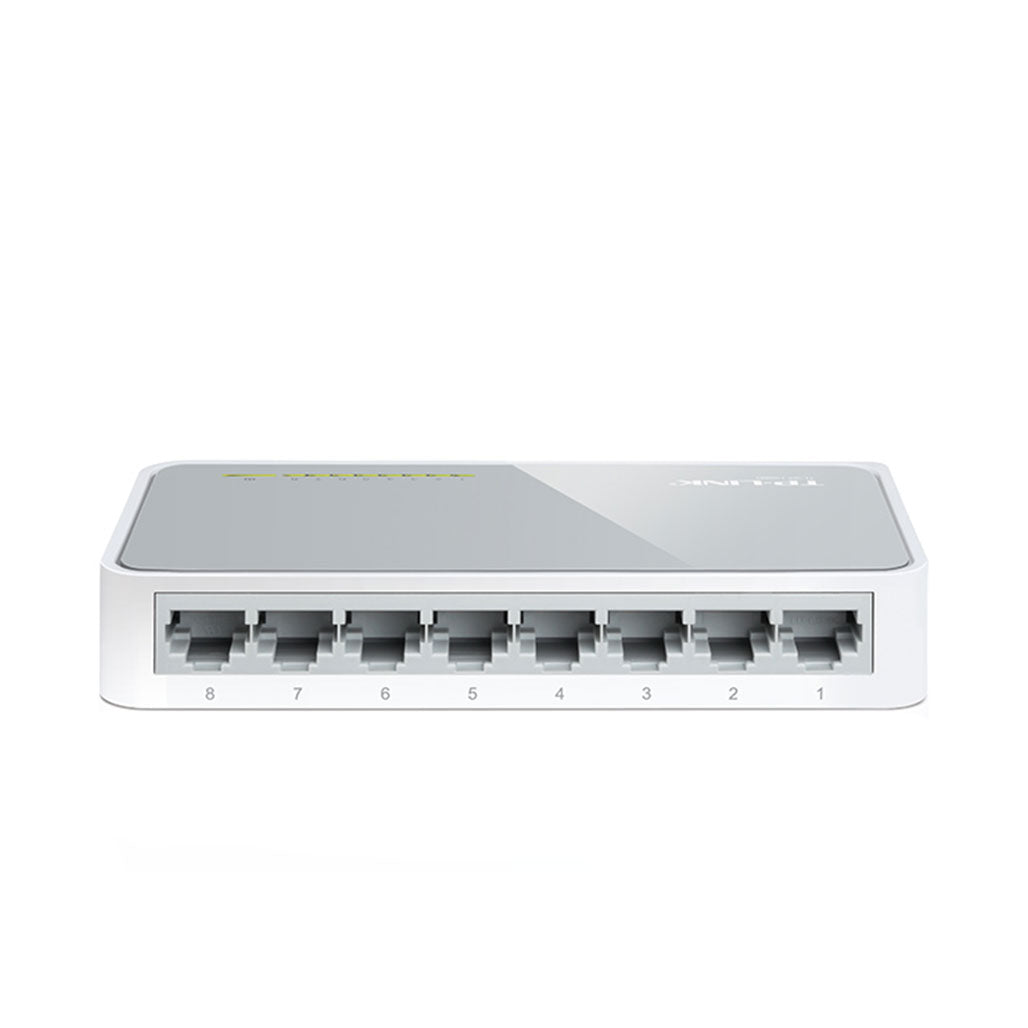

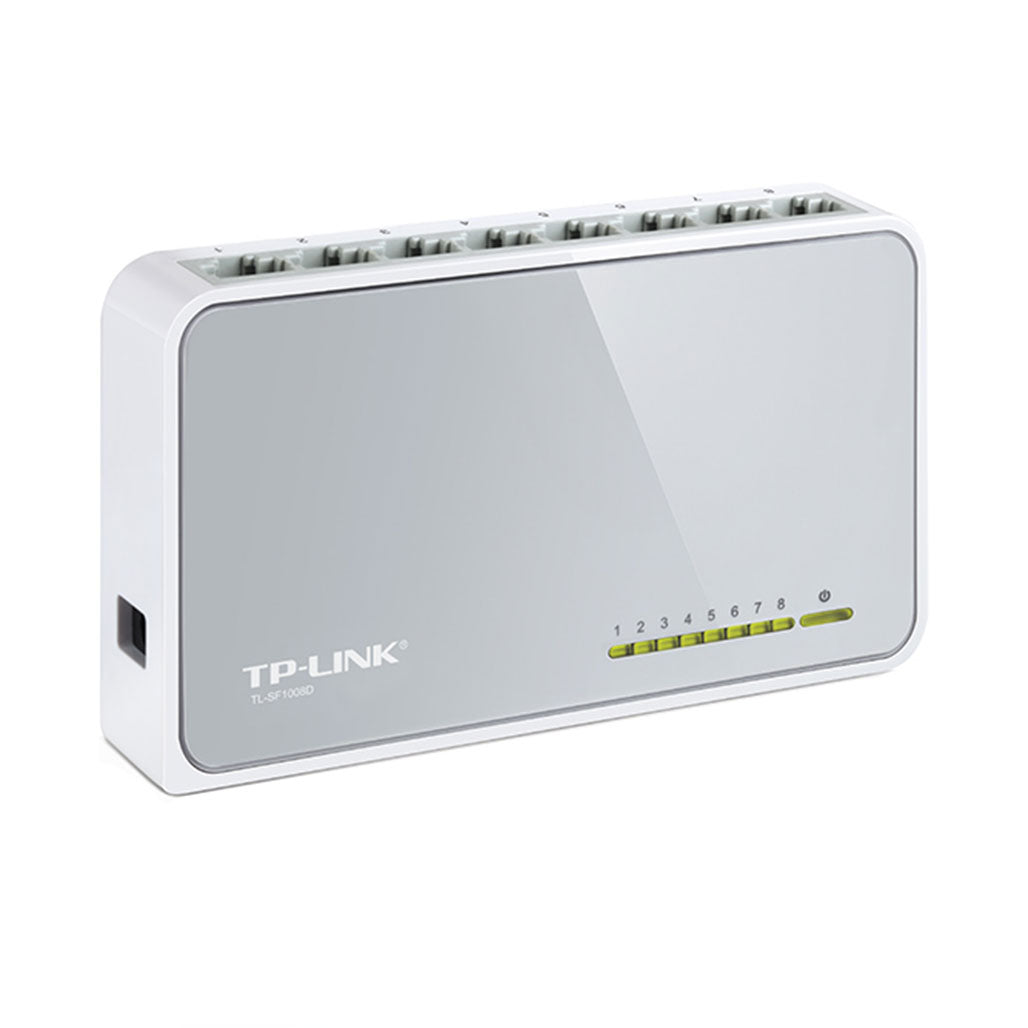

TP-Link SF1008D 8-Port 10/100Mbps Desktop Switch | Reliable Network Connectivity, Fanless Design

The TP-Link SF1008D 8-Port 10/100Mbps Desktop Switch is engineered to enhance your network connectivity with efficiency and reliability. Ideal for home or small office environments, this desktop switch provides robust performance and ease of use, supporting seamless data transfer and network management.

Efficient Network Management
With 8 auto-sensing 10/100Mbps ports, the SF1008D ensures quick and easy network setup. The switch supports both half and full duplex data rates, offering speeds of up to 200 Mbps, depending on the mode. This flexibility makes it suitable for a variety of network applications, from simple file sharing to complex network setups.

Fanless and Compact Design
The SF1008D features a fanless design, operating quietly and without the need for additional cooling. Its compact size, measuring 5.3 × 3.1 × 0.9 inches, allows for easy placement on a desk or mounted in a small space, making it a versatile addition to any network setup.

Green Technology and Energy Efficiency
Incorporating green technology, the SF1008D reduces power consumption and minimizes environmental impact. The switch adheres to 802.3X flow control and back pressure standards, ensuring smooth data transmission and preventing network congestion.

Reliable Performance
Certified by FCC and RoHS, the SF1008D is built to meet high standards of performance and safety. It provides a buffer size of 768Kb, contributing to efficient data handling and reducing packet loss. The switch operates within a temperature range of 0°C to 40°C and can handle varying humidity levels, making it suitable for diverse environments.

Key Features

• 8 Ports: Provides 10/100Mbps auto-negotiation and auto-MDI/MDIX functionality.
• Fanless Design: Operates quietly and efficiently without additional cooling.
• High Data Rates: Up to 200 Mbps full duplex, 20/200 Mbps half duplex.
• Green Technology: Reduces power consumption and supports 802.3X flow control.
• Compact Size: Easily fits into various setups with dimensions of 5.3 × 3.1 × 0.9 inches.

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD
• Interface: 8 × 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
• Fan Quantity: Fanless
• External Power Supply: 100-240VAC, 50/60Hz (Output: 9VDC / 0.6A)
• Buffer Size: 768Kb
• Data Rates: 10/100Mbps at Half Duplex; 20/200Mbps at Full Duplex
• LED Indicator: Power, Port network activity
• Dimensions (W x D x H): 5.3 × 3.1 × 0.9 in. (135 × 79 × 23mm)
• Max Power Consumption: 2W
• Max Heat Dissipation: 7.0 BTU/h

Software Features

• Transfer Method: Store and Forward
• Advanced Functions: Green Technology, 802.3X Flow Control, Back Pressure

Others

• Certification: FCC, RoHS
• Package Contents: 8-Port 10/100Mbps Desktop Switch, Power Adapter, User Guide
• Environment: Operating Temperature: 0°C40°C (32°F104°F); Storage Temperature: -40°C60°C (-40°F140°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link SF1008D 8-Port 10/100Mbps Desktop Switch provides an effective solution for managing and expanding your network. With its compact, fanless design and energy-efficient features, it delivers reliable performance while minimizing noise and power consumption. Ideal for small to medium-sized networks, it ensures seamless connectivity and efficient data handling in a variety of environments.
