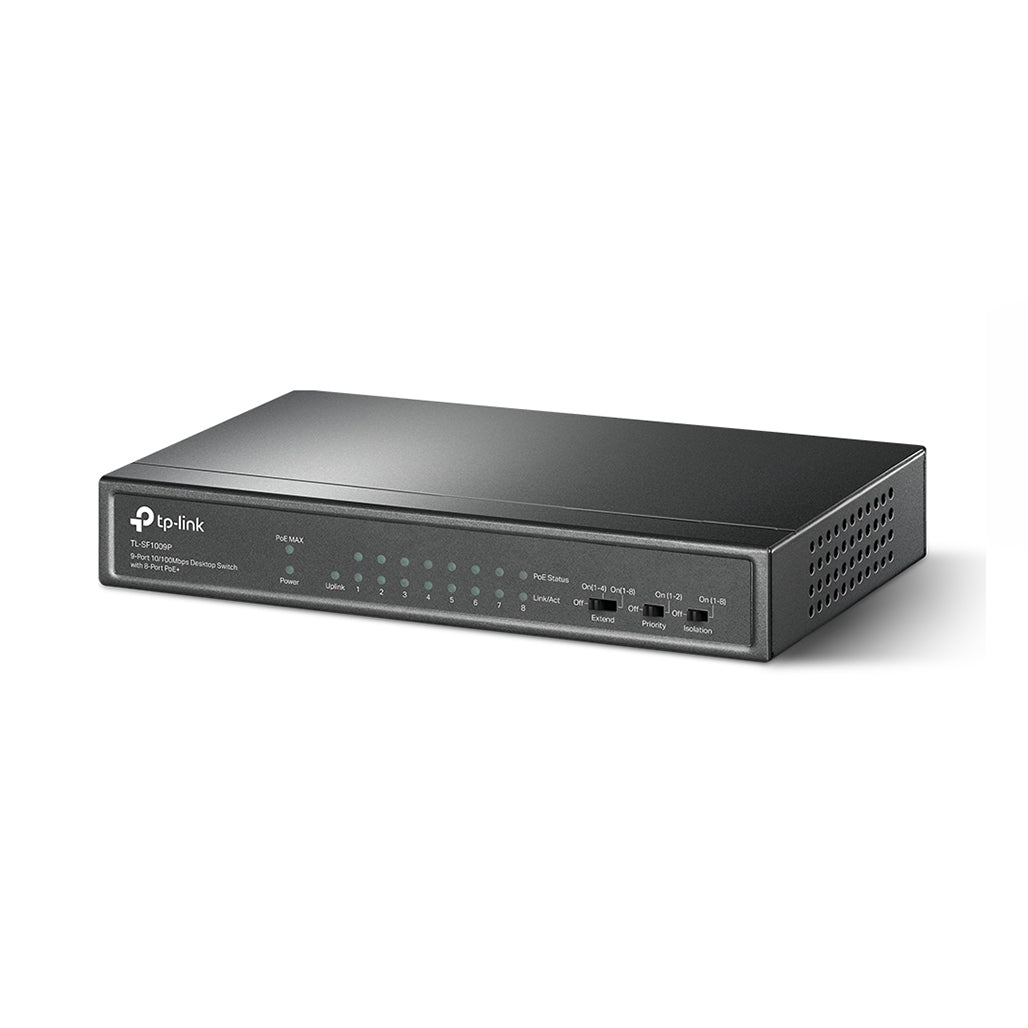

TP-Link TL-SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

The TP-Link TL-SF1009P is a high-performance 9-port desktop switch that integrates 8 Power over Ethernet (PoE+) ports, providing a seamless solution for powering and connecting multiple network devices. This switch is fully compliant with IEEE 802.3af/at standards and supports up to 30W per PoE+ port, with a total PoE power budget of 65W for all ports combined. Ideal for office surveillance, IP camera systems, and other network applications, it offers flexible installation options and robust performance.

The TL-SF1009P is designed for ease of use with plug-and-play installation and no configuration required. Its Extend Mode enables data and power transmission over distances up to 250 meters, making it suitable for expansive network setups. Priority Mode and Isolation Mode further enhance network performance and security. Priority Mode ensures that ports 1 and 2 receive higher priority for critical applications, while Isolation Mode isolates traffic among ports to prevent interference and improve security.

Key Features

• 9× 10/100 Mbps Ports: Includes 8 PoE+ ports for data and power transmission and 1 additional port for network connectivity.

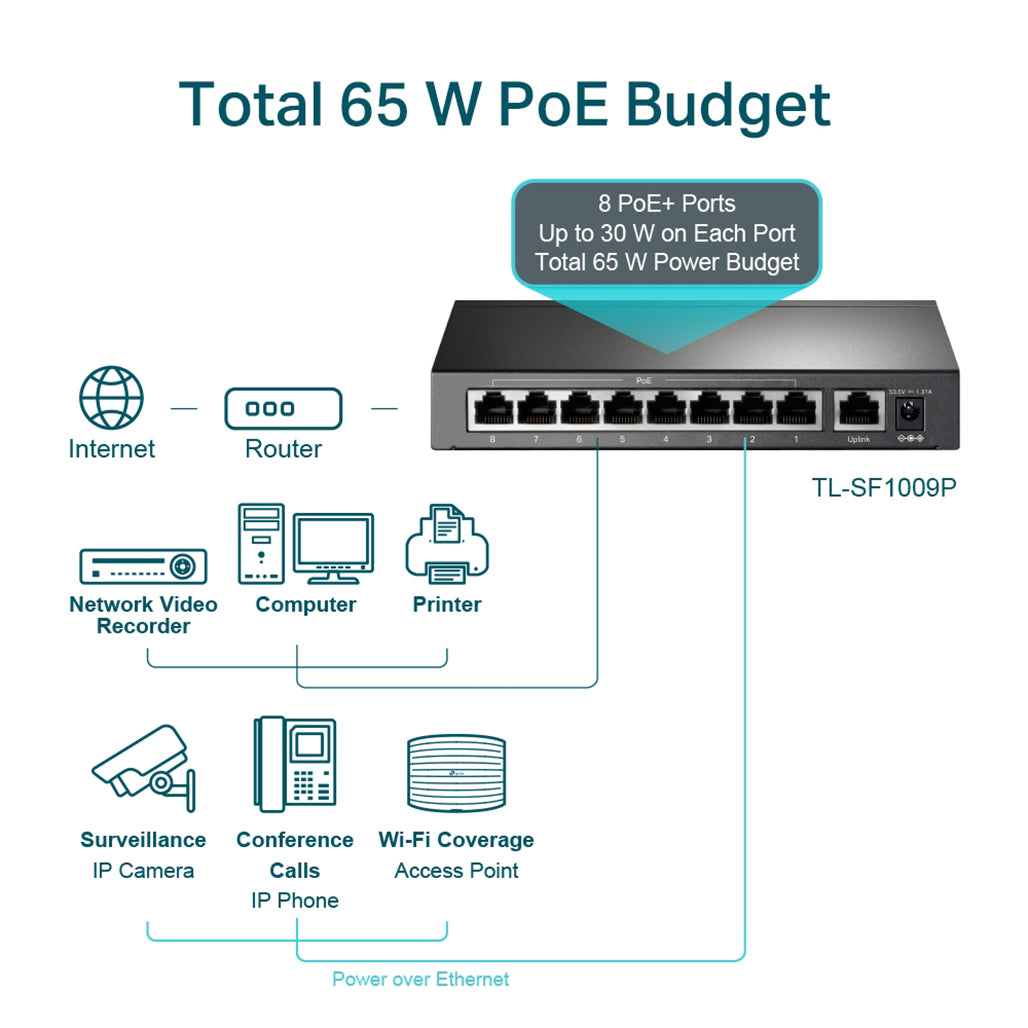

• PoE+ Support: Delivers up to 30W per PoE+ port and a total of 65W across all PoE ports, compatible with IEEE 802.3af/at standards.
• Extended Transmission Range: Extend Mode supports up to 250 meters of data and power transmission, ideal for large-scale deployments.
• Priority Mode: Ports 1 and 2 receive prioritized bandwidth to ensure optimal performance for sensitive applications.
• Isolation Mode: Provides one-click traffic separation for ports 1–8 to enhance security and performance.
• Intelligent Power Management: Automatically adjusts power distribution to prevent overload and ensure optimal operation of high-priority devices.
• Durable Metal Casing: Ensures long-lasting performance and reliability with a high-quality metal casing.

Specifications

Hardware Features

• Interface:

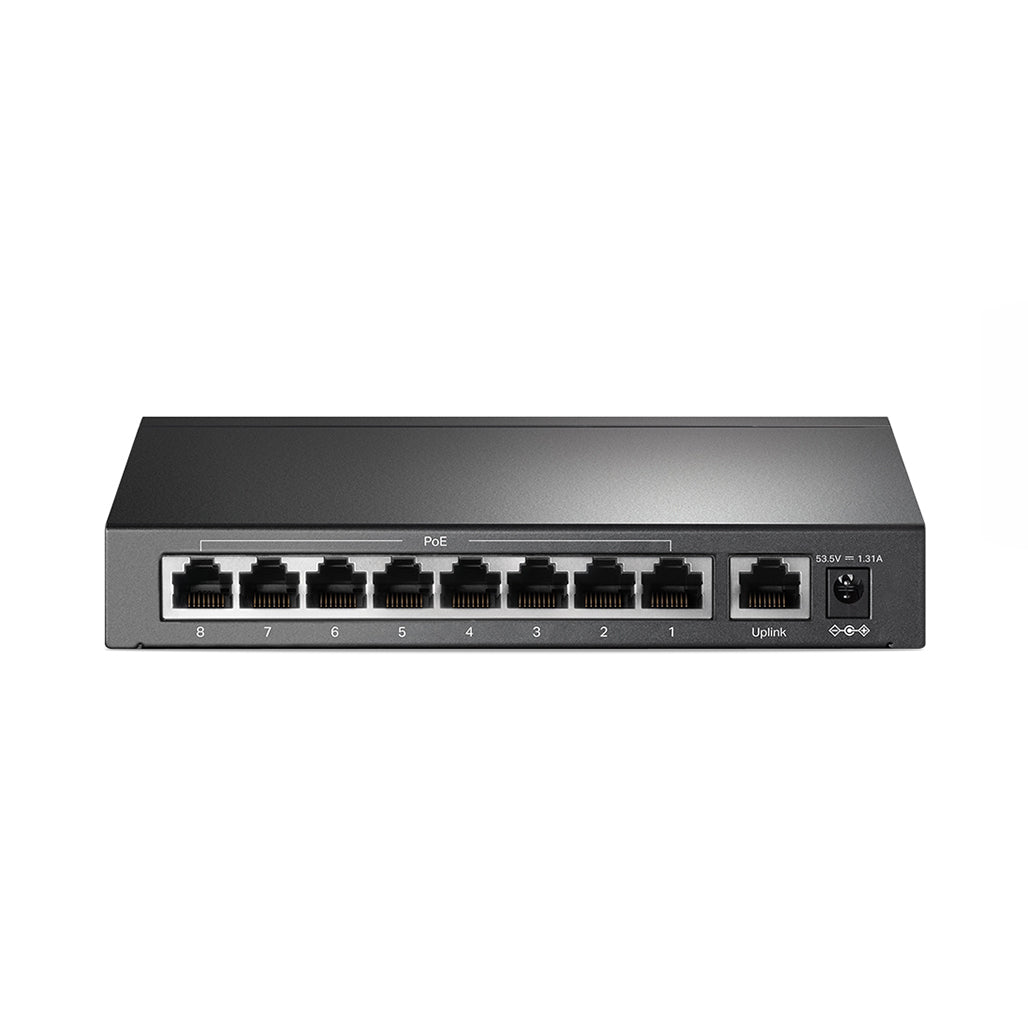

  • 9× 10/100 Mbps RJ45 Ports (8× 802.3af/at PoE+ ports)
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5V DC / 1.3A)
• Packet Forwarding Rate: 1.3392 Mpps
• PoE Ports (RJ45): Ports 1–8
  • Power Supply: 65 W
• Mac Address Table: 2K
• Jumbo Frame: 2 KB
• Switching Capacity: 1.8 Gbps
• Dimensions (W x D x H): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
• Max Power Consumption:
  • 3.6W (no PD connected)
  • 77.1W (with 65W PD connected)
• Max Heat Dissipation:
  • 12.3 BTU/h (no PD connected)
  • 262.8 BTU/h (with 65W PD connected)

Software Features

• Transmission Method: Store-And-Forward
• Advanced Functions:
  • Compatible with IEEE 802.3af/at Compliant PDs

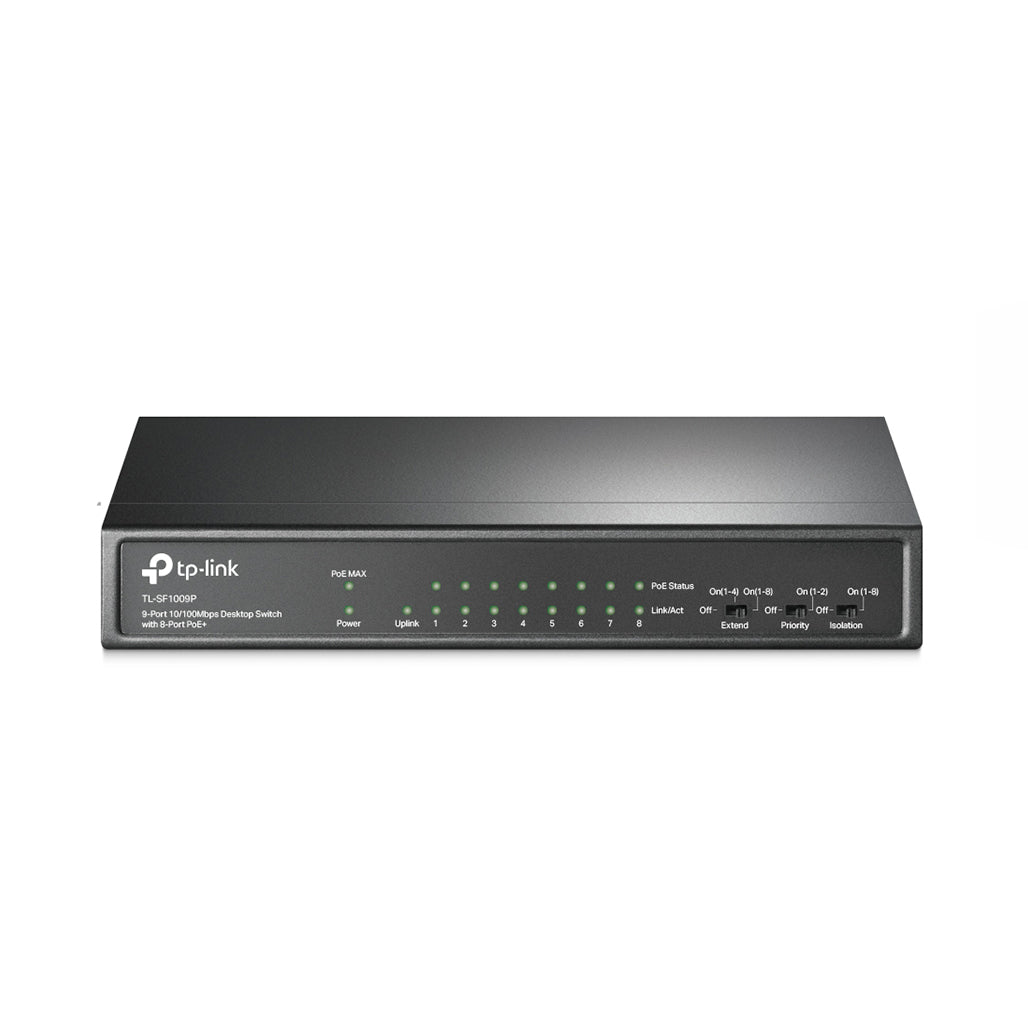

  • Extend Mode Button (Ports 1–4 and Ports 1–8, up to 250m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1–2)
  • Isolation Mode Button (Ports 1–8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE 802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

Others

• Certification: FCC, CE, RoHS
• Package Contents: TL-SF1009P, Power Adapter, Installation Guide
• Environment:
  • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

Conclusion

The TP-Link TL-SF1009P 9-Port Desktop Switch with 8-Port PoE+ is an excellent choice for expanding network connectivity while providing power to PoE devices. Its robust feature set, including priority and isolation modes, extended transmission range, and intelligent power management, ensures high performance and security for demanding applications. The switch's durable metal casing and straightforward installation make it a reliable and versatile solution for various network environments.
