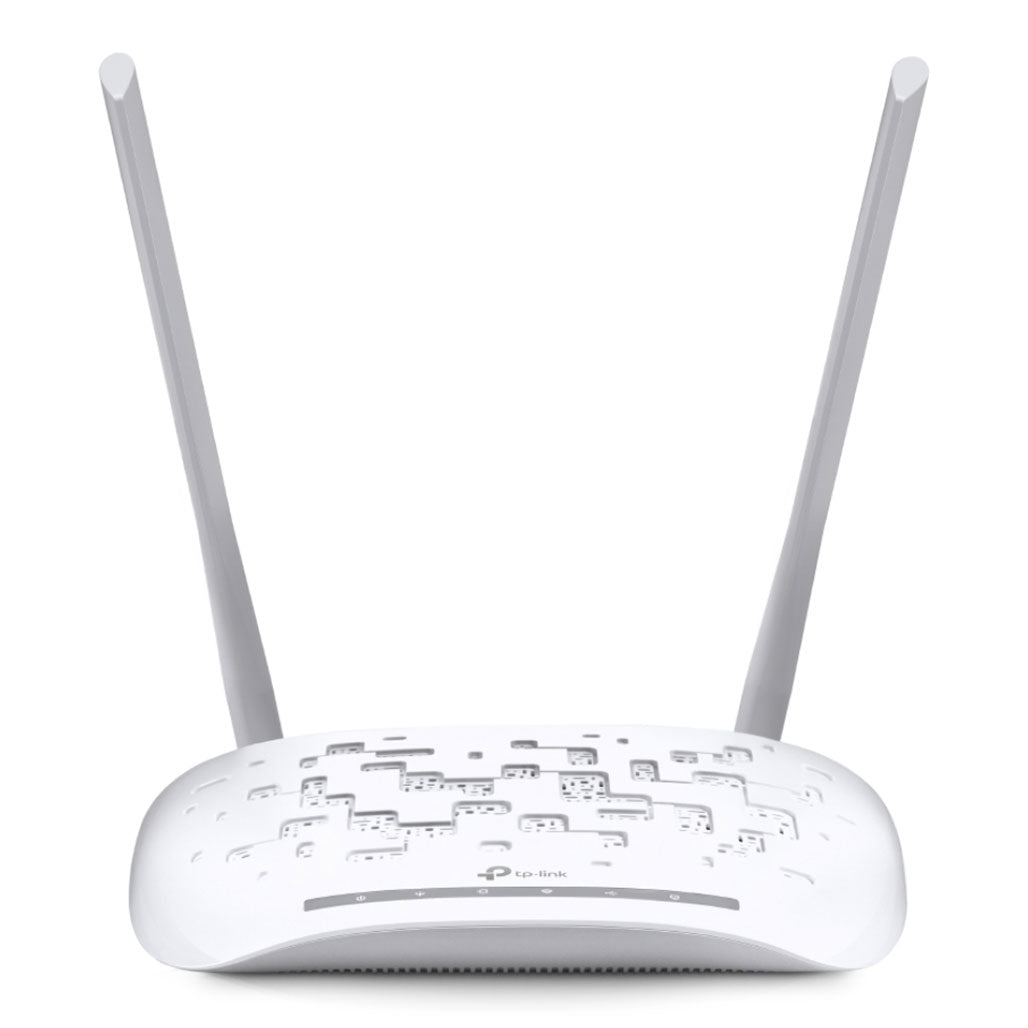

TP-Link TD-W9970 Wireless N USB VDSL/ADSL Modem Router | 300Mbps, 4 Ports, USB 2.0

The TP-Link TD-W9970 Wireless N USB VDSL/ADSL Modem Router delivers reliable and high-speed internet connectivity for both home and office environments. This versatile device supports various DSL standards, including VDSL2 and ADSL2+, ensuring compatibility with different types of broadband services. With a maximum wireless speed of 300 Mbps at 2.4 GHz, the TD-W9970 facilitates smooth and efficient data transmission, making it suitable for activities like streaming, gaming, and online browsing.

Equipped with multiple connectivity options, including four Ethernet ports and a USB 2.0 port, the TD-W9970 offers flexibility in network setup. The two fixed 4dBi antennas enhance wireless coverage and signal strength, while robust security features, such as WPA/WPA2 encryption and firewall protection, safeguard your network from potential threats. The router also supports advanced management options, including remote management and dynamic DNS, allowing for greater control and customization of your network environment.

Key Features

• High-Speed Wireless Connectivity: The TP-Link TD-W9970 supports wireless speeds up to 300 Mbps on the 2.4 GHz band, providing fast and reliable internet access for various applications.
• Comprehensive DSL Compatibility: This modem router supports multiple DSL standards, including VDSL2 and ADSL2+, ensuring compatibility with a range of broadband services.
• Flexible Connectivity Options: The device features one 10/100 Mbps LAN/WAN port, three 10/100 Mbps LAN ports, one RJ11 port for DSL connections, and one USB 2.0 port for additional functionality.
• Enhanced Wireless Coverage: Two fixed 4dBi antennas are included, offering improved signal strength and coverage for a stable wireless network.
• Advanced Security Features: Equipped with WPA/WPA2 encryption and firewall protection, the TD-W9970 helps secure your network against unauthorized access and cyber threats.
• Versatile Operating Modes: The router supports multiple operating modes, including DSL modem router, 3G/4G router, and wireless router, providing flexibility for different networking needs.
• Management and Customization: Features like remote management, dynamic DNS, and VPN pass-through enhance the router’s manageability and adaptability to various network configurations.

Specifications

Hardware Features

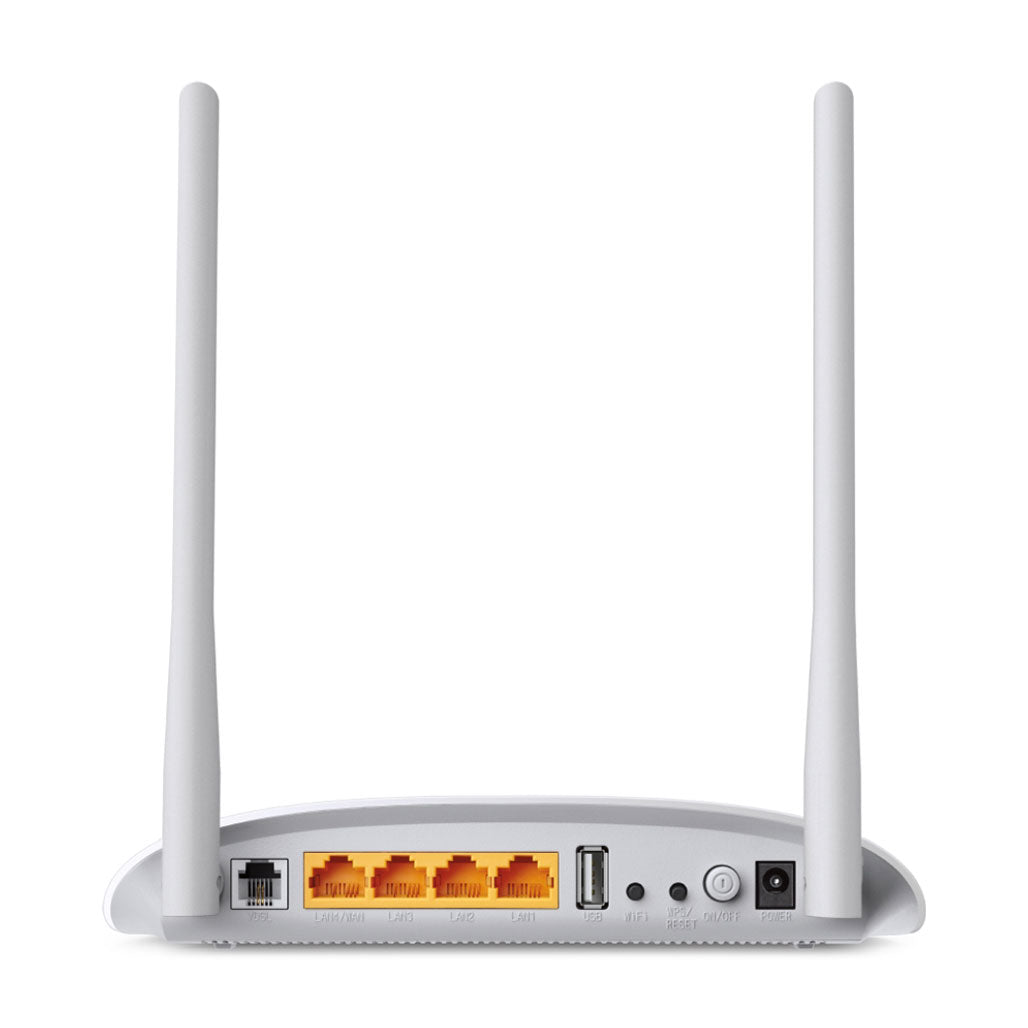

• Ports: 1× 10/100 Mbps LAN/WAN Port, 3× 10/100 Mbps LAN ports, 1× RJ11 port, 1× USB 2.0 Port
• Button: WPS/Reset Button, Wi-Fi Button, Power On/Off Button
• External Power Supply: 9V/0.85A
• IEEE Standards: IEEE 802.3, 802.3u
• VDSL2 Standards: ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
• ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1
• ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis)
• ADSL2+ Standards: ITU-T G.992.5
• Dimensions (W x D x H): 7.7 × 5.1 × 1.4 in. (195 × 130 × 36 mm)
• Antenna: 2 × 4dBi Fixed Omni-Directional Antennas

Wireless Features

• Frequency: 2.400 - 2.4835 GHz
• Signal Rate: 300 Mbps at 2.4 GHz
• Transmit Power: <20dBm (EIRP)
• Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
• Wireless Security: Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Software Features

• Quality of Service: WMM, Bandwidth Control
• Security: Firewall & DoS Protection, Service Filtering, Access Control, IP & MAC Binding, IPv6 Firewall
• Operating Modes: DSL Modem Router, 3G/4G Router, Wireless Router
• Management: Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web-Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools
• DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ, Manage Control
• Dynamic DNS: DynDns, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec Pass-through
• Protocols: Supports IPv4 and IPv6
• ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs
• Guest Network: 2.4 GHz Guest Network
• IPSec VPN: Supports up to 10 IPSec VPN tunnels

Others

• Certification: CE, RoHS
• Package Contents: DSL Modem Router TD-W9970, External DSL Splitter, RJ11 DSL Cable, RJ45 Ethernet Cable, Quick Installation Guide, Power Adapter
• System Requirements: Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link TD-W9970 Wireless N USB VDSL/ADSL Modem Router provides comprehensive connectivity and robust performance for a range of networking needs. Its high-speed wireless capabilities, versatile DSL support, and flexible management options make it a valuable asset for ensuring a stable and secure internet connection. This router’s combination of advanced features and user-friendly design offers a reliable solution for both home and small office environments.
