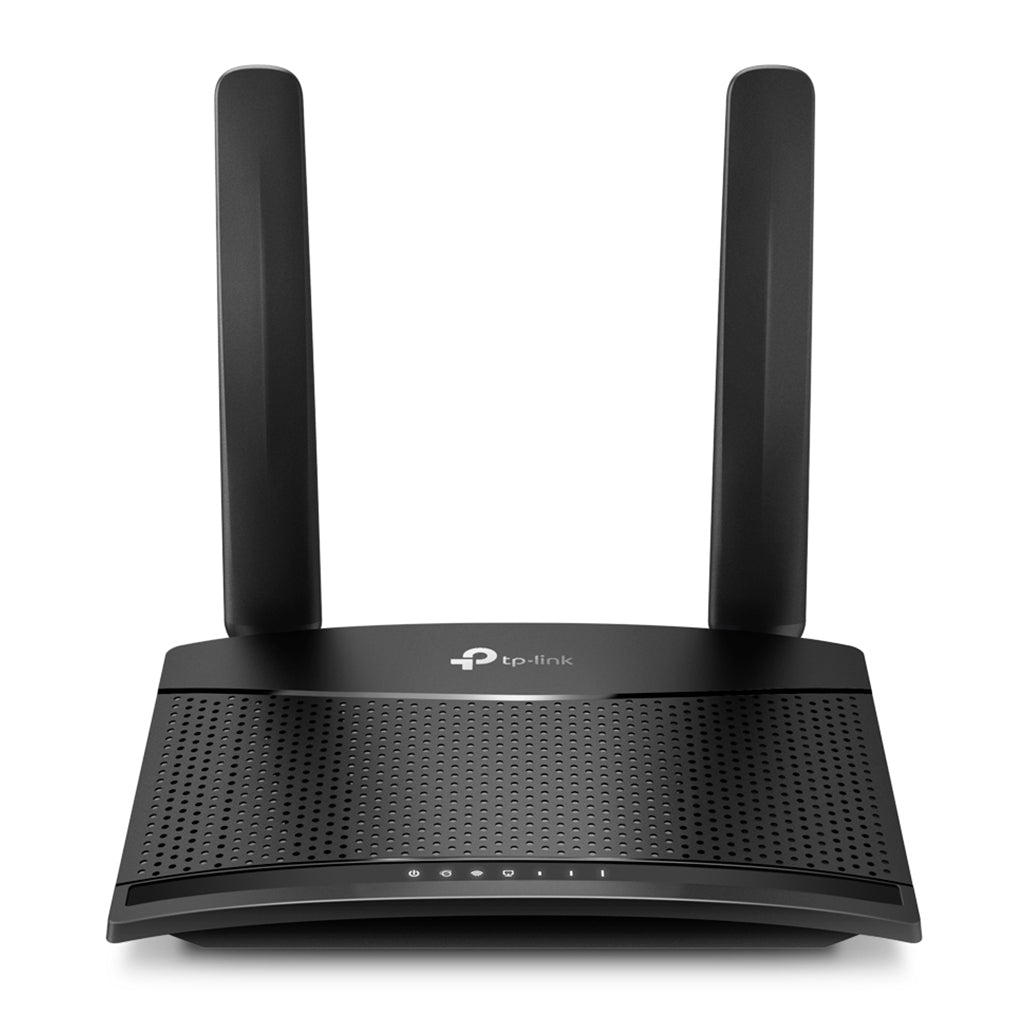

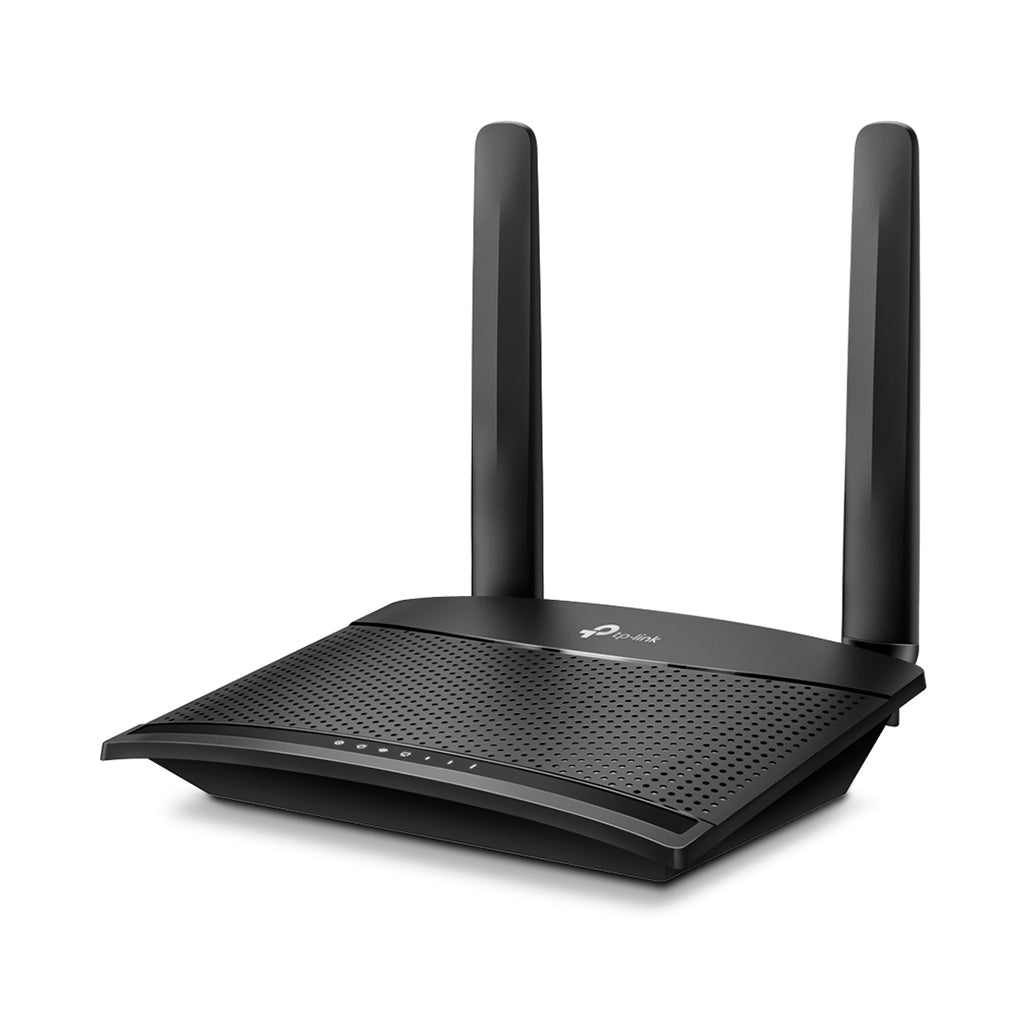

TP-Link TL-MR100 - 300 Mbps Wireless N 4G LTE Router

The TP-Link TL-MR100 300 Mbps Wireless N 4G LTE Router is designed to provide fast and reliable internet connectivity for both home and office use. This router features an integrated 4G LTE modem and a micro SIM card slot, allowing users to quickly set up a high-speed network without complex configurations. It supports download speeds of up to 150 Mbps, ensuring smooth streaming, rapid downloads, and efficient browsing for multiple devices.

Equipped with two detachable external LTE antennas, the TL-MR100 enhances signal stability and range, delivering a consistent and strong connection across your network. The router supports up to 32 wireless devices simultaneously, making it ideal for environments with multiple users. In addition to its 4G LTE capabilities, the TL-MR100 can function as a traditional Wi-Fi router by plugging in an Ethernet cable, providing flexibility and backup access options.

Key Features

• Integrated 4G LTE Modem: The TL-MR100 features a built-in 4G LTE modem and micro SIM card slot, allowing for easy and immediate internet connectivity without the need for additional configurations.
• High-Speed Connectivity: Provides download speeds of up to 150 Mbps, ensuring fast and reliable internet access for various online activities.
• Detachable LTE Antennas: Comes with two detachable external 4G LTE antennas to improve signal strength and coverage, facilitating stable connections for all connected devices.
• Simultaneous Device Support: Capable of supporting up to 32 wireless devices at the same time, including phones, tablets, and laptops, while a LAN port is available for wired connections.
• Flexible Operation Modes: Functions as both a 3G/4G router and a wireless router, with the ability to switch between modes depending on connectivity needs.
• Comprehensive Security Features: Includes IPv4 SPI Firewall, IP and MAC address binding, and various wireless encryption methods to protect your network from unauthorized access.

Specifications

Hardware Features

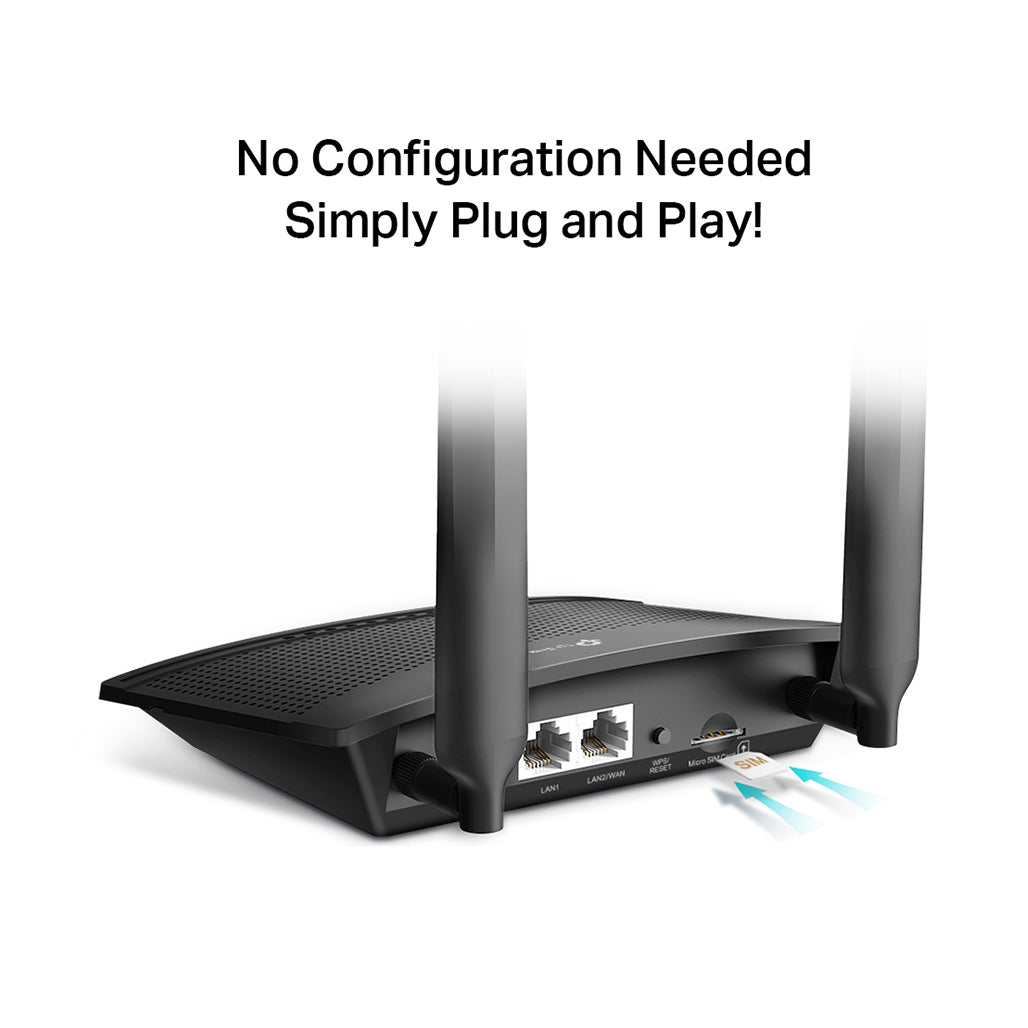

• Interface: 1× 10/100 Mbps LAN Port, 1× 10/100 Mbps LAN/WAN Port, 1× Micro SIM Card Slot
• Button: WPS/Reset Button
• External Power Supply (EU): 9V/0.85A
• Dimensions (W x D x H): 6.06 × 4.49 × 1.42 in (154 × 114 × 36 mm)
• Antenna: 2 Detachable External 4G LTE Antennas
• Antenna Type: V3/APAC: 2 Internal 4G LTE Antennas; V4/V2/V1: 2 Detachable 4G LTE Antennas

Wireless Features

• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Signal Rate: 300 Mbps
• Reception Sensitivity: 11g 54M: -74 dBm, 11n HT20: -71 dBm, 11n HT40: -68 dBm
• Transmit Power: < 20 dBm (2.4 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz); TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz); 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features

• Security: IPv4 SPI Firewall, IP and MAC Address Binding
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
• Management: Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP
• Protocols: IPv4, IPv6
• Guest Network: 2.4 GHz Guest Network
• Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

Others

• Certification: CE, RoHS
• Package Contents: 300 Mbps Wireless N 4G LTE TL-MR100, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
• Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser; Micro SIM Card
• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link TL-MR100 300 Mbps Wireless N 4G LTE Router stands out for its simplicity and efficiency, offering fast 4G LTE connectivity with minimal setup. Its capability to handle up to 32 devices simultaneously and the inclusion of detachable LTE antennas ensure robust and reliable internet access. Whether used as a primary 4G router or as a backup Wi-Fi solution, the TL-MR100 delivers excellent performance and versatility for a range of networking scenarios.
