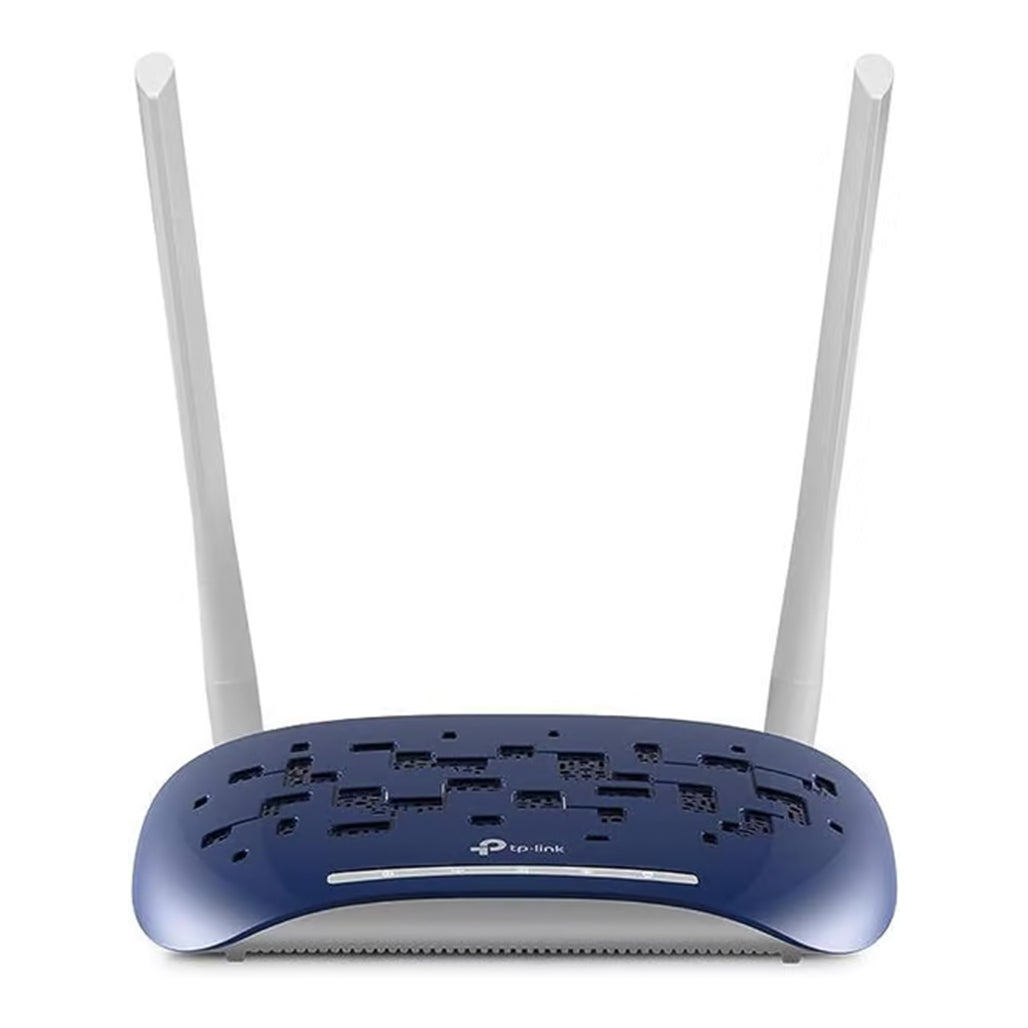

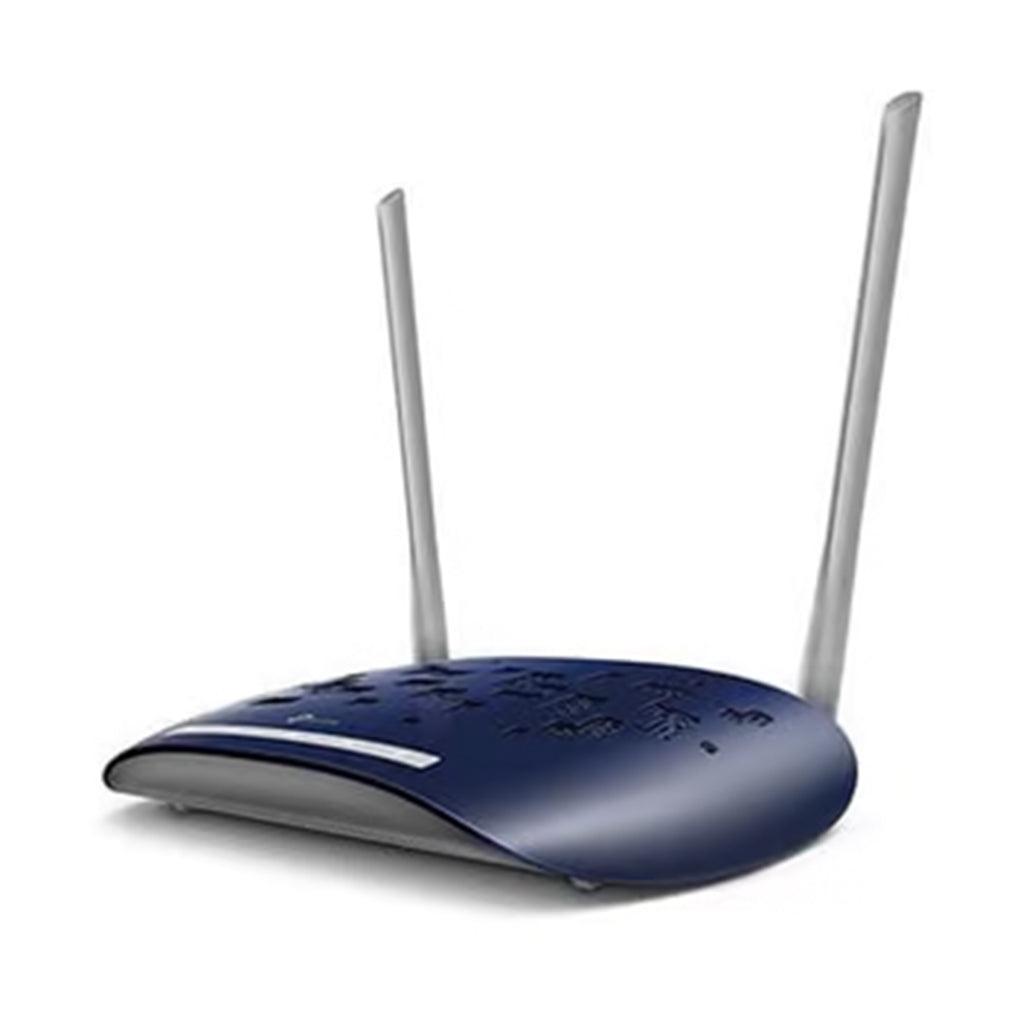

The TP-Link TD-W9960 300Mbps Wireless N VDSL/ADSL Modem Router is designed to provide robust and high-speed internet connectivity for home or small office environments. Featuring VDSL2 technology, it offers impressive broadband speeds of up to 100 Mbps in both upstream and downstream directions. This modem router is compatible with various DSL standards, including VDSL2, ADSL2+, ADSL2, and ADSL, ensuring broad compatibility with most internet service providers.
With its 300Mbps wireless speed on the 2.4 GHz band and four 10/100 Mbps LAN ports, the TD-W9960 is well-suited for bandwidth-intensive activities such as HD streaming and online gaming. The device is equipped with two external 5dBi high-gain antennas that enhance signal coverage, ensuring a stable and strong connection throughout your home. Additionally, the TD-W9960 includes advanced features such as 6kV lightning protection, which safeguards the device from electrical damage, and robust security measures including parental controls and a guest network option to protect your network from unauthorized access.
Key Features:
- High-Speed VDSL Technology: Provides VDSL broadband speeds of up to 100 Mbps in both upstream and downstream directions, enhancing internet performance for various applications.
- Broad Compatibility: Supports multiple DSL standards (VDSL2, ADSL2+, ADSL2, ADSL), ensuring compatibility with a wide range of ISPs.
- Strong Wireless Performance: Delivers wireless speeds of up to 300 Mbps on the 2.4 GHz band, supported by two external 5dBi high-gain antennas for extended coverage.
- Robust Security Features: Includes WPA/WPA2 encryption, SPI firewall, and parental controls to secure your network and manage online access.
- Lightning Protection: Equipped with 6kV lightning protection to prevent damage from electrical surges during thunderstorms.
Specifications:
-
Hardware Features:

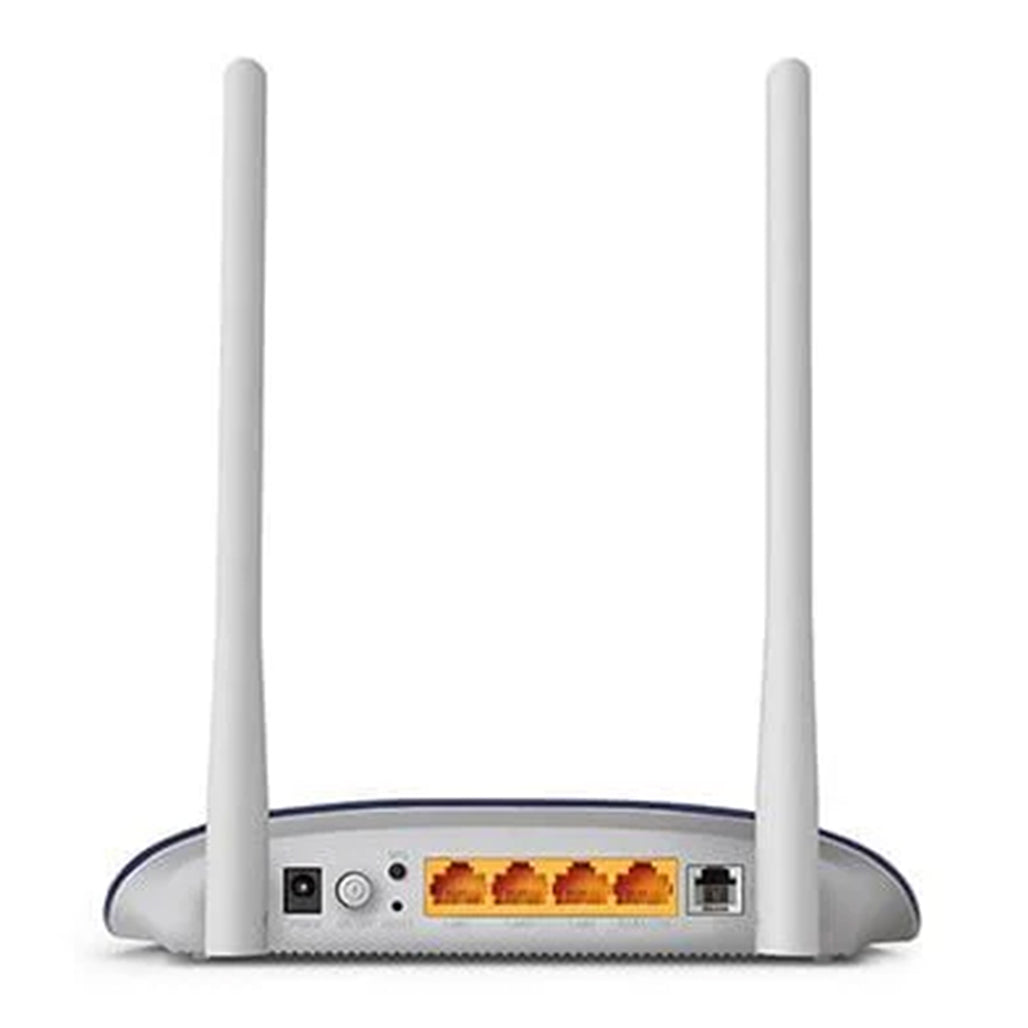

- Interface: 3 × 10/100 Mbps RJ45 LAN Ports, 1 × 10/100 Mbps RJ45 LAN/WAN Port, 1 × RJ11 Port
- Buttons: WPS Button, RESET Button, Power ON/OFF Button
- External Power Supply: 9VDC/0.6A
- IEEE Standards: IEEE 802.3, 802.3u
- VDSL2 Standards: ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
- Dimensions (W x D x H): 181.6 × 129.7 × 36.2 mm
- Antenna Type: Omni-directional, Fixed
- Antenna Gain: 2 × 5dBi
-
Wireless Features:
- Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
- Frequency: 2.400-2.4835 GHz
- Transmit Power: <20dBm (EIRP)
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering
-
Software Features:
- Quality of Service: WMM, Bandwidth Control (IP QoS)
- Security: NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls
- Operating Modes: VDSL/ADSL Modem Router, Wireless Router
- Management: Web Based Configuration (HTTP), Remote management, CWMP (TR-069), Web Based Firmware Upgrade, Diagnostic Tools
- VPN Pass-Through: PPTP, L2TP, IPSec Passthrough
- Protocols: Supports IPv4 and IPv6
- ATM/PPP Protocols: PPPoE (RFC2516), PPPoA (RFC 2364), MER/IPoE (RFC 1483 Routed), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge)
- Advanced Features: Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
- APP: Tether App
- NAT: Virtual Server, Port Triggering, DMZ, ALG, UPnP
-
Other:
- Certification: CE, RoHS

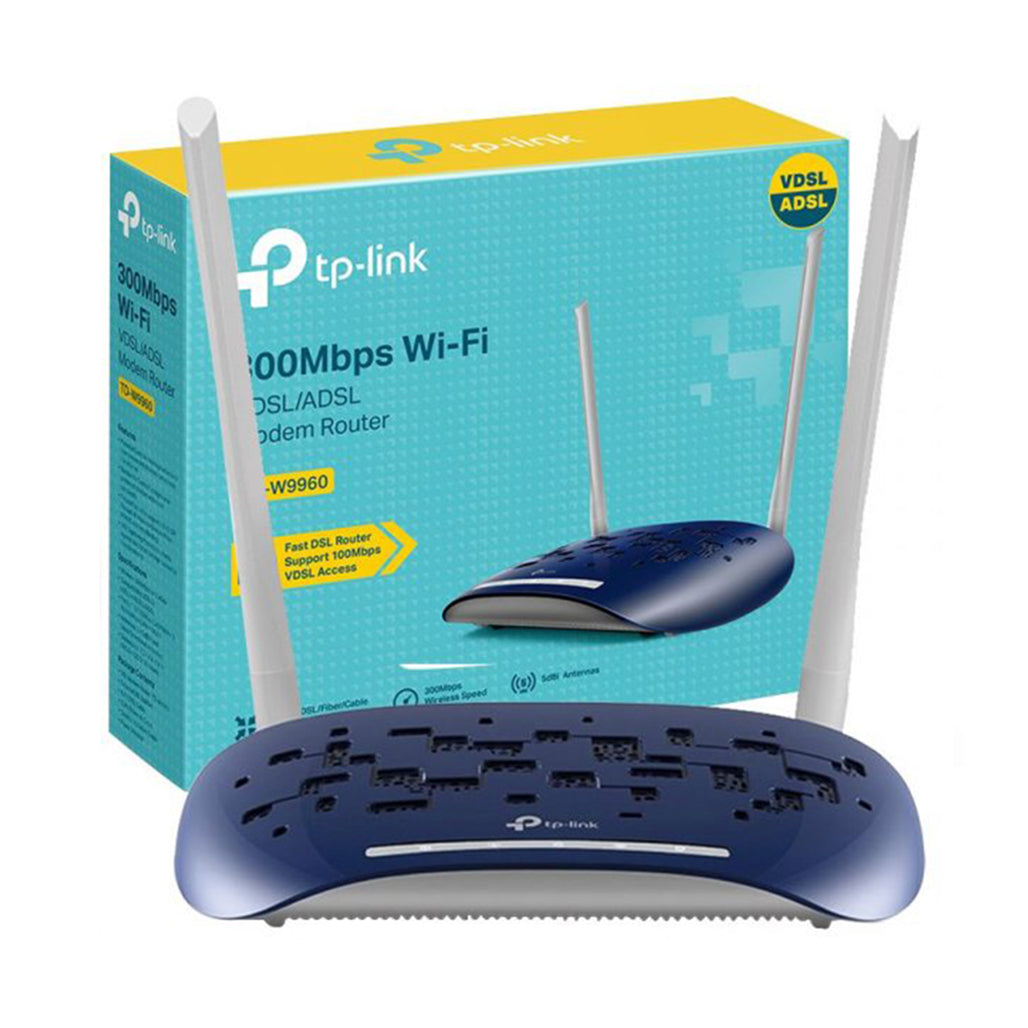

- Package Contents: TD-W9960, External DSL Splitter, RJ-11 DSL Cable, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, 7, 8, 8.1, 10, Mac OS, NetWare, UNIX, Linux; Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other Java-enabled browser; Subscription with an internet service provider (for internet access)
- Environment: Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Conclusion: The TP-Link TD-W9960 300Mbps Wireless N VDSL/ADSL Modem Router stands out for its high-speed VDSL connectivity and comprehensive features designed to enhance home or office internet experiences. With its reliable performance, strong signal coverage, and robust security features, it meets the needs of users seeking a dependable and high-performing networking solution. The easy setup and management options further ensure a user-friendly experience, making the TD-W9960 an excellent choice for efficient and secure internet connectivity.
