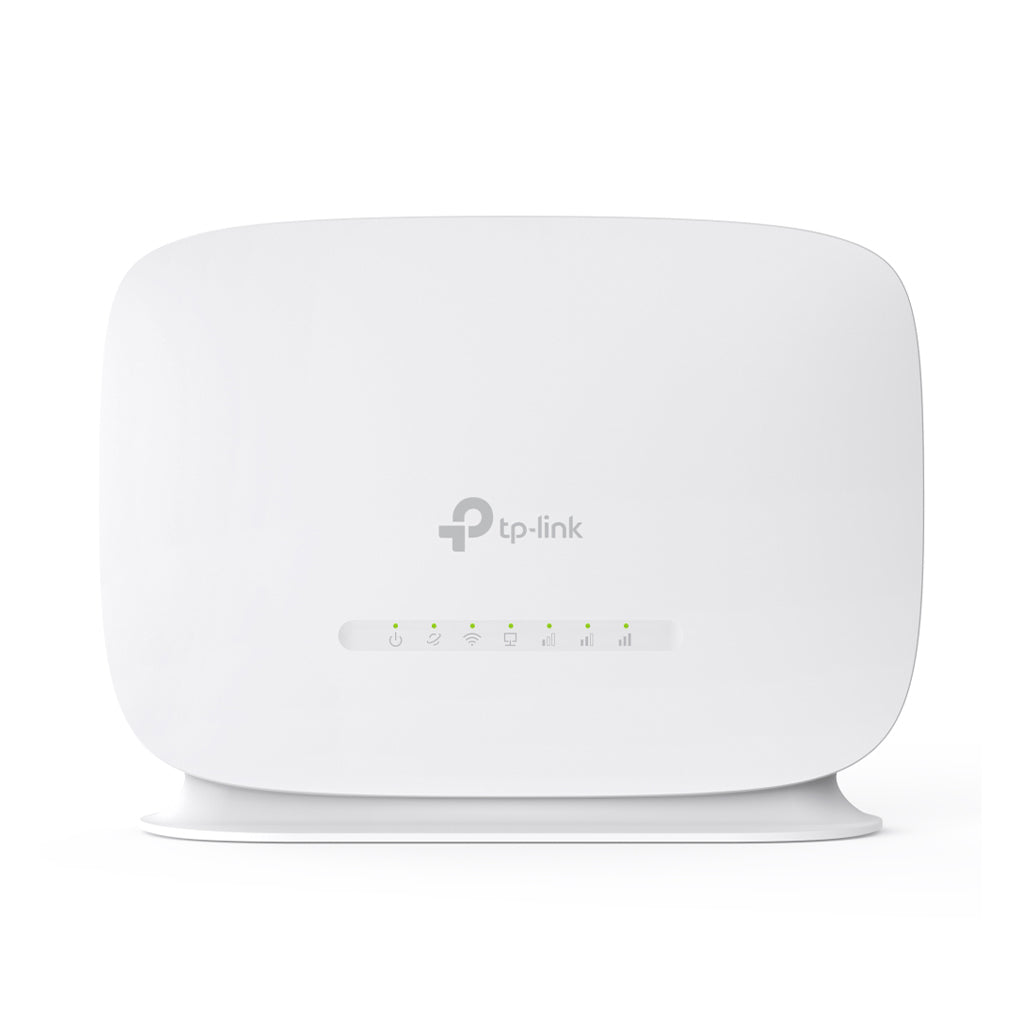

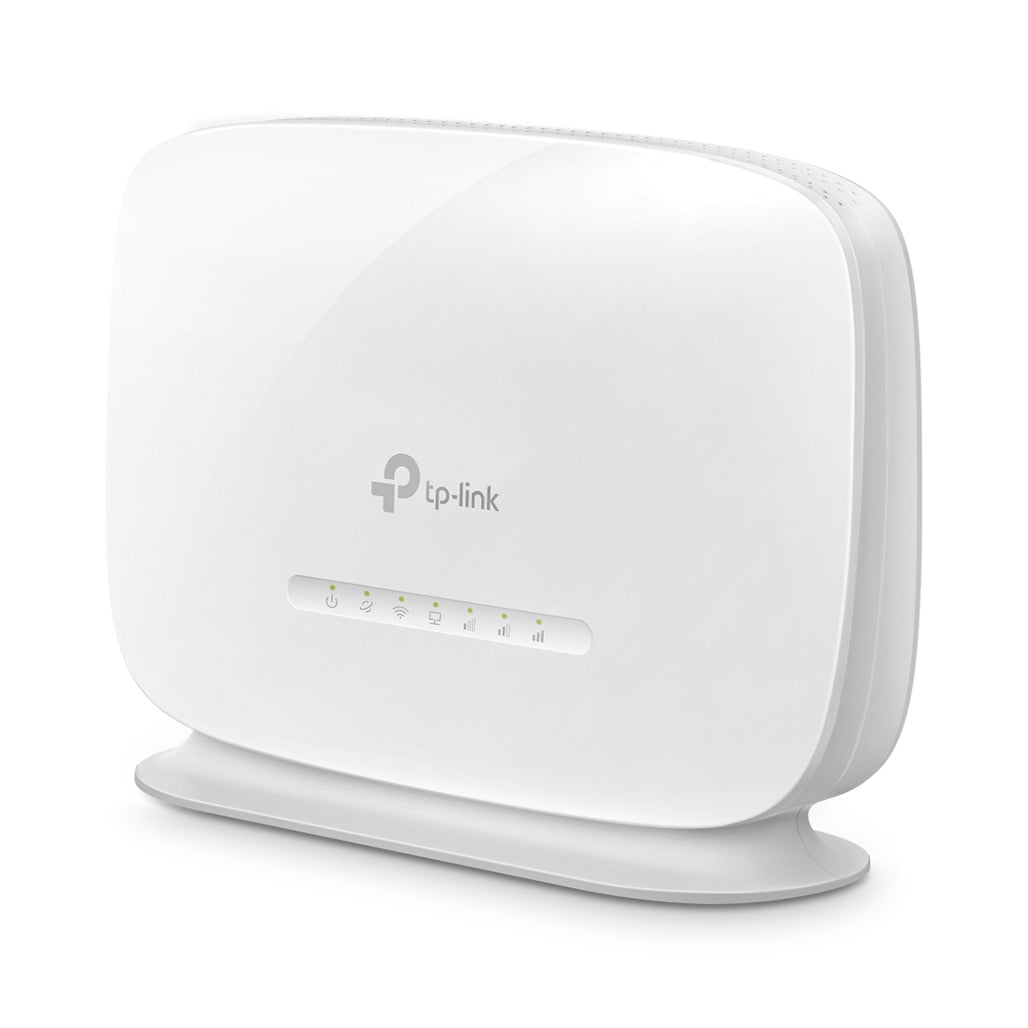

TP-Link TL-MR105 - 300 Mbps Wireless N 4G LTE Router

The TP-Link TL-MR105 300 Mbps Wireless N 4G LTE Router offers an efficient solution for high-speed internet connectivity with minimal setup. Designed with an integrated 4G LTE modem and a nano SIM card slot, this router ensures easy plug-and-play functionality, allowing users to enjoy fast and reliable internet with no complicated configurations. Capable of download speeds up to 150 Mbps, the TL-MR105 is ideal for streaming, gaming, and browsing on multiple devices.

With its support for up to 32 Wi-Fi devices simultaneously, the TL-MR105 is well-suited for both home and office environments. The router is equipped with two internal 4G/3G antennas and two external antenna ports, optimizing signal strength and network reliability. It also includes dual LAN ports for wired connections, offering flexibility in network setup. Whether used as a primary 4G LTE router or as a backup Wi-Fi option, the TL-MR105 delivers consistent performance and extensive coverage.

Key Features

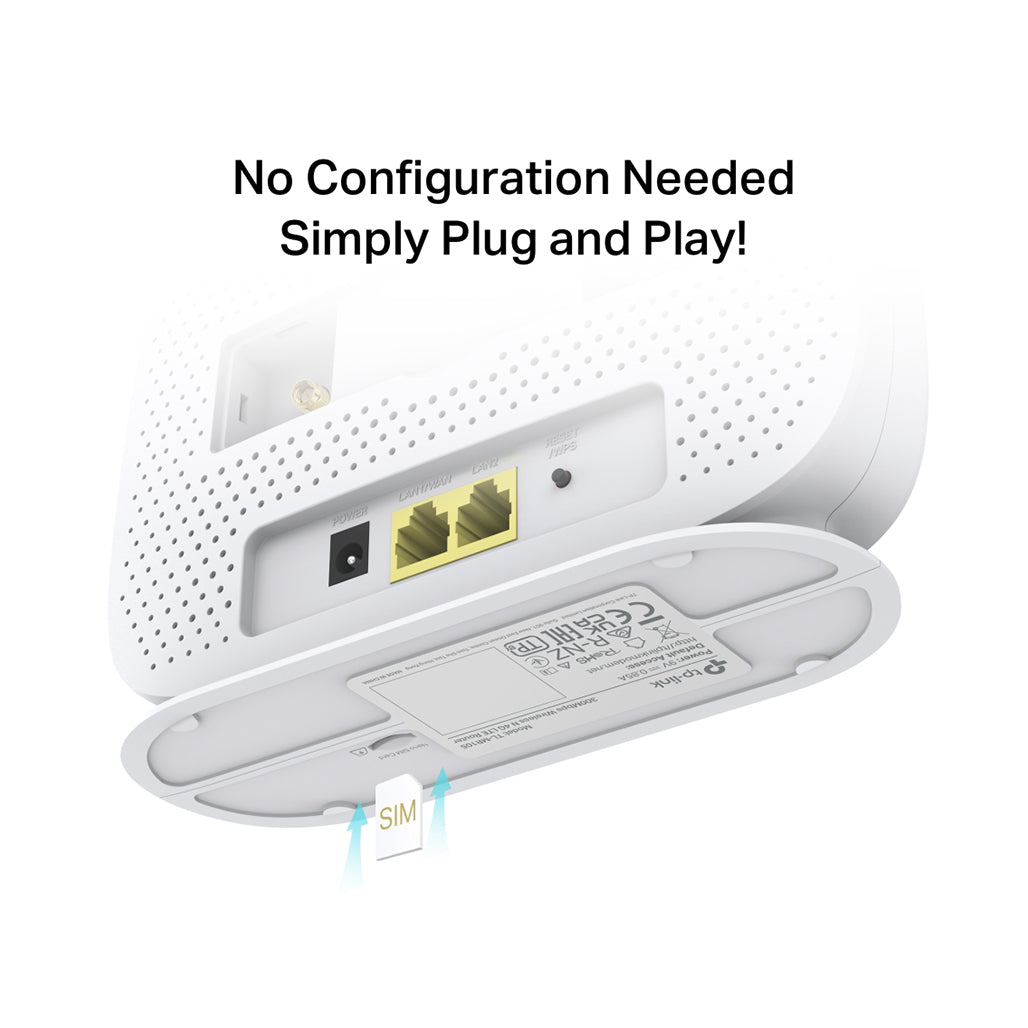

• Integrated 4G LTE Modem: The router features a built-in 4G LTE modem with a nano SIM card slot, enabling quick and straightforward internet access without extensive configuration.
• High-Speed Performance: Provides download speeds of up to 150 Mbps, supporting seamless HD video streaming, fast downloads, and stable online activities.
• Wide Device Support: Capable of supporting up to 32 wireless devices simultaneously, making it suitable for multiple users in various settings.
• Enhanced Connectivity: Equipped with two internal 4G/3G antennas and two external antenna ports, the TL-MR105 ensures strong and reliable signal reception.
• Flexible Operation Modes: Functions as both a 3G/4G router and a wireless router, with options to switch between modes depending on connectivity requirements.
• Robust Security Features: Includes IPv4 SPI Firewall, IP and MAC address binding, and multiple encryption methods to safeguard your network.

Specifications

Hardware Features

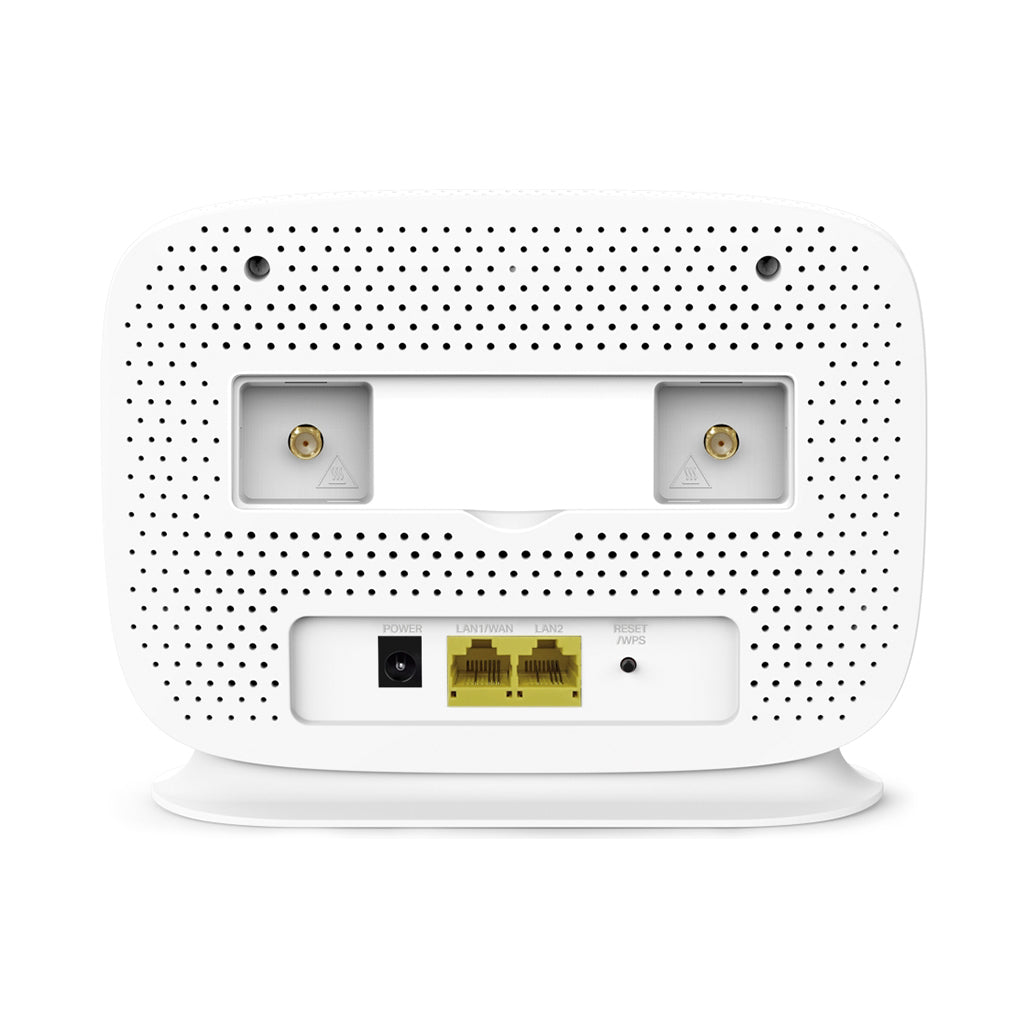

• Interface: 1× 10/100 Mbps LAN Port, 1× 10/100 Mbps LAN/WAN Port, 1× Nano SIM Card Slot
• Button: Reset/WPS Button
• External Power Supply (EU): 9V/0.85A
• Dimensions (W x D x H): 6.85 × 5.12 × 2.36 in (174 × 130 × 60 mm)
• Antenna: 2× Internal 4G/3G Antennas, 2× Internal Wi-Fi Antennas, 2× External 4G/3G Antenna Ports

Wireless Features

• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Signal Rate: 300 Mbps
• Reception Sensitivity: 11g 54M: -74 dBm, 11n HT20: -73 dBm, 11n HT40: -70 dBm
• Transmit Power: < 20 dBm (2.4 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz); TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz); 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features

• Security: IPv4 SPI Firewall, IP and MAC Address Binding
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
• Management: Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: TP-Link, DynDns, NO-IP
• Protocols: IPv4, IPv6
• Guest Network: 2.4 GHz Guest Network
• Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

Others

• Certification: CE, RoHS
• Package Contents: 300 Mbps Wireless N 4G LTE TL-MR105, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
• Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Nano SIM Card
• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link TL-MR105 300 Mbps Wireless N 4G LTE Router is an excellent choice for users seeking reliable and high-speed internet connectivity. Its straightforward plug-and-play setup and robust performance make it a versatile option for both home and office use. With support for up to 32 devices and enhanced signal strength from its dual internal antennas, the TL-MR105 ensures stable and efficient network access wherever needed.
