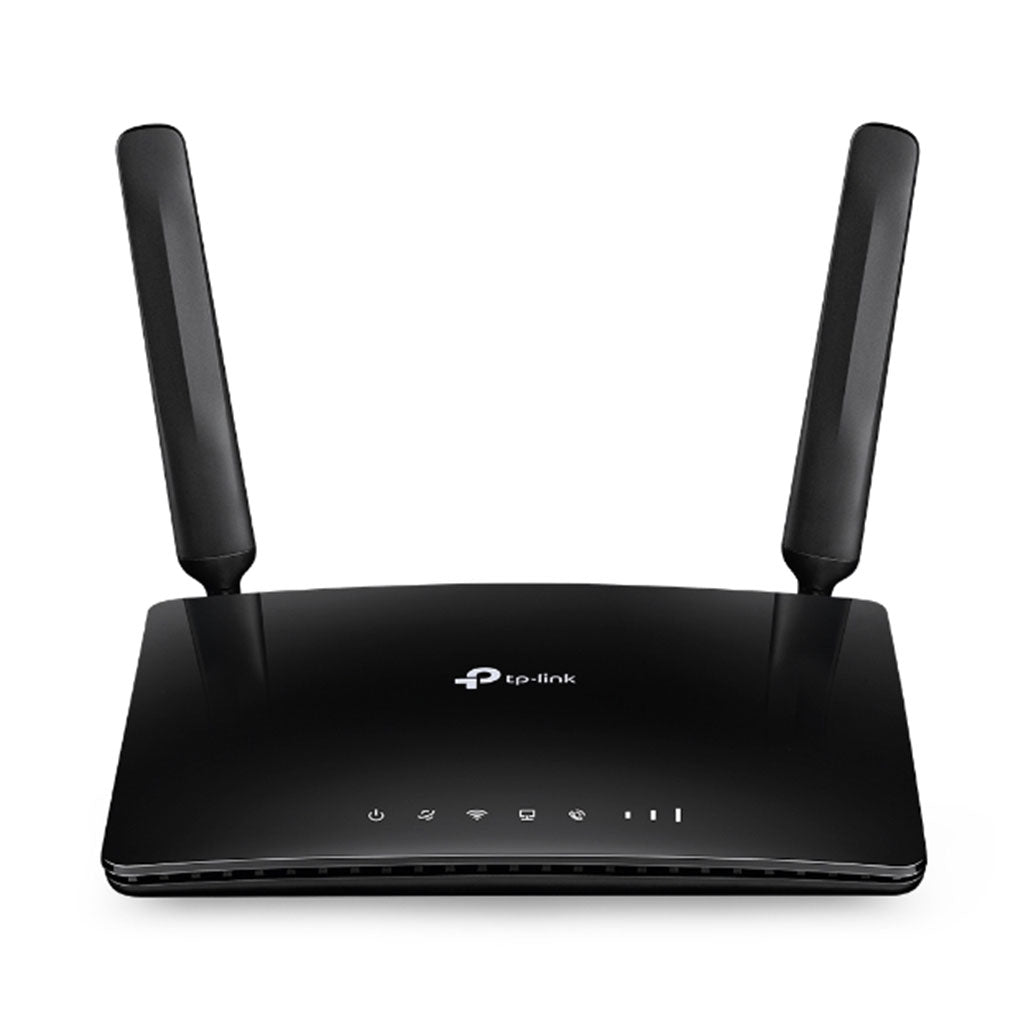

TP-Link TL-MR6500V - N300 4G LTE Telephony WiFi Router

The TP-Link TL-MR6500V N300 4G LTE Telephony WiFi Router offers a comprehensive solution for high-speed internet and telephony needs. With integrated 4G LTE technology, this router supports download speeds up to 300 Mbps, ensuring smooth performance for streaming, gaming, and browsing. The device is designed to accommodate both wireless and wired connections, featuring multiple LAN ports and a phone port for added flexibility.

The TL-MR6500V is equipped with detachable external antennas to enhance signal strength and network stability. It supports up to 32 devices simultaneously and includes a built-in VoIP system with advanced telephone functions. This router is an ideal choice for users seeking reliable internet connectivity combined with telephony features in one compact device.

Key Features

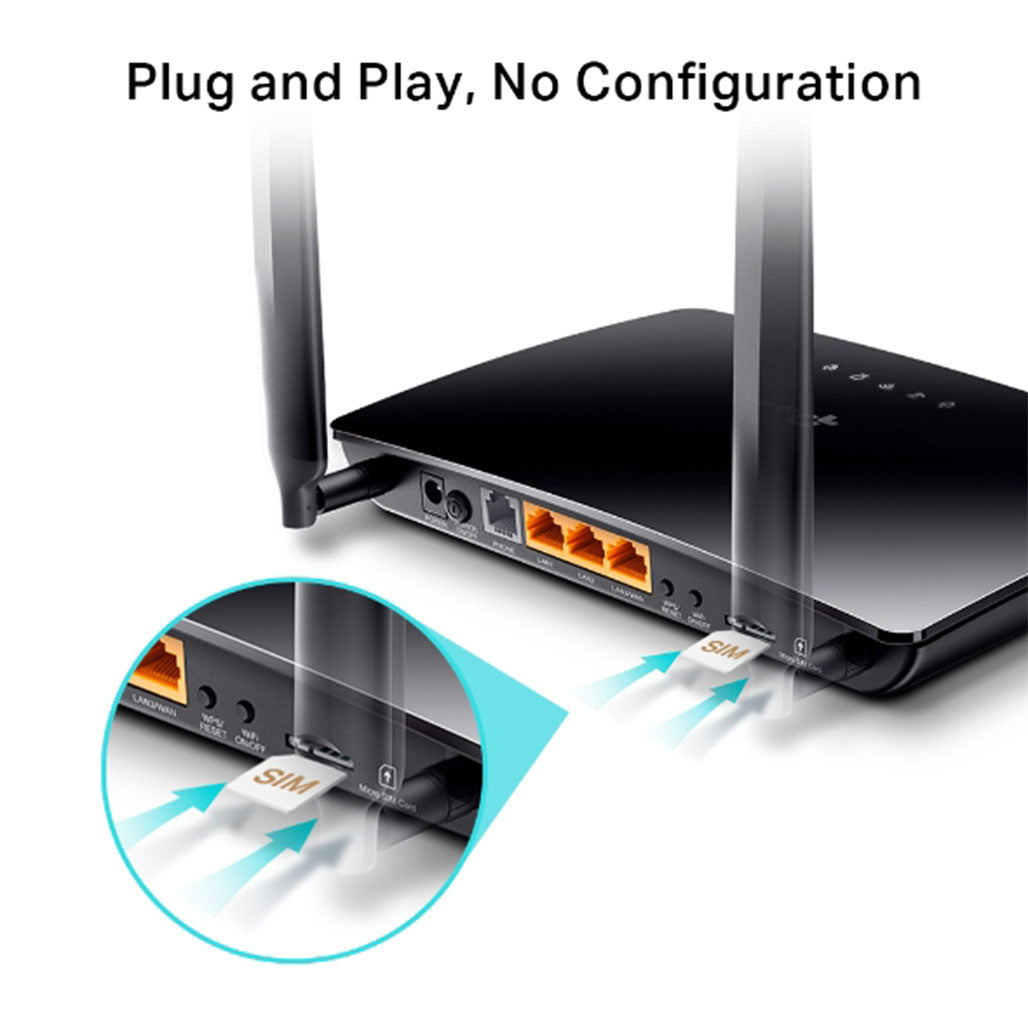

• 4G LTE Connectivity: Enjoy fast internet speeds up to 300 Mbps with support for FDD-LTE and TDD-LTE bands. The router's integrated 4G LTE modem makes setup simple—just insert a micro SIM card and connect.
• VoIP Capabilities: The TL-MR6500V includes VoIP functionality with support for SIP, G.711, G.729, and G.726 standards. It features an integrated answering machine with a 100-minute storage capacity and advanced telephone functions such as call blocking and speed dial.
• Multiple Ports: Equipped with one 10/100 Mbps LAN/WAN port, two 10/100 Mbps LAN ports, and a phone port, this router offers versatile connectivity options for both wired and wireless devices.
• Detachable Antennas: Two detachable external 4G LTE antennas enhance the router's range and signal quality, providing reliable internet access throughout your home or office.
• Robust Security: Offers comprehensive security features including WPA/WPA2 encryption, firewall protection, and VPN pass-through to safeguard your network.
• Flexible Management: Supports local and remote management, DHCP, and dynamic DNS services for efficient network administration and configuration.

Specifications

Hardware Features

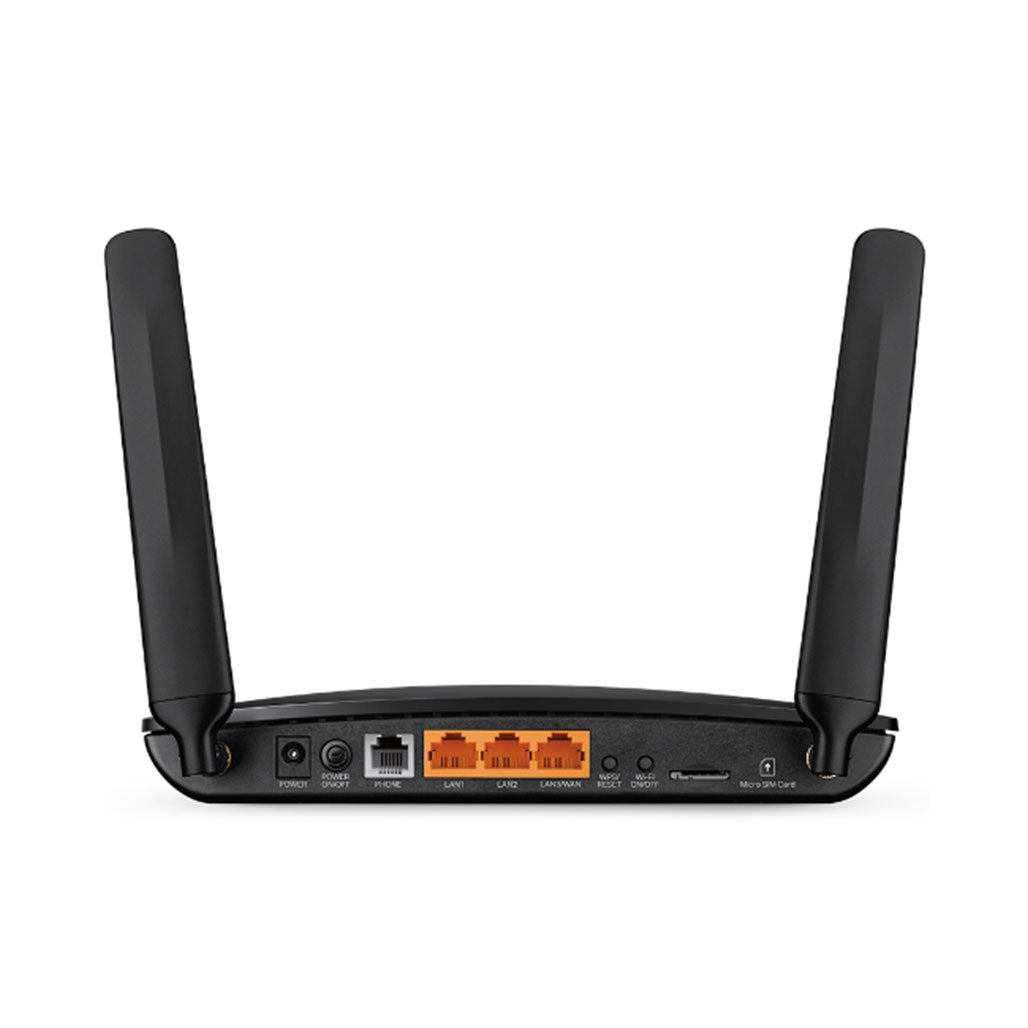

• Interface: 1× 10/100 Mbps LAN/WAN Port, 2× 10/100 Mbps LAN Ports, 1× Phone Port, 1 Micro SIM Card Slot
• Button: WPS/RESET Button, Wi-Fi ON/OFF Button
• External Power Supply: 12V/1A
• Dimensions (W x D x H): 7.95 × 5.55 × 1.32 in (202 × 141 × 33.6 mm)
• Antenna: 2× Detachable External 4G LTE Antennas

Wireless Features

• Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
• Frequency: 2.4 GHz
• Signal Rate: 300 Mbps at 2.4 GHz
• Reception Sensitivity: 11g 54M: -74 dBm, 11n HT20: -71 dBm, 11n HT40: -67 dBm
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type: 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz), TDD-LTE B38/B40/B41 (2600/2300/2500 MHz); 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

Software Features

• Quality of Service: WMM, QoS
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
• Management: Access Control, Local Management, Remote Management
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: TP-Link DDNS, DynDns, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Access Control: Parental Controls, Local Management Control, Host List, Access Control
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

Protocols

• Supports: IPv4 and IPv6

Guest Network

• Frequency: 2.4 GHz Guest Network

VPN Server

• Support: PPTP VPN, OpenVPN

Telephony Features

• VoIP Standards: SIP (RFC3261), RTP (RFC1889/3550), G.711A/u, G.729AB, G.726
• Integrated Answering Machine: Stores up to 100 minutes of voice messages
• Advanced Telephone Functions: Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number

Conclusion

The TP-Link TL-MR6500V N300 4G LTE Telephony WiFi Router is a feature-rich device that combines high-speed internet access with advanced telephony capabilities. Its detachable antennas and versatile port options ensure strong connectivity and flexibility, while its VoIP features provide added functionality for voice communications. This router is an excellent choice for users who need both reliable internet and telephony services in one convenient package.
