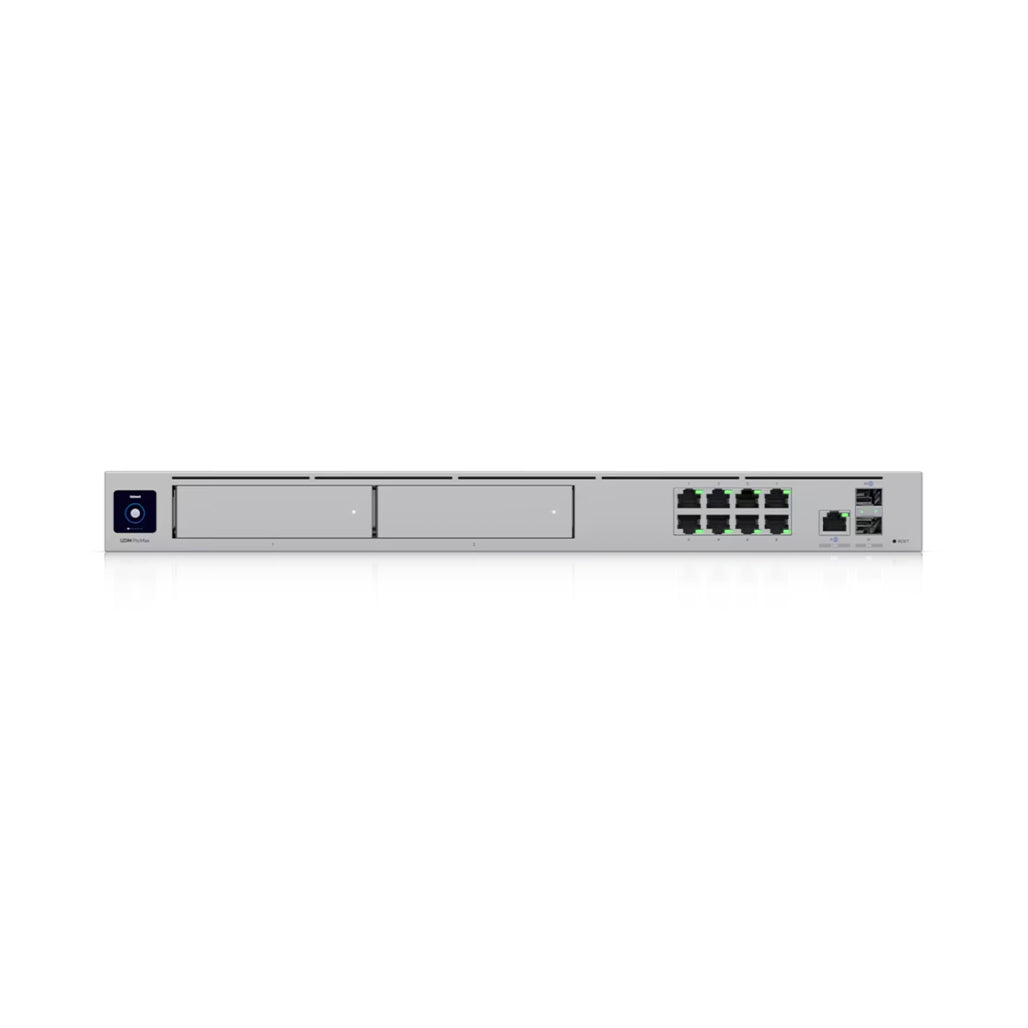

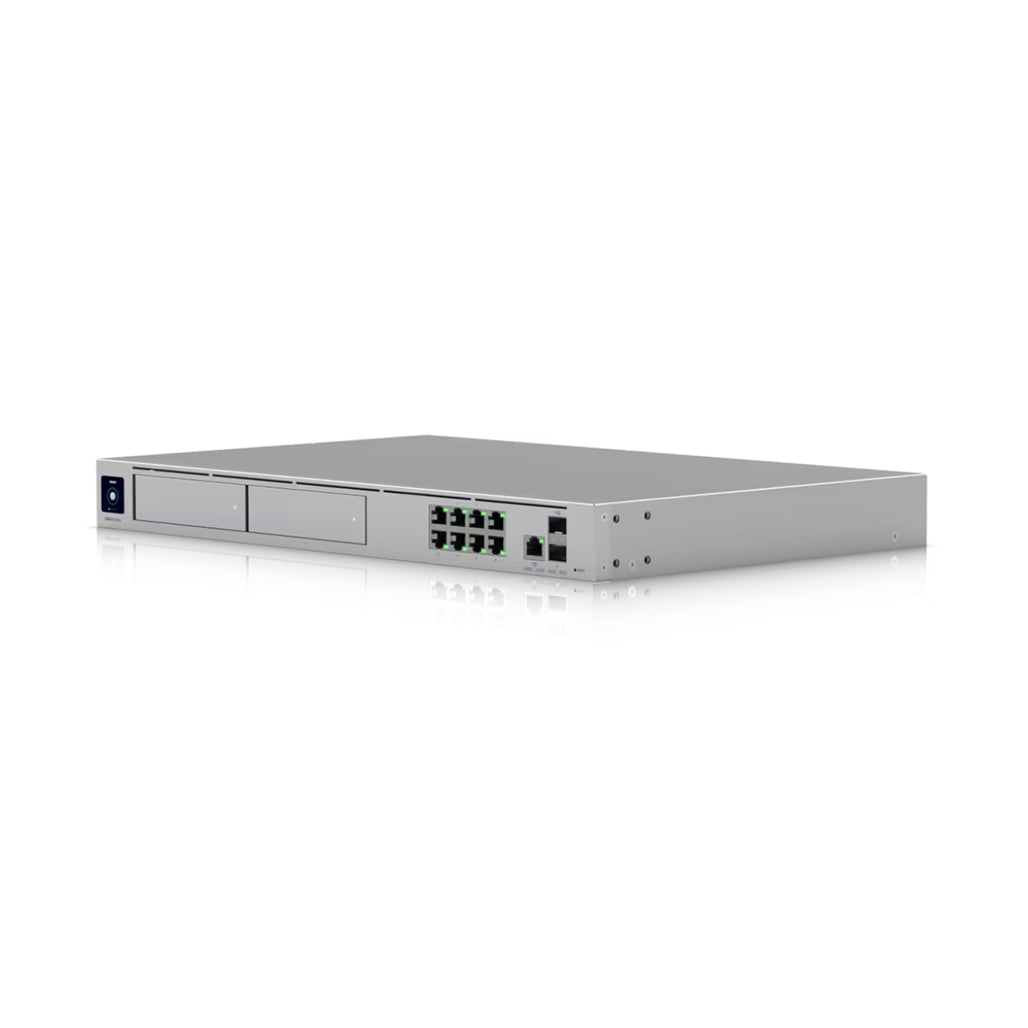

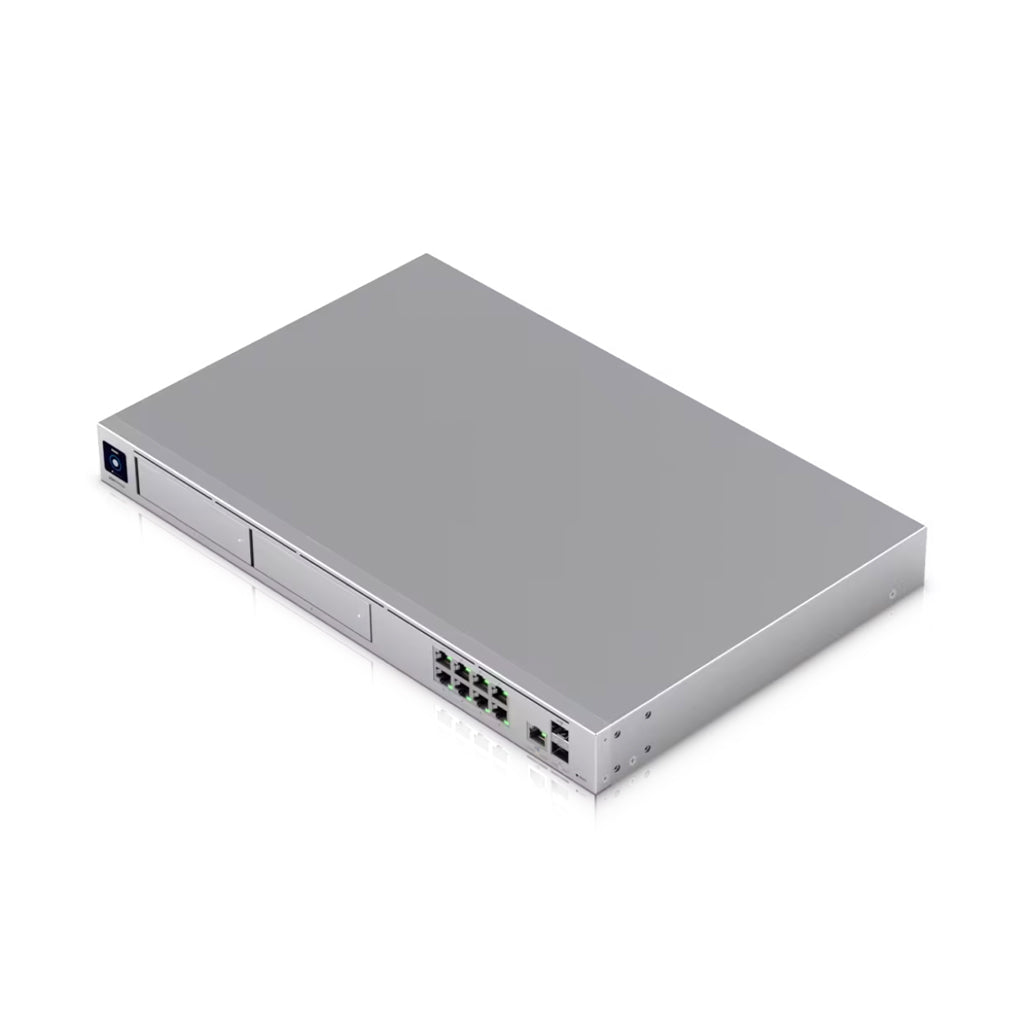

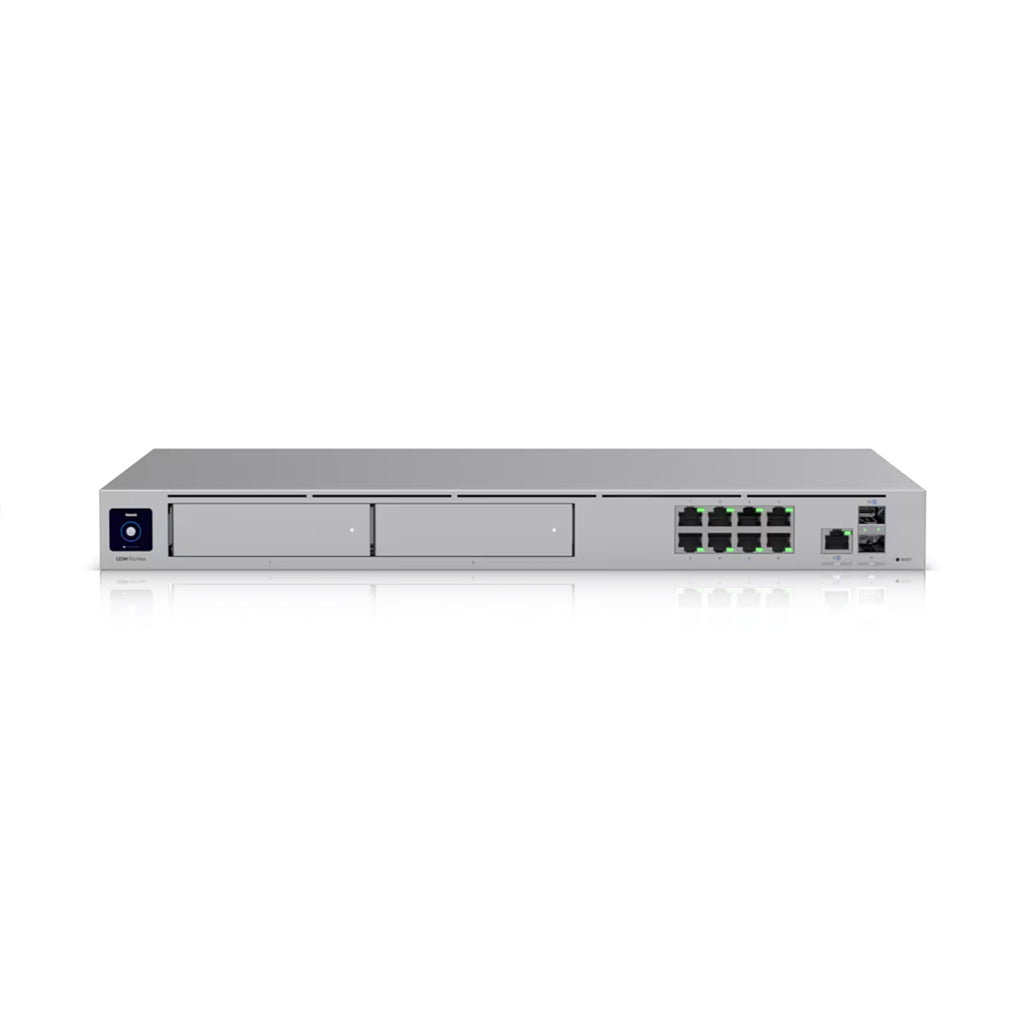

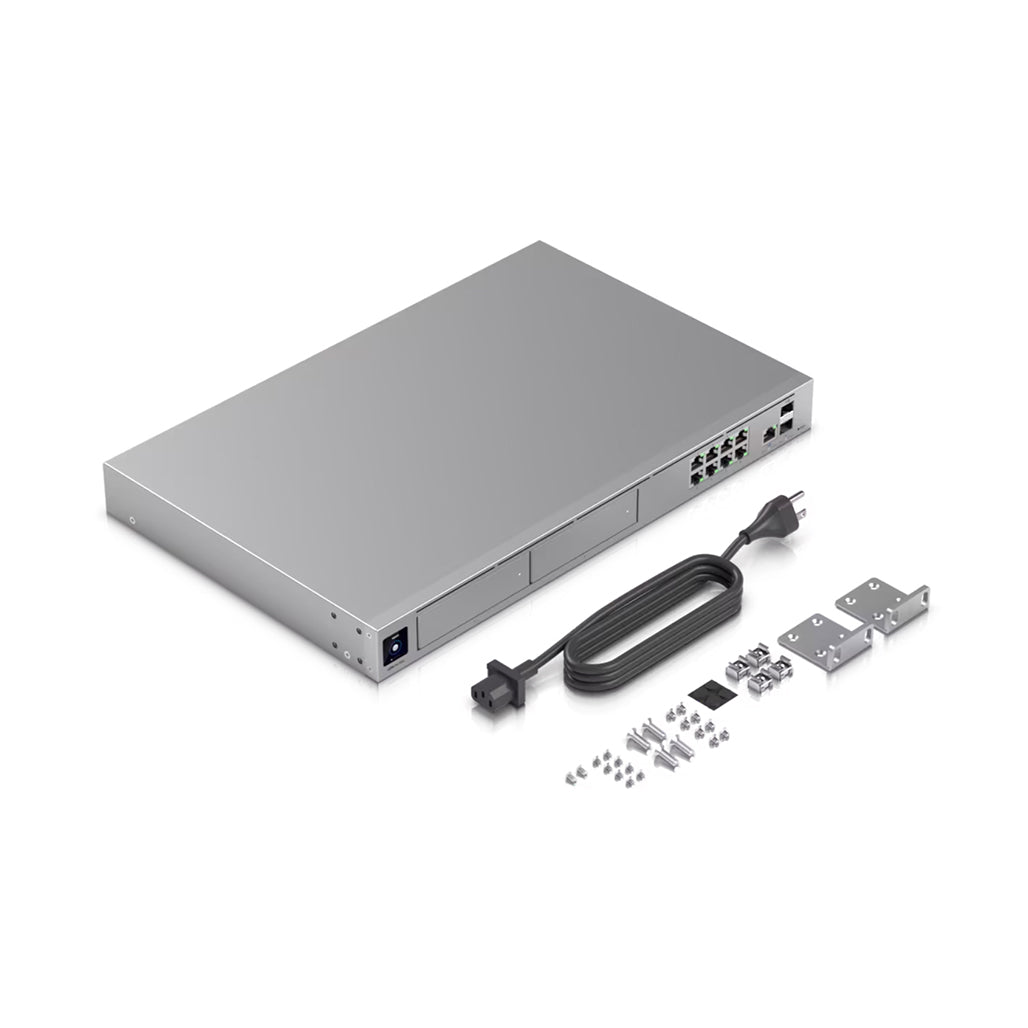

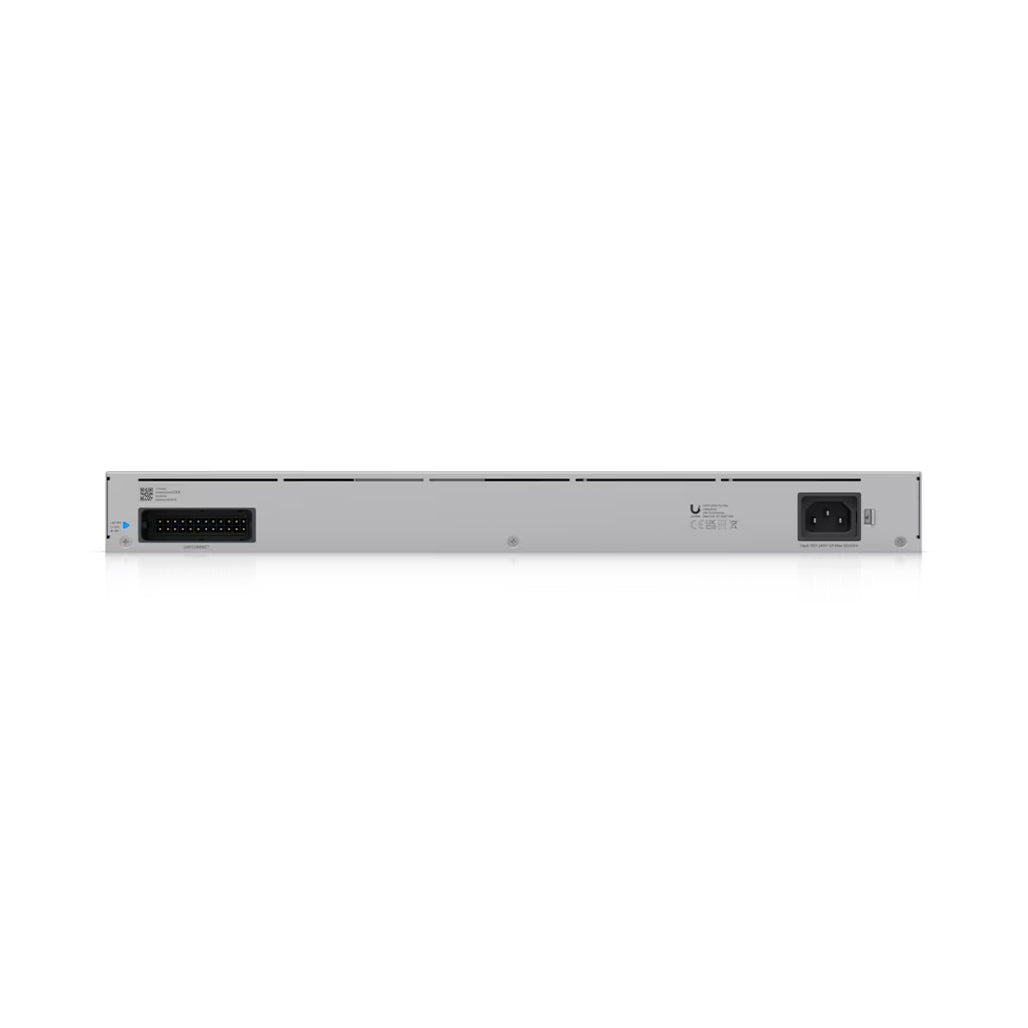

Ubiquiti Dream Machine Pro Max – High-Performance UniFi Security Gateway with 8 WAN Ports & Advanced Firewall

The Ubiquiti Dream Machine Pro Max (UDM-Pro-Max) delivers enterprise-grade network performance, security, and scalability in a compact 1U rackmount form. Designed for growing infrastructures, this next-generation UniFi OS Console is engineered to manage over 200 UniFi devices and support more than 2,000 simultaneous users. With integrated support for the full UniFi Application Suite—including Network, Protect, Access, Talk, and Connect—it brings comprehensive IT ecosystem management into a single, centralized interface.

Multiple layers of advanced security features are embedded, including an application-aware Layer 7 firewall, zone-based filtering, content control, and intrusion prevention with over 55,000 threat signatures. Redundant systems like Shadow Mode (VRRP) Gateway Failover and DC Power Backup are provided to ensure business continuity. Its VPN suite is extensive and license-free, offering IPsec, WireGuard, OpenVPN, L2TP, and Ubiquiti’s own zero-configuration Teleport VPN. Whether managing traffic segmentation through VLANs or balancing multiple WAN connections, the UDM-Pro-Max serves as a robust network core for high-demand environments.

Key Features

• Multi-WAN and High Availability:
  With 8 WAN-capable ports including (2) 10G SFP+ and (1) 2.5 GbE RJ45, support for dynamic routing protocols (OSPF/BGP), and policy-based routing, seamless load balancing and failover are ensured in real-time. Redundancy is further strengthened through Shadow Mode and UniFi LTE Backup.

• Enterprise-Grade Security Stack:
  The inclusion of Stateful and Layer 7 Firewalls, DPI, Zone-Based Filtering, Ad Blocking, and over 55,000 IDS/IPS signatures provides proactive protection against both internal and external threats.

• Comprehensive VPN & SD-WAN:
  Secure remote access is made effortless through Site Magic, Identity Endpoint VPN, and support for major protocols like IPsec, WireGuard, and OpenVPN. No licensing fees are required for full SD-WAN features.

• Integrated NVR and Storage:
  Dual 3.5" HDD bays and a built-in 128 GB SSD deliver high-speed storage ideal for UniFi Protect deployments. Video surveillance is supported with capacity for up to 50 HD, 25 2K, or 15 4K cameras.

• User and Device Scalability:
  Capable of supporting more than 200 UniFi devices and over 2,000 connected users, making it ideal for campuses, multi-site businesses, or data-driven environments.

• Advanced Network Management:
  Tools like Advanced QoS, NAT options, customizable DHCP, RADIUS over TLS, and multicast DNS provide full control and optimization of complex networks.

• Premium Build and Usability:
  Housed in an aluminum CNC and SGCC steel enclosure, it includes a 1.3” LCM touchscreen and is equipped with ESD/EMP protection. Operation is managed via Ethernet or Bluetooth.

Specifications

• Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

• Managed UniFi Devices: 200+

• Managed Cameras: 50 HD / 25 2K / 15 4K

• Simultaneous Users: 2,000+

• WAN Ports: 8 max

  • (1) 10G SFP+

  • (1) 2.5 GbE RJ45

• Other Ports:

  • 8 × 1 GbE RJ45

  • 2 × 10G SFP+

• Throughput (IDS/IPS): 5 Gbps

• Power:

  • Universal AC input: 100–240V AC

  • USP-RPS DC input: 11.5V DC

  • Max. Power Consumption: 60W

  • Internal PSU: 100W

• Memory & Storage:

  • 8 GB RAM

  • 32 GB eMMC + 128 GB SSD

  • (2) 3.5" HDD bays

• Processor: Quad-core ARM Cortex-A57 @ 2.0 GHz

• Enclosure: Aluminum CNC, SGCC steel

• Management: Ethernet, Bluetooth

• Display: 1.3" touchscreen

• Operating Temp: -10 to 40° C

• Humidity: 5 to 95% non-condensing

• Certifications: CE, FCC, IC

• NDAA Compliant: Yes

The UDM-Pro-Max has been purpose-built to unify high-performance networking, smart security, and versatile application hosting in a single hardware solution. It is suited for IT administrators demanding real-time visibility, advanced security, and consistent availability, all backed by the reliability of the UniFi ecosystem.
