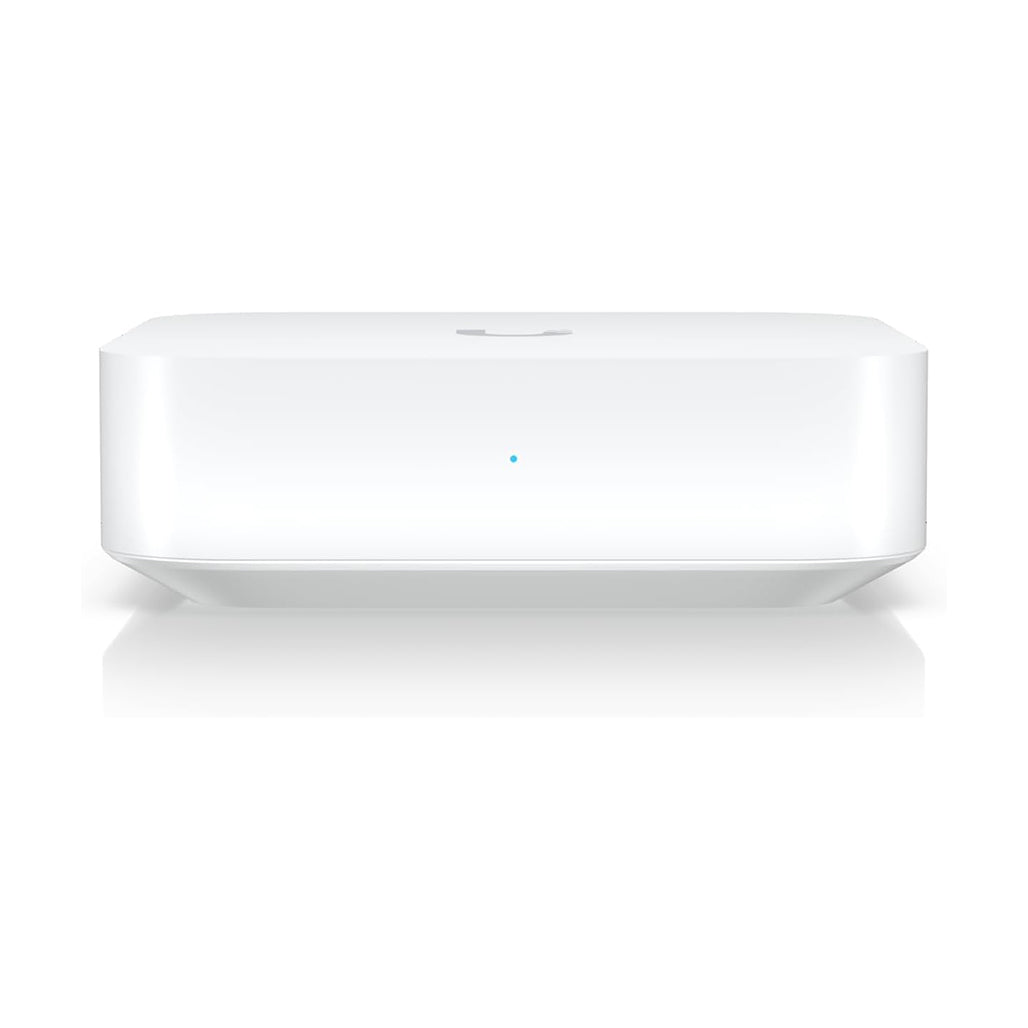

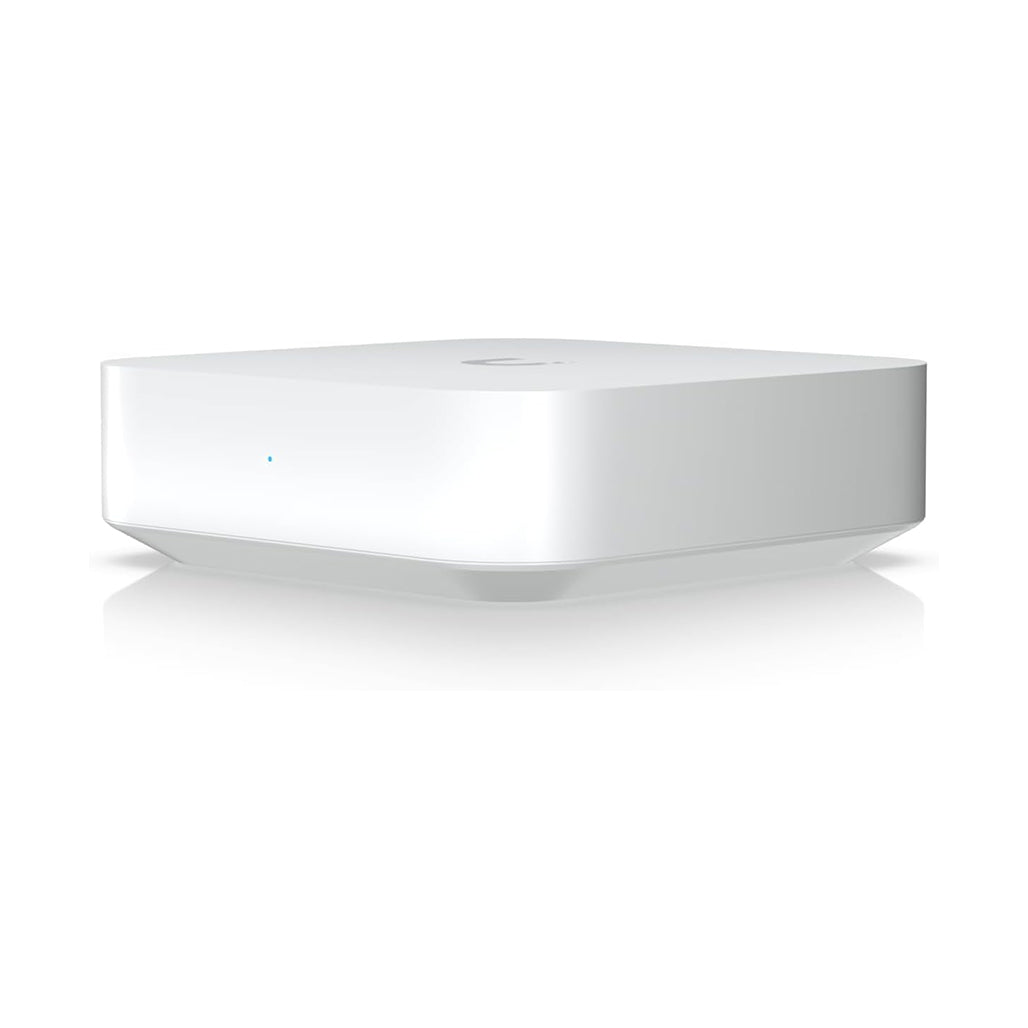

Ubiquiti Networks Gateway Lite - UXG-Lite | Compact High-Performance Router with Advanced Security Features

The Ubiquiti Networks Gateway Lite (UXG-Lite) is engineered to deliver enhanced routing and security capabilities within a compact design. With up to 10 times the routing performance compared to the previous USG model, this gateway ensures superior network efficiency even with demanding applications. Managed seamlessly through a CloudKey, UniFi Hosting, or UniFi Network Server running UniFi Network 8.0.7 or later, it offers robust network control and management.

Equipped with a single Gigabit Ethernet WAN and LAN port, the UXG-Lite supports high-speed network connections suitable for various home and small office environments. Its compact footprint makes it easy to integrate into tight spaces, and its USB-C power input (adapter included) adds to its convenience. The gateway operates efficiently within a wide temperature range and supports advanced security features including application-aware firewall rules, signature-based IPS/IDS threat detection, and comprehensive content filtering.

Key Features:

1. High-Performance Routing:

   • Up to 10x Performance Increase: Compared to the USG, significant performance improvements are realized in routing, particularly when IPS/IDS, QoS, and Smart Queues are in use.

2. Advanced Security Capabilities:

   • Application-Aware Firewall: Customizable firewall rules based on application types enhance network security.
   • Signature-Based IPS/IDS: Real-time threat detection and protection are provided through a signature-based intrusion prevention and detection system.
   • Content and Domain Filtering: Effective filtering of content, domains, and ads ensures a secure browsing experience.

3. Flexible Network Management:

   • Unified Management Interface: Can be managed via CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 or later.
   • Advanced QoS: Quality of Service settings can be applied based on application, domain, and country for optimized network performance.

4. Comprehensive Connectivity:

   • Gigabit Ethernet Ports: Includes one WAN and one LAN port for high-speed network connections.

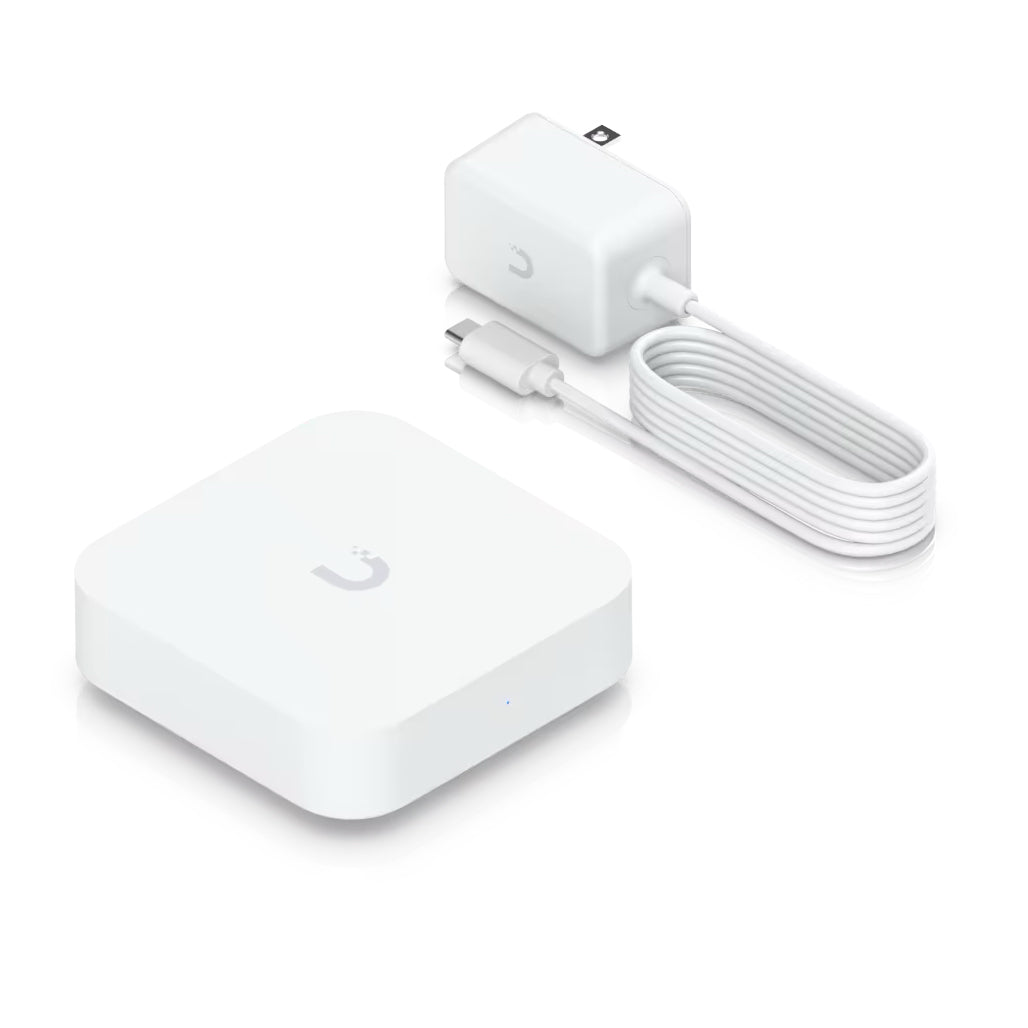

   • USB-C Power: Powered by USB-C with included adapter, supporting various voltage ranges.

5. Advanced Networking Features:

   • SD-WAN Capabilities: Supports license-free SD-WAN for efficient network management.
   • VPN Support: Includes WireGuard, L2TP, OpenVPN server and client, and site-to-site VPN options.
   • IPv6 ISP Support: Compatibility with IPv6 ensures future-proofing of network infrastructure.

Specifications:

• Model: UXG-Lite
• Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
• Weight: 320 g (11.3 oz)
• Enclosure Material: Polycarbonate
• Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
• Memory Information: 1 GB DDR3L
• Management Interface: Ethernet, Bluetooth 5.1
• Networking Interface:
  • LAN: (1) GbE RJ45 port
  • WAN: (1) GbE RJ45 port
• IDS/IPS Throughput: 1 Gbps* (Measured with iPerf3 on DHCP WAN; performance may vary with PPPoE)
• Power Method: USB type C (5V/3A)
• Supported Voltage Range: 100–240V
• Max. Power Consumption: 3.83W
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

Conclusion: The Ubiquiti Networks Gateway Lite (UXG-Lite) offers a compact yet powerful solution for managing high-performance routing and network security. Its advanced features, including substantial routing performance improvements and comprehensive security protocols, ensure that it meets the demands of modern network environments. With its user-friendly management options and robust connectivity, the UXG-Lite is a valuable addition to any network setup, providing efficient and secure network operations.
