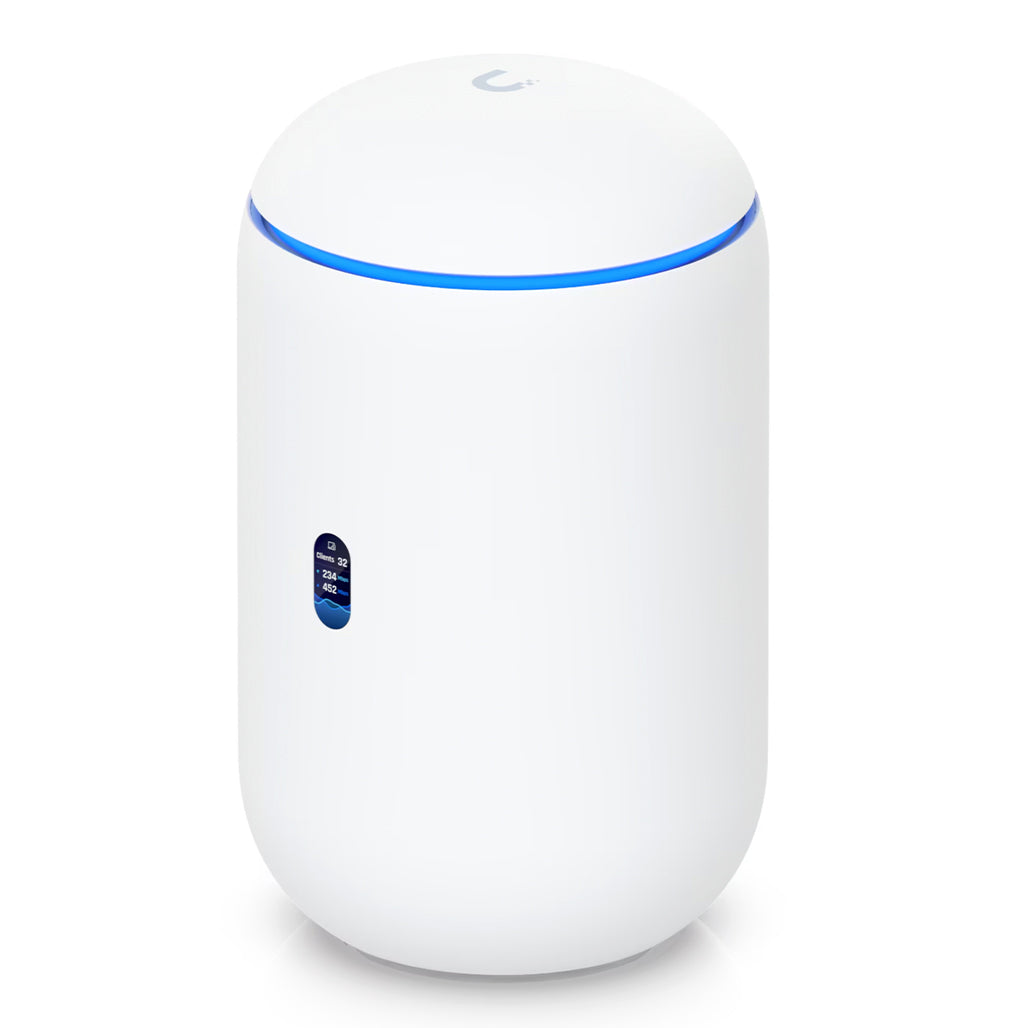

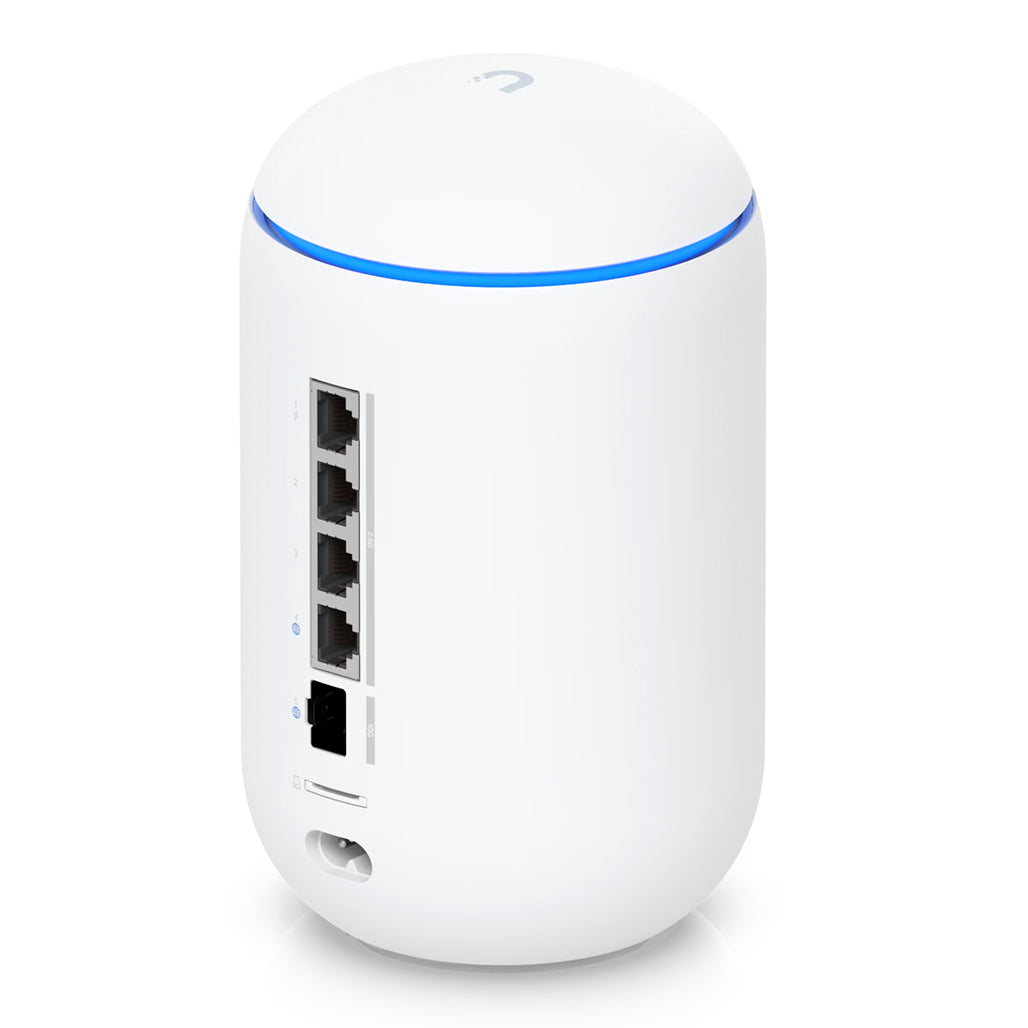

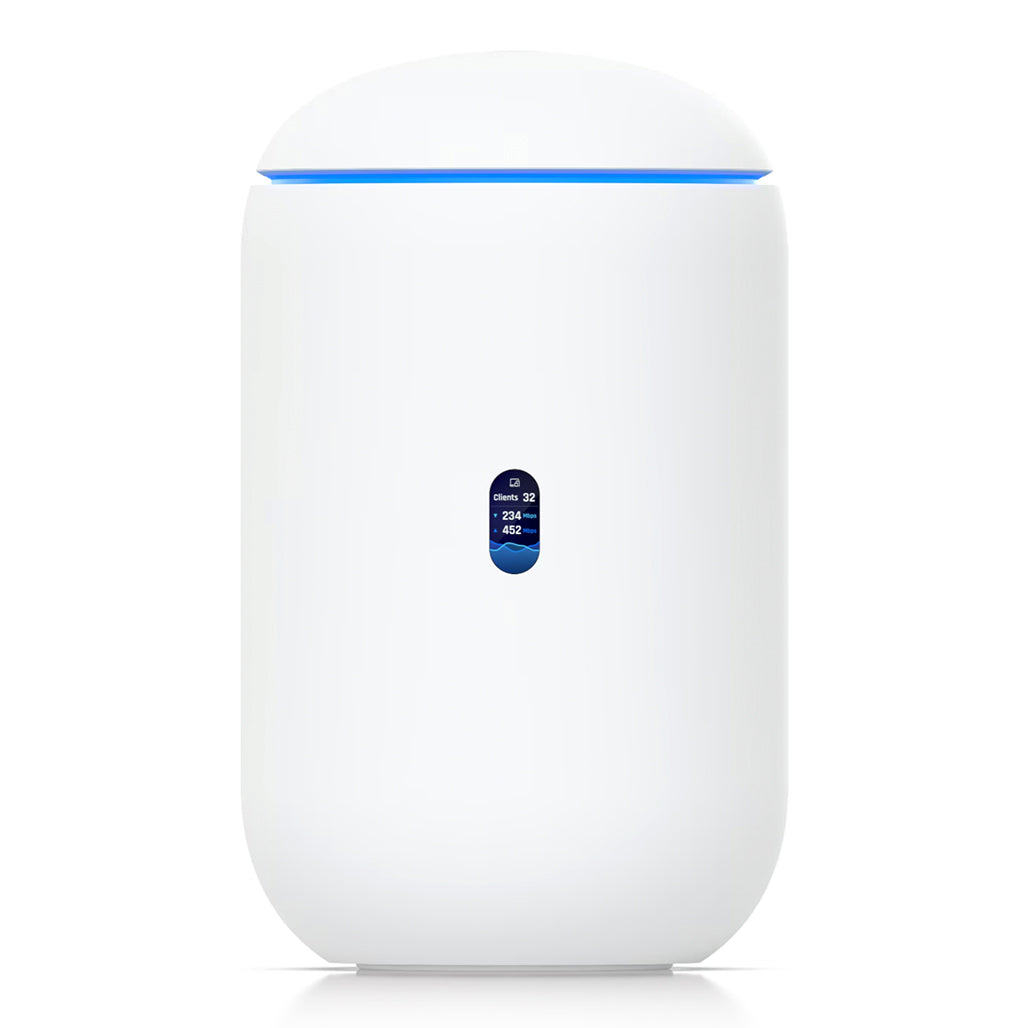

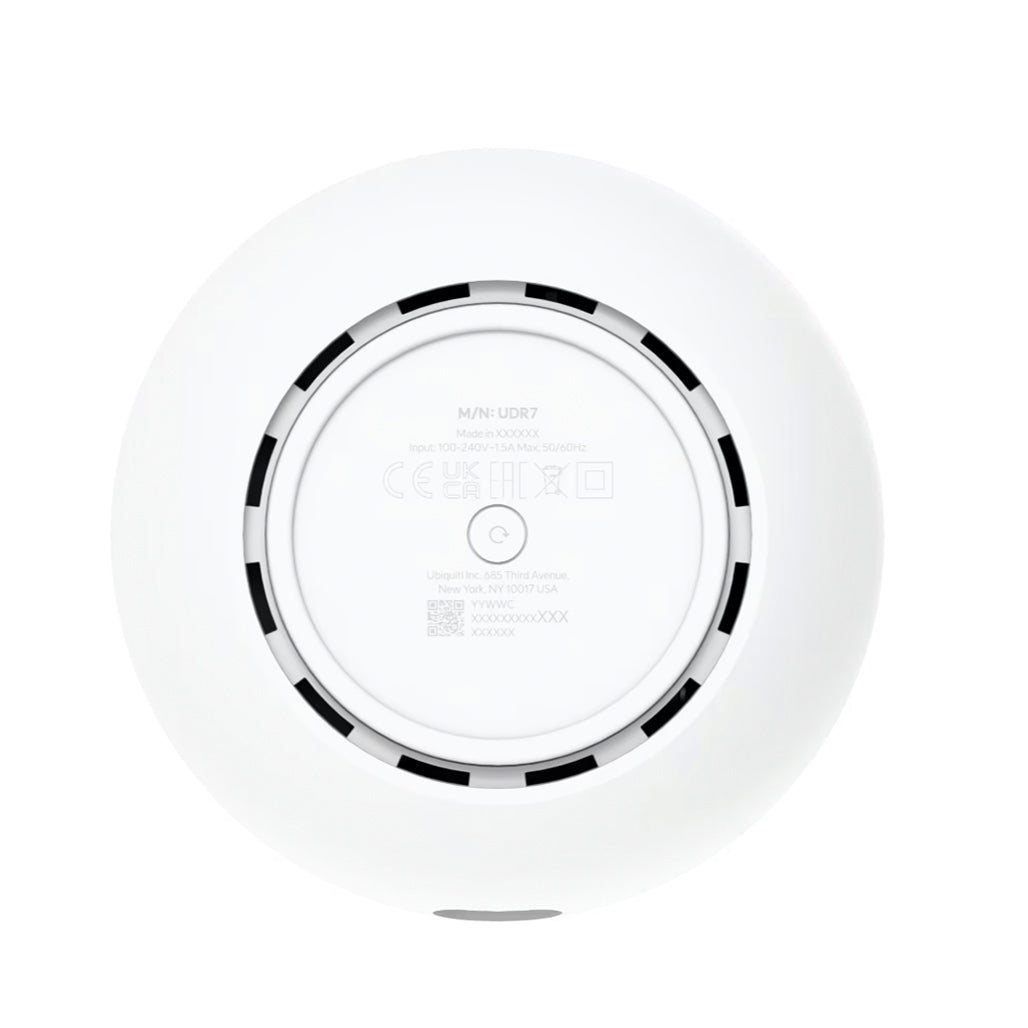

Ubiquiti Dream Router 7

The Ubiquiti Dream Router 7 (UDR7) is a next-generation networking solution designed to provide unmatched speed, reliability, and security for both home and business environments. Featuring WiFi 7 technology, it delivers multi-gigabit wireless performance across 6 GHz, 5 GHz, and 2.4 GHz bands, ensuring ultra-fast and stable connections for over 300 simultaneous users. The router integrates seamlessly with the UniFi Application Suite, including Network, Protect, Access, Talk, and Connect, offering centralized management and control of all connected UniFi devices.

Built with an advanced quad-core ARM® Cortex®-A53 processor, 3 GB of system memory, and integrated PoE capabilities, the Dream Router 7 supports over 30 managed UniFi devices and multiple cameras up to 4K. With its license-free SD-WAN, advanced Layer 7 firewall, content filtering, and intrusion prevention system (IPS/IDS), this router delivers enterprise-level security without recurring fees. Its modern design, internal 64GB NVR storage, and compact desktop form make it a premium choice for anyone seeking performance, scalability, and simplicity in one device.

Key Features Explained:

• WiFi 7 Performance: Offers blazing wireless speeds up to 5.7 Gbps on the 6 GHz band, supporting seamless streaming, gaming, and large data transfers.

• Comprehensive UniFi Integration: Unified control across UniFi Network, Protect, Access, Talk, and Connect for efficient network management.

• Powerful Security Suite: Equipped with stateful and application-aware firewalls, IPS/IDS protection, and content filtering for complete network safety.

• Flexible VPN & SD-WAN: Includes license-free SD-WAN, WireGuard, OpenVPN, IPsec, and Teleport for secure, remote connectivity.

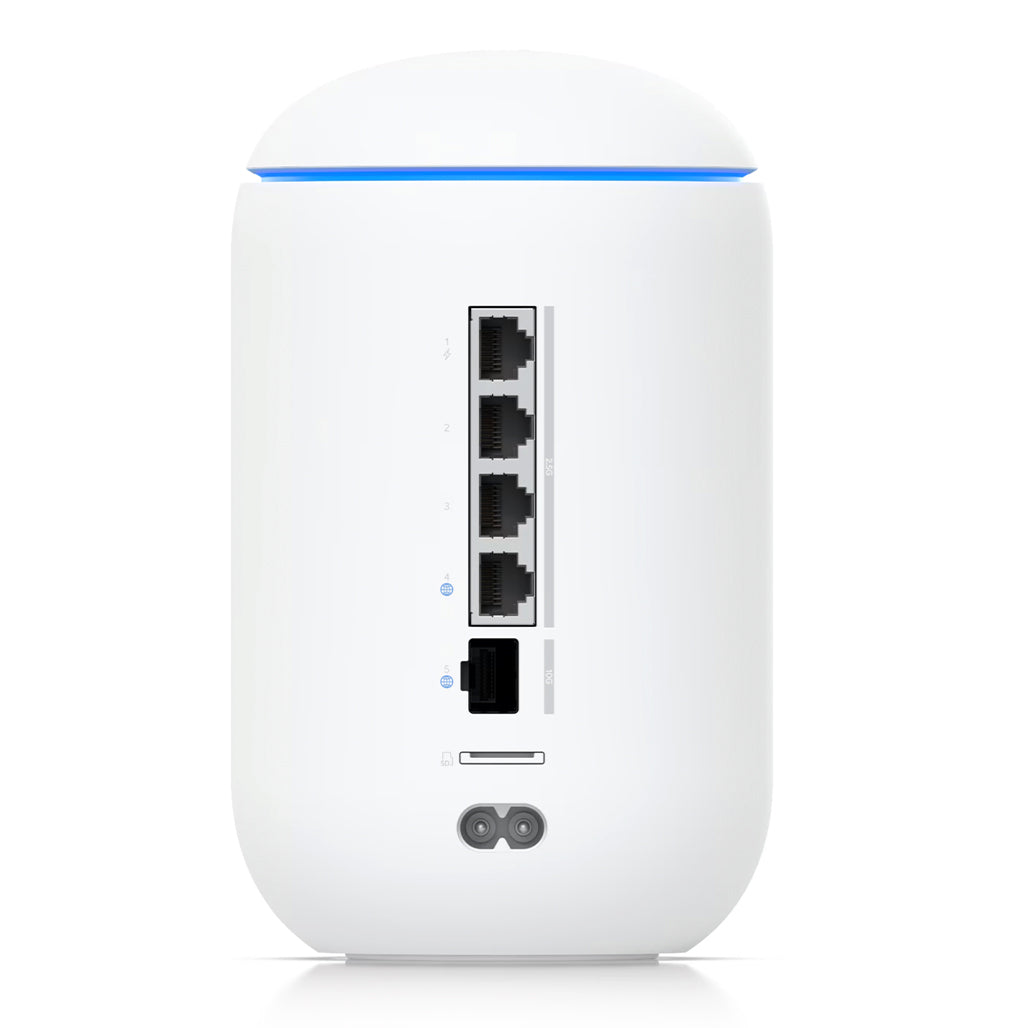

• High-Speed Wired Connectivity: Comes with 10G SFP+, 2.5 GbE WAN, and four RJ45 LAN ports, one supporting PoE for powering devices directly.

• Built-In NVR & Local Storage: Pre-installed 64GB microSD storage for managing HD, 2K, and 4K surveillance cameras.

• Compact & Efficient Design: Modern, durable polycarbonate enclosure with LCM status display and minimal 26W power consumption.

Specifications:

Overview
Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3")
UniFi Application Suite: Network ✓ | Protect ✓ | Access ✓ | Talk ✓ | Connect ✓
Managed UniFi Devices: 30+
Managed Cameras: (5) HD | (2) 2K | (1) 4K
Simultaneous Users: 300+
Max. WAN Port Count: 4
Default WAN Ports: (1) 10G SFP+, (1) 2.5 GbE RJ45
Port Layout: 2.5 GbE RJ45 x4 (1 PoE), 10G SFP+ x1
IDS/IPS Throughput: 2.3 Gbps
Form Factor: Compact desktop
Coverage Area: 160 m² (1,750 ft²)

Security
Stateful Firewall ✓ | Layer 7 Firewall ✓ | DPI & Traffic ID ✓ | Content Filtering ✓ | Intrusion Prevention ✓ | Ad Blocking ✓
IDS/IPS Signatures: 20,000+ with CyberSecure
VLAN/Subnet-based Segmentation ✓

VPN & SD-WAN
License-Free SD-WAN ✓ | Site-to-Site VPN (Site Magic) ✓ | IPsec ✓ | OpenVPN ✓ | Teleport Zero-Config VPN ✓ | WireGuard ✓ | L2TP ✓

Networking
Multi-WAN Load Balancing ✓ | OSPF Dynamic Routing ✓ | Advanced QoS ✓ | mDNS ✓ | NAT Options ✓ | RADIUS Server ✓ | UniFi LTE Backup ✓
IPv6 ISP Support ✓ | IGMP Proxy ✓ | MAC Address Table Size: 2,000

Integrated WiFi
Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput: 6 GHz – 5.7 Gbps | 5 GHz – 4.3 Gbps | 2.4 GHz – 688 Mbps
MIMO: 2x2 MU-MIMO across all bands
Antenna Gain: 6 GHz – 6 dBi | 5 GHz – 7 dBi | 2.4 GHz – 5 dBi
TX Power: 6 GHz – 24 dBm | 5 GHz – 26 dBm | 2.4 GHz – 23 dBm
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Hardware
NVR Storage: 64GB microSD pre-installed
PoE Budget: 15.4W | Power Supply: 50W Internal AC/DC
Processor: Quad-core ARM Cortex-A53 @ 1.5GHz
System Memory: 3 GB | Weight: 1.1 kg (2.4 lb)
Material: Polycarbonate | Display: 0.96" LCM status
Operating Temperature: -10 to 40°C | Humidity: 5–95%
Certifications: CE, FCC, IC | NDAA Compliant ✓

Software
VLAN: 802.1Q | Guest Traffic Isolation ✓ | UniFi Network Version: 9.0.108 and later

Conclusion:

The Ubiquiti Dream Router 7 redefines smart networking by combining WiFi 7 performance, enterprise-level protection, and seamless UniFi ecosystem integration. Designed for modern homes and professional networks, it delivers powerful connectivity, secure remote access, and flexible scalability—all managed from a single intuitive platform. Whether used for business operations or advanced home networking, the Dream Router 7 ensures consistent high-speed performance and total control over every connected device.
