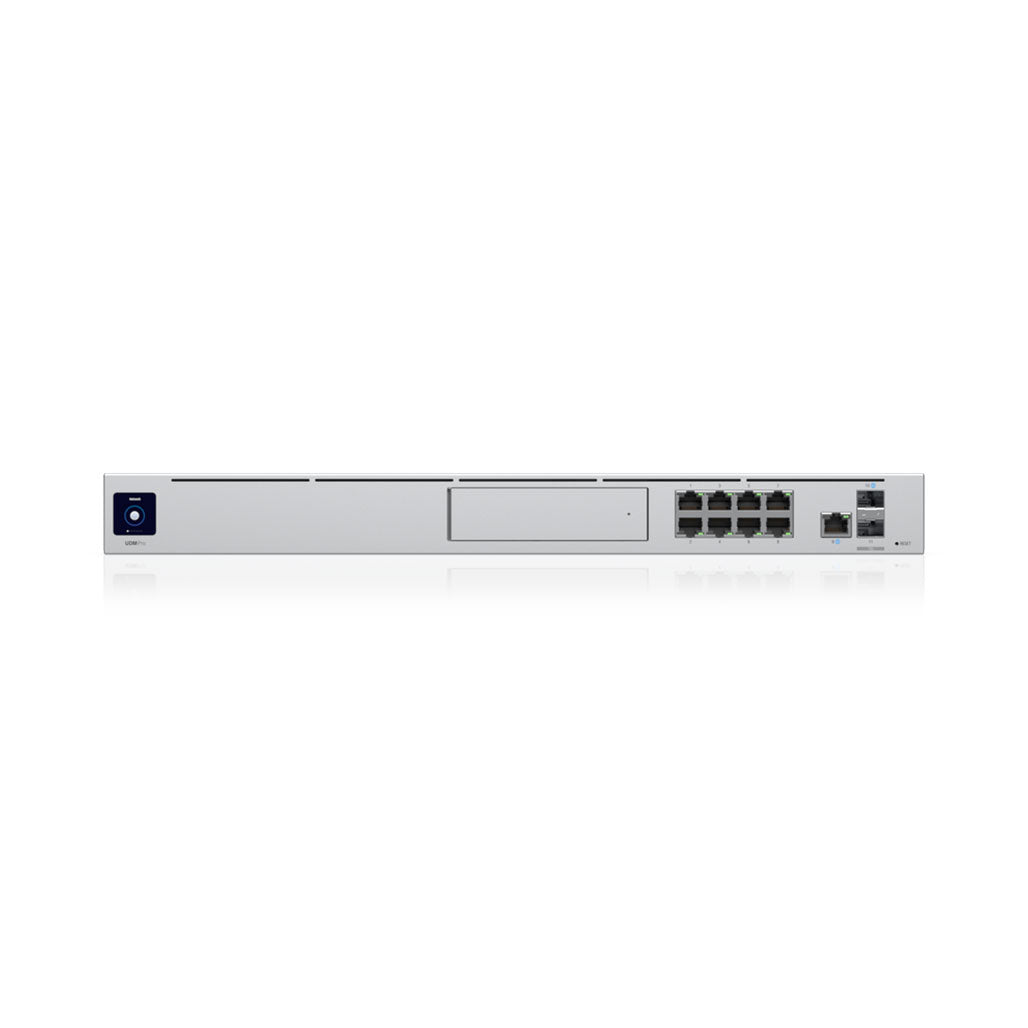

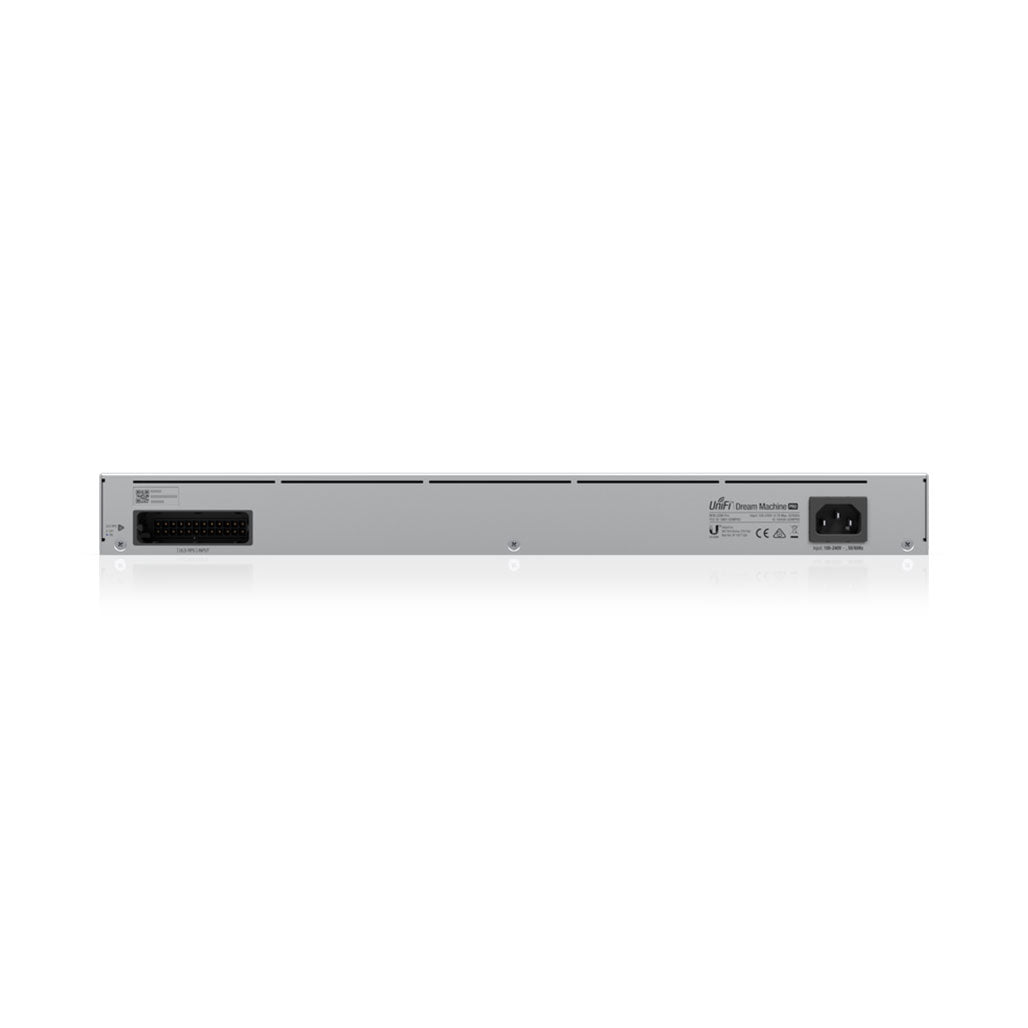

The Ubiquiti UniFi Dream Machine Pro (UDM-PRO) is an enterprise-grade networking console designed to provide a scalable and comprehensive solution for advanced networking needs. This all-in-one device integrates multiple UniFi OS applications, including UniFi Network and Protect, into a single, powerful unit. Featuring a built-in security gateway, 10G SFP+ WAN support, an 8-port Gigabit switch, and a network video recorder, the UDM-PRO is engineered for performance and versatility in demanding environments.

With its robust 1.7 GHz quad-core processor, the UDM-PRO delivers high-speed processing and efficient management of network traffic. The device supports enterprise-class internet threat management, deep packet inspection, and WiFi AI functionality, ensuring both security and optimal network performance. The 1U rack-mountable design allows for easy integration into existing server racks, making it suitable for both small and large-scale deployments. Its compatibility with 3.5" HDDs for video recording further extends its utility for surveillance applications.

Key Features:

• All-in-One UniFi OS Console:

  • Integrated Applications: Runs UniFi Network and Protect applications, providing a unified network management experience.

• Advanced Networking Capabilities:

  • 10G SFP+ WAN and LAN Ports: Supports high-speed connectivity and future-proofing with 10G SFP+ interfaces.
  • 8-Port Gigabit Switch: Includes both 1GbE RJ45 and 10G SFP+ ports for flexible network configurations.

• Integrated Security Gateway:

  • Enterprise-Class Protection: Features IDS/IPS throughput of 3.5 Gbps and deep packet inspection to safeguard your network.

• Network Video Recorder:

  • HDD Support: Compatible with 3.5" hard disk drives for extensive video recording and surveillance capabilities.

• Scalable Deployment:

  • Flexible Expansion: Allows for easy addition of UniFi devices to scale your network as needed.

• High-Performance Hardware:

  • 1.7 GHz Quad-Core Processor: Ensures efficient operation and management of network functions.
  • 4 GB DDR4 System Memory: Provides sufficient memory for smooth performance.
  • 16 GB eMMC Storage: For reliable onboard storage.

Specifications:

• Dimensions:
  • Width x Height x Depth: 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24 inches)
  • Weight: 3.90 kg (8.60 lb) / With Mounting Kits: 3.99 kg (8.80 lb)
• Interfaces:
  • (8) 10/100/1000 RJ45 LAN Ports
  • (1) 10/100/1000 RJ45 WAN Port
  • (1) 1/10G SFP+ LAN Port
  • (1) 1/10G SFP+ WAN Port
• Management Interfaces:
  • Ethernet In-Band
  • (1) Bluetooth BLE
• Technical Information:
  • IDS/IPS Throughput: 3.5 Gbps*
  • Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
  • System Memory: 4 GB DDR4
  • On-Board Flash Storage: 16 GB eMMC
• Environment:
  • Operating Temperature: -10° to 40° C (14° to 104° F)
  • Operating Humidity: 5 to 95% Noncondensing
• Power:
  • Max. Power Consumption: 33W
  • Voltage Range: 100 to 240VAC
  • Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
  • Redundant Power: (1) RPS DC Input
  • Power Supply: Internal 50W/12V
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
• Certifications: CE, FCC, IC

Conclusion: The Ubiquiti UniFi Dream Machine Pro (UDM-PRO) offers a powerful, enterprise-grade solution for comprehensive network management and security. Combining high-speed 10G connectivity, an integrated security gateway, and a network video recorder, it is well-suited for demanding environments. Its scalable design, advanced features, and robust hardware make it an ideal choice for both small and large-scale deployments, providing a reliable and high-performance networking experience.
