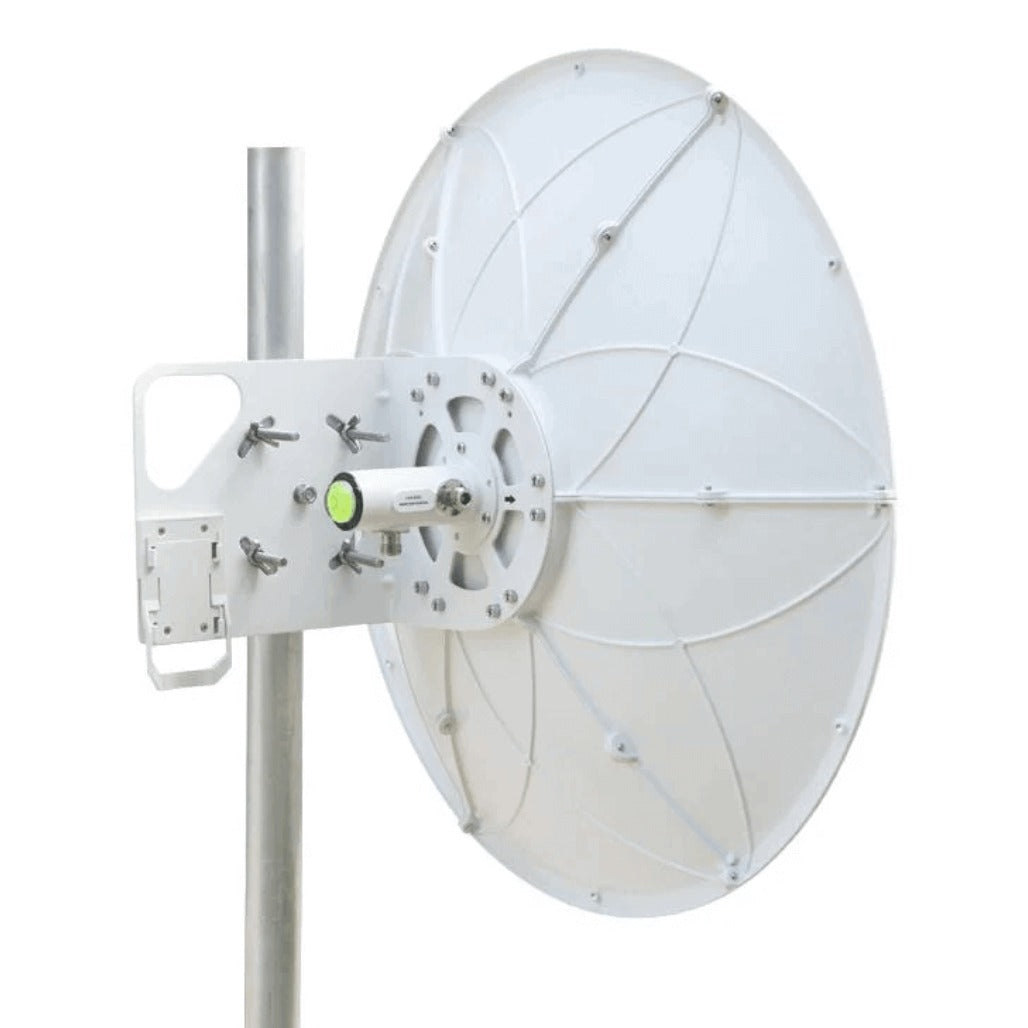

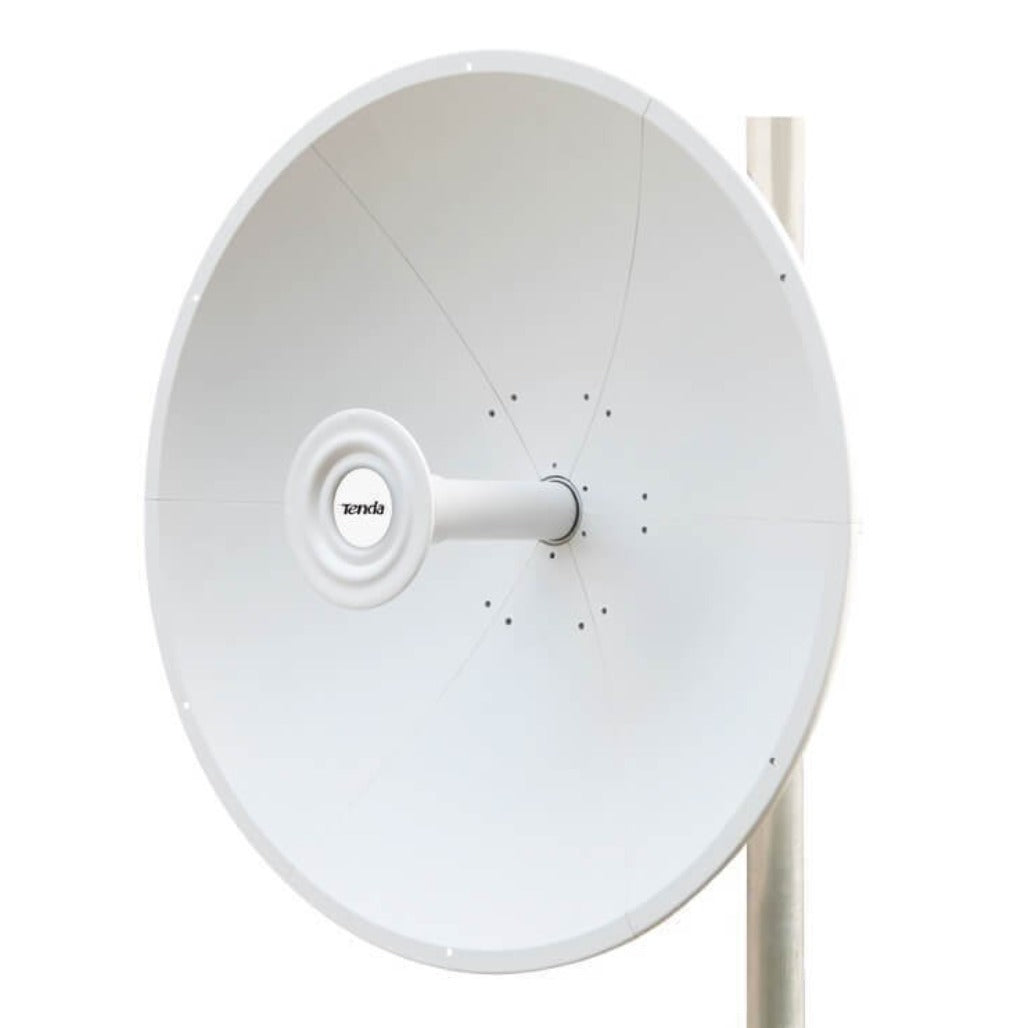

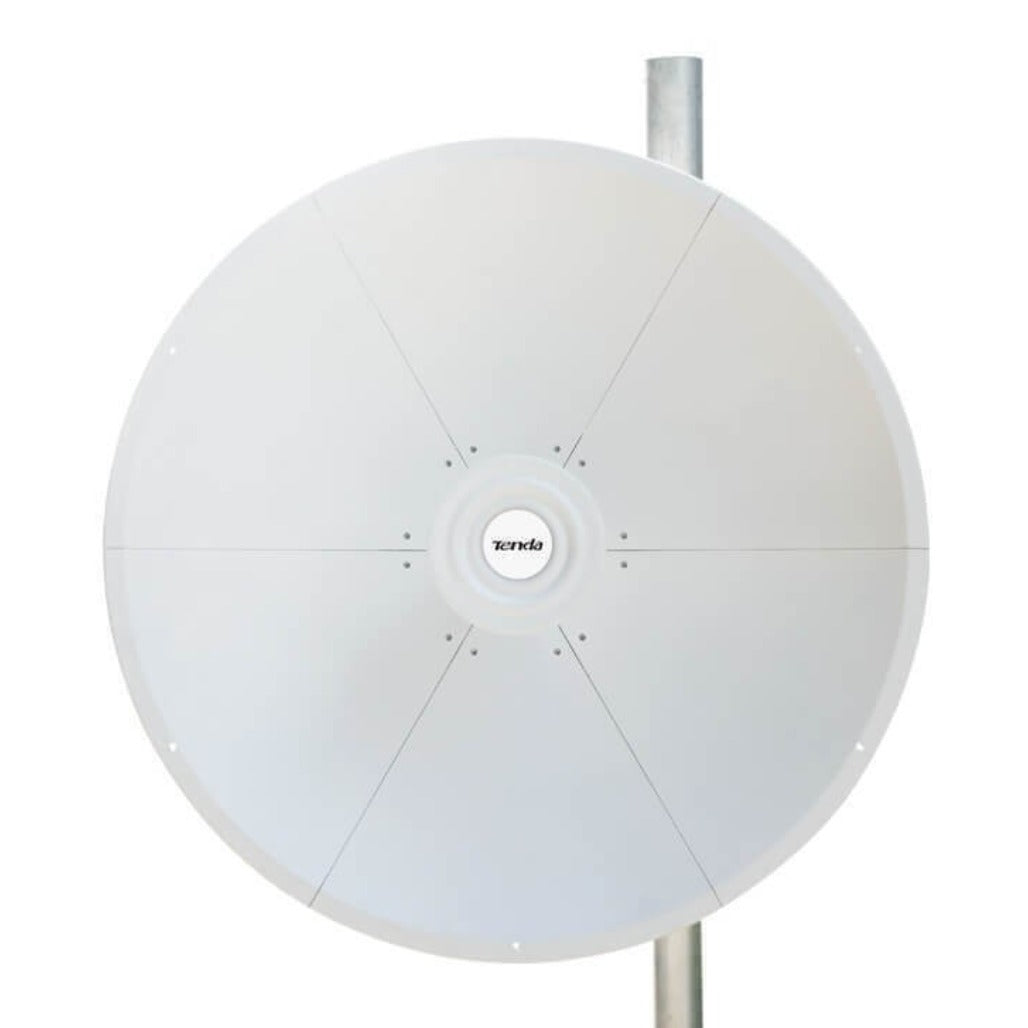

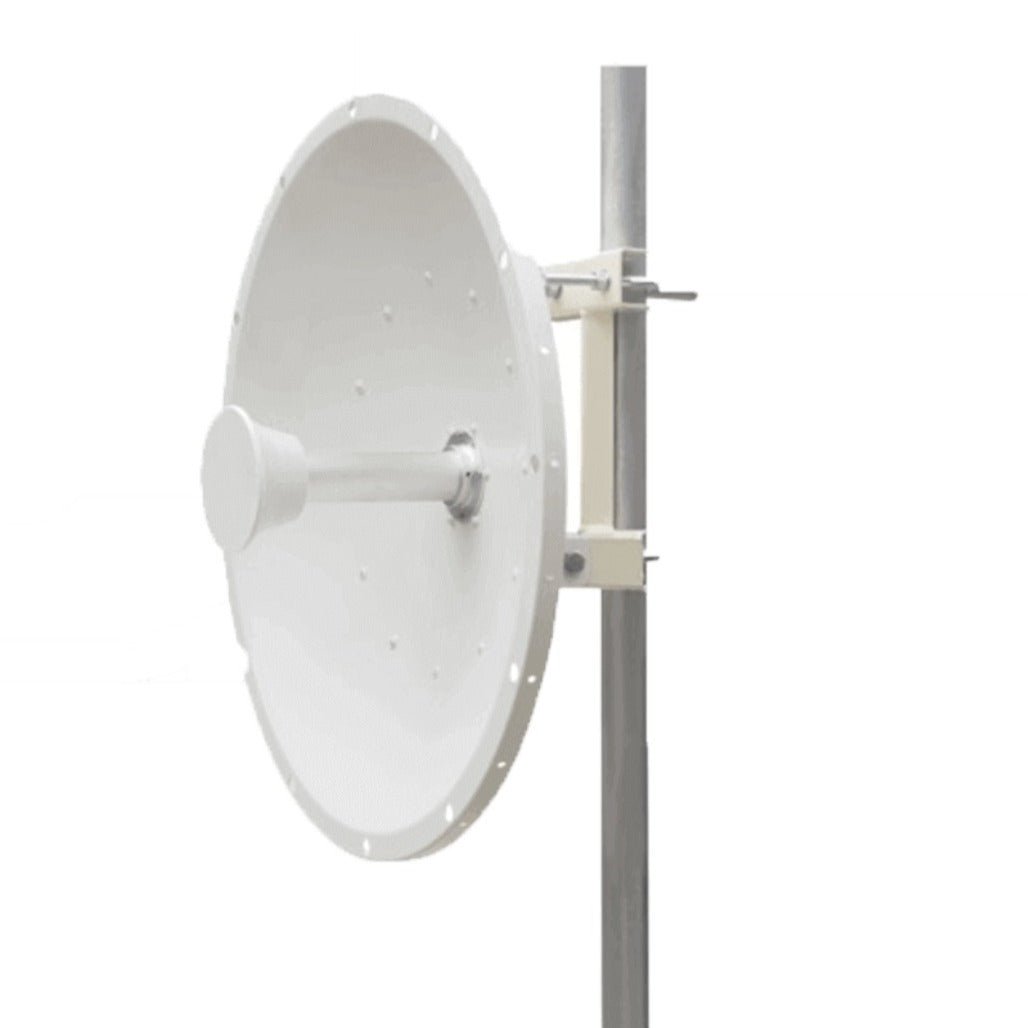

Tenda Antenna ANT30-5G 5GHz 30dBi Dual Polarity

Get stronger, more reliable 5GHz wireless performance with the Tenda Dish Antenna ANT30-5G, designed for 4900–6500 MHz operation. This antenna delivers 30dBi gain and uses dual polarity with both vertical and horizontal polarization, helping support PtP wireless connections. The horizontal beamwidth is 6° (6dB) and the vertical beamwidth is also 6° (6dB), with an elevation beamwidth of 5°. With a front-to-back ratio greater than 35dB and isolation greater than 25dB, the antenna is built to help improve signal directionality and separation. It also specifies VSWR of ≤ 2.0 and a 50Ω impedance, supporting consistent system integration. Built for outdoor use, the antenna lists a survival wind speed of ≤200 km/hr and operational humidity of 10%–90% non-condensing. Mechanical tilt capability is supported with 0–15° adjustment, and the electrical downtilt is listed as 0°. Connectivity is provided through 2 N-Type connectors, and the maximum power per port is 50W. The antenna dimensions are Φ650 x 380mm, and it specifies a pole size range of D30–70mm. For application, the description notes pairing with B6 to deliver PtP wireless connection within 20km for Privated ISP access or CCTV Surveillance.
Key Features
• Antenna type: Dish Antenna
• Frequency range: 4900–6500 MHz
• Gain: 30dBi
• Polarization: Vertical and Horizontal
• Horizontal beamwidth (6dB): 6°
• Vertical beamwidth (6dB): 6°
• Elevation beamwidth: 5°
• Electrical downtilt: 0°
• Front-to-back ratio: > 35dB
• Isolation: > 25dB
• VSWR: ≤ 2.0
• Impedance: 50Ω
• Mounting: Mechanical tilt capability 0~15°
• Connector type: 2*N-Type Connector
• Operational humidity: 10%~90% non-condensing
• Survival wind: ≤200km/hr
• Application scenarios: 30dBi dual polarity
• Application scenarios: frequency range 4900–6500mhz
• Application scenarios: horizontal 6 degree, vertical 6 degree, elevation 5 degrees
• Application scenarios: 2 N-Type
• Transmission range: up to 20km with B6
• Application scenarios: Pair with B6 to deliver PtP wireless connection within 20km for Privated ISP access or CCTV Surveillance
• Maximum Power Per Port: 50W
Specifications
• Antenna Dimensions (LxWxD): Φ650 x 380mm
• Pole (D30-70mm)
• Operating temperature: - 40°C -70°C
• Reference: network l145
