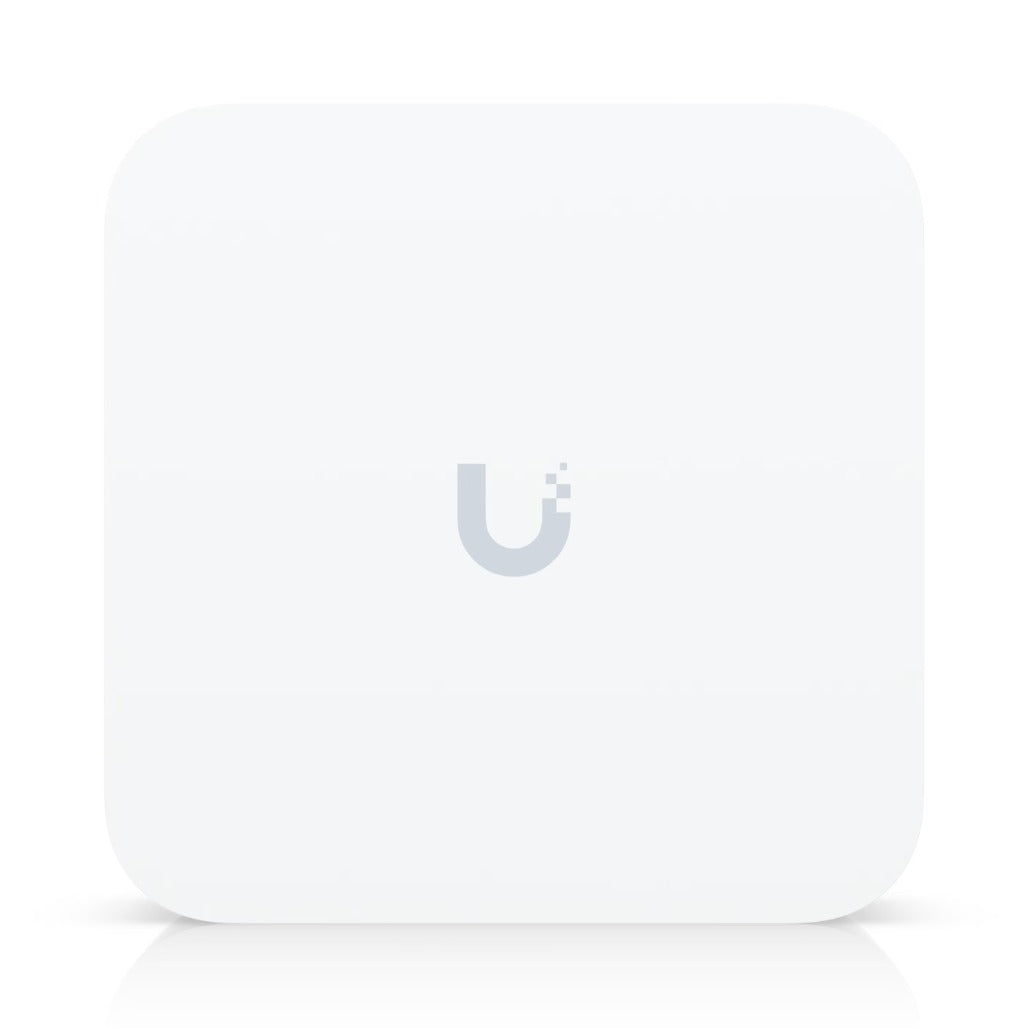

Ubiquiti UniFi Express 7 - Mesh-scalable, super-compact 10G Cloud Gateway

Designed as a mesh-scalable, super-compact 10G Cloud Gateway, the Ubiquiti UniFi Express 7 brings integrated WiFi to your network with a compact desktop form factor. It supports a UniFi Application Suite for Network management and includes managed UniFi Devices (30+), with simultaneous users connected (300+). With a maximum WAN port count of 1 and default WAN ports of (1) 10 GbE RJ45, it’s built for 10 GbE and supports 2.5 GbE RJ45 and 10 GbE RJ45 port layout. For security, the UniFi Express 7 includes a stateful firewall with application-aware Layer 7 firewall capabilities and DPI & traffic identification. It features zone-based firewall advanced filtering (regions, domains, apps), intrusion prevention (IPS/IDS), and ad blocking, along with IDS/IPS signatures 20,000+ with CyberSecure. For wireless performance, it supports WiFi 7 (802.11be) and also lists WiFi 6/6E (802.11ax), plus other 802.11 standards, with specified throughput values across 6 GHz (5.7 Gbps), 5 GHz (4.3 Gbps), and 2.4 GHz (688 Mbps).
Key Features
• UniFi Application Suite
• Network
• Managed UniFi Devices: 30+
• Simultaneous Users Connected: 300+
• Max. WAN Port Count: 1
• Default WAN Ports: (1) 10 GbE RJ45
• Port Layout: 2.5 GbE RJ45, 10 GbE RJ45
• IDS/IPS Throughput: 2.3 Gbps
• Form Factor: Compact desktop
• Stateful Firewall
• Application-Aware Layer 7 Firewall
• DPI & Traffic Identification
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
• Intrusion Prevention (IPS/IDS)
• Ad Blocking
• IDS/IPS Signatures: 20,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation
• License-Free SD-WAN
• Site-to-Site VPN
• Site Magic
• IPsec
• OpenVPN
• VPN Server
• Identity Endpoint One-Click VPN
• Teleport Zero-Configuration VPN
• WireGuard
• L2TP
• VPN Client
• Dynamic Routing: OSPF
• Advanced QoS
• Multicast DNS (mDNS)
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
• Integrated RADIUS Server
• RADIUS over TLS (RadSec)
• Additional Internet Failover with UniFi LTE Backup
• Internet Quality and Outage Reporting
• Policy-based WAN and VPN Routing
• Customizable DHCP Server
• IPv6 ISP Support
• IGMP Proxy
• Virtual Network Override
• Throughput: 6 GHz 5.7 Gbps, 5 GHz 4.3 Gbps, 2.4 GHz 688 Mbps
• MIMO: 2 x 2 (DL/UL MU-MIMO)
• Antenna Gain: 6 dBi (6 GHz), 7 dBi (5 GHz), 4 dBi (2.4 GHz)
• WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• Max. BSSIDs: 4 per Radio (Gateway Mode), 4 per Radio (AP Mode)
• Supported Data Rates: 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320); 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160); 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160); 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11n variants listed); 1, 2, 5.5, 11 Mbps (802.11b); 6 Mbps to 54 Mbps (802.11a)
• Heat Dissipation: 75 BTU/hr
• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB
• Polycarbonate
• LCM Display: 0.96" status display
• Management: Ethernet
• LEDs
• Button: (1) Factory reset
• ESD/EMP Protection
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel: 06656-25-08356
• Software: VLAN (802.1Q), Guest Traffic Isolation
• Application Requirements: UniFi Network Version 9.0.108 and later
• Content Filtering
• Integrated WiFi
• WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Max. TX Power
• Wireless Security: 802.11be (WiFi 7), 802.11ax (WiFi 6/6E), 802.11ac (WiFi 5), 802.11g
• Max. Power Consumption: 22W
• Power Method: USB type C (5V DC/5A)
• Power Supply: (Adapter included)
• Supported Voltage Range: 100–240V AC
• Bluetooth
• Air: ± 8kV, contact: ± 4kV
Specifications

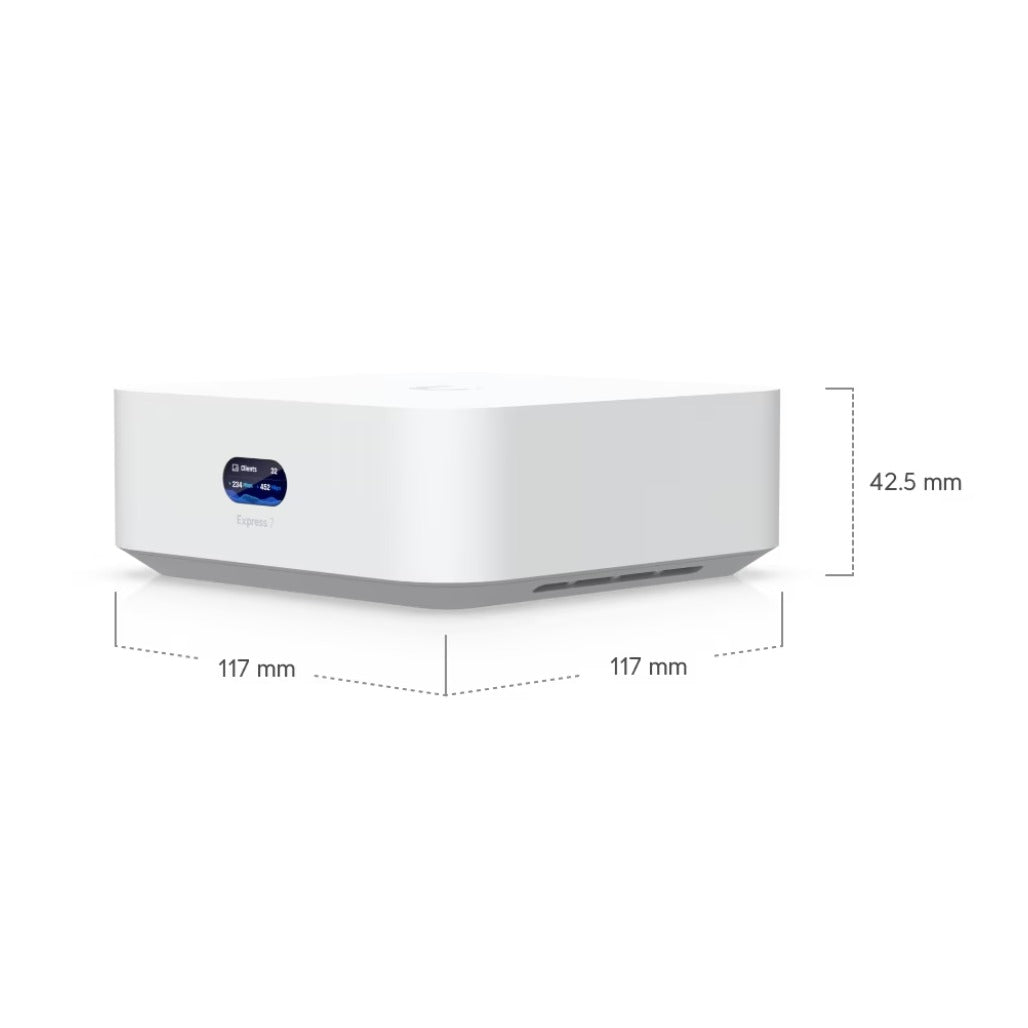

• Dimensions: 117 x 117 x 42.5 mm
• Coverage Area: 160 m² (1,750 ft²)
• Heat Dissipation: 75 BTU/hr
• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB
• Enclosure Material: Polycarbonate

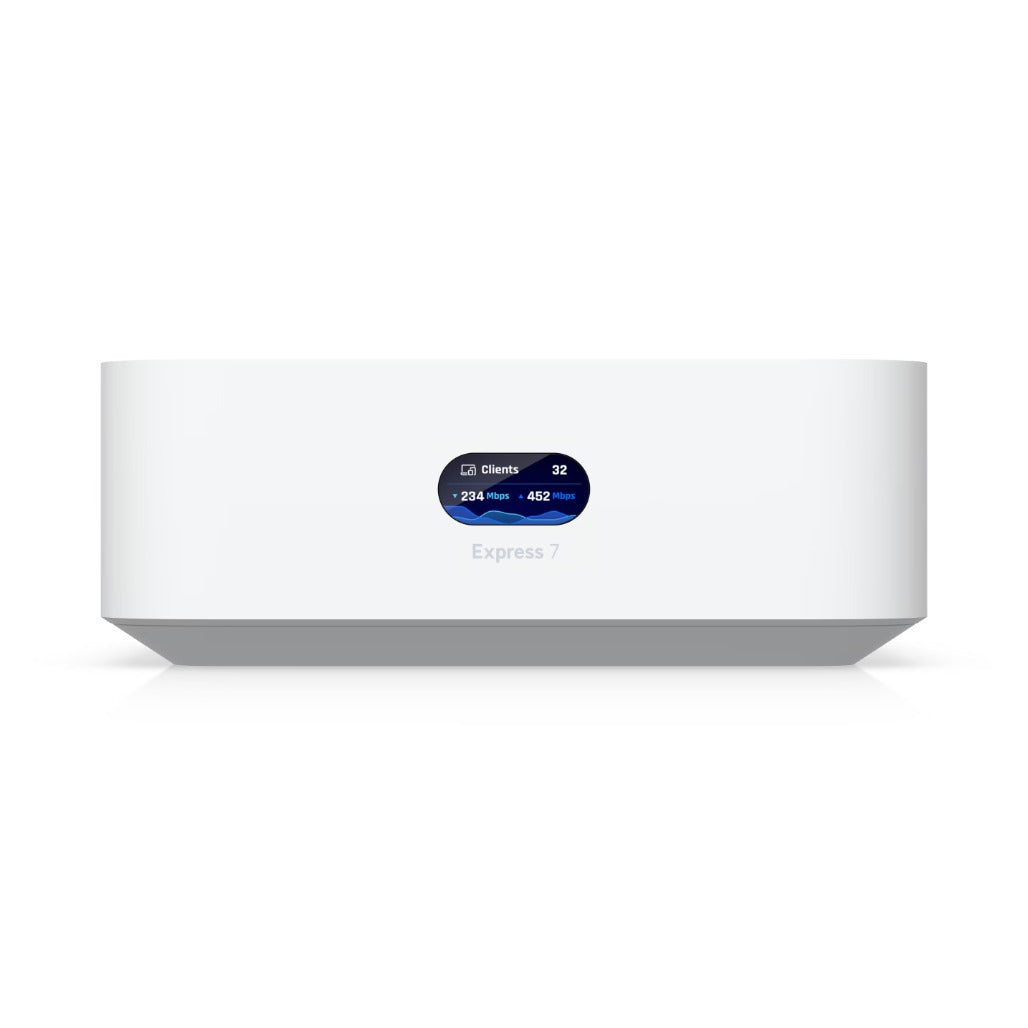

• LCM Display: 0.96" status display
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel: 06656-25-08356
• VLAN: 802.1Q
• Guest Traffic Isolation
• Application Requirements: UniFi Network Version 9.0.108 and later

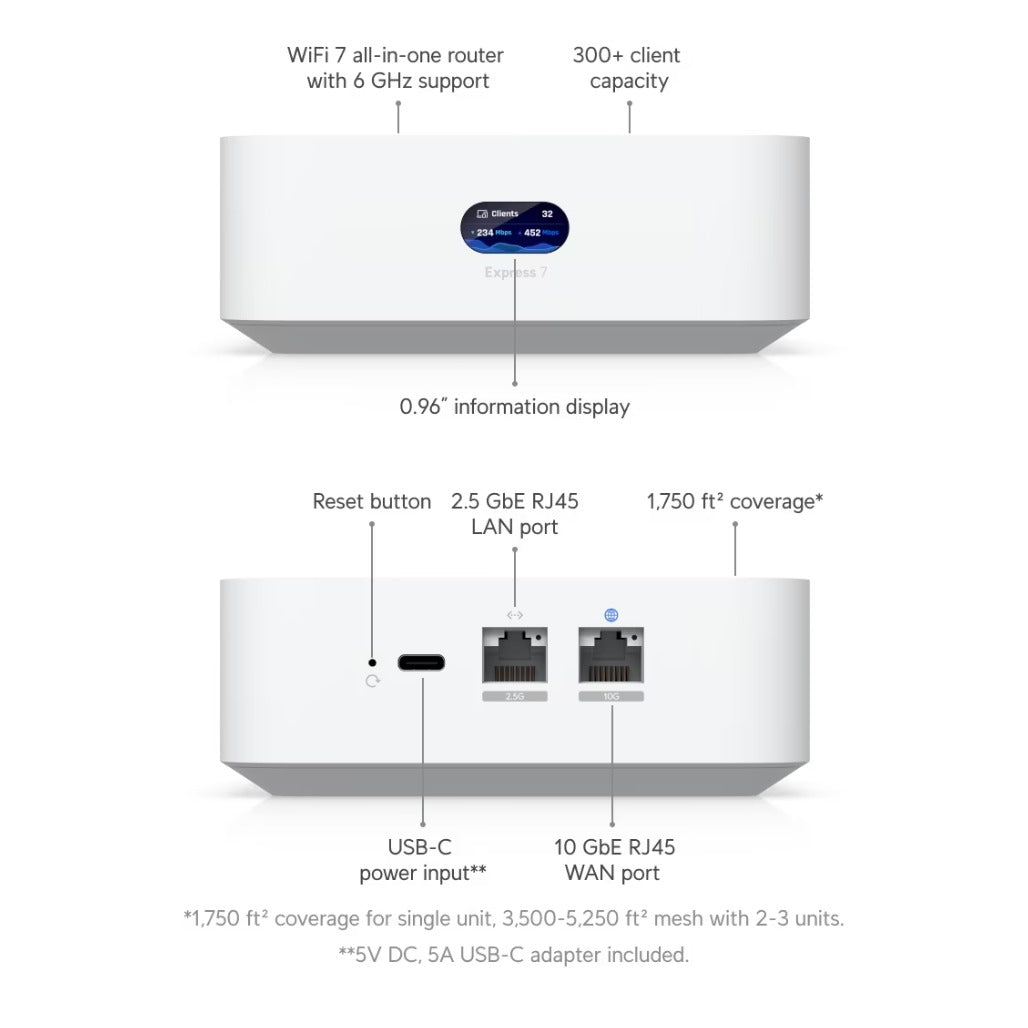

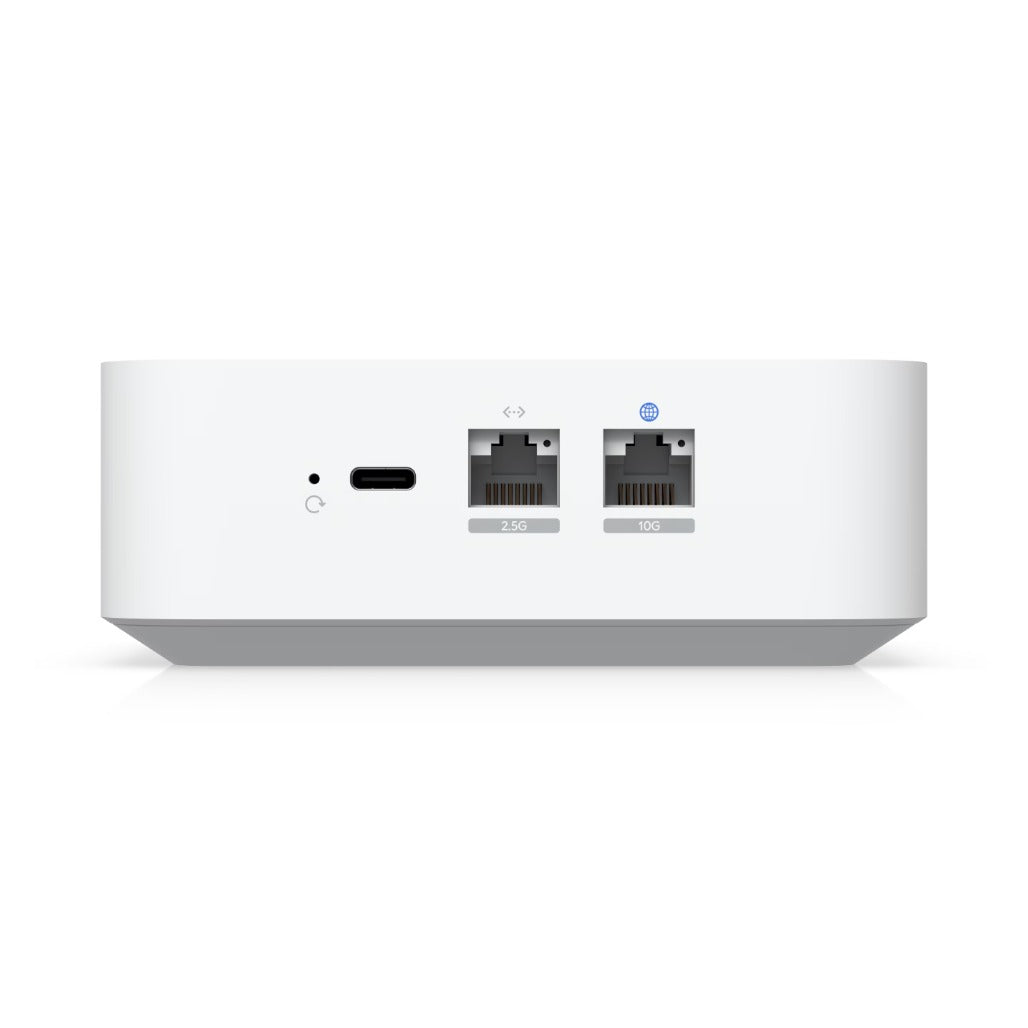

• Supported WAN/Port details: Max. WAN Port Count 1; Default WAN Ports (1) 10 GbE RJ45; Port Layout 2.5 GbE RJ45, 10 GbE RJ45
• IDS/IPS Throughput: 2.3 Gbps
• Security details: Stateful Firewall; Application-Aware Layer 7 Firewall; DPI & Traffic Identification; Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps); Intrusion Prevention (IPS/IDS); Ad Blocking; IDS/IPS Signatures 20,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation
• VPN & SD-WAN: License-Free SD-WAN; Site-to-Site VPN; Site Magic; IPsec; OpenVPN; VPN Server; Identity Endpoint One-Click VPN; Teleport Zero-Configuration VPN; WireGuard; L2TP; VPN Client
• Wireless throughput: 6 GHz 5.7 Gbps; 5 GHz 4.3 Gbps; 2.4 GHz 688 Mbps
• MIMO: 2 x 2 (DL/UL MU-MIMO)
• Antenna Gain: 6 dBi (6 GHz); 7 dBi (5 GHz); 4 dBi (2.4 GHz)
• Max TX Power: 24 dBm (6 GHz); 26 dBm (5 GHz); 23 dBm (2.4 GHz)
• Max. BSSIDs: 4 per Radio (Gateway Mode); 4 per Radio (AP Mode)
• Supported Data Rates: 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320); 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160); 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160); 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11n listed); 1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11a list)
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Max. Power Consumption: 22W
• Power Method: USB type C (5V DC/5A)
• Power Supply: (Adapter included)
• Supported Voltage Range: 100–240V AC
• Weight: 443 g (1 lb)
• Heat dissipation, management and controls: Ethernet; LEDs; Button (1) Factory reset
• ESD/EMP Protection
• Bluetooth
• Electrostatic/EMP detail: Air: ± 8kV, contact: ± 4kV
