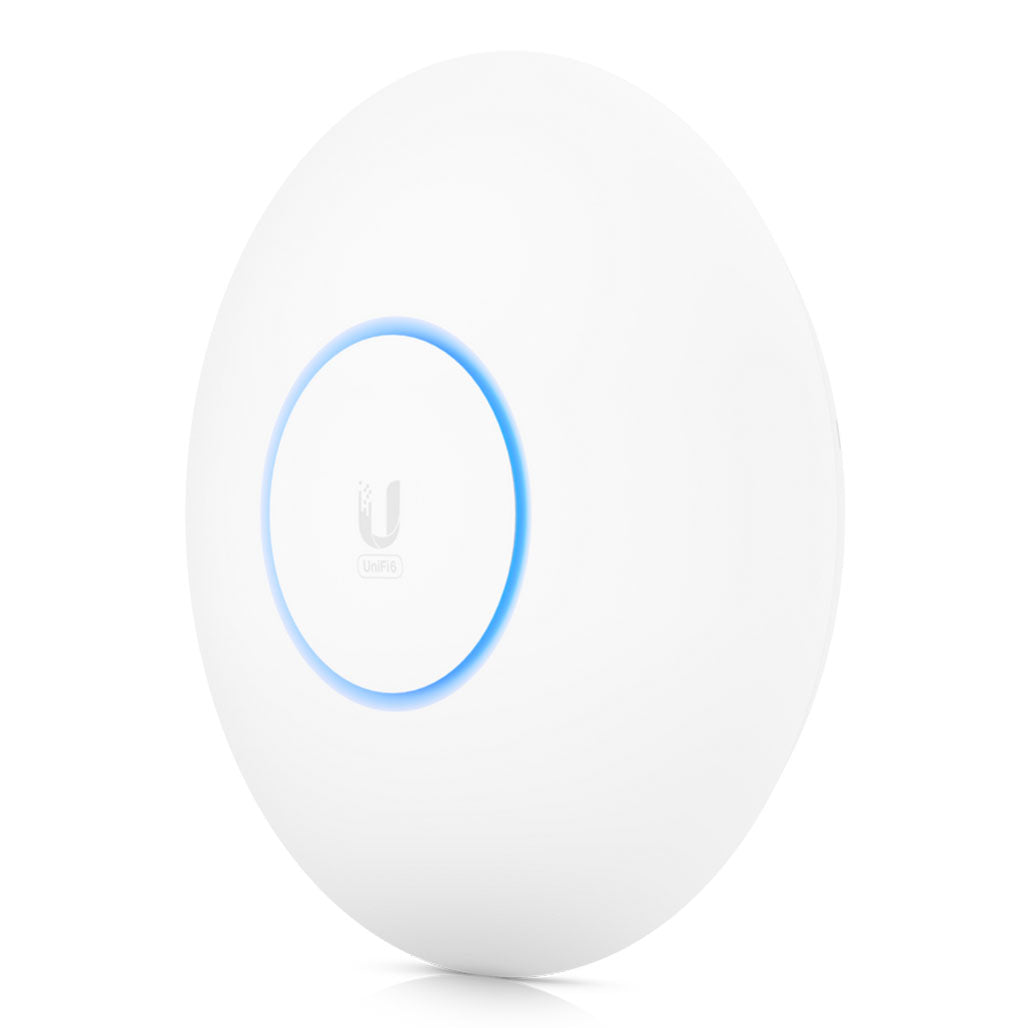

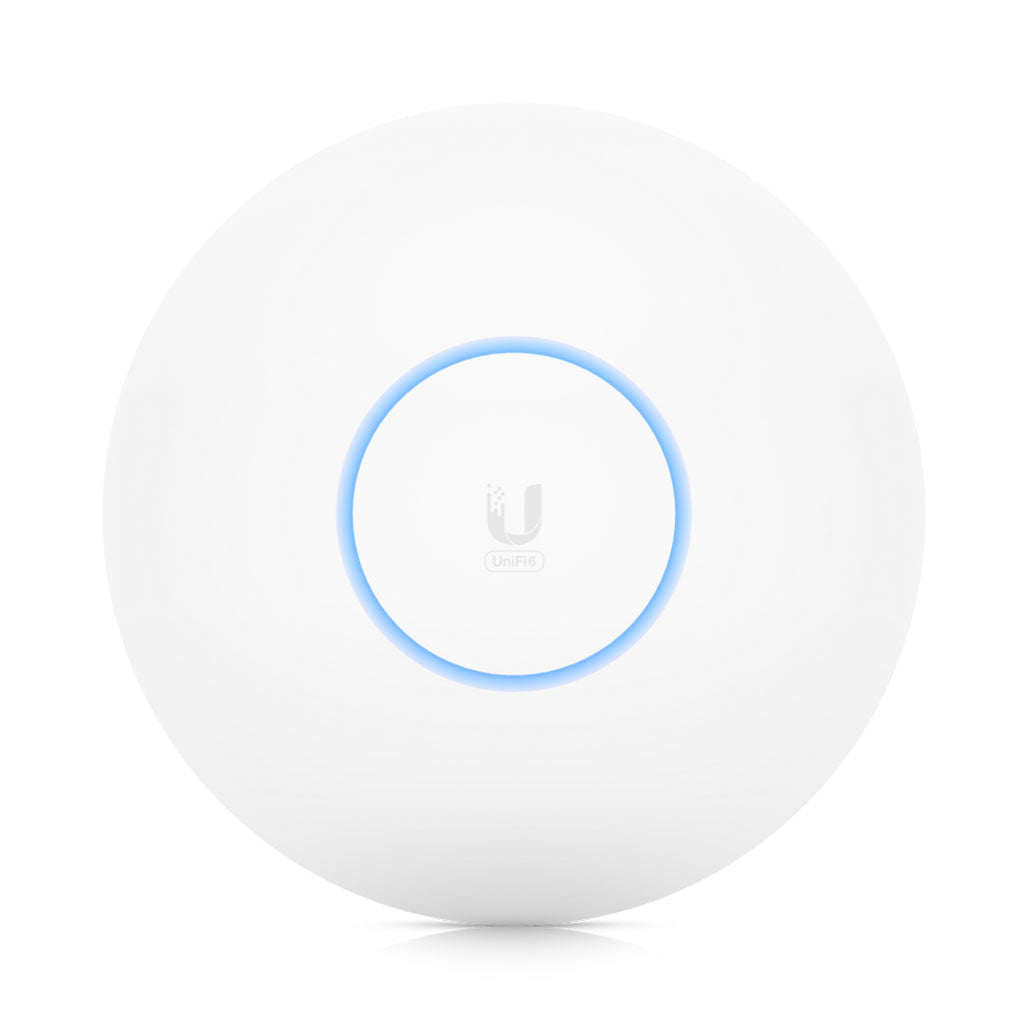

Ubiquiti U6 LR - WiFi 6 Access Point

The Ubiquiti U6 LR WiFi Access Point provides robust, high-performance coverage with its advanced 4×4 WiFi 6 (802.11ax) technology, designed to meet the needs of enterprise networks. Capable of delivering an aggregate throughput rate of up to 3 Gbps, this access point operates across both 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz (4×4 MIMO) bands, ensuring exceptional wireless performance and reliability.

Its unique sideways, down-tilted antenna pattern enhances coverage area, making it ideal for both indoor and outdoor environments. The U6 LR is IP54-rated for water and dust resistance, allowing it to blend seamlessly into various settings without disrupting aesthetics. Its efficient setup process and comprehensive management via the UniFi Network web application or mobile app streamline network management and deployment.

Key Features:

1. High-Efficiency WiFi 6:

   • Technology: Utilizes 4×4 WiFi 6 (802.11ax) for superior network performance and capacity.
   • Throughput Rates: Achieves up to 2.4 Gbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.

2. Expanded Coverage:

   • Antenna Pattern: Sideways, down-tilted design for broader coverage area.
   • Mounting Options: Suitable for both indoor and outdoor installation with IP54-rated protection.

3. Flexible Power and Management:

   • Power: Powered by 802.3at PoE (PoE injector sold separately), with a supported voltage range of 44 to 57VDC.
   • Management: Easily managed via the UniFi Network web application or mobile app.

Specifications:

• Manufacturer / Model: Ubiquiti Networks / UniFi U6 LR
• Network Interface: 1 x Gigabit Ethernet RJ45
• WiFi Frequency Bands: 2.4 GHz and 5 GHz
• WiFi Standards: IEEE 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
• Maximum Number of Connected Clients: 300+
• TX Transmission Power:
  • 2.4 GHz: Maximum 26 dBm
  • 5 GHz: Maximum 26 dBm
• Antenna Gain:
  • 2.4 GHz: 4 dBi
  • 5 GHz: 5.5 dBi
• Max. Power Consumption: 16.5W
• Power Supply: 48V, 0.32A PoE Adapter (Not Included)
• Dimensions: Ø220 x 48 mm (Ø8.66 x 1.89 inches)
• Weight:
  • Without Mount: 800 g (1.76 lb)
  • With Mount: 930 g (2.05 lb)
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Operating Humidity: 5 – 95% Non-condensing
• Certifications: CE, FCC, IC

Software Features:

• WiFi Standards: 802.11a/b/g, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID: 8 per Radio
• VLAN Support: 802.1Q
• Advanced Features: QoS Per-User Rate Limiting, Guest Traffic Isolation
• Supported Data Rates:
  • 802.11a: 6 to 54 Mbps
  • 802.11b: 1 to 11 Mbps
  • 802.11g: 6 to 54 Mbps
  • 802.11n (Wi-Fi 4): 6.5 Mbps to 600 Mbps
  • 802.11ac (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps
  • 802.11ax (Wi-Fi 6): 6.3 Mbps to 1.2 Gbps

Conclusion: The Ubiquiti U6 LR WiFi 6 Access Point offers high-performance, high-efficiency wireless coverage with its advanced WiFi 6 technology and wide range of features. Its durability and flexibility make it a versatile solution for enhancing network performance in both indoor and outdoor environments. With its easy setup and management capabilities, the U6 LR is an excellent choice for enterprise networks requiring reliable and extensive coverage.
