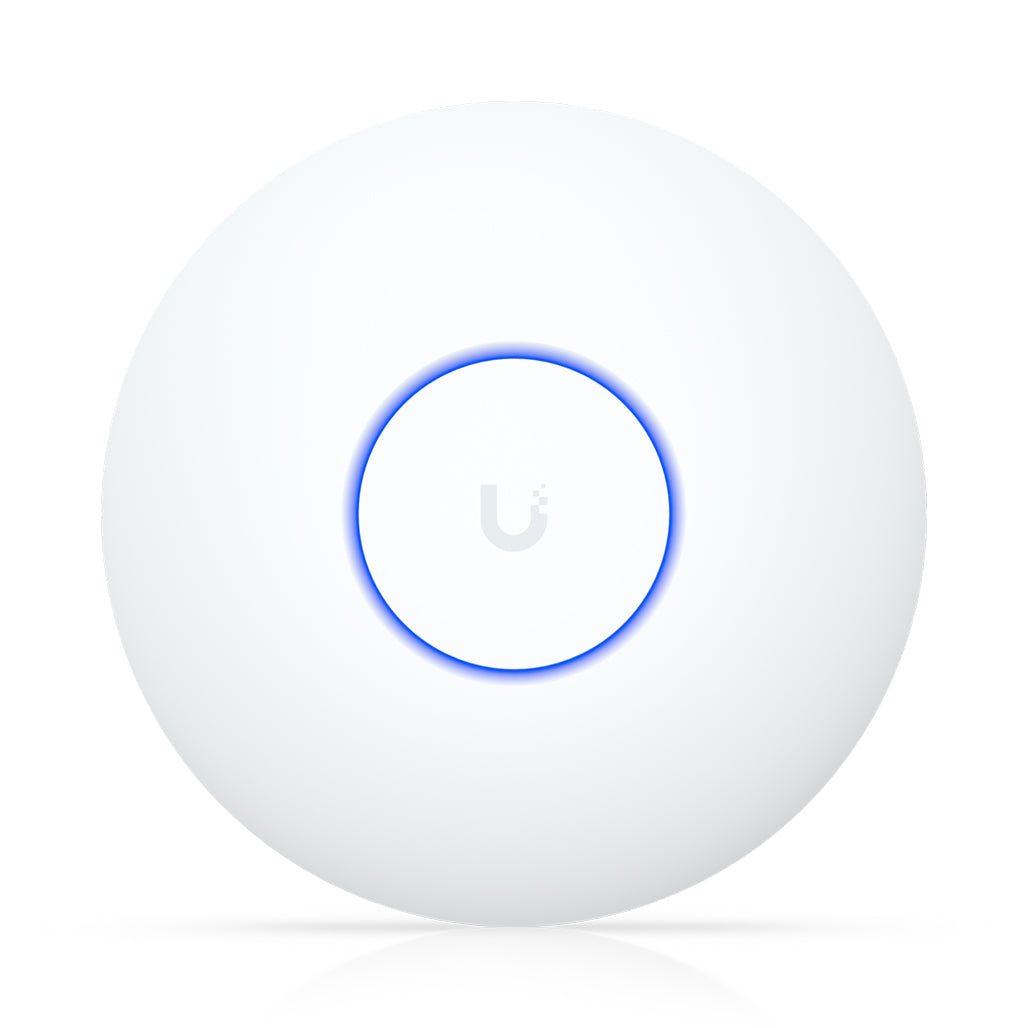

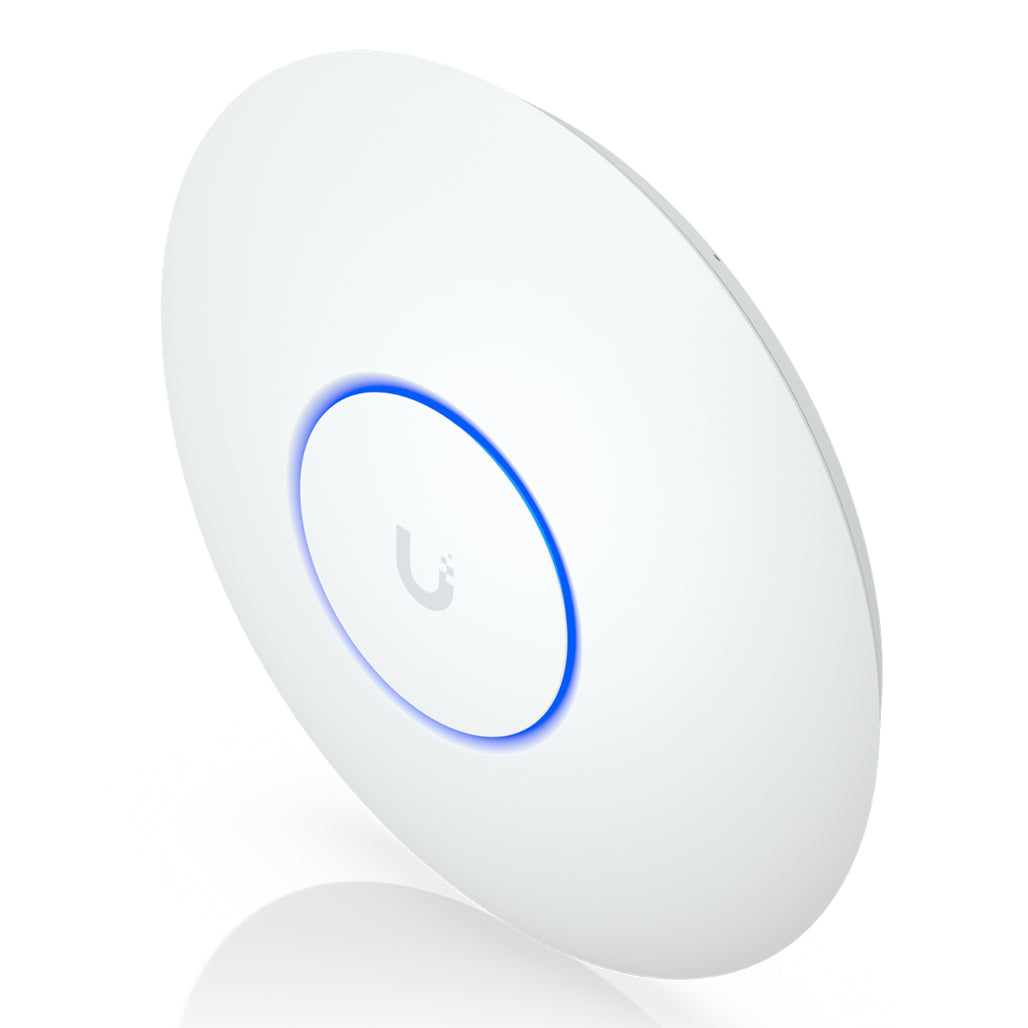

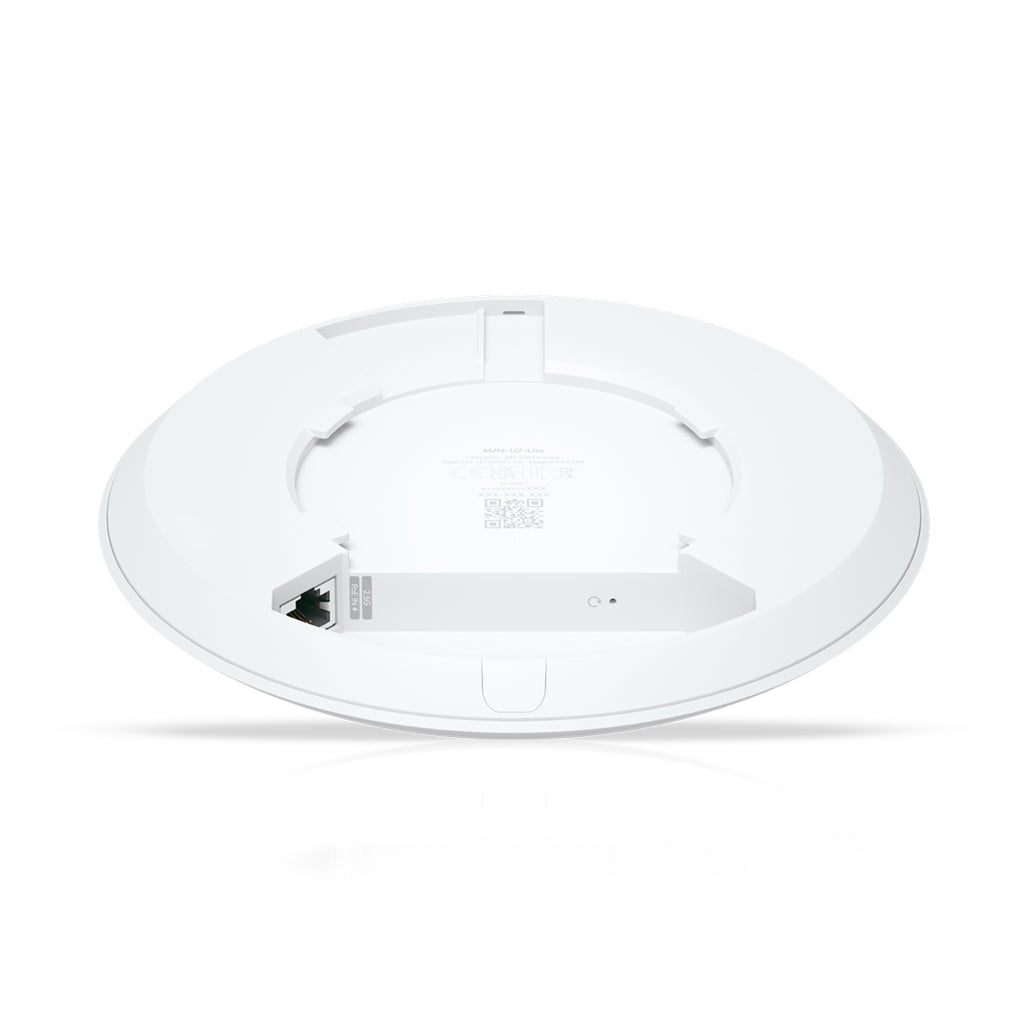

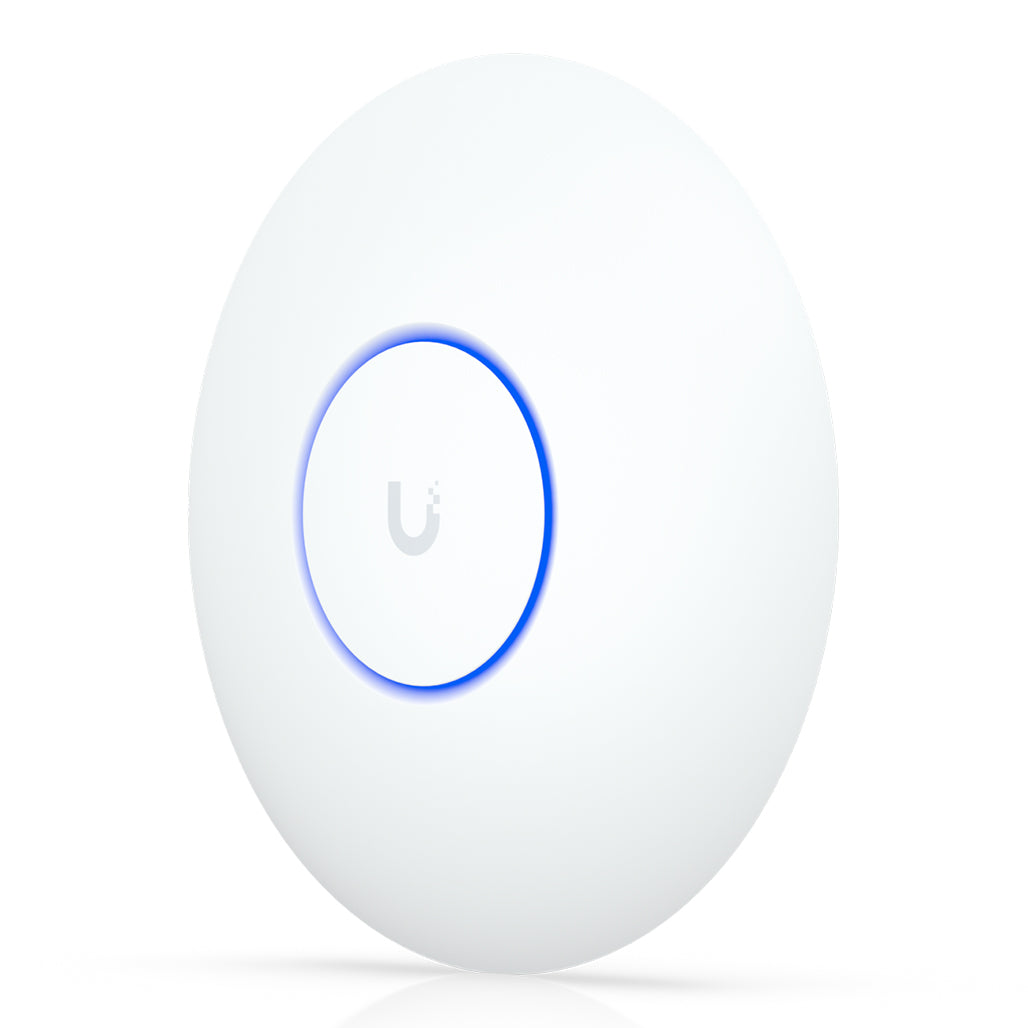

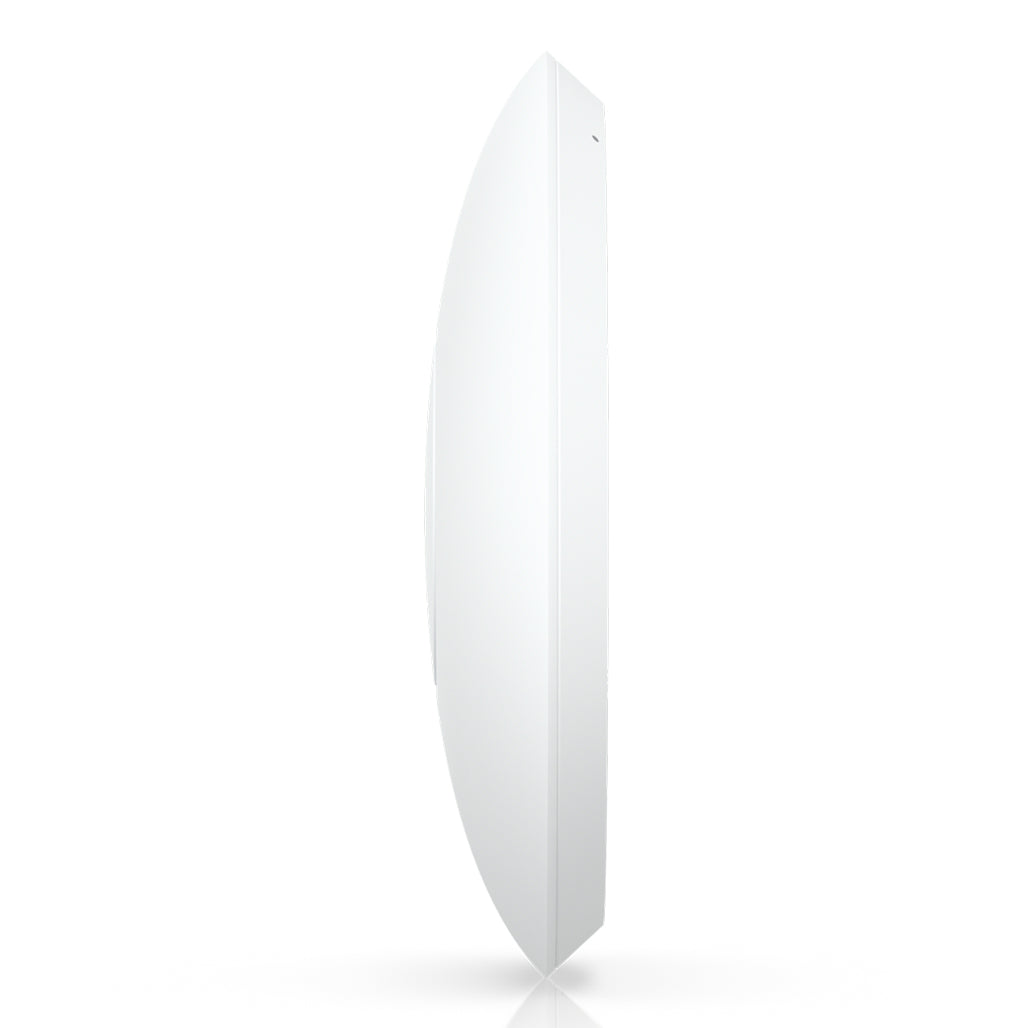

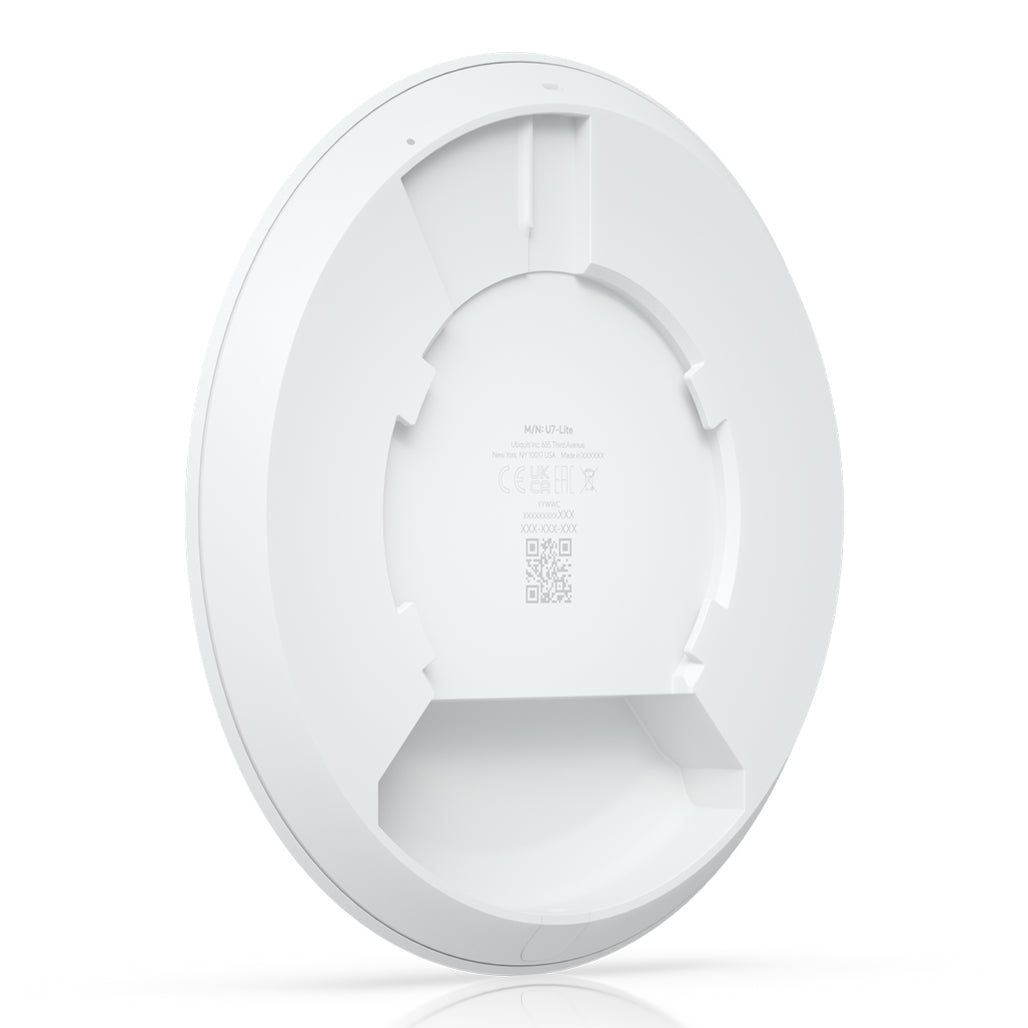

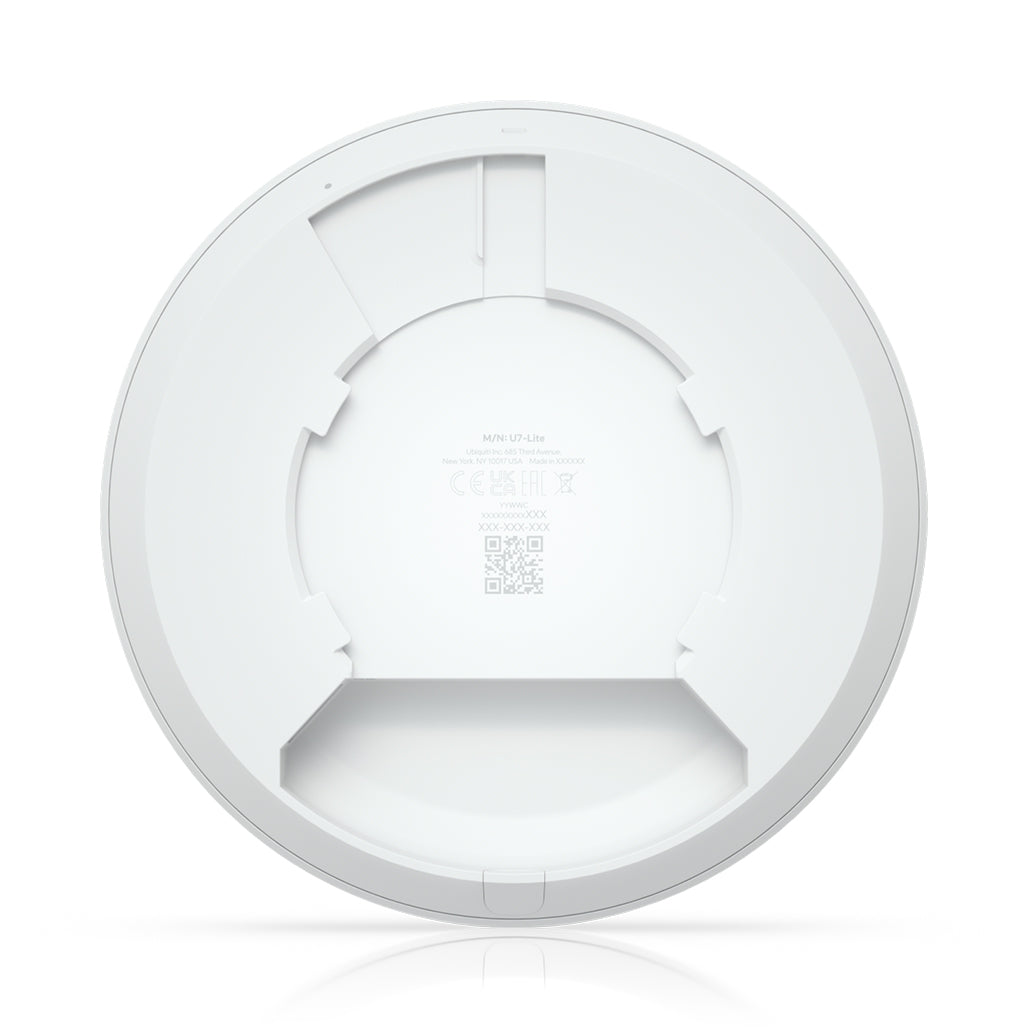

Ubiquiti UniFi U7 Lite WiFi 7 Access Point – Ceiling Mount, 4-Stream, 2.5 GbE Uplink

The Ubiquiti UniFi U7 Lite is a compact, ceiling-mount WiFi 7 access point built to bring next-generation speed and wireless features into homes, small offices, or any location where space is at a premium. It supports four spatial streams across dual bands (2.4 GHz and 5 GHz), delivering fast performance while maintaining compatibility with existing WiFi devices. A 2.5 GbE uplink ensures the wired backhaul can keep pace with high wireless throughput, preventing bottlenecks in your network.

Optimized for quick installation and management, the U7 Lite integrates smoothly into the UniFi ecosystem. It supports advanced wireless features like band steering, fast roaming, mesh networking, captive portal control, and more. Because it draws power over Ethernet (PoE), deployment is simplified—no separate power line is needed. Whether upgrading a single room or expanding a multi-AP network, the U7 Lite offers a balanced mix of performance, features, and efficiency.

Key Features

• WiFi 7 Dual-Band Design – Delivers modern WiFi 7 performance across 2.4 GHz and 5 GHz bands, while maintaining backward compatibility.

• 4 Spatial Streams – Enables more devices to connect concurrently with consistent throughput.

• 2.5 GbE Uplink Port – High-speed wired connection avoids throttling of wireless traffic.

• Ceiling-Mount or Wall Mount – Flexible mounting options tailored for indoor deployment.

• PoE Powered (802.3-bt) – Power and data over a single cable simplifies deployment.

• Advanced Wireless Features – Includes band steering, fast roaming (802.11r), resource management (802.11k/v), mesh support, captive portal, PPSK, VLAN, guest isolation, and more.

• Low Power Consumption – Designed for efficiency, with maximum draw around 13 W.

• Silent Fanless Design – Operates without noise as there is no internal fan.

Technical Specifications

Physical

• Dimensions: Ø 171.5 × 33 mm (Ø 6.8 × 1.3 in)

• Weight: 313 g (11 oz)

• Enclosure Material: UV-stabilized polycarbonate

• Mount Material: UV-stabilized polycarbonate, galvanized steel

• Mount Options: Ceiling or wall (mounting kit included)

Networking & Power

• Ethernet Interface: (1) 2.5 GbE RJ-45 uplink

• Power Method: PoE (Power over Ethernet)

• Supported Voltage Range: 42.5 – 57 V DC

• Maximum Power Consumption: 13 W

Wireless / Radio / Performance

• Standard: WiFi 7 (802.11be) with backward support for 802.11ax, ac, n, etc.

• Bands: 2.4 GHz and 5 GHz only (no 6 GHz)

• Spatial Streams: 4 (2×2 in each band)

• Maximum Clients: 200+

• Coverage Area (estimated): ~ 115 m² (1,250 ft²)

Data Rates & Radio Metrics

• 5 GHz: Up to 4.3 Gbps (BW 240 MHz)

• 2.4 GHz: Up to 688 Mbps (BW 40 MHz)

• Antenna Gain: 5 GHz – 5 dBi; 2.4 GHz – 4 dBi

• Transmit Power (Max): 5 GHz – 24 dBm; 2.4 GHz – 23 dBm

• Maximum BSSIDs: 8 per radio

• Channel Bandwidths Supported: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240

Wireless Features

• Band steering

• Fast roaming (802.11r)

• BSS transition (802.11v)

• Radio Resource Management (802.11k)

• Wireless meshing

• Passpoint (Hotspot 2.0) support

• Captive portal with custom branding, vouchers, payment, external portal

• Guest network isolation

• Private Pre-Shared Key (PPSK)

• WiFi speed limiting, client isolation, VLAN, dynamic RADIUS assignments

Environmental

• Operating Temperature: –30 to 40 °C (–22 to 104 °F)

• Operating Humidity: 5% to 95% (non-condensing)

Compliance & Certifications

• NDAA Compliant

• Certifications: CE, FCC, IC

Software & Management

• Managed via: UniFi Network (controller)

• Firmware / Software: Requires version 9.0.114 or later

• Mobile App: iOS / Android versions supported

Conclusion

The Ubiquiti UniFi U7 Lite gives you a high-value pathway into WiFi 7 performance without overextending your budget. With support for 4 spatial streams, a 2.5 GbE uplink, advanced wireless features, and efficient PoE power delivery, it’s built for modern homes, small offices, and network expansions. Its compact, fanless design ensures quiet operation, while seamless integration into the UniFi environment offers ease of management and scalability. For those wanting to future-proof their network in a cost-conscious way, the U7 Lite represents a compelling balance of capability and usability.
