Ubiquiti UniFi U7 Long-Range - U7-LR

Name: Ubiquiti UniFi U7 Long-Range - U7-LR WiFi 7 AP
Brand: Ubiquiti
SKU: U7-LR-R1-J
Price: 234.0 USD
Availability: InStock

Excluding VAT

$234.00

Quantity

Subtotal: $234.00

Add to wishlist

Vendor: Ubiquiti
SKU: U7-LR-R1-J
Availability: In Stock
Product Type: Wireless Routers

Every product sold by 961 Souq is sourced from trusted suppliers and verified before dispatch. We only list genuine items with clear product details, warranty information, and after-sales support.

Product images are for reference only. The actual item may differ in appearance & colour. Please refer to the product code, SKU, and description from manufacturer website for accurate specifications.

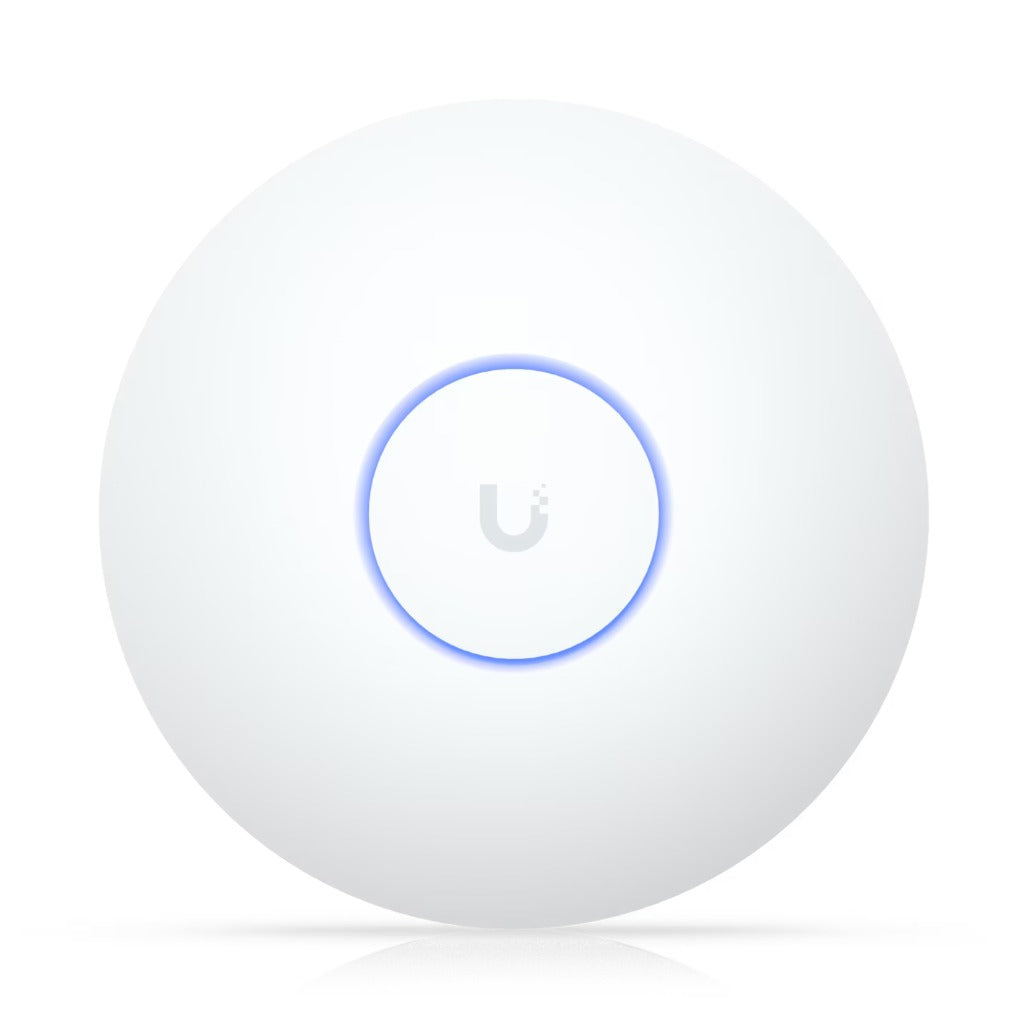

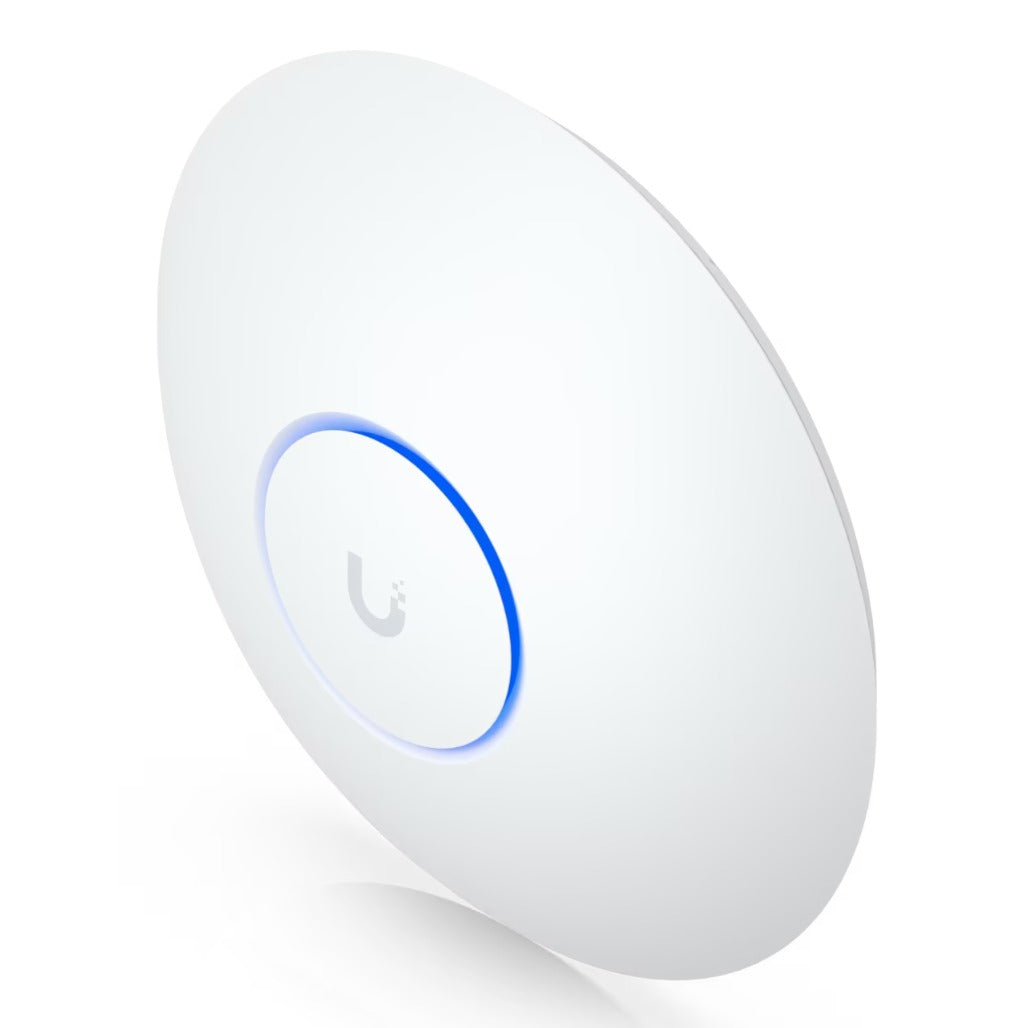

The Ubiquiti UniFi U7 Long-Range (U7-LR) is a compact ceiling-mount WiFi 7 access point designed for extended signal range. With 5 spatial streams and coverage suitable for up to 300+ clients, it supports 5 GHz and 2.4 GHz operation for managed wireless connectivity. It includes a 2.5 GbE uplink and offers uplink capability of 2.5 GbE. This UniFi WiFi 7 AP supports MIMO and includes features such as band steering, 802.11r fast roaming, advanced radio management, and passpoint (Hotspot 2.0). It also supports management and networking capabilities including a captive hotspot portal, external portal server support, guest network isolation, and client device isolation. For operation, it uses a supported voltage range of 42.5–57V DC with a max power consumption of 14W.
Key Features
• Band Steering
• 802.11r Fast Roaming
• Advanced Radio Management
• Passpoint (Hotspot 2.0)
• Captive Hotspot Portal
• Custom Branding Landing Page
• Voucher Authentication
• Payment-Based Authentication
• External Portal Server Support
• Password Authentication
• Guest Network Isolation
• Private Pre-Shared Key (PPSK)
• Client Device Isolation
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-assigned VLAN
Specifications
• Product name: Ubiquiti UniFi U7 Long-Range
• Model number: U7-LR
• Spatial Streams: 5
• Coverage Area: Max. Client Count 300+
• Uplink: 2.5 GbE
• Mounting: Ceiling, Wall
• PoE: Includes PoE Adapter
• Performance: MIMO
• 5 GHz: 3 x 3 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Max. Data Rate: 4.3 Gbps (BW160)
• Max. Data Rate: 688 Mbps (BW40)
• Antenna Gain: 6 dBi
• Antenna Gain: 4 dBi
• Antenna Gain: 27 dBm
• Antenna Gain: 26 dBm
• Supported Data Rates: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
• Supported Data Rates: 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
• Supported Data Rates: 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
• Supported Data Rates: 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

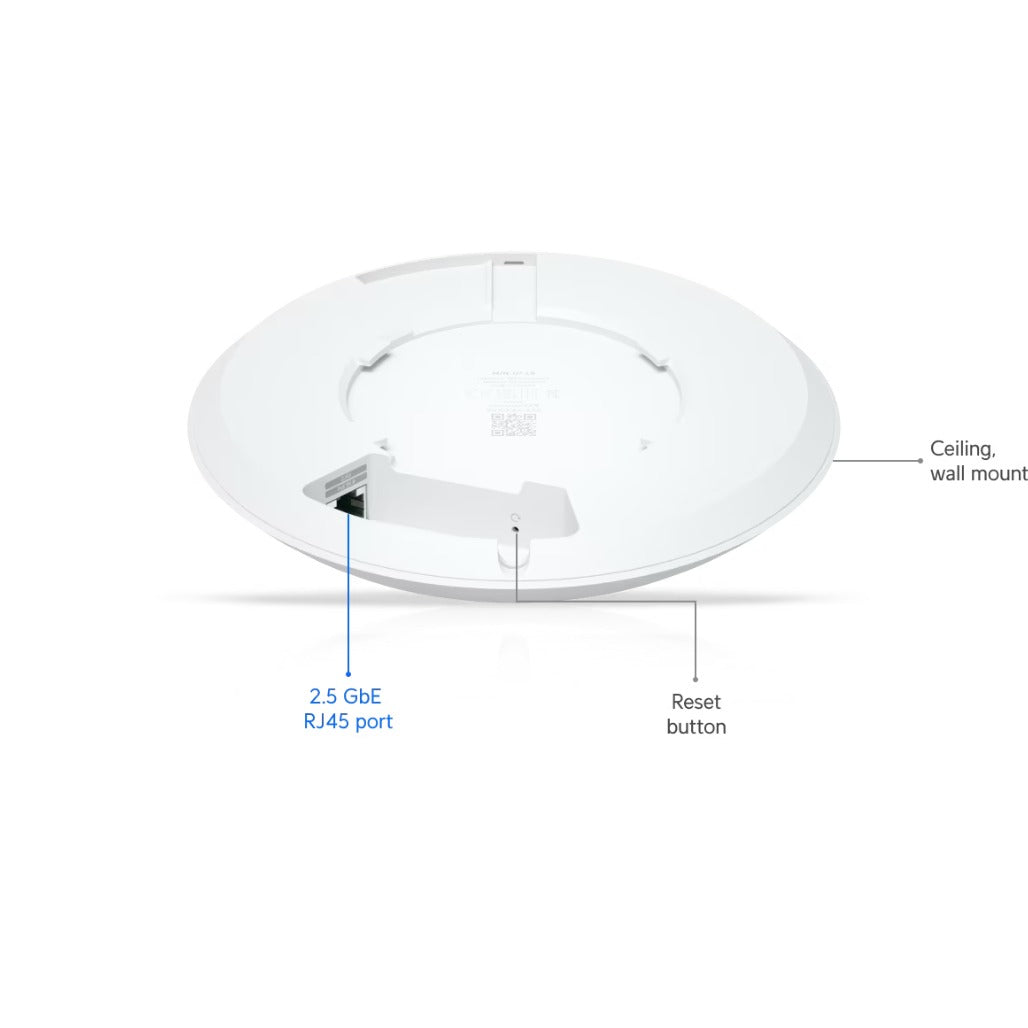

• Networking Interface: (1) 2.5 GbE RJ45 port
• Management: Ethernet
• Enclosure Material: Polycarbonate, aluminum alloy
• Enclosure Material: Polycarbonate, galvanized steel (SGCC)
• LEDs: System White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
• NDAA Compliant
• Certifications: CE, FCC, IC, SRRC, Anatel: 04071-25-08356
• Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• WiFi Standard: WiFi 7

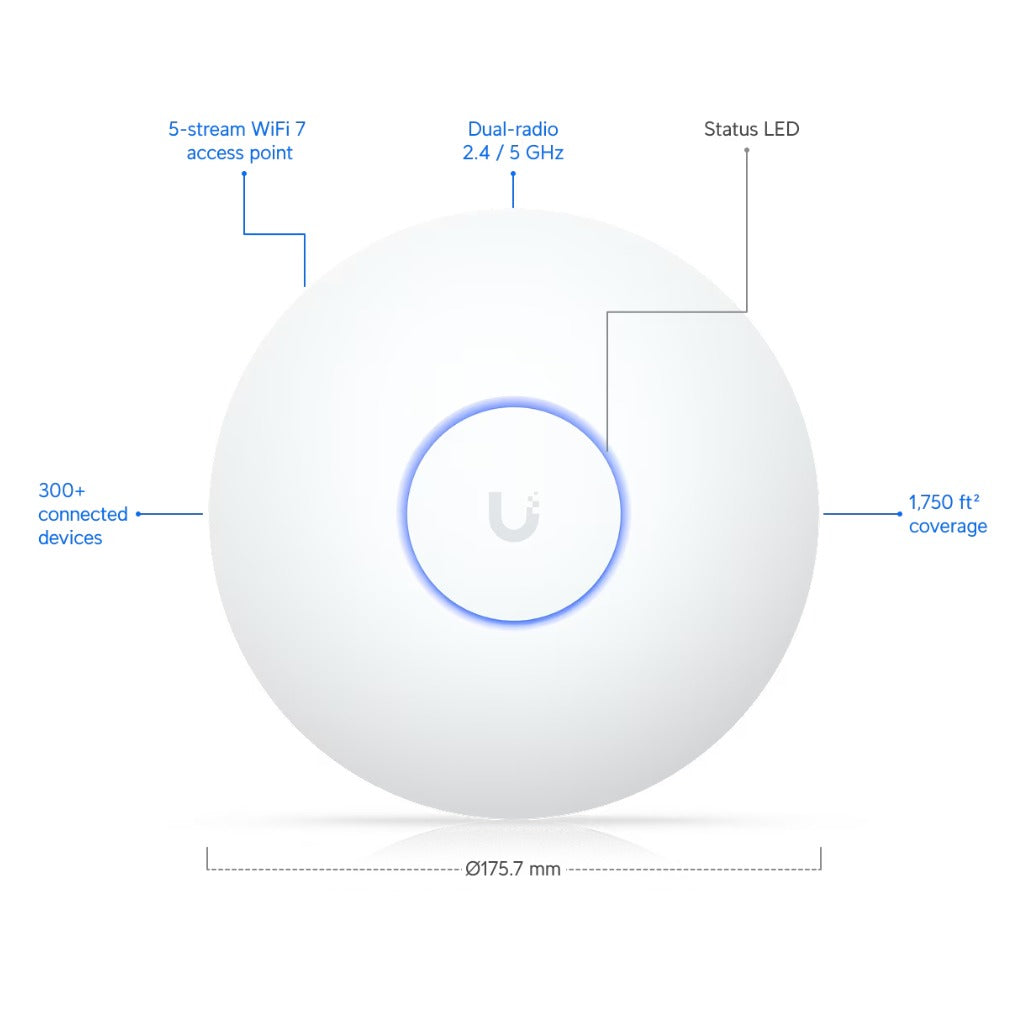

• Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range

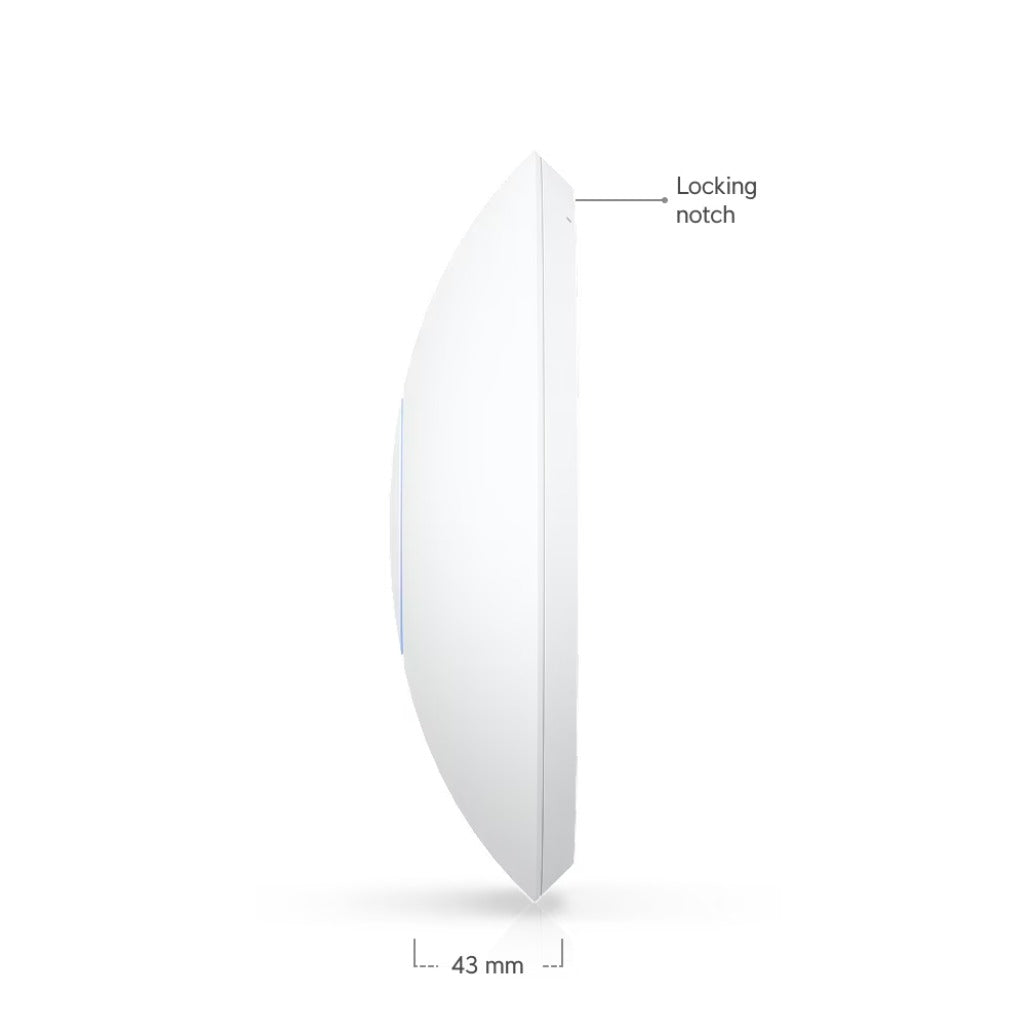

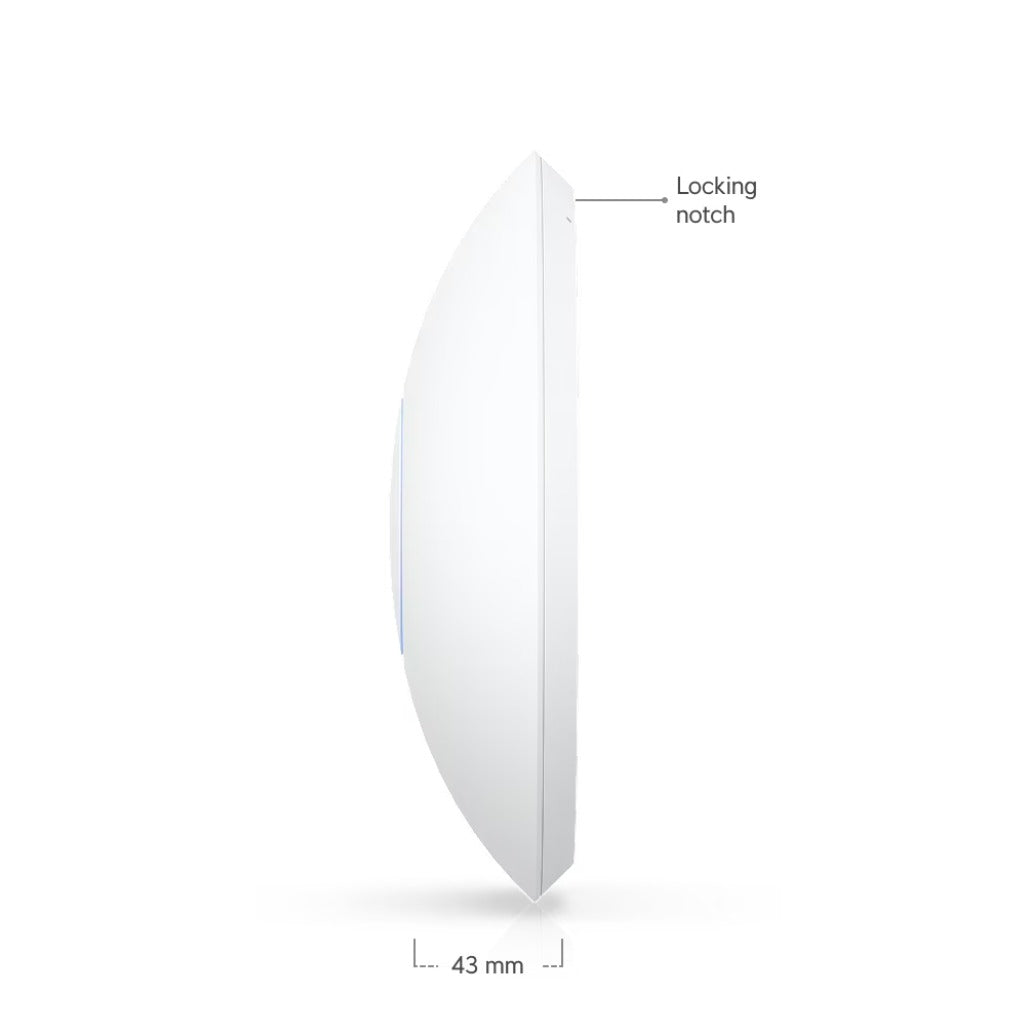

• Dimensions: ⌀175.7 x 43 mm
• Coverage Area: 160 m² (1,750 ft²)
• Included: Plastic Mounting Plate included
• Power Method: PoE
• Max. TX Power: 802.11be (WiFi 7)
• Max. TX Power: 802.11ax (WiFi 6)
• Max. TX Power: 802.11ac (WiFi 5)
• Wireless Meshing: 802.11v BSS Transition Management
• Wireless Meshing: 802.11k Radio Resource Management (RRM)
• WiFi Speed Limiting
• WiFi Schedules
• Max. Power Consumption: 14W
• Supported Voltage Range: 42.5–57V DC
• Weight: 448 g (15.8 oz)
• Software/Management: Application Requirements UniFi Network Version 9.1.120 and later
• Software/Management: Mobile App iOS™ version 10.20.2 and later
• Software/Management: Mobile App Android™ version 10.21.7 and later
• Mount Material: Enclosure Material Mount Material
