The Ubiquiti UniFi Cloud Key Gen2 Plus (UCK-G2-PLUS) is a sophisticated and compact UniFi OS Console designed to streamline network management and security. Equipped with pre-installed UniFi Network and Protect applications, this console simplifies the management of your UniFi ecosystem. The UCK-G2-PLUS features an integrated 1TB hard disk drive (HDD), which can be upgraded to 5TB, ensuring ample storage for camera footage and network data. Its compact design allows for easy integration into any setup while providing powerful performance and reliable storage solutions.

This versatile console is designed for straightforward deployment and configuration through the UniFi Network and Protect mobile apps, which offer seamless Bluetooth-powered setup. The UCK-G2-PLUS includes a built-in battery that ensures safe shutdowns during power interruptions, protecting your system from sudden power loss. The front panel display provides real-time insights into your network and device statuses, making it easy to monitor and manage your UniFi setup. With its robust build and user-friendly interface, the UCK-G2-PLUS enhances the efficiency of network and security management in both small and large deployments.

Key Features:

• UniFi Network and Protect Compatibility:

  • Integrated Applications: Comes pre-installed with UniFi Network and Protect applications for centralized management.

• Easy Deployment and Setup:

  • Bluetooth Setup: Quick and simple setup via mobile apps using Bluetooth technology.

• Reliable Power Backup:

  • Built-in Battery: Safeguards against sudden power loss with an automatic safe shutdown feature.

• Upgradeable Storage:

  • 1TB HDD with Upgrade Option: Includes a 1TB hard drive that can be upgraded to 5TB for expanded storage capacity.

• Real-Time Monitoring:

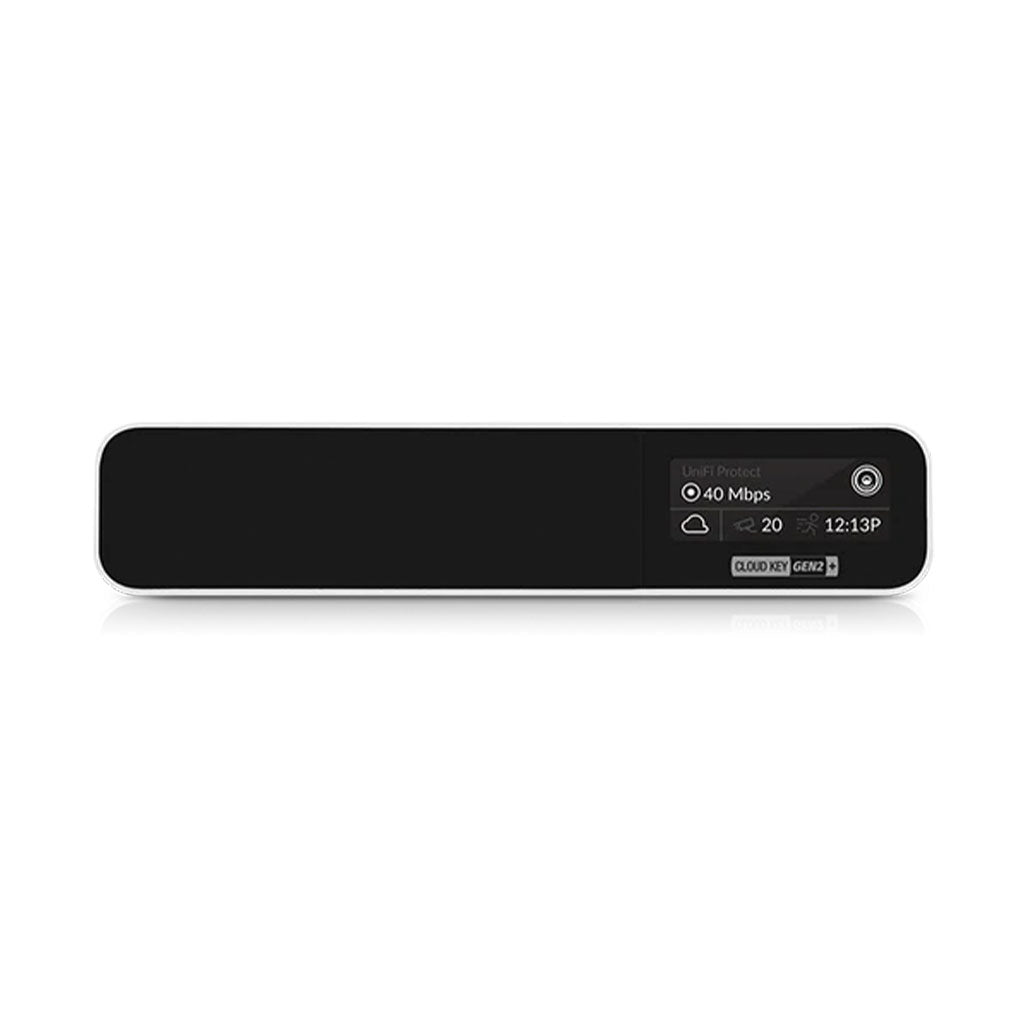

  • Front Panel Display: Provides a clear overview of UniFi system details and real-time insights.

• Flexible Power Options:

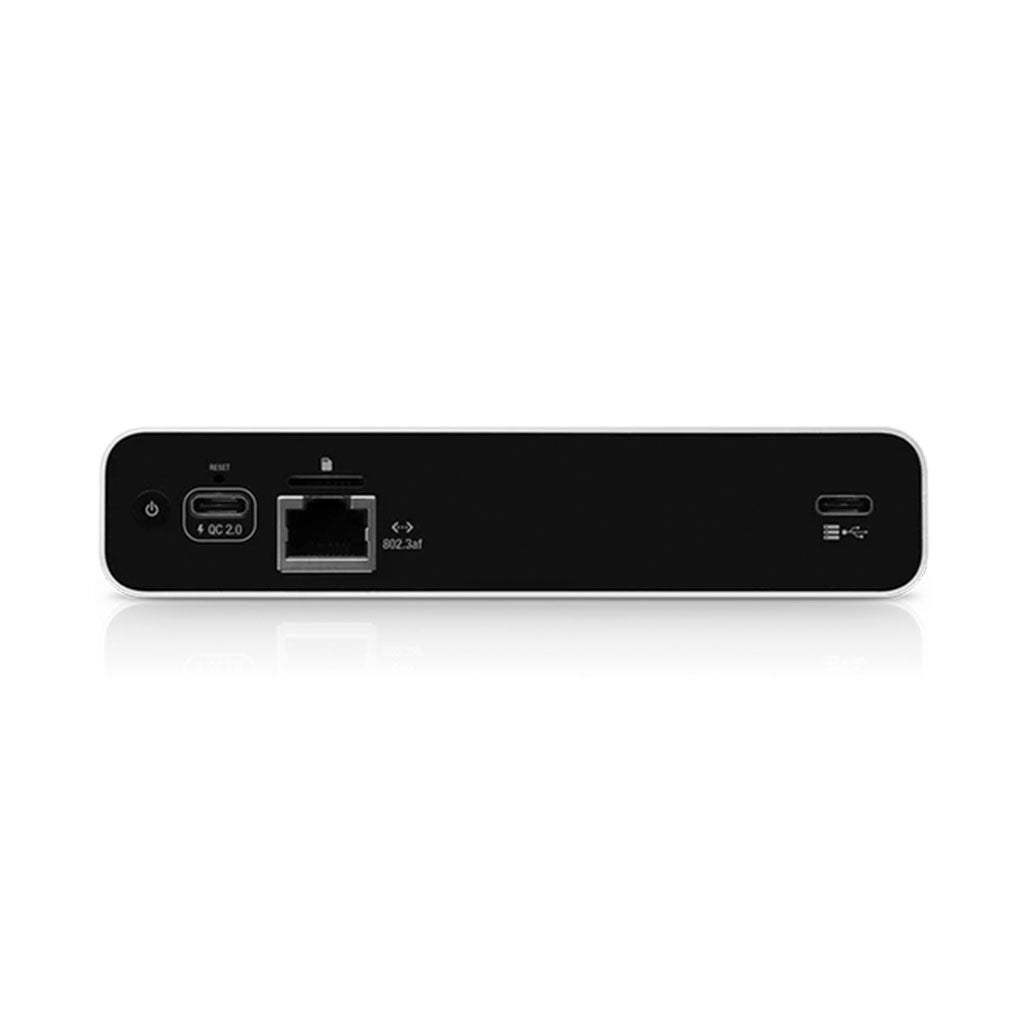

  • PoE and USB-C Power: Powered by 802.3af PoE or Quick Charge 2.0 USB-C for versatile installation.

Specifications:

• Dimensions: 131.16 x 27.10 x 134.20 mm (5.16 x 1.07 x 5.28″)
• Weight: 582 g (1.28 lb)
• Enclosure: Anodized Aluminum
• Management Interface: UniFi Management Portal; UniFi SDN; UniFi Protect
• Hard Drive Capacity: 1 TB 2.5″ SATA HDD (user-upgradeable)
• Device Capacity:
  • UniFi Protect Mode: Up to 20 UniFi Cameras
  • UniFi SDN + UniFi Protect: Up to 15 UniFi Cameras and 50 UniFi Devices
• Processor: APQ8053 8 Core with 3 GB RAM
• eMMC Memory: 32 GB
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Buttons: (1) Power; (1) Reset
• LEDs: (1) Power, White/Blue
• Power Method: Standard 802.3af PoE; Quick Charge 2.0/3.0 Power Adapter (9VDC, 2A)
• Supported Voltage Range: Standard 802.3af PoE or 9VDC, 2A
• Max. Power Consumption: 12.95W (PoE); USB-C Power
• Operating Temperature: 0 to 35° C (32 to 95° F)
• Operating Humidity: 20 to 80% Noncondensing
• Certifications: CE, FCC, IC

Conclusion: The Ubiquiti UniFi Cloud Key Gen2 Plus (UCK-G2-PLUS) offers a compact and powerful solution for managing UniFi networks and security systems. With its integrated applications, reliable storage, and versatile power options, it delivers enhanced performance and ease of use for a range of deployments. The combination of real-time monitoring, expandable storage, and robust backup features ensures a reliable and efficient management experience for both small and large installations.
