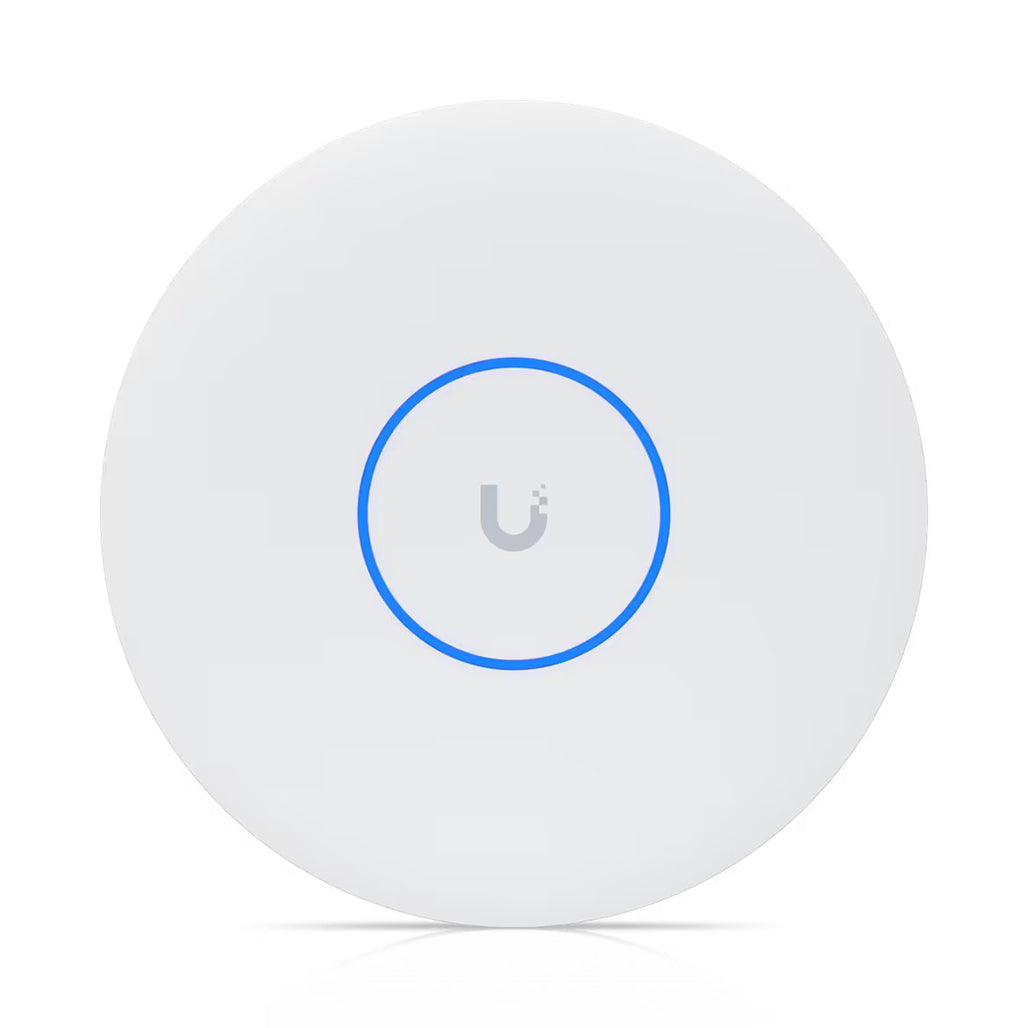

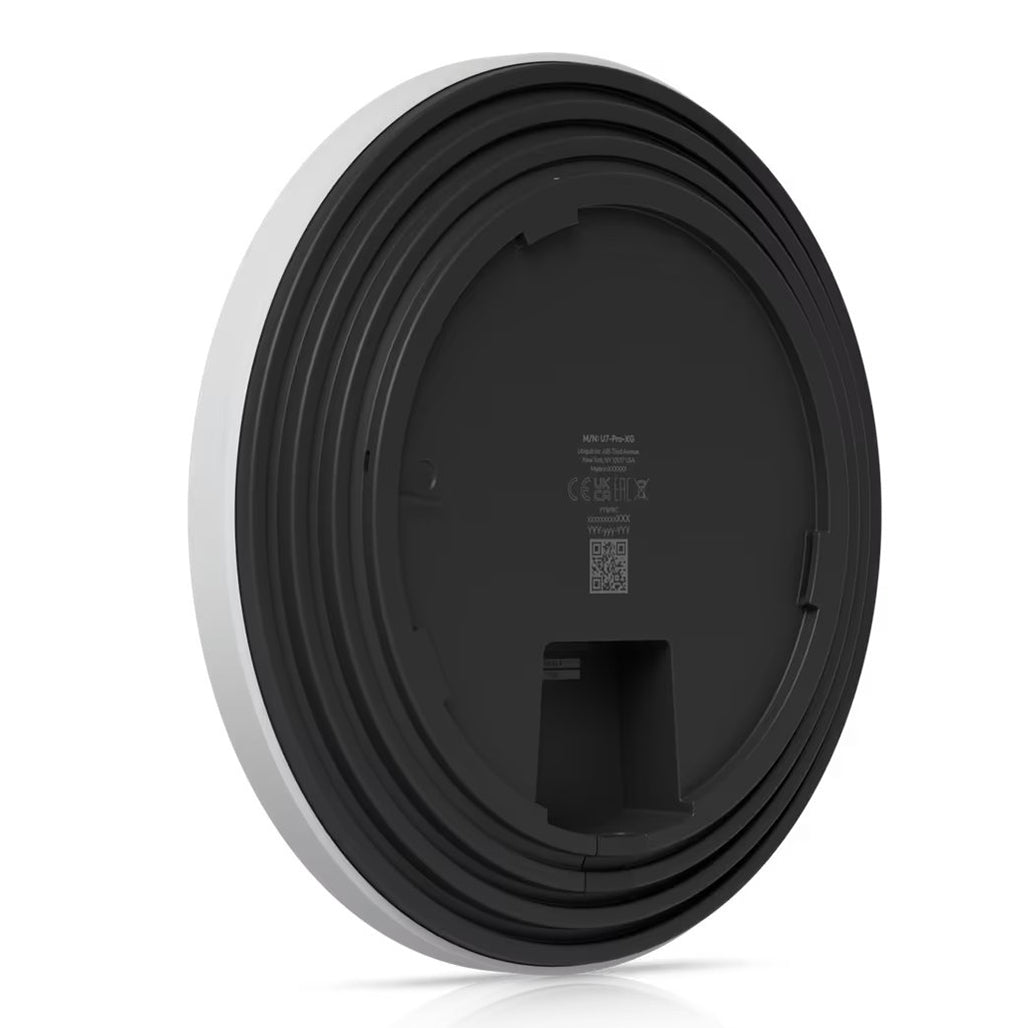

Ubiquiti UniFi U7 Pro XG WiFi 7 Access Point – Ceiling Mount, 10G Ethernet, 6-Stream Performance

The Ubiquiti UniFi U7 Pro XG is a next-generation WiFi 7 ceiling-mounted access point engineered for high-density environments and future-ready networking. With support for six simultaneous streams across the 2.4 GHz, 5 GHz, and 6 GHz bands, it delivers faster speeds, lower latency, and reliable coverage for hundreds of connected devices. Designed for seamless integration into the UniFi ecosystem, the U7 Pro XG combines powerful wireless performance with professional management features.

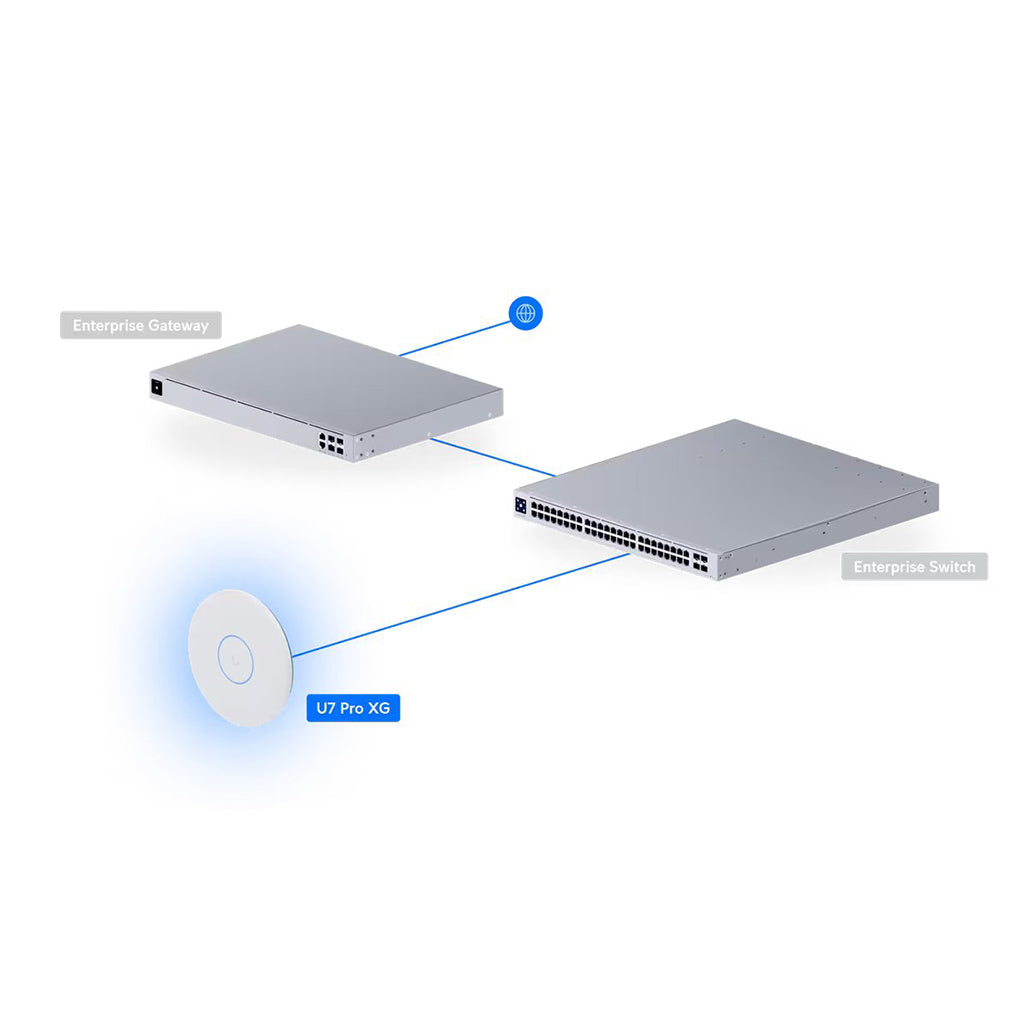

Its multi-gigabit Ethernet interface supports 10G, 5G, 2.5G, and 1G connections, ensuring that wired backhaul never becomes a bottleneck. Advanced radio technologies, machine-learning enhancements, and robust roaming support make it an ideal choice for enterprise offices, educational campuses, and high-end residential spaces. Compact, discreet, and powered by PoE, the U7 Pro XG simplifies deployment while providing the cutting-edge connectivity required for today’s demanding networks.

Key Features

• WiFi 7 Standard – Ultra-fast connectivity with backward compatibility for WiFi 6/5/4 devices.

• Six-Stream Radio Design – Handles 300+ clients simultaneously with smooth performance.

• Multi-Gig Ethernet Port – 10G/5G/2.5G/1G speeds eliminate backhaul bottlenecks.

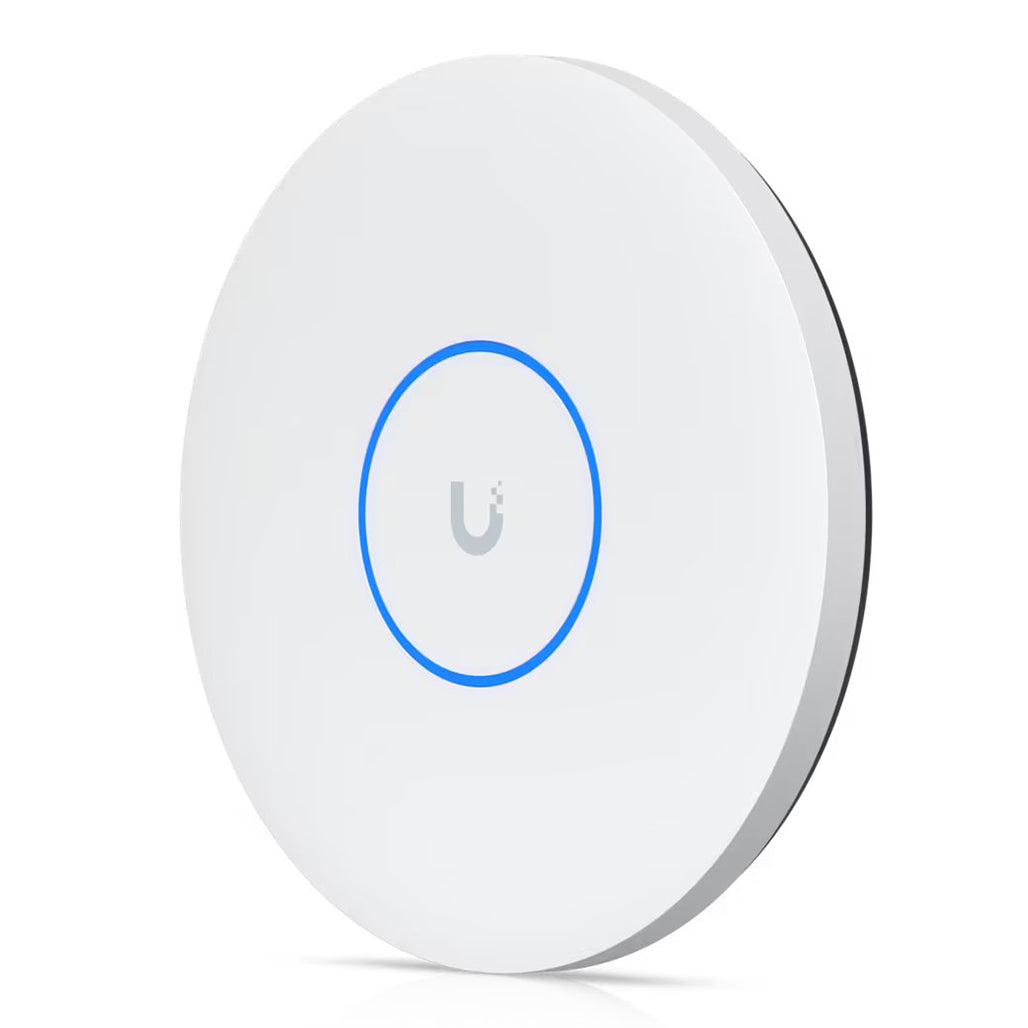

• Ceiling-Mount Form Factor – Compact and discreet design optimized for wide coverage.

• 6 GHz Spectrum Support – Access to cleaner, faster spectrum in regions where available.

• Advanced Roaming Support – Includes 802.11r fast roaming, 802.11k resource management, and 802.11v BSS transition.

• Enterprise-Grade Security – WPA3 encryption, guest isolation, VLAN, Hotspot 2.0, captive portal, and RADIUS features.

• Mesh Networking – Extend coverage with wireless meshing.

• Power over Ethernet (PoE) – Simplifies installation with combined power and data.

• UI Care Support – Optional 5-year extended support for updates and maintenance.

Technical Specifications

Physical

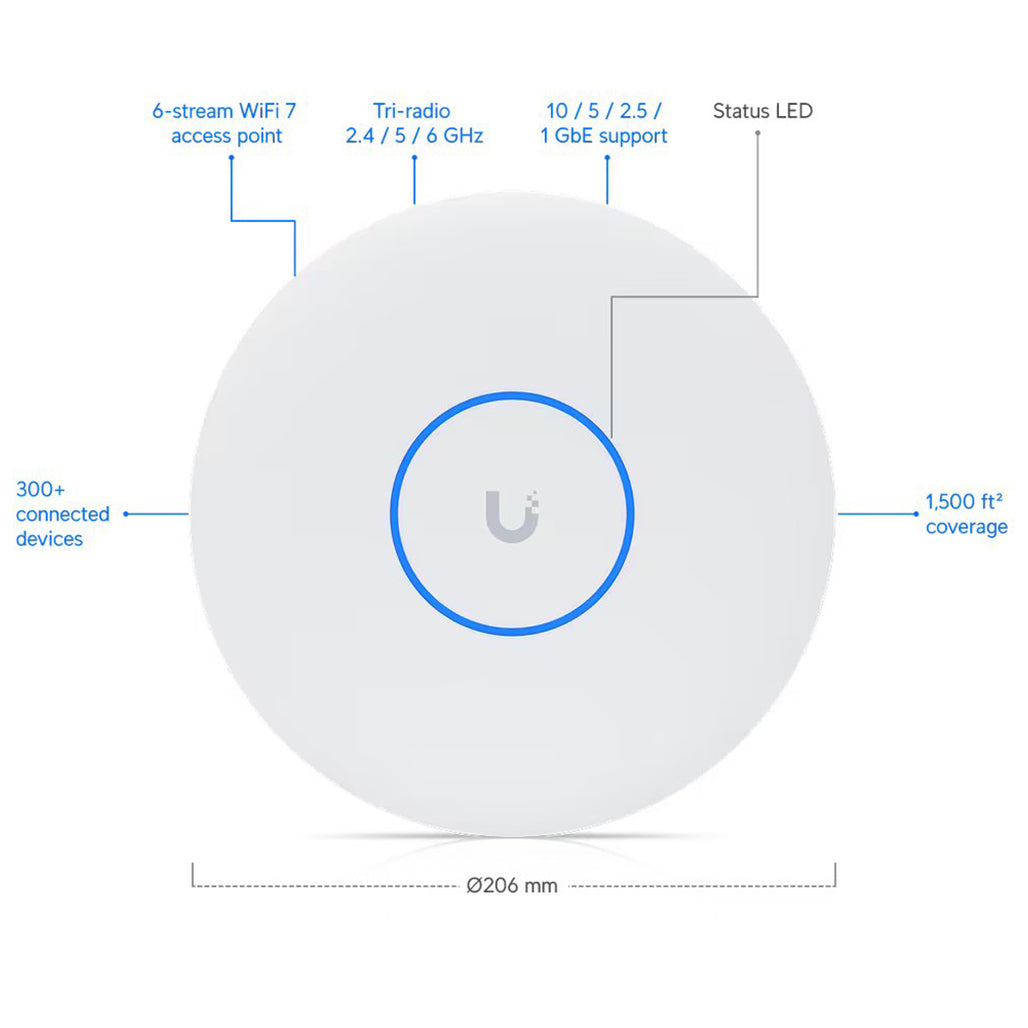

• Dimensions: Ø 206 × 32.5 mm (Ø 8.1 × 1.3 in)

• Weight: ~ 750 g (1.7 lb)

• Enclosure: UV-stabilized polycarbonate, aluminum alloy

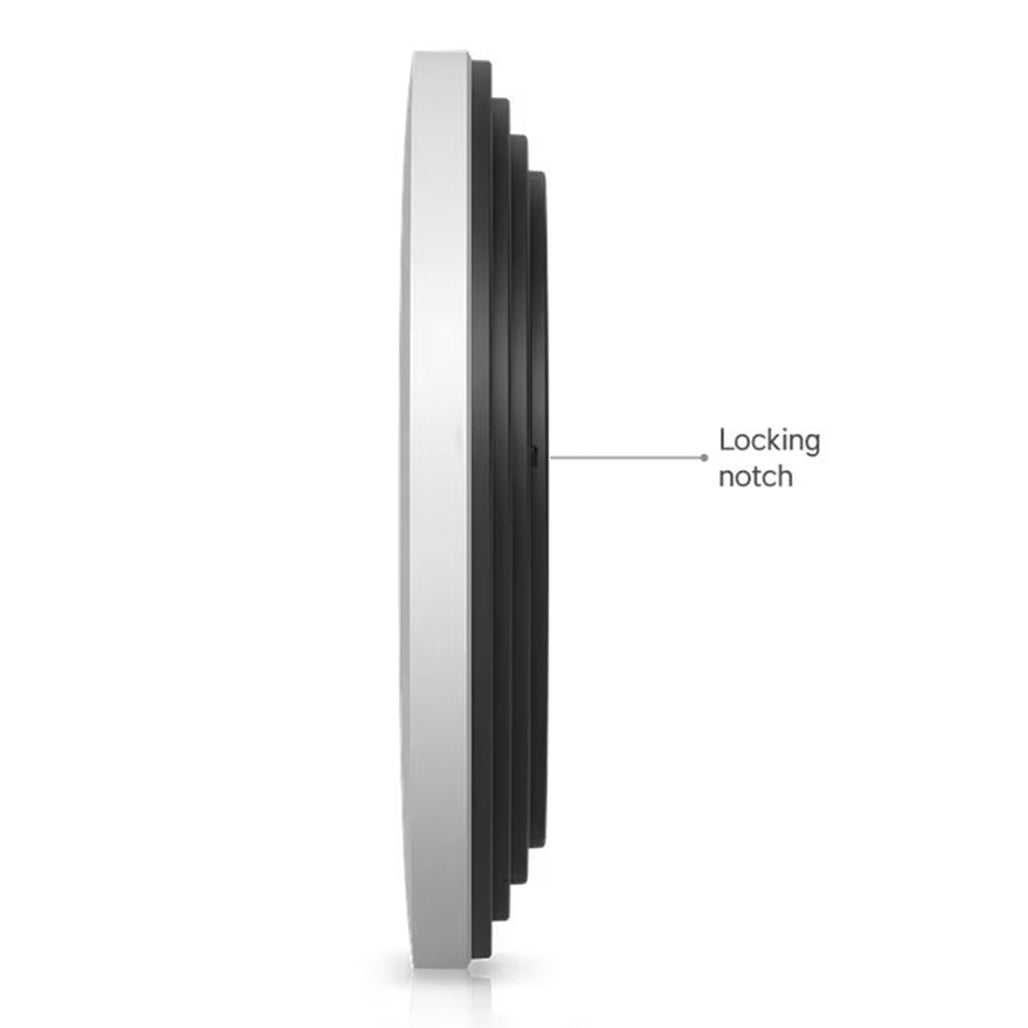

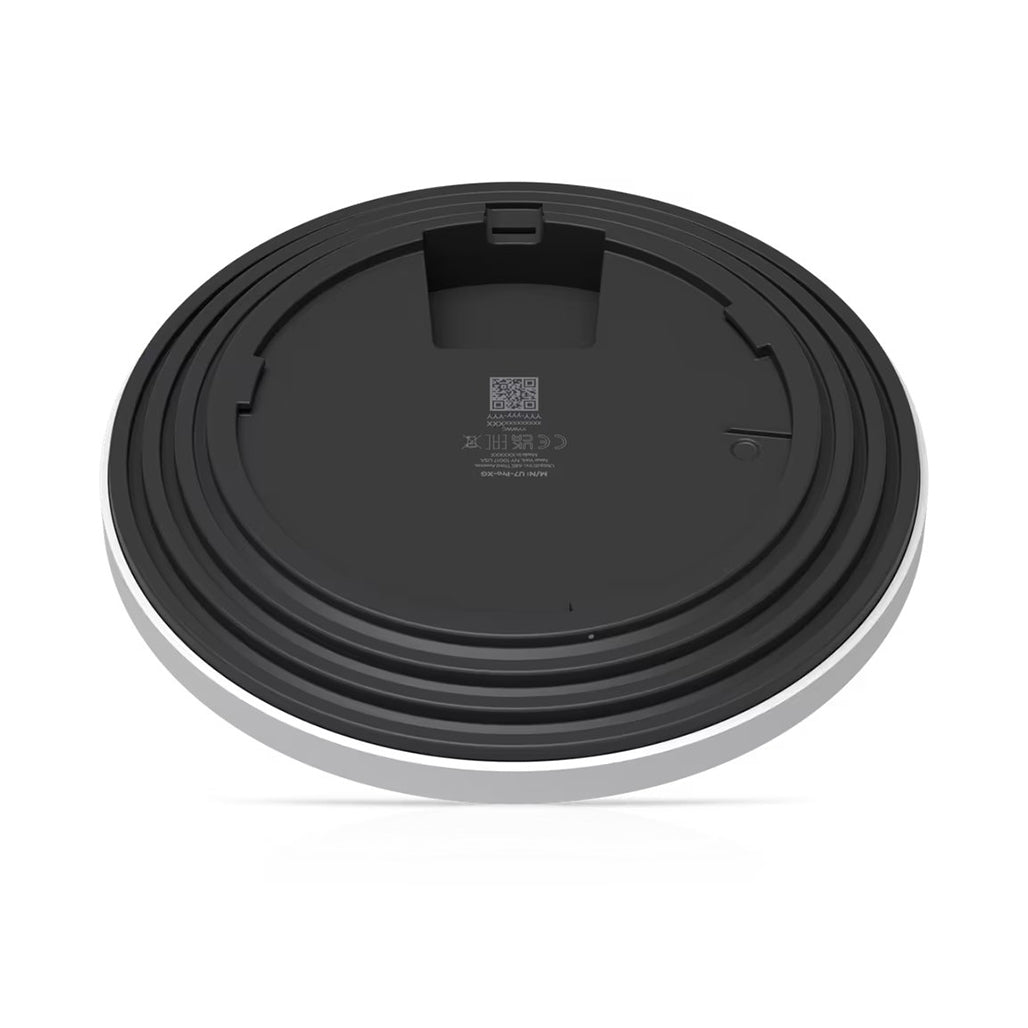

• Mounting: Ceiling or wall (hardware included)

• Hardware: Stainless steel and galvanized steel

Networking

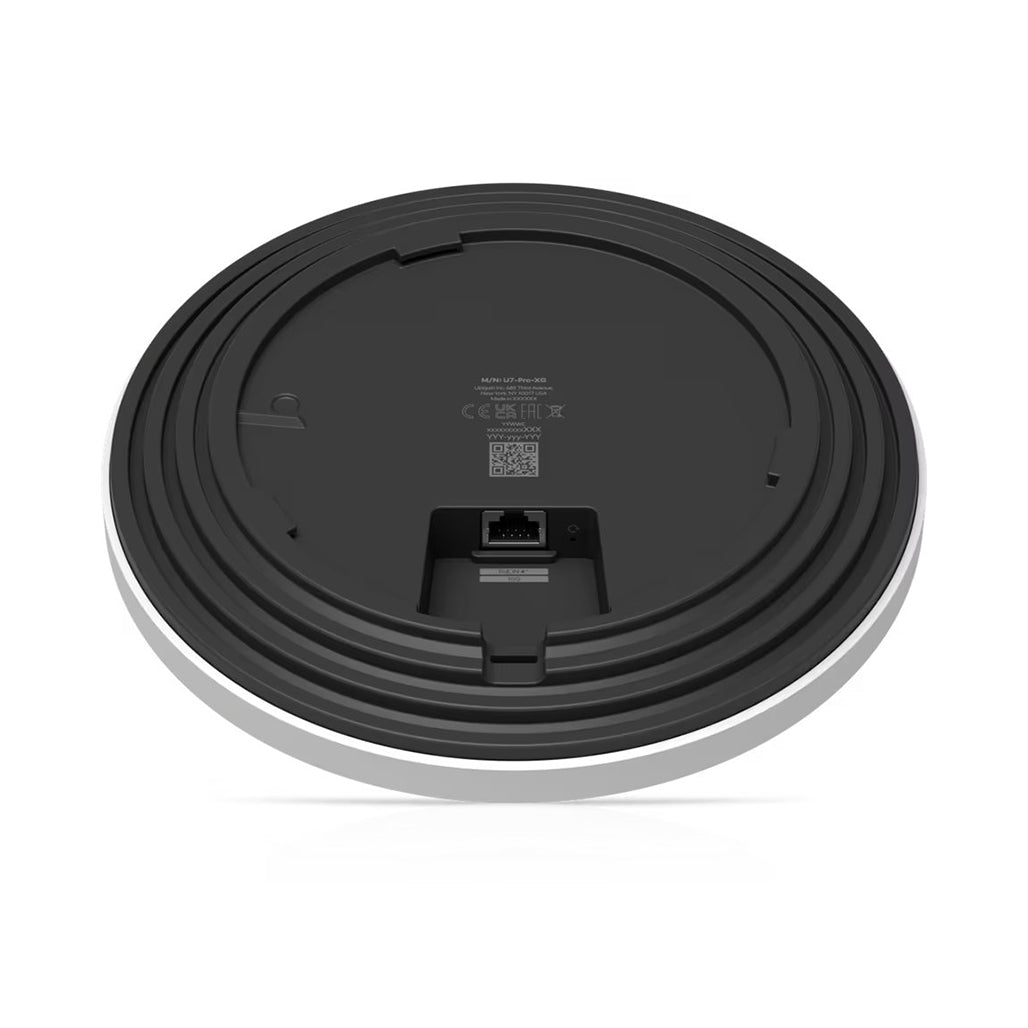

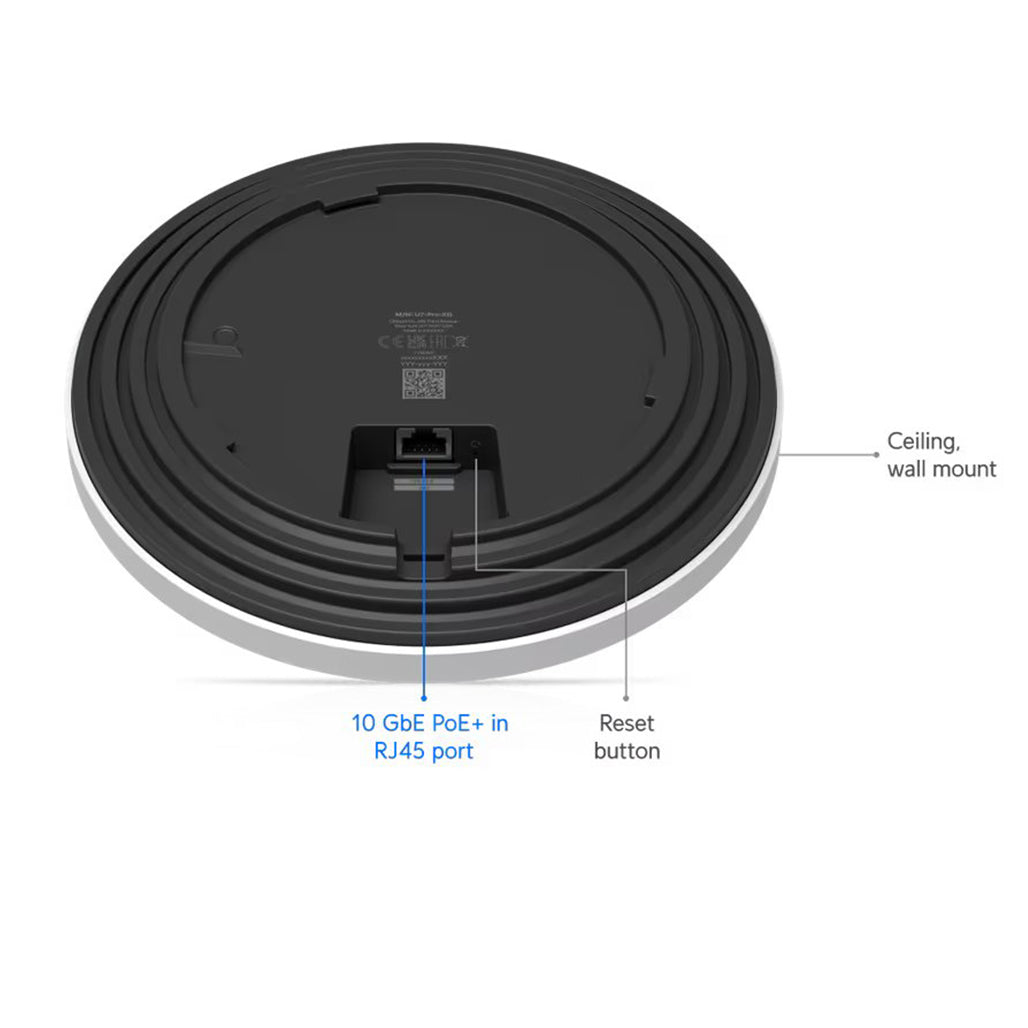

• Ethernet Interface: 1 × 10 GbE RJ-45

• Supported Speeds: 10G / 5G / 2.5G / 1G

• Power Method: 802.3bt PoE

• Voltage Range: 42.5 – 57 V DC

• Max Power Consumption: 22 W

Wireless

• Standard: WiFi 7 (802.11be), backward compatible

• Bands: 2.4 GHz / 5 GHz / 6 GHz (region dependent)

• Spatial Streams: 6

• Max Clients: 300+

• Coverage Area: ~ 140 m² (1,500 ft²)

Data Rates

• 6 GHz: up to 5.8 Gbps (BW 320)

• 5 GHz: up to 4.3 Gbps (BW 240)

• 2.4 GHz: up to 688 Mbps (BW 40)

Antenna Gain

• 6 GHz: 6 dBi

• 5 GHz: 5 dBi

• 2.4 GHz: 4 dBi

Transmit Power (Max)

• 6 GHz: 24 dBm

• 5 GHz: 26 dBm

• 2.4 GHz: 23 dBm

Wireless Features

• Band steering

• 802.11r fast roaming

• 802.11k radio resource management

• 802.11v BSS transition management

• WPA3 support

• Hotspot 2.0 / Passpoint

• Wireless mesh networking

• Captive portal with voucher & payment options

• Guest isolation, VLAN, PPSK, dynamic RADIUS

Software & Management

• Managed via UniFi Network application

• Minimum firmware version: 9.0.114+

• Security: WPA3, advanced encryption standards

• Advanced radio management and roaming optimization

Environmental

• Operating Temperature: –30 to 40 °C (–22 to 104 °F)

• Operating Humidity: 5% to 95% non-condensing

Compliance

• Certifications: CE, FCC, IC

• NDAA Compliant: Yes

Miscellaneous

• UI Care: Optional 5-year extended support plan

• Color: White (with optional black accent variant)

Conclusion

The Ubiquiti UniFi U7 Pro XG is engineered for modern networks that demand high capacity, multi-gigabit backhaul, and advanced wireless features. Its six-stream WiFi 7 architecture, enterprise-grade security, and UniFi management integration make it a top choice for scaling connectivity in businesses, schools, and professional environments. Compact, powerful, and future-ready, the U7 Pro XG ensures smooth, reliable performance for years to come.
