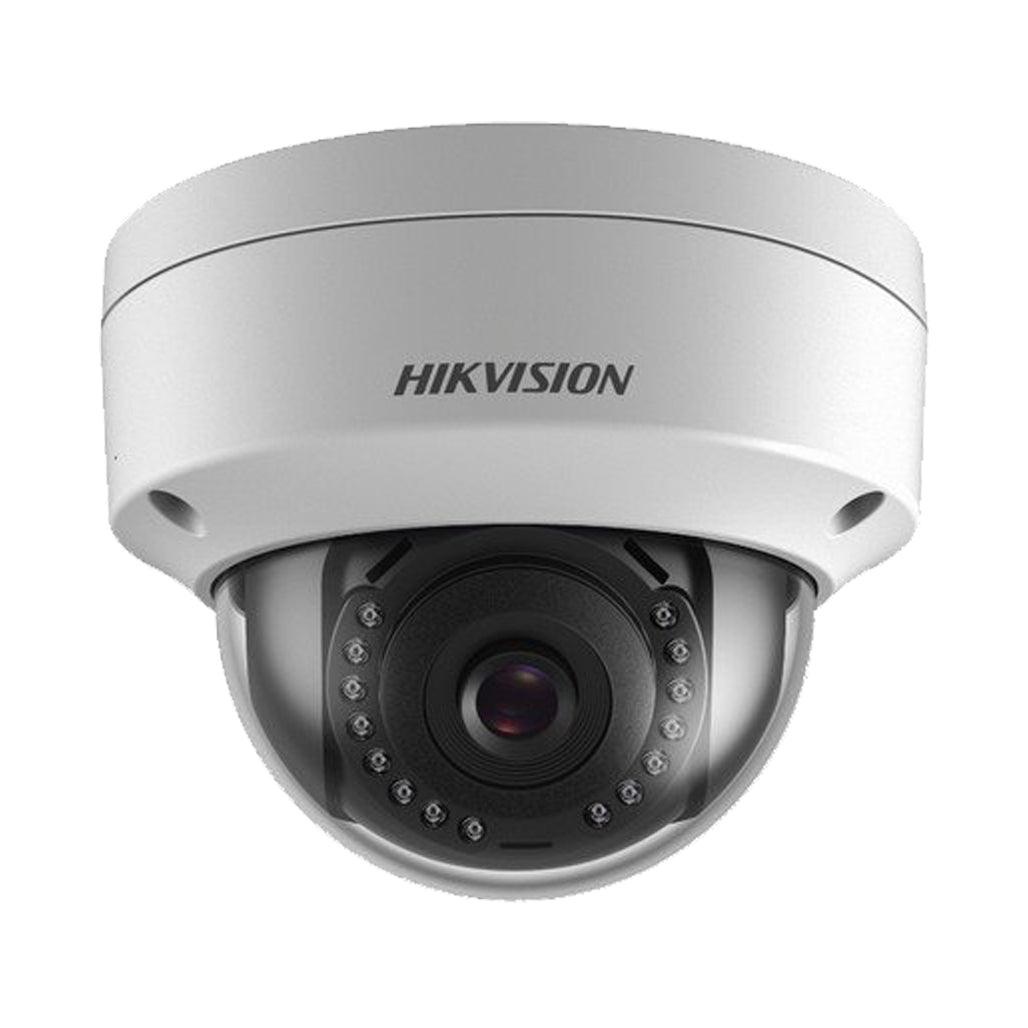

Hikvision DS 2CD1123G0 2 MP Fixed Dome Network Camera

The Hikvision DS-2CD1123G0 is a high-performance fixed dome network camera designed for superior security and surveillance. Featuring a 2 MP progressive scan CMOS sensor, this camera delivers crisp 1920 × 1080 HD resolution, ensuring detailed and clear imaging. The camera’s wide dynamic range (WDR) and 3D digital noise reduction (DNR) features enhance image quality in various lighting conditions and minimize noise.

Equipped with a range of lens options (2.8 mm, 4 mm, 6 mm), the camera provides flexible field-of-view (FOV) options, making it suitable for various monitoring needs. With an IR range of up to 30 meters and a wavelength of 850 nm, it ensures effective night-time surveillance. The camera supports multiple video compression formats, including H.265 and H.264, allowing for efficient video streaming and storage.

The Hikvision DS-2CD1123G0 offers a range of smart features, such as region of interest (ROI) for enhanced video clarity and advanced image settings like saturation, brightness, and contrast adjustments. It supports up to 6 simultaneous live views and is compatible with various client software and web browsers for easy access and management.

Key Features:

• High Resolution: 1920 × 1080 Full HD imaging with a 2 MP CMOS sensor.
• Lens Options: 2.8 mm, 4 mm, 6 mm with varying FOVs for flexible monitoring.
• Low-Light Performance: Minimum illumination of 0.01 Lux (F1.2, AGC ON) for effective night-time operation.
• Wide Dynamic Range: Digital WDR to enhance image quality in diverse lighting conditions.
• IR Night Vision: Up to 30 meters range with 850 nm wavelength for clear night surveillance.
• Video Compression: Supports H.265 and H.264 for efficient video storage and streaming.
• Smart Features: Region of Interest (ROI), 3D DNR, and adjustable image settings.
• Network Compatibility: Supports multiple protocols including TCP/IP, HTTP, HTTPS, FTP, and more.
• Interface Protection: IP67 and IK10 ratings for protection against dust, water, and impact.

Specifications:

• Image Sensor: 1/2.8" progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Wide Dynamic Range: Digital WDR
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 70°
• Lens: 2.8 mm, 4 mm, 6 mm, F2.0, M12 mount
• IR Range: Up to 30 meters
• Video Compression: Main stream: H.265/H.264; Sub stream: H.265/H.264/MJPEG
• Image Enhancement: BLC, 3D DNR
• Network Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live View: Up to 6 channels
• Client Software: iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser Support: IE7+, Chrome18-42, Firefox5.0+, Safari5.02+
• Alarm Trigger: Motion detection, video tampering alarm, illegal login
• Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
• Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
• Dimensions: Camera: Ø 111 mm × 82.4 mm (4.4" × 3.2"), With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• Weight: Camera: Approx. 410 g (0.9 lb.), With package: Approx. 610 g (1.3 lb.)
• Power Consumption: 12 VDC, 0.4 A, Max: 5 W; PoE: 0.2 A to 0.13 A, Max: 7 W
• Interface Protection: IP67, IK10, TVS 2000V lightning protection, surge protection, and voltage transient protection

Conclusion:

The Hikvision DS-2CD1123G0 2 MP Fixed Dome Network Camera is a robust and versatile solution for high-definition surveillance. Its advanced imaging features, combined with its rugged design and network capabilities, make it a reliable choice for both indoor and outdoor security applications. Whether used in commercial or residential settings, this camera ensures clear, detailed, and reliable monitoring.
