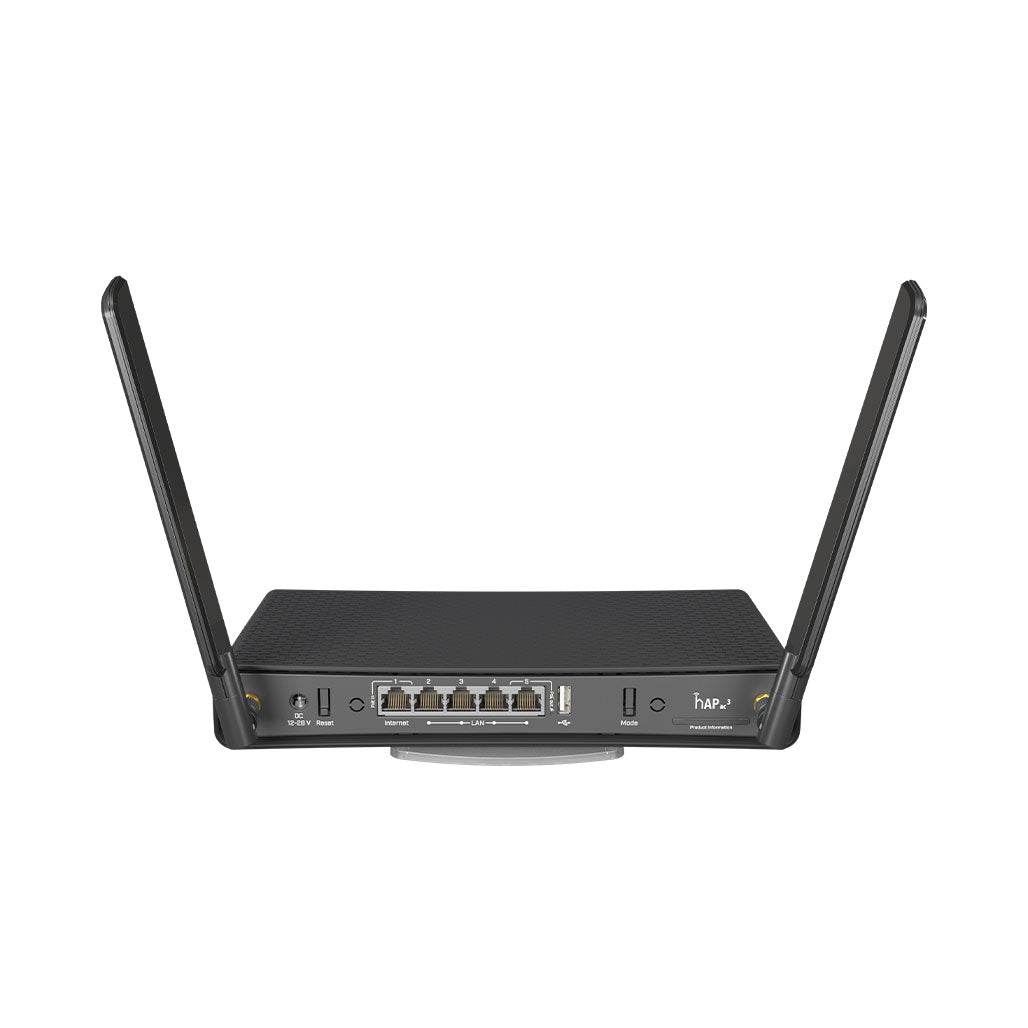

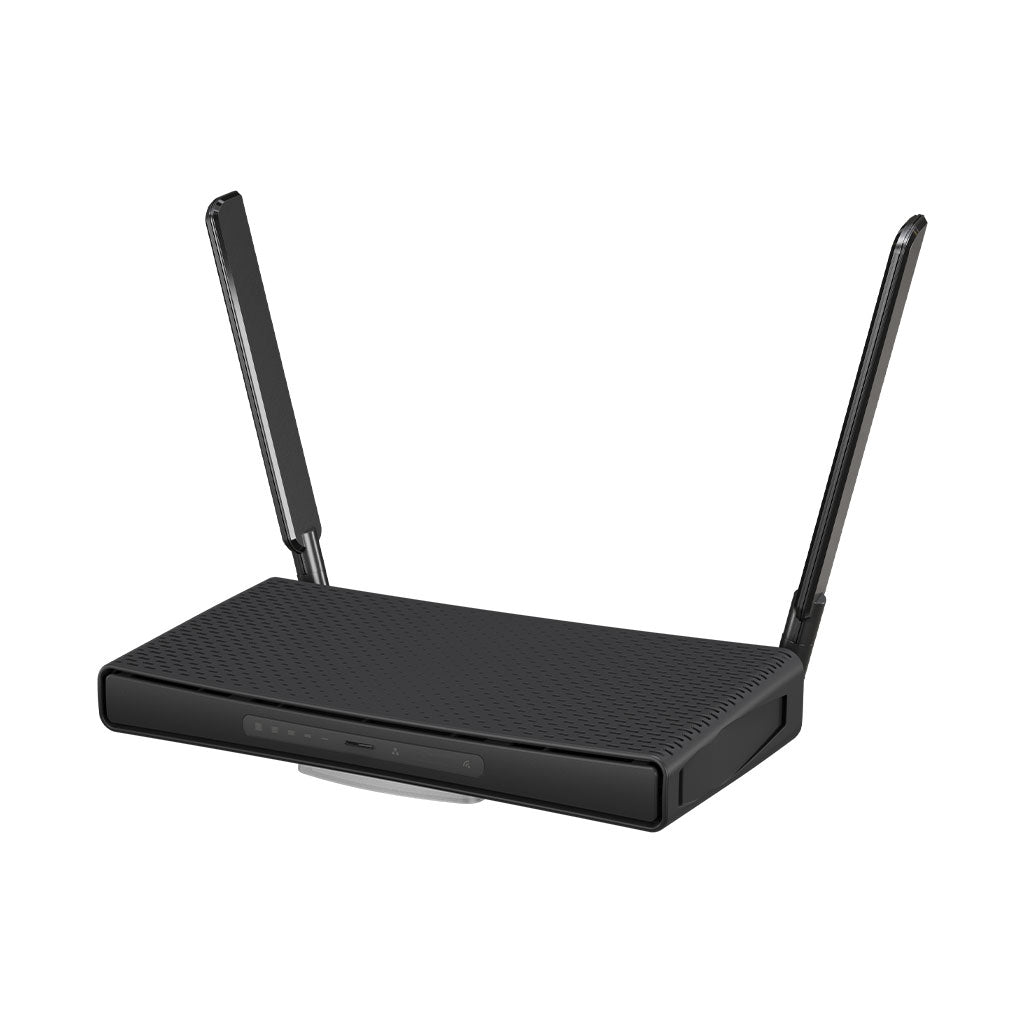

The MikroTik hAP ac³ is a robust and versatile dual-band wireless router designed to meet the demands of modern homes and small offices. Featuring high-performance capabilities with 5 Gigabit Ethernet ports, this router ensures fast and reliable wired connections while delivering excellent wireless coverage. Its external high-gain antennas enhance signal strength, ensuring strong and stable WiFi connectivity throughout your space.

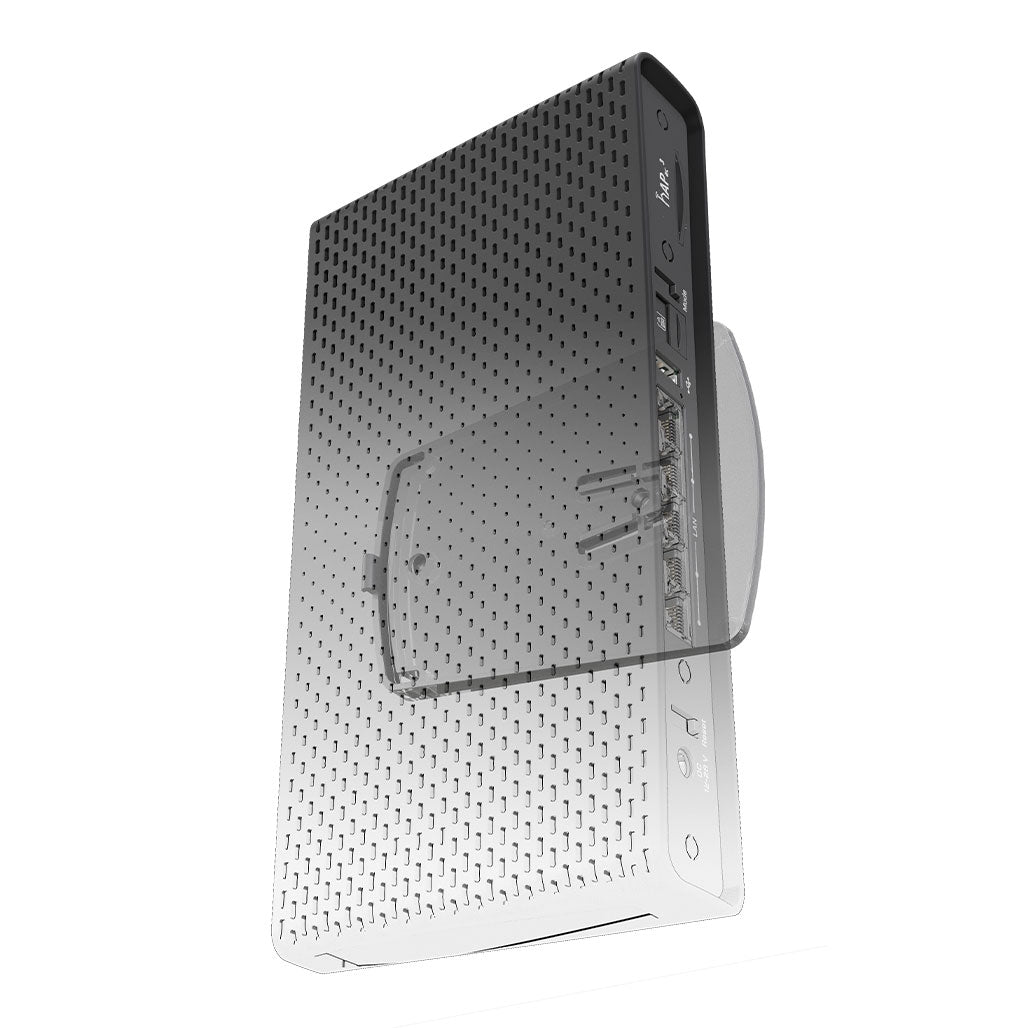

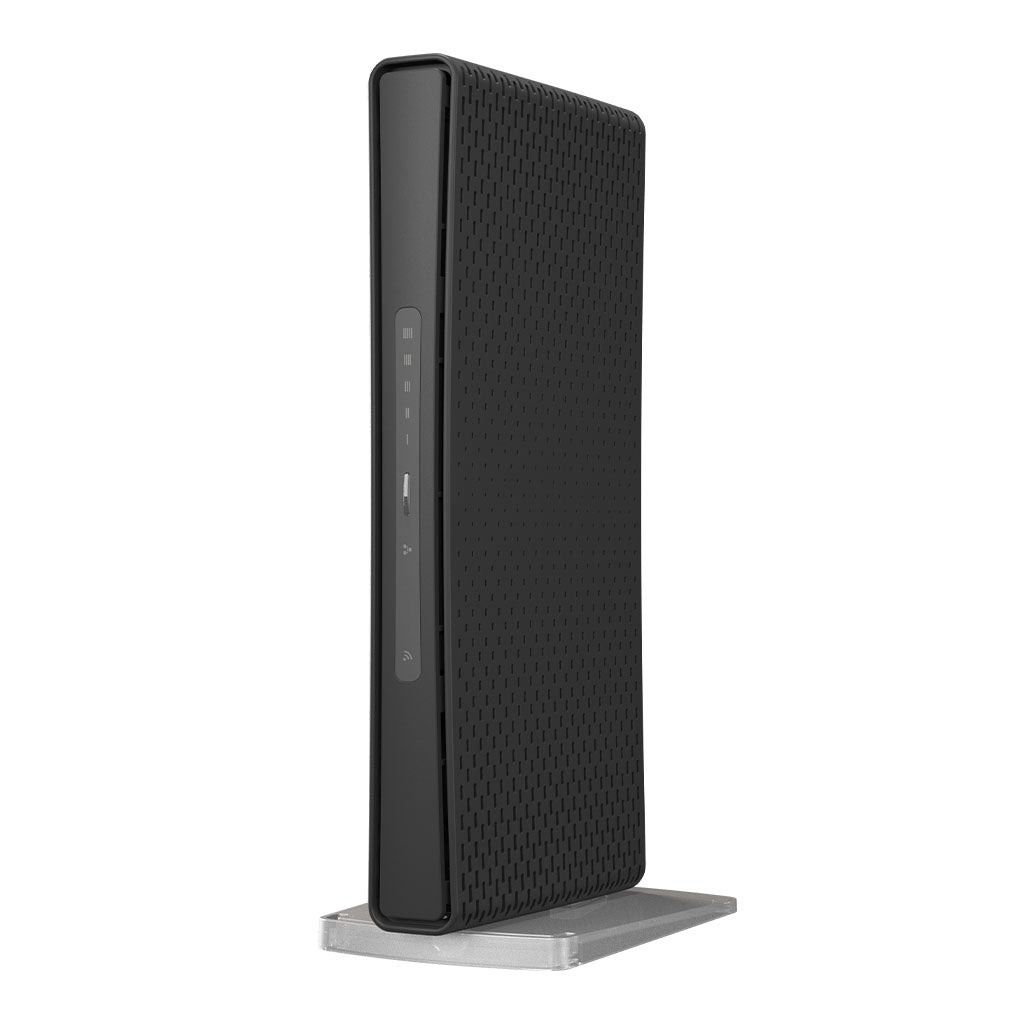

Equipped with a powerful quad-core CPU and 256 MB of RAM, the hAP ac³ is capable of handling even the most demanding networking tasks. The device includes PoE support, allowing it to power or be powered by other PoE-enabled devices. It also features a full-size USB port for additional storage options, and the new enclosure design supports both vertical and horizontal mounting, with a wall-mount kit included.
Key Features:
Dual-Band Wireless: Supports simultaneous 2.4 GHz and 5 GHz operation for optimal WiFi performance.
High-Gain Antennas: Equipped with external antennas for enhanced wireless coverage and stability.

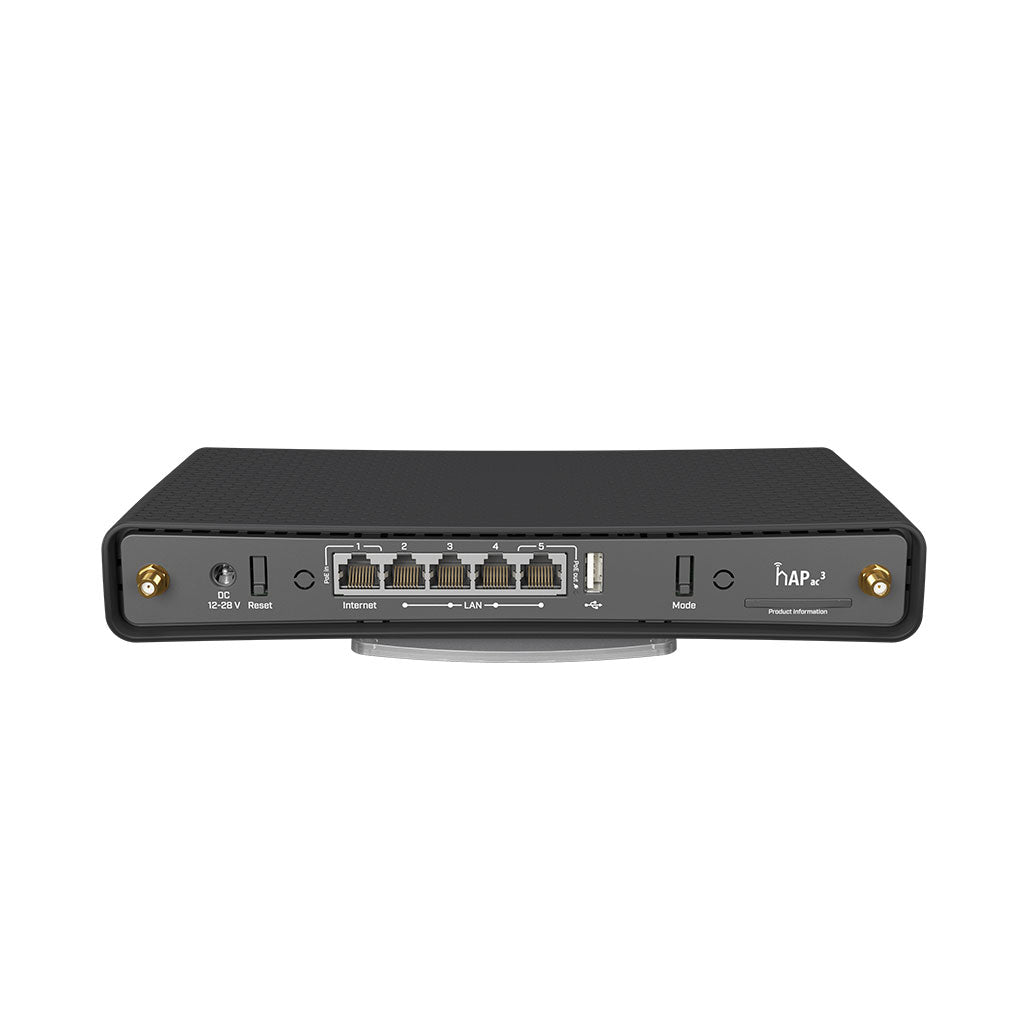

Gigabit Ethernet Ports: Includes five 10/100/1000 Ethernet ports for high-speed wired connections.
Power Over Ethernet (PoE) Support: Powers or is powered by other PoE devices, simplifying setup and reducing cable clutter.
USB Port: Full-size USB port for connecting additional storage devices.
Versatile Mounting Options: Can be mounted vertically or horizontally, with a wall-mount kit provided.
Specifications:
Product Code: RBD53iG-5HacD2HnD
Architecture: ARM 32bit
CPU: IPQ-4019
CPU Core Count: 4
CPU Nominal Frequency: 716 MHz
Switch Chip Model: IPQ-4019
Dimensions: 251 x 129 x 39 mm
RouterOS License: 4
Operating System: RouterOS
Size of RAM: 256 MB
Storage Size: 128 MB
Storage Type: NAND
MTBF: Approximately 200,000 hours at 25°C
Tested Ambient Temperature: -40°C to 70°C
IPsec Hardware Acceleration: Yes
Powering:
Number of DC Inputs: 2 (DC Jack, PoE-IN)
DC Jack Input Voltage: 12-28 V
Max Power Consumption: 30 W
Max Power Consumption Without Attachments: 12 W
Cooling Type: Passive
PoE In: Passive PoE
PoE In Input Voltage: 18-28 V
Ethernet:
10/100/1000 Ethernet Ports: 5
Number of 1G Ethernet Ports with PoE-Out: 1
Peripherals:
Number of USB Ports: 1
USB Power Reset: Yes
USB Slot Type: USB Type A
Max USB Current (A): 1
PoE-Out:
PoE-Out Ports: Ether5
PoE Out: Passive PoE
Max Out Per Port Output (Input 18-30 V): 0.5 A
Max Total Out (A): 0.5 A
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP Rating: IP20
Other:
Mode Button: Yes
Wireless Specifications:
2.4 GHz Max Data Rate: 300 Mbit/s
2.4 GHz Number of Chains: 2
2.4 GHz Standards: 802.11b/g/n
Antenna Gain dBi for 2.4 GHz: 3
2.4 GHz Chip Model: IPQ-4019
2.4 GHz Generation: Wi-Fi 4
5 GHz Max Data Rate: 867 Mbit/s
5 GHz Number of Chains: 2
5 GHz Standards: 802.11a/n/ac
Antenna Gain dBi for 5 GHz: 5.5
5 GHz Chip Model: IPQ-4019
5 GHz Generation: Wi-Fi 5
WiFi Speed: AC1200
Conclusion:
The MikroTik hAP ac³ is a high-performance dual-band router that provides extensive coverage and robust connectivity for demanding home and small office environments. With its high-gain antennas, ample RAM, and quad-core CPU, it ensures reliable and fast wireless performance. The addition of PoE support and versatile mounting options make it a flexible and practical choice for various networking needs.
