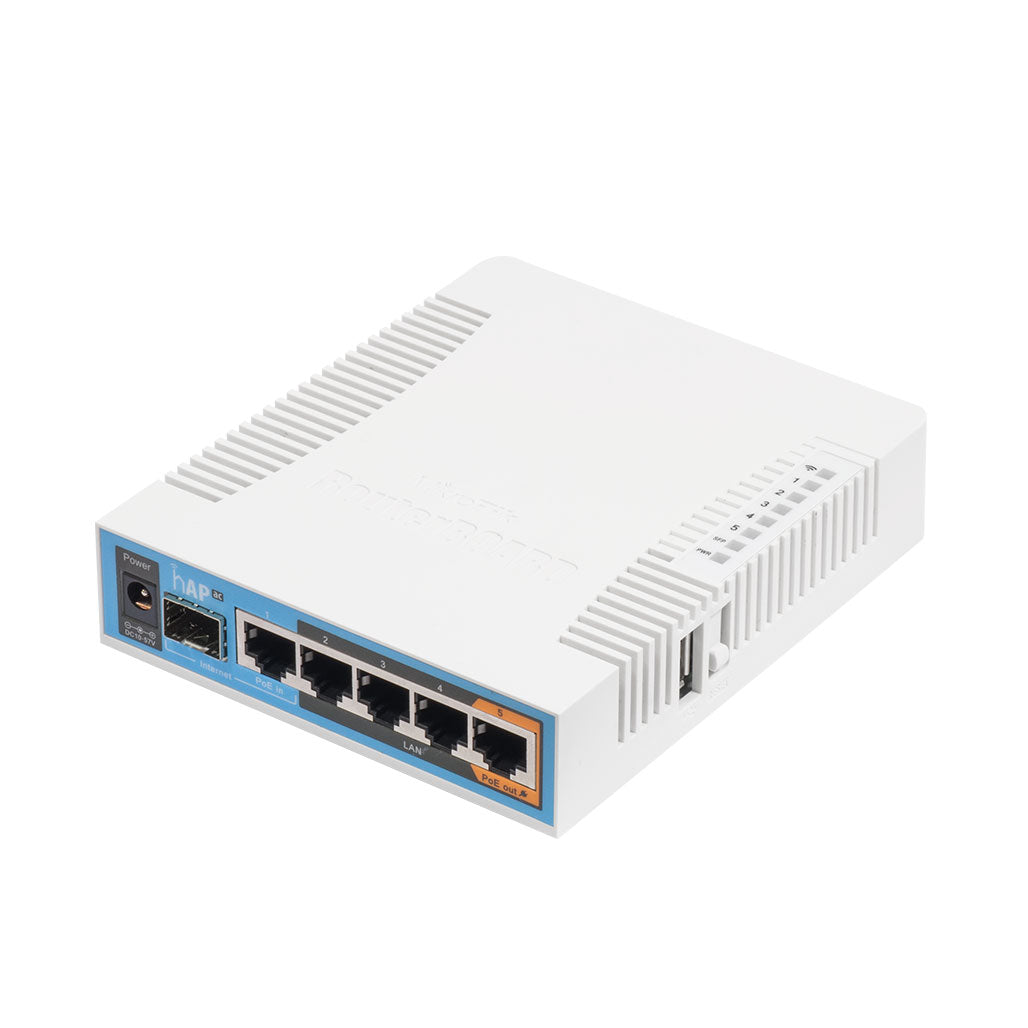

MikroTik hAP ac Dual-Band Triple-Chain 2.4/5GHz Access Point | RB962UiGS-5HacT2HnT with Gigabit Ethernet and SFP

The MikroTik hAP ac is an advanced, versatile wireless access point designed to meet the connectivity needs of both home and office environments. This dual-band device leverages 802.11ac technology to provide high-speed wireless performance, while also maintaining compatibility with older 2.4 GHz and 5 GHz devices. With its triple-chain antennas for both frequency bands, the hAP ac ensures comprehensive coverage and robust signal strength throughout your space.

Equipped with Gigabit Ethernet ports and a USB port, the hAP ac supports high-speed wired connections and offers the flexibility to connect additional storage or a 3G/4G modem. The device features PoE output on its last Ethernet port to power other RouterBOARD devices, eliminating the need for extra power adapters. Additionally, the integrated SFP cage allows for the connection of optical network modules, enhancing network flexibility and scalability.

Key Features:

• Dual-Band Performance: Supports both 2.4 GHz and 5 GHz bands, with triple chains in each band for enhanced wireless coverage and speed.
• High-Speed Connectivity: Delivers up to 450 Mbit/s on 2.4 GHz and 1300 Mbit/s on 5 GHz, offering a combined WiFi speed of AC1750.
• Flexible Connectivity Options: Includes five Gigabit Ethernet ports, an SFP port for optical modules, and a USB port for additional peripherals.
• Power over Ethernet (PoE) Output: Provides PoE output on the last Ethernet port to power other devices, streamlining your network setup.

Specifications:

• Product Code: RB962UiGS-5HacT2HnT
• Architecture: MIPSBE
• CPU: QCA9558
• CPU Core Count: 1
• CPU Nominal Frequency: 720 MHz
• Switch Chip Model: QCA8337
• Dimensions: 114 x 137 x 29 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 2 (PoE-IN, DC Jack)
• DC Jack Input Voltage: 11-57 V
• Max Power Consumption: 17 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 11-57 V

PoE-Out:

• PoE-Out Ports: Ethernet5
• PoE Out: Passive PoE
• Max Out per Port Output (Input 18-30 V): 700 mA
• Max Out per Port Output (Input 30-57 V): 350 mA
• Max Total Out (A): 700 mA

Wireless Specifications:

• Wireless 2.4 GHz Max Data Rate: 450 Mbit/s
• Wireless 2.4 GHz Number of Chains: 3
• Wireless 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 2.5
• Wireless 2.4 GHz Chip Model: QCA9558
• Wireless 2.4 GHz Generation: Wi-Fi 4
• Wireless 5 GHz Max Data Rate: 1300 Mbit/s
• Wireless 5 GHz Number of Chains: 3
• Wireless 5 GHz Standards: 802.11a/n/ac
• Antenna Gain dBi for 5 GHz: 2
• Wireless 5 GHz Chip Model: QCA9880
• Wireless 5 GHz Generation: Wi-Fi 5
• WiFi Speed: AC1750

Ethernet:

• 10/100/1000 Ethernet Ports: 5

Fiber:

• SFP Ports: 1

Peripherals:

• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB Type A
• Max USB Current (A): 1

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP20

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Conclusion:

The MikroTik hAP ac stands out as a powerful and flexible access point suitable for a variety of environments. Its dual-band capabilities, high-speed performance, and extensive connectivity options make it an ideal choice for enhancing network performance in both residential and professional settings. With its robust feature set and ease of installation, the hAP ac delivers reliable and efficient wireless connectivity for all your networking needs.
