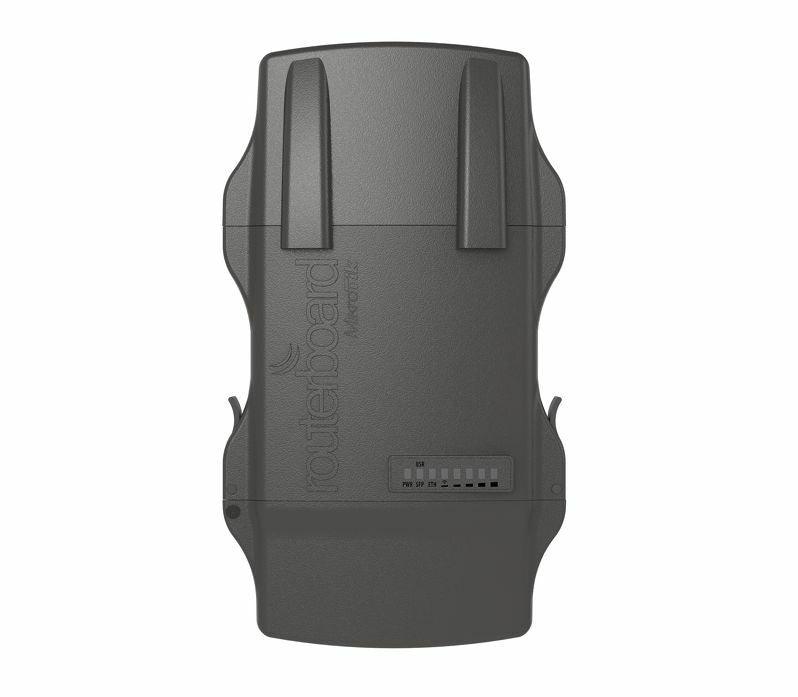

MikroTik NetMetal 5SHP - Dual-Chain 5GHz Integrated 802.11ac Wireless Device with High Power and External Antenna Support | RB921UAGS-5SHPacD-NM

The MikroTik NetMetal 5SHP is a high-performance, rugged 5GHz wireless device designed for demanding outdoor environments. With its dual-chain 802.11ac support and super high power output, this device ensures robust and reliable connectivity for a variety of applications. Encased in a durable metal enclosure, the NetMetal 5SHP is built to withstand harsh conditions while delivering exceptional wireless performance.

Featuring a powerful 720MHz CPU, 128MB of RAM, and an array of connectivity options, including Gigabit Ethernet, SFP port, and USB, the NetMetal 5SHP provides a versatile solution for point-to-point and point-to-multipoint wireless setups. Its IP66-rated enclosure protects the device from dust and water ingress, making it ideal for outdoor deployment.

Key Features:

• High-Power Wireless: Equipped with 1.3W dual-chain 5GHz wireless, providing maximum data rates up to 867 Mbit/s.
• Rugged Design: The IP66-rated metal enclosure ensures durability and protection against harsh weather conditions.

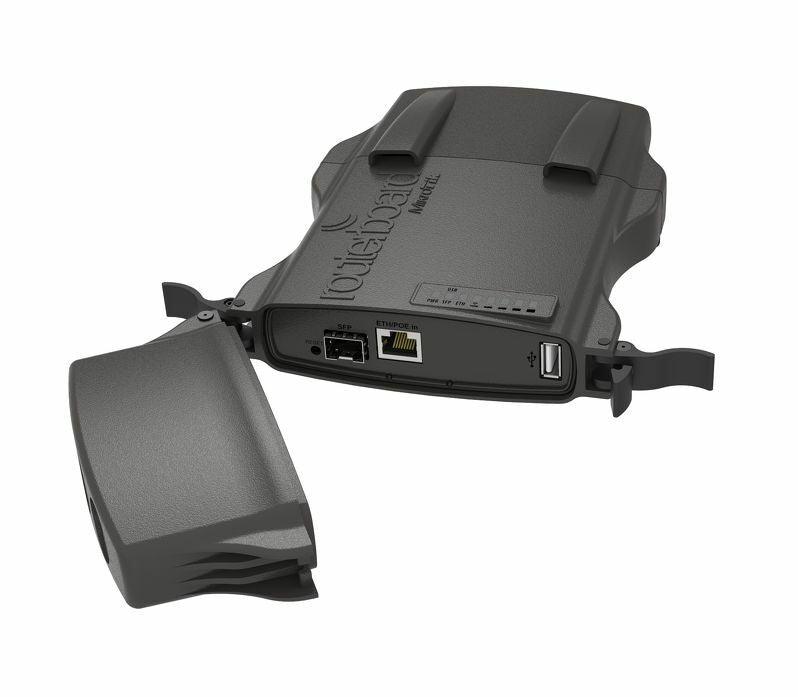

• Versatile Connectivity: Includes a Gigabit Ethernet port, SFP cage for fiber connections, and USB port for added flexibility.

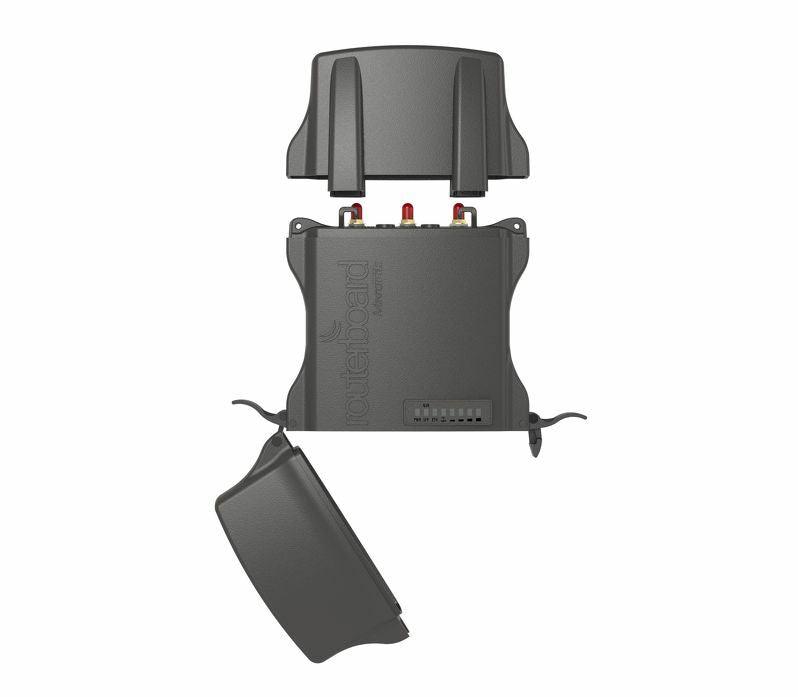

• External Antenna Support: Two RP-SMA connectors for external antennas enhance performance and coverage.
• Robust Performance: Powered by a 720MHz CPU and 128MB RAM, ensuring smooth operation in demanding environments.

Specifications:

• Product Code: RB921UAGS-5SHPacD-NM
• Architecture: MIPSBE
• CPU: QCA9557
• CPU Core Count: 1
• CPU Nominal Frequency: 720 MHz
• Dimensions: 143 x 247 x 48 mm (PCB)
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 17 W
• Cooling Type: Passive

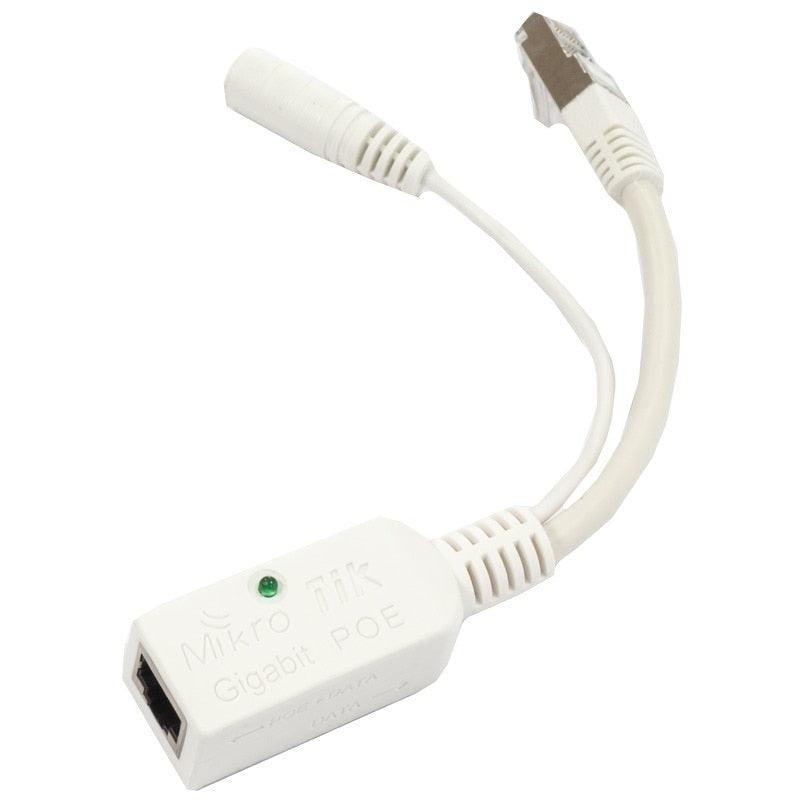

• PoE In: Passive PoE
• PoE In Input Voltage: 8-30 V

Wireless Specifications:

• Wireless 5 GHz Max Data Rate: 867 Mbit/s
• Wireless 5 GHz Number of Chains: 2
• Wireless 5 GHz Standards: 802.11a/n/ac
• Wireless 5 GHz Chip Model: QCA9882
• Wireless 5 GHz Generation: Wi-Fi 5

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Fiber:

• SFP Ports: 1
• SFP DDMI: Yes

Peripherals:

• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB type A
• Max USB Current (A): 1

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: FCC, IC
• IP Rating: IP54

Conclusion:

The MikroTik NetMetal 5SHP is an exceptional choice for high-performance outdoor wireless networking. Its combination of high power output, rugged design, and versatile connectivity options makes it ideal for demanding installations. Whether used as an access point, backbone, or CPE, the NetMetal 5SHP delivers reliable and robust performance in various conditions.
