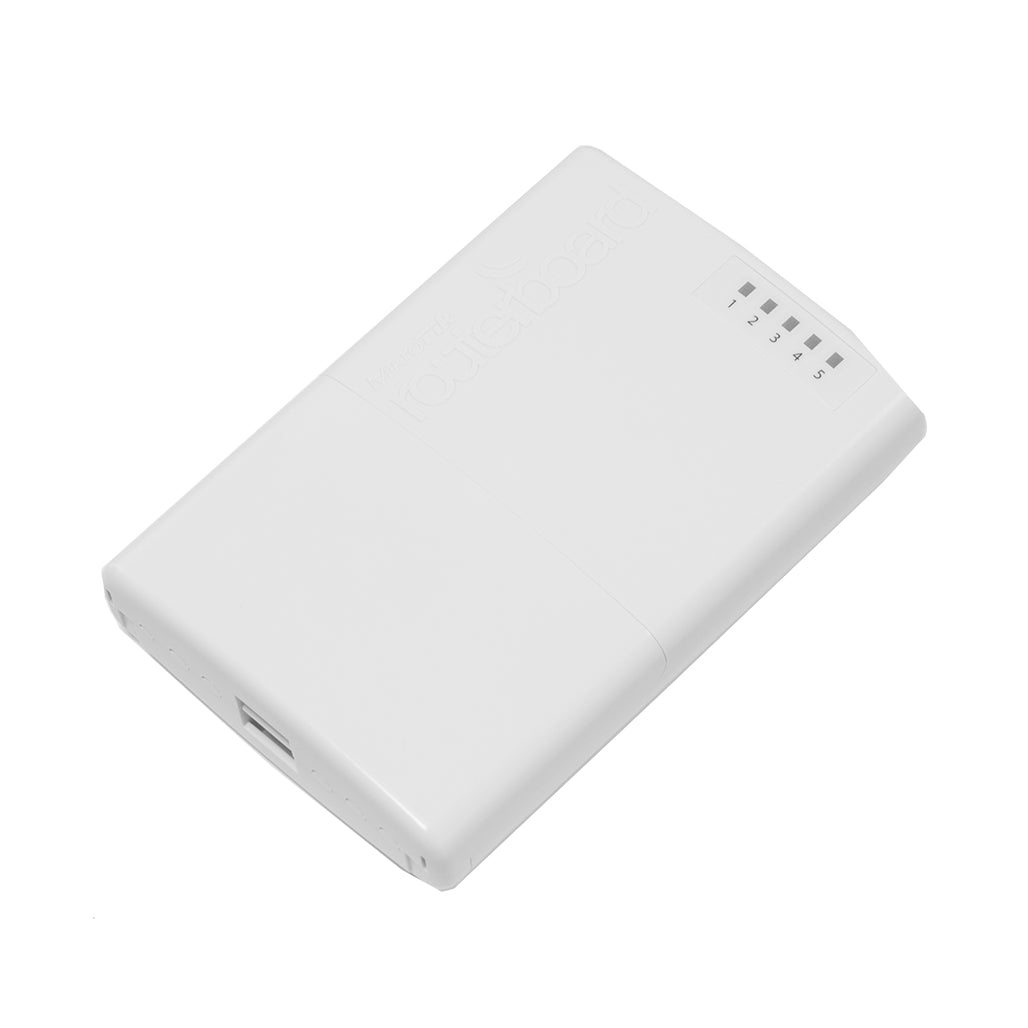

MikroTik PowerBox - 650MHz CPU, 64MB RAM, 5x Ethernet Ports with PoE Output for 4 Ports | RB750P-PBr2

The MikroTik PowerBox is a robust outdoor router designed to offer reliable connectivity and power management in demanding environments. Featuring five Ethernet ports, this device supports PoE output on four of its ports, allowing it to power up to four PoE-capable devices such as the MikroTik SXT or other similar equipment. The PowerBox is encased in a weatherproof enclosure, making it suitable for outdoor installations on towers or other exposed locations.

The router is powered by a 650MHz CPU and is equipped with 64MB of RAM, ensuring stable and efficient performance for various networking tasks. The inclusion of shielded Ethernet ports helps to reduce signal interference and maintain network integrity. Additionally, the PowerBox’s design minimizes the need for additional power adapters and cables, streamlining installation and reducing clutter.

Key Features:

• Power over Ethernet (PoE) Output: Four Ethernet ports provide PoE output, delivering power to compatible devices while simplifying the setup by reducing the need for extra power adapters.

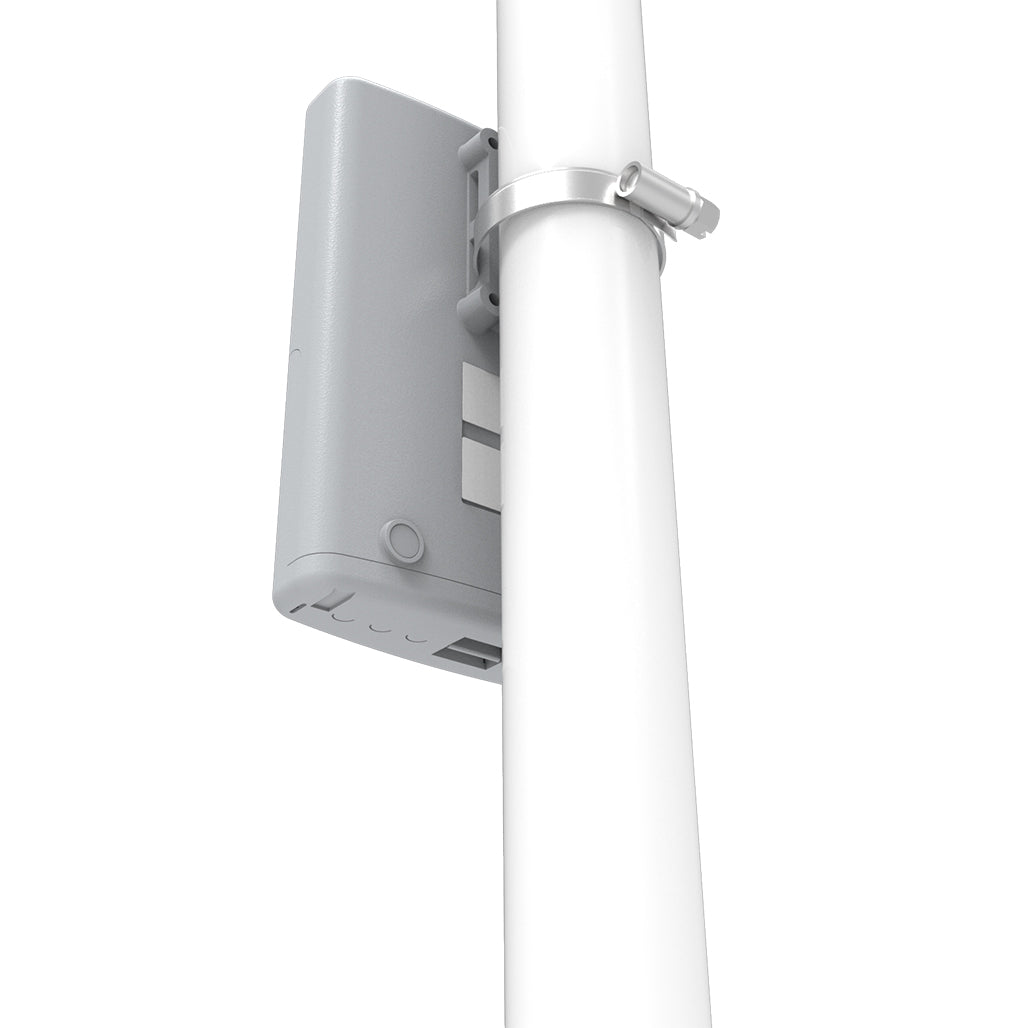

• Durable Outdoor Design: The weatherproof casing ensures the PowerBox can withstand harsh outdoor conditions, making it suitable for tower and pole installations.
• High-Performance Hardware: Equipped with a 650MHz CPU and 64MB of RAM, the device supports efficient network management and operation.
• Efficient Power Management: The PowerBox supports passive PoE input and output, with a maximum current of 1A per port and a total output capacity of 2A, facilitating flexible power distribution.

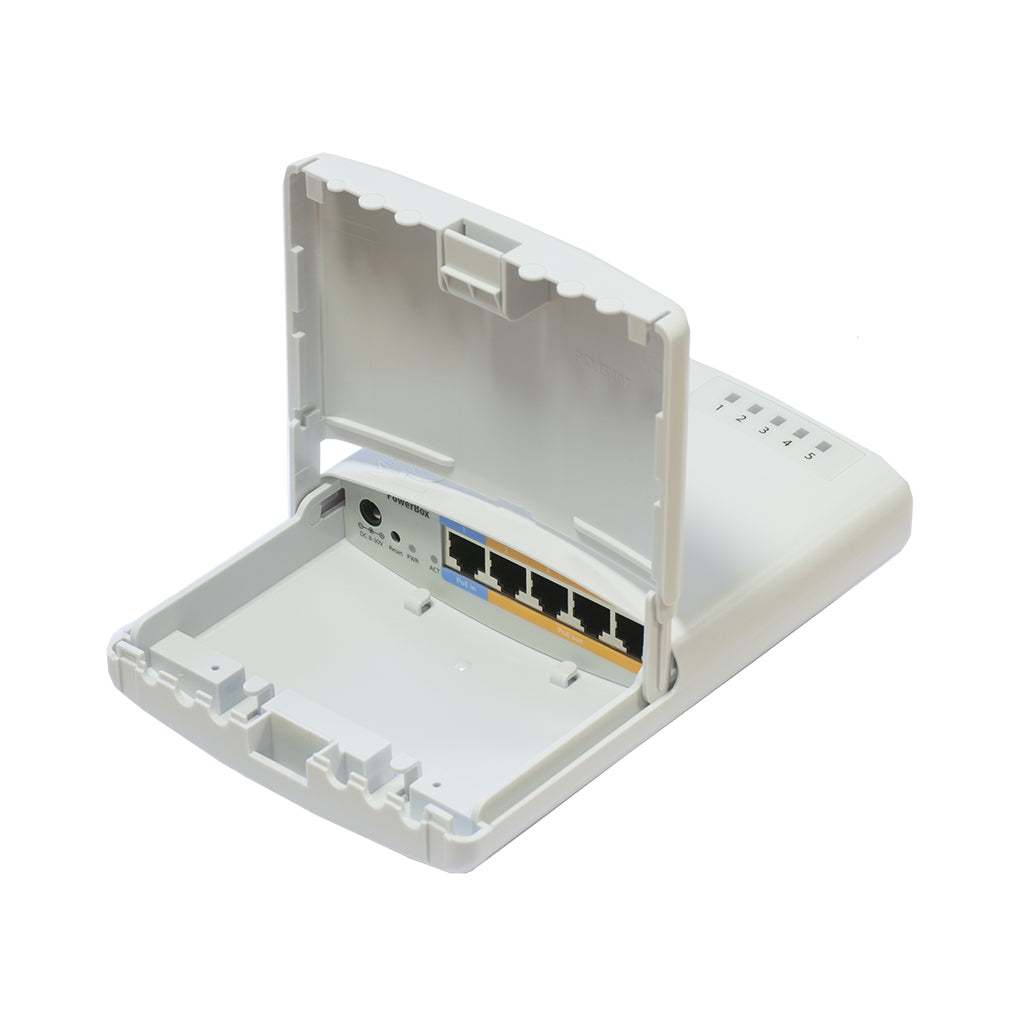

• Shielded Ethernet Ports: Five shielded Ethernet ports help to minimize signal interference and ensure stable network performance.

Specifications:

• Product Code: RB750P-PBr2
• Architecture: MIPSBE
• CPU: QCA9533
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• Switch Chip Model: QCA9533
• Dimensions: 125 x 178 x 48 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 2 (PoE-IN, DC Jack)
• DC Jack Input Voltage: 8-30 V
• Max Power Consumption: 50 W
• Max Power Consumption Without Attachments: 2 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 8-30 V

PoE-Out:

• PoE-Out Ports: Ether2-Ether5
• PoE Out: Passive PoE
• Max Out Per Port Output (Input 18-30 V): 1 A
• Max Total Out (A): 2 A

Ethernet:

• 10/100 Ethernet Ports: 5

Other:

• Current Monitor: Yes
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP: IP20

Conclusion:

The MikroTik PowerBox provides an effective solution for outdoor network setups requiring both connectivity and power distribution. Its weatherproof design and PoE capabilities make it ideal for powering multiple devices while minimizing installation complexity. With a robust CPU and ample RAM, the PowerBox delivers reliable performance in various environmental conditions. Its efficient power management and durable construction ensure long-term operation and ease of use in challenging outdoor scenarios.
