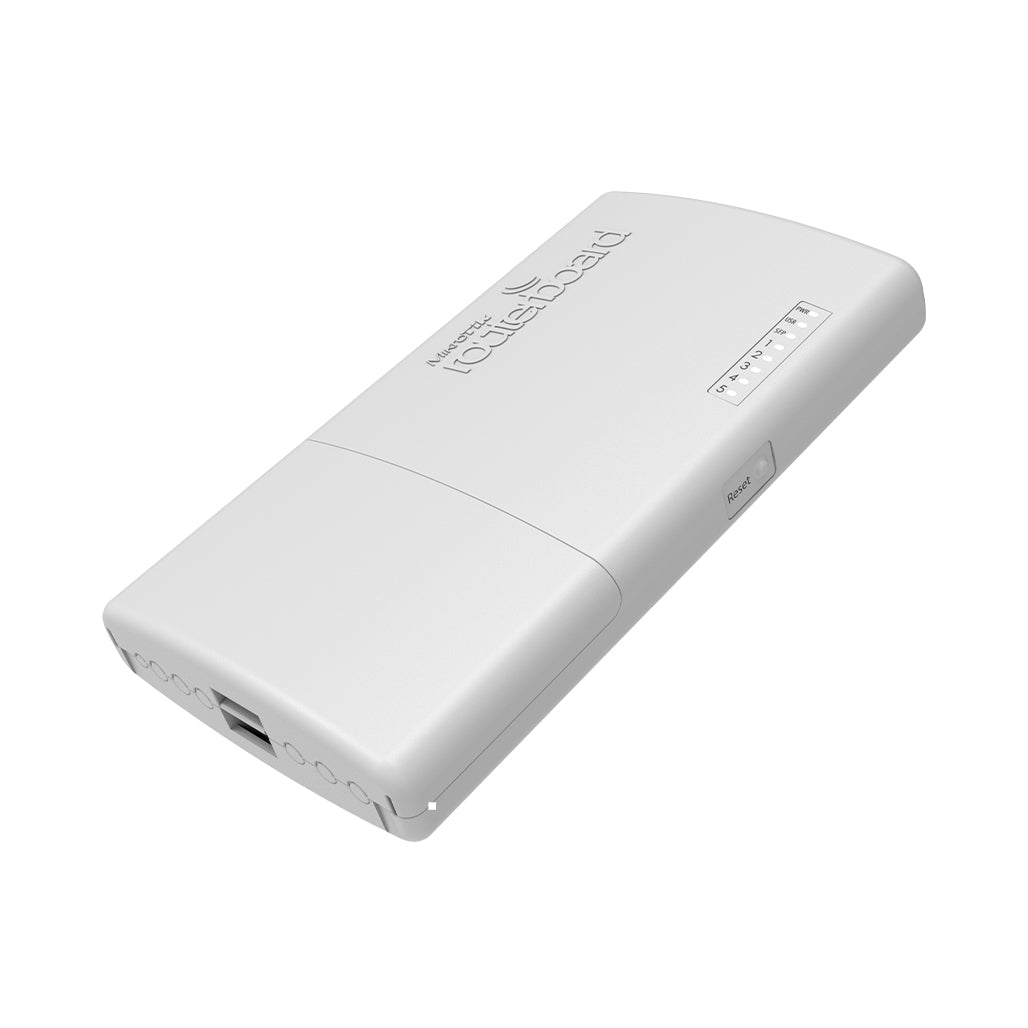

MikroTik PowerBox Pro - 5 Gigabit Ethernet Router with 4x PoE-Out Ports, SFP Cage, and Outdoor Enclosure | RB960PGS-PB

The MikroTik PowerBox Pro is an advanced outdoor router designed to meet the demanding needs of network installations in various environments. This device features five Gigabit Ethernet ports and provides PoE output on four of these ports, offering power to PoE-capable devices while simplifying the setup with fewer power adapters and cables. Its weatherproof enclosure ensures durability and reliable performance in outdoor settings, including towers and poles.

Equipped with a powerful 800MHz CPU and 128MB of RAM, the PowerBox Pro is capable of handling complex configurations and advanced features supported by RouterOS. The inclusion of an SFP port adds the flexibility of optical fiber connectivity, further enhancing the device’s versatility. The PowerBox Pro supports passive PoE input as well as passive or 802.3af/at PoE output, allowing it to power a range of devices while adapting to different power requirements.

Key Features:

• Power over Ethernet (PoE) Output: Four of the Ethernet ports provide PoE output, supporting both passive and 802.3af/at standards. This allows the device to power compatible equipment while reducing the need for additional power supplies.

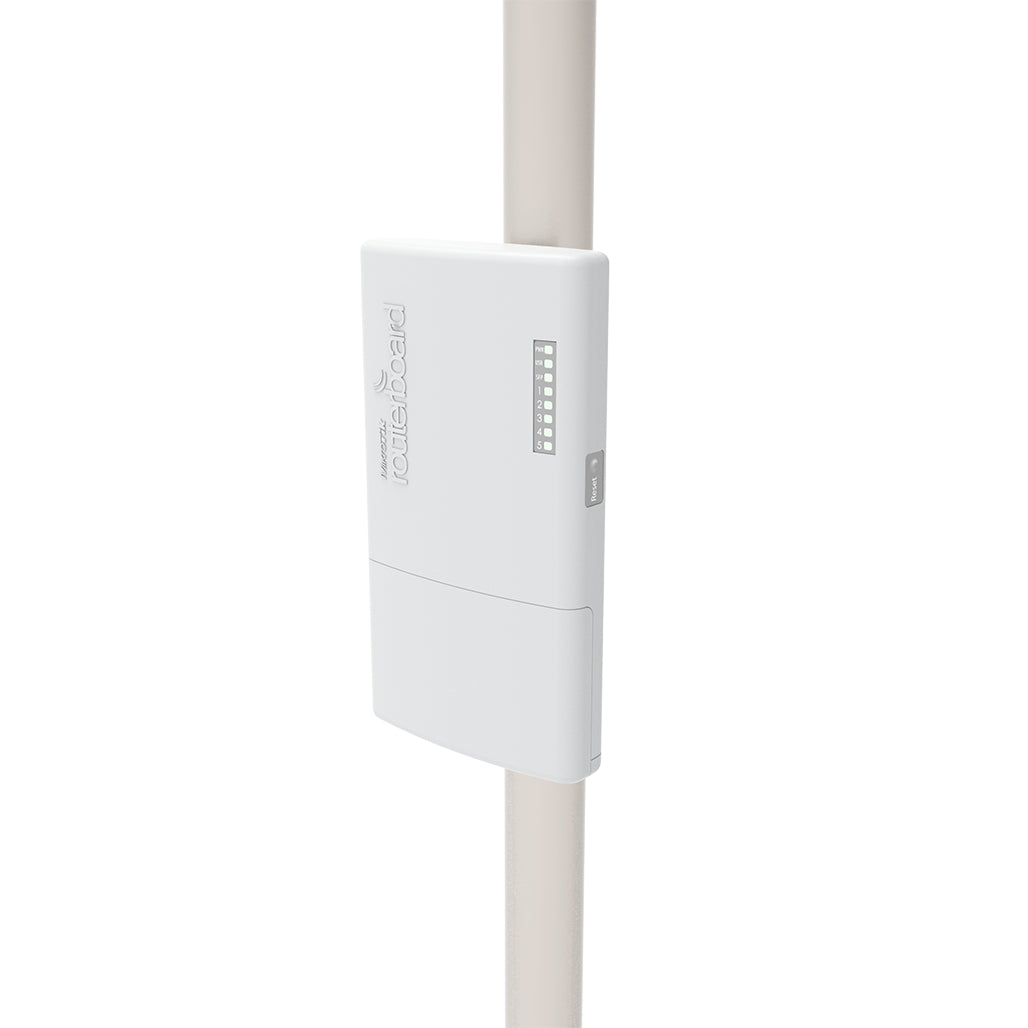

• Durable Outdoor Design: The weatherproof case ensures that the PowerBox Pro can be reliably mounted in outdoor locations, withstanding harsh environmental conditions.
• High-Performance Hardware: The device features an 800MHz CPU and 128MB of RAM, providing robust performance for advanced RouterOS configurations.
• Optical Fiber Connectivity: An SFP port is included for adding optical fiber connections, enhancing network flexibility and performance.
• Efficient Power Management: The router supports passive PoE input and output, with a maximum current of 1A per port (input 18-30 V) and 450 mA (input 30-57 V), allowing for efficient power distribution.

Specifications:

• Product Code: RB960PGS-PB
• Architecture: MIPSBE
• CPU: QCA9557
• CPU Core Count: 1
• CPU Nominal Frequency: 800 MHz
• Switch Chip Model: QCA8337
• Dimensions: 125 x 52 x 225 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 2 (DC Jack, PoE-IN)
• DC Jack Input Voltage: 12-57 V
• Max Power Consumption: 54 W
• Max Power Consumption Without Attachments: 6 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 12-57 V

PoE-Out:

• PoE-Out Ports: Ether2-Ether5
• PoE Out: 802.3af/at
• Max Out Per Port Output (Input 18-30 V): 1 A
• Max Out Per Port Output (Input 30-57 V): 450 mA
• Max Total Out (A): 2 A

Ethernet:

• 10/100/1000 Ethernet Ports: 5

Fiber:

• SFP Ports: 1

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS

Conclusion:

The MikroTik PowerBox Pro is a powerful and versatile outdoor router designed for reliable performance in challenging environments. With its combination of Gigabit Ethernet ports, PoE capabilities, and SFP connectivity, it offers comprehensive solutions for powering and connecting network devices. The durable construction and advanced features make it a suitable choice for various outdoor networking applications.
