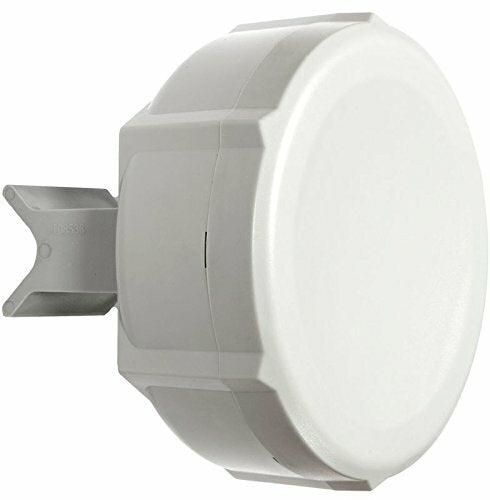

MikroTik RBSXTG-5HPnD-SAr2 - Outdoor Wireless Sector Access Point with 14dBi Antenna

The MikroTik RBSXTG-5HPnD-SAr2 is a high-performance outdoor wireless sector access point designed for efficient 5GHz connectivity. It features a 90-degree sector antenna providing wider coverage compared to previous models, making it ideal for expansive outdoor areas.

This access point comes with a built-in 14dBi antenna and is housed in a durable enclosure that includes all necessary mounting hardware and accessories. Its advanced shielding enhances performance in high-interference environments, ensuring reliable connectivity.

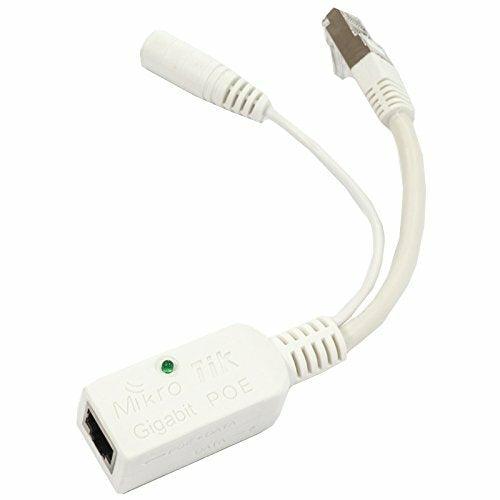

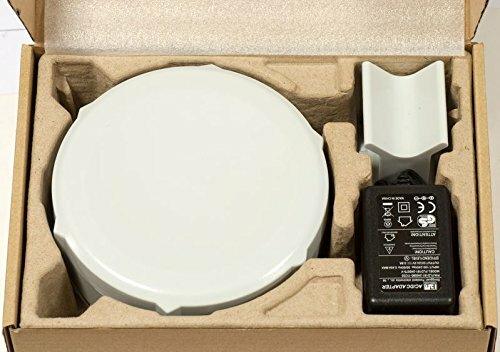

The package includes the SXT wireless device, a pole mounting bracket, mounting ring, PoE injector, power adapter, and a quick setup guide, allowing for a hassle-free installation process.

Key Features:

• Wide Coverage: 90-degree antenna provides extensive coverage.
• High Gain Antenna: Built-in 14dBi antenna for superior signal strength.
• Complete Package: Includes mounting bracket, PoE injector, and power adapter.
• Enhanced Performance: Special shielding to improve operation in high interference areas.

Specifications:

• Product Code: RBSXTG-5HPnD-SAr2
• Architecture: MIPSBE
• CPU: AR9344
• CPU Core Count: 1
• CPU Nominal Frequency: 600 MHz
• Dimensions: 140 x 140 x 56 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -30°C to 70°C

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 11 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 6-30 V

Wireless Specifications:

• Wireless 5 GHz Max Data Rate: 300 Mbit/s
• Wireless 5 GHz Number of Chains: 2
• Wireless 5 GHz Standards: 802.11a/n
• Antenna Gain (5 GHz): 14 dBi
• Wireless 5 GHz Chip Model: AR9344
• Wireless 5 GHz Generation: Wi-Fi 4

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Peripherals:

• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB Type A
• Max USB Current: 1 A

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP54

Wireless Specifications:

• 5 GHz Transmit (dBm)

  • 6MBit/s: 30 dBm
  • 54MBit/s: 27 dBm
  • MCS0: 30 dBm
  • MCS7: 26 dBm

• 5 GHz Receive Sensitivity

  • 6MBit/s: -96 dBm
  • 54MBit/s: -80 dBm
  • MCS0: -95 dBm
  • MCS7: -73 dBm

Conclusion:

The MikroTik RBSXTG-5HPnD-SAr2 outdoor wireless sector access point is a robust solution for expanding your wireless coverage with high-speed 5GHz connectivity. Its integrated 14dBi antenna, wide coverage angle, and durable design make it suitable for various outdoor applications, ensuring reliable performance and easy setup.
