MikroTik RBcAPGi-5acD2nD-XL cAP XL ac Ceiling Access Point | Dual-Band 1200Mbps WiFi 5

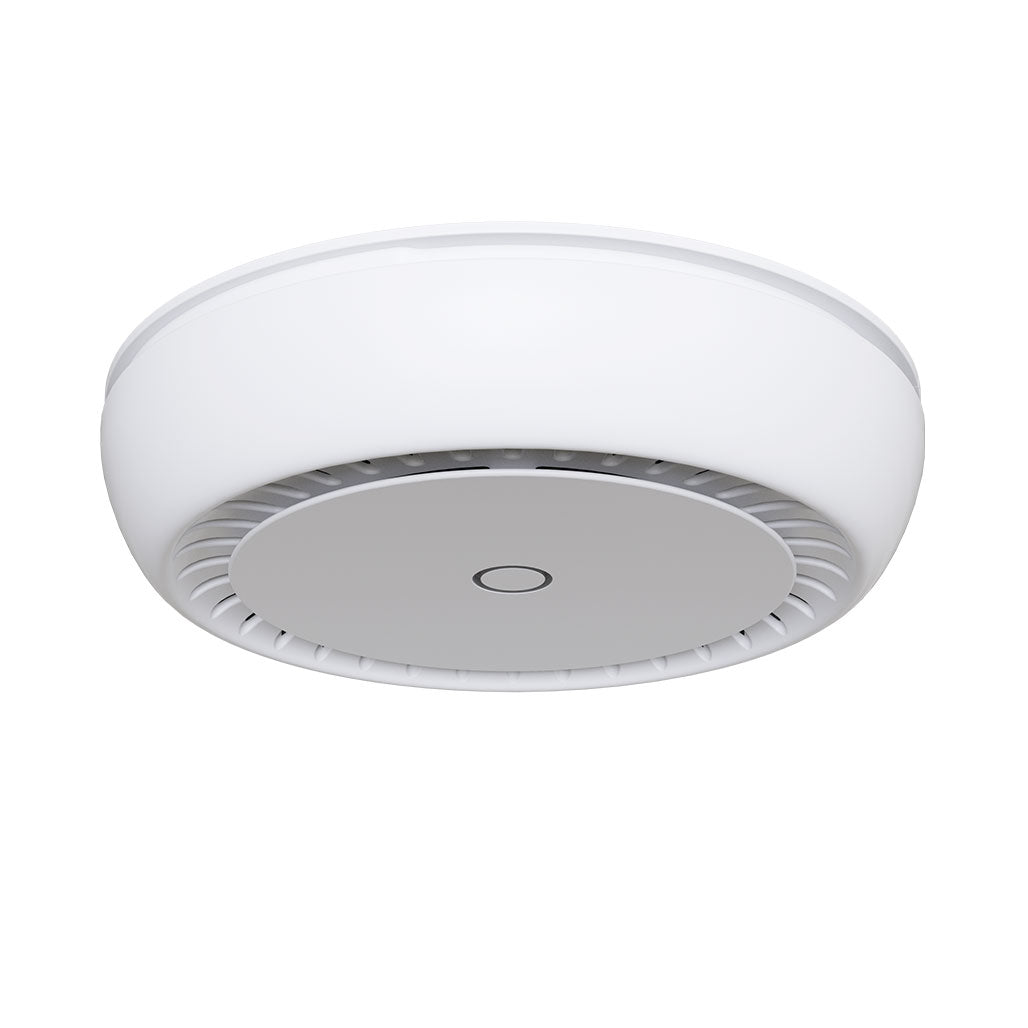

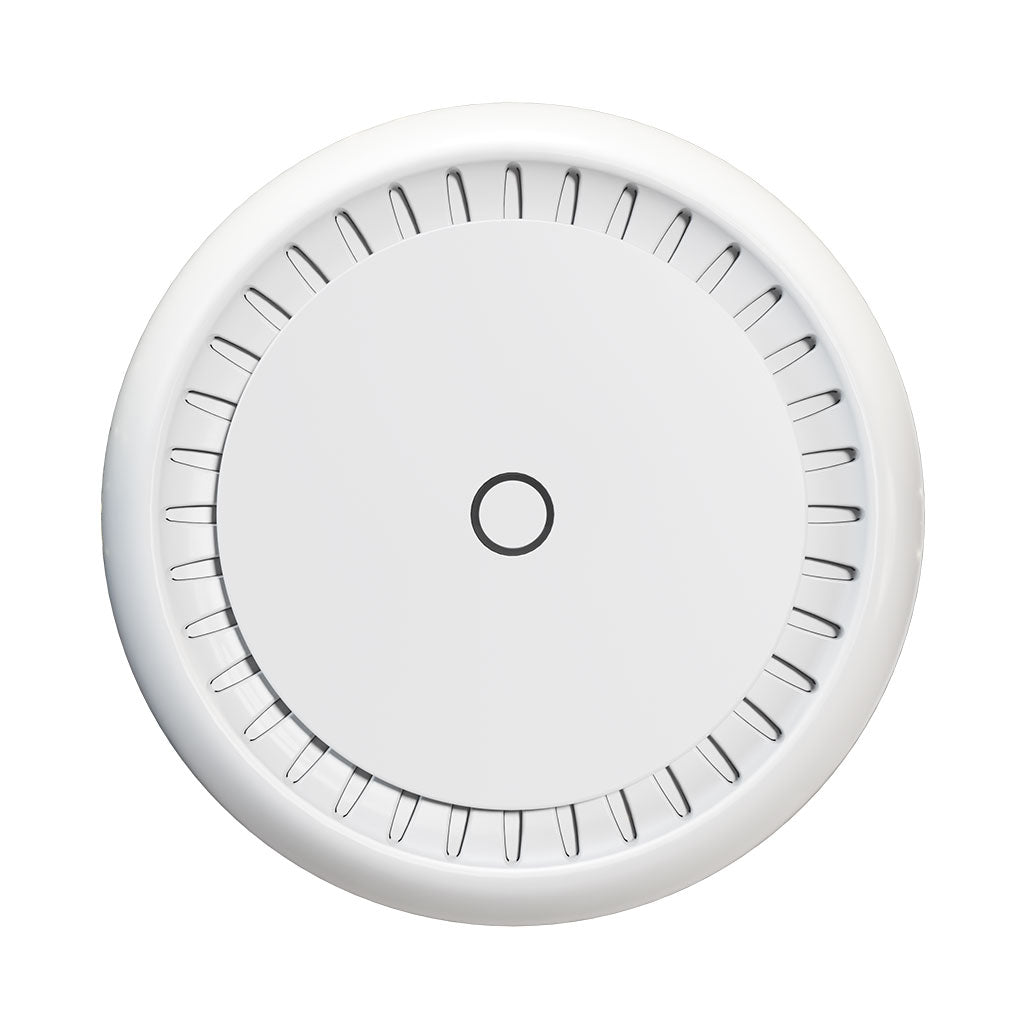

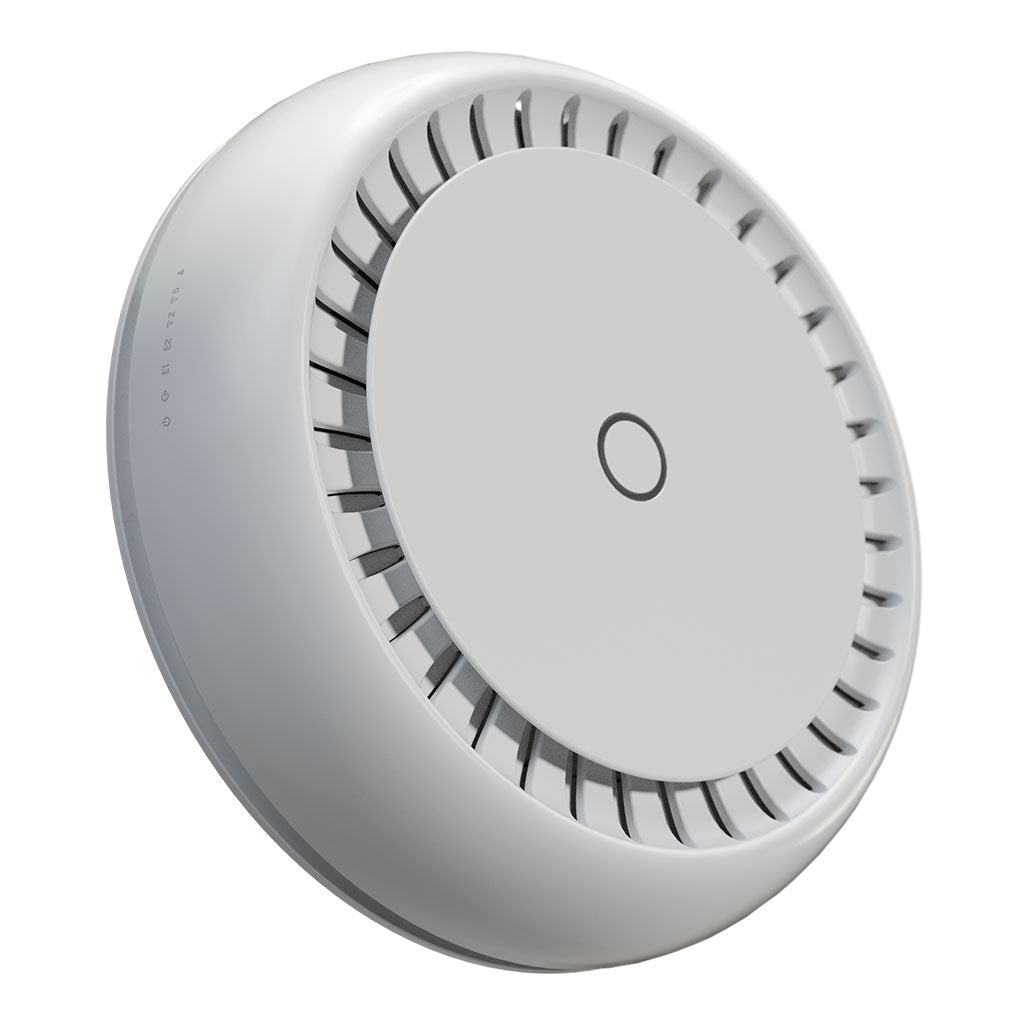

The MikroTik RBcAPGi-5acD2nD-XL is a sleek and high-performance ceiling-mounted access point designed for optimal wireless coverage and minimal visibility. Ideal for environments where discreet placement is essential—such as offices, hotels, or public spaces—the cAP XL ac offers a low-profile design that blends seamlessly with its surroundings.

This advanced ceiling AP supports dual-band, dual-chain wireless connectivity with a combined data rate of up to 1200 Mbps. Its high-gain antennas and built-in reflector significantly enhance coverage, extending the range by up to 100% compared to previous models. The cAP XL ac ensures robust signal strength in 360 degrees, mitigating common issues such as signal absorption by large objects or metal barriers.

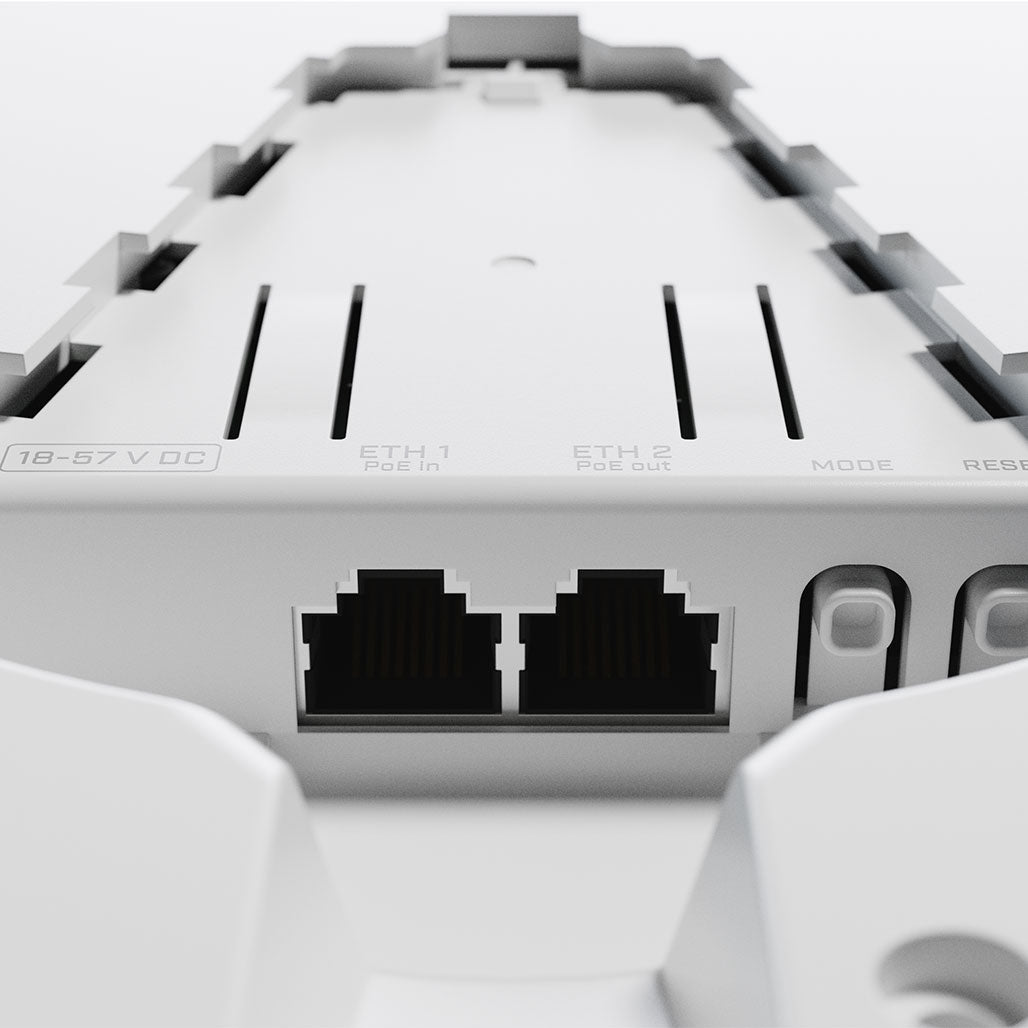

Equipped with two Gigabit Ethernet ports, the RBcAPGi-5acD2nD-XL allows for network expansion and power over Ethernet (PoE) support. The device supports 802.3af/at PoE input on the primary port and provides passive PoE output (up to 57V) on the secondary port for versatile installation options.

Key Features:

• Discreet and Sleek Design: The cAP XL ac’s low-profile design blends unobtrusively into ceilings, making it ideal for high-traffic areas where visibility is a concern.
• Enhanced Wireless Coverage: Dual-band operation with up to 1200 Mbps data rate, featuring high-gain antennas and a built-in reflector to double the coverage area compared to previous models.
• Flexible Connectivity: Two Gigabit Ethernet ports with PoE support for network expansion and device connectivity.
• Versatile Power Options: 802.3af/at PoE input and passive PoE output (up to 57V) provide flexibility in installation and power supply.
• Advanced Performance: Equipped with IPQ-4018 CPU and hardware acceleration for IPsec, ensuring high performance and security.

Specifications:

• Product Code: RBcAPGi-5acD2nD-XL
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU Core Count: 4
• CPU Nominal Frequency: 716 MHz
• Dimensions: 191 x 42 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C
• IPsec Hardware Acceleration: Yes

Wireless Capabilities:

• 2.4 GHz Max Data Rate: 300 Mbit/s
• 2.4 GHz Number of Chains: 2
• 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 6
• 2.4 GHz Chip Model: IPQ-4018
• 2.4 GHz Generation: Wi-Fi 4
• 5 GHz Max Data Rate: 867 Mbit/s
• 5 GHz Number of Chains: 2
• 5 GHz Standards: 802.11a/n/ac
• Antenna Gain dBi for 5 GHz: 5.5
• 5 GHz Chip Model: IPQ-4018
• 5 GHz Generation: Wi-Fi 5
• WiFi Speed: AC1200

Ethernet:

• 10/100/1000 Ethernet Ports: 2
• Number of 1G Ethernet Ports with PoE-out: 1

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 24 W
• Max Power Consumption Without Attachments: 11 W
• Cooling Type: Passive
• PoE In: 802.3af/at
• PoE In Input Voltage: 18-57 V

PoE-out:

• PoE-out Ports: Ether2
• PoE Out: Passive PoE up to 57V
• Max Out Per Port Output (Input 18-30 V): 500 mA
• Max Out Per Port Output (Input 30-57 V): 330 mA
• Max Total Out (A): 500 mA

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS

Other:

• Mode Button: Yes

Wireless Specifications:

• 2.4 GHz Transmit (dBm) and Receive Sensitivity:

  • 1MBit/s: Transmit 26 dBm, Receive Sensitivity -100 dBm
  • 11MBit/s: Transmit 26 dBm, Receive Sensitivity -94 dBm
  • 6MBit/s: Transmit 26 dBm, Receive Sensitivity -96 dBm
  • 54MBit/s: Transmit 23 dBm, Receive Sensitivity -78 dBm
  • MCS0: Transmit 26 dBm, Receive Sensitivity -96 dBm
  • MCS7: Transmit 22 dBm, Receive Sensitivity -73 dBm

• 5 GHz Transmit (dBm) and Receive Sensitivity:

  • 6MBit/s: Transmit 26 dBm, Receive Sensitivity -96 dBm
  • 54MBit/s: Transmit 21 dBm, Receive Sensitivity -80 dBm
  • MCS0: Transmit 26 dBm, Receive Sensitivity -96 dBm
  • MCS7: Transmit 20 dBm, Receive Sensitivity -75 dBm
  • MCS9: Transmit 18 dBm, Receive Sensitivity -70 dBm

Conclusion:

The MikroTik RBcAPGi-5acD2nD-XL cAP XL ac ceiling access point combines advanced wireless technology with a discreet design, making it an excellent choice for enhancing network coverage in a variety of environments. With its dual-band capabilities, high-gain antennas, and versatile power options, it delivers robust performance and seamless connectivity while blending seamlessly into the surroundings.
