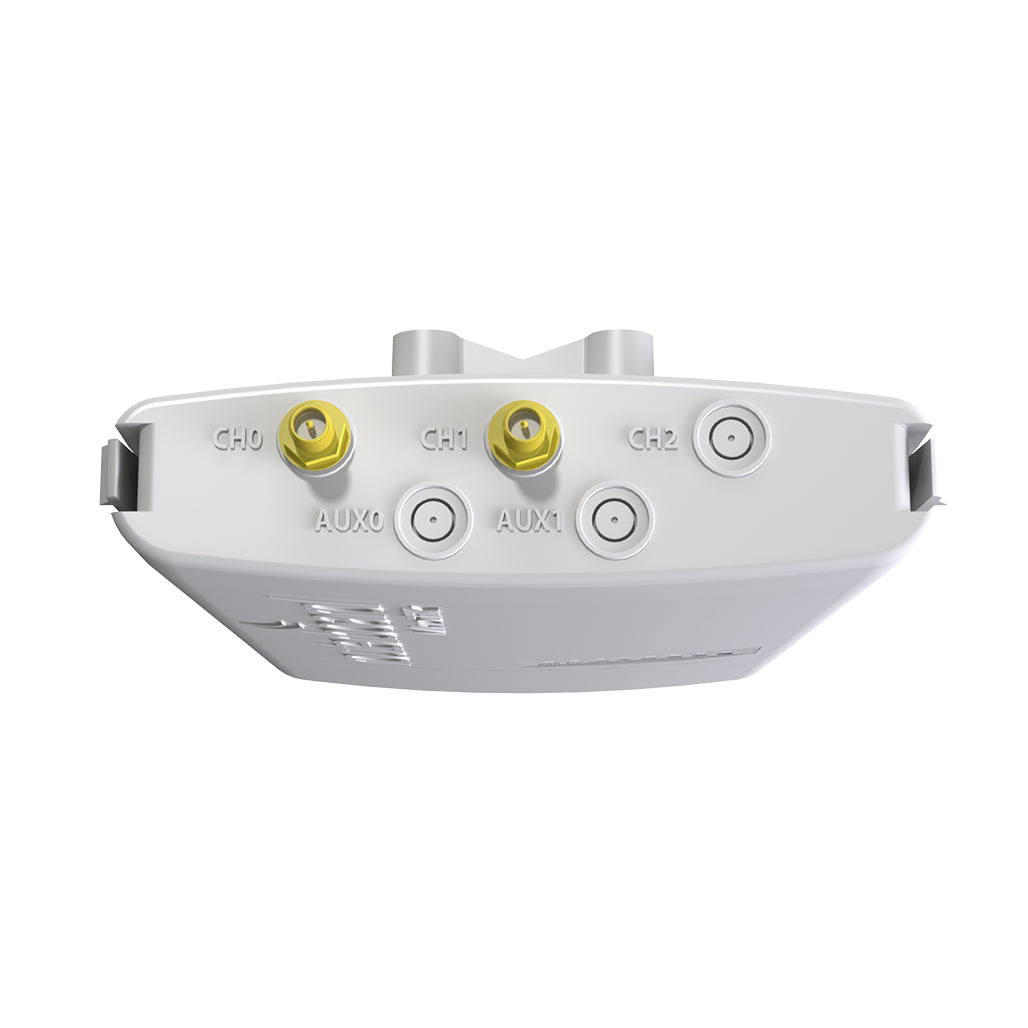

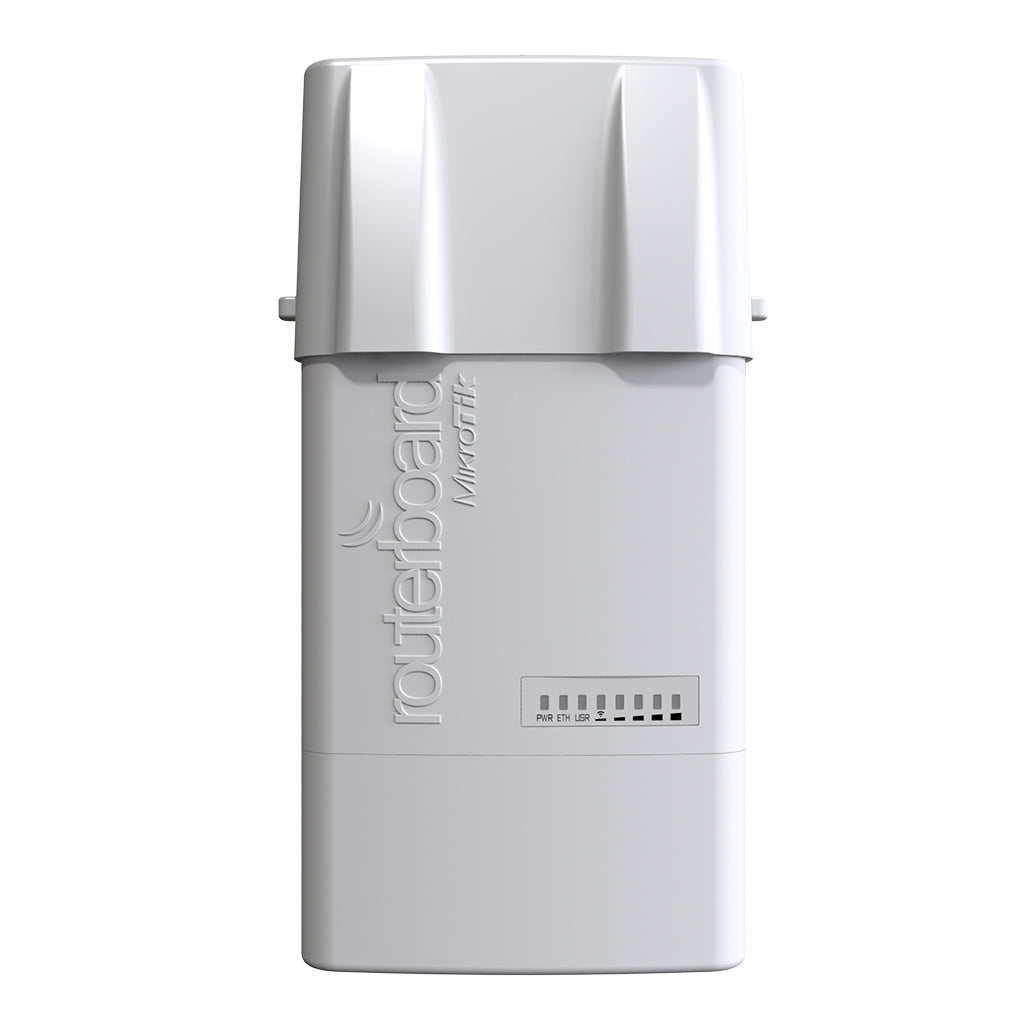

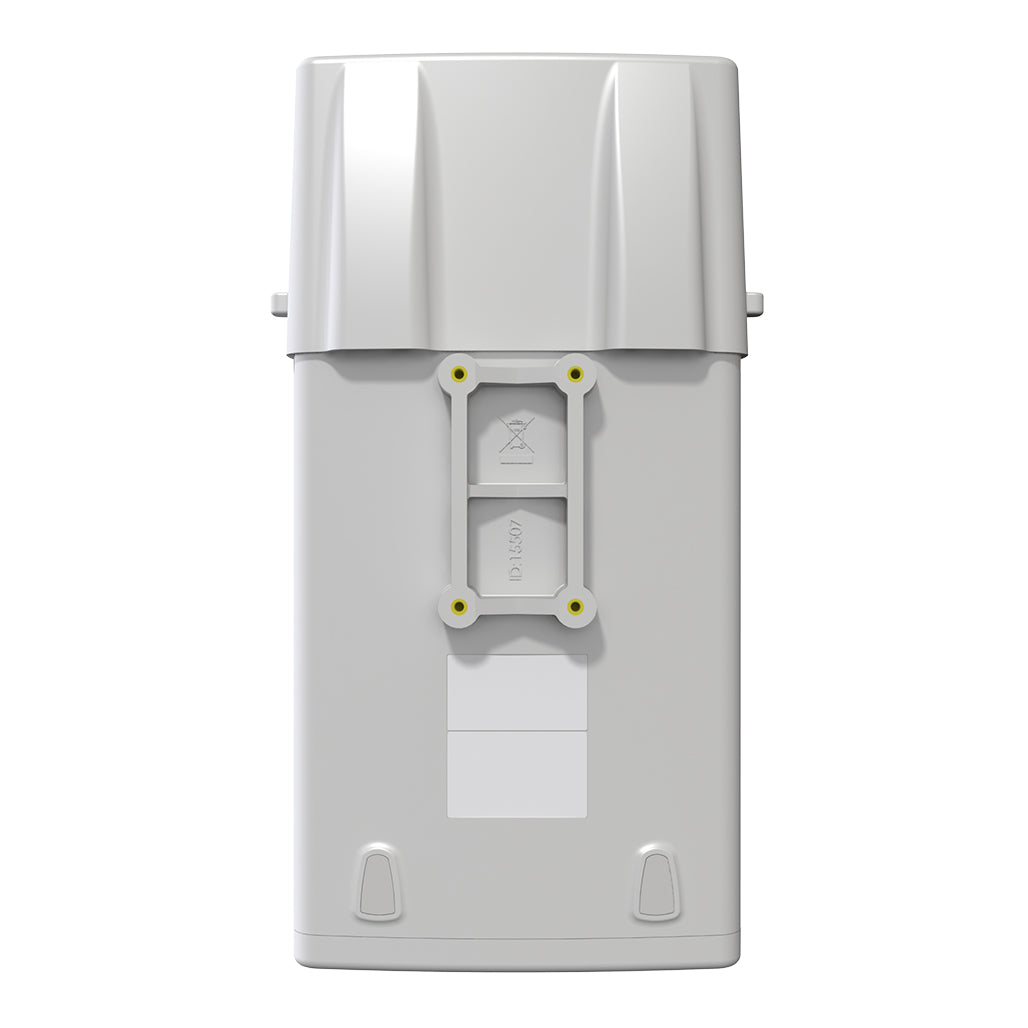

The Mikrotik RB912UAG-5HPnD-OUT is a rugged outdoor access point, backbone, and CPE solution designed to deliver reliable 5GHz wireless connectivity. Equipped with two RPSMA connectors and an additional miniPCIe slot for an extra wireless interface, this device is perfect for creating dual-band networks. The enclosure is built to withstand harsh outdoor conditions, featuring a cable hood for moisture protection and easy access to USB, Ethernet, and grounding connections.
This BaseBox 5 model supports a maximum wireless data rate of 300 Mbit/s on the 5GHz band and conforms to Wi-Fi 4 standards (802.11a/n). It comes with a mounting loop for tower or pole installation, a DIN rail mount, a PoE injector, and a power supply unit. The RB912UAG-5HPnD-OUT is ideal for robust, outdoor networking applications requiring durable and flexible connectivity options.
Key Features:
-
Outdoor Rugged Design: The BaseBox 5 is enclosed in a protective case suitable for outdoor installation, with added moisture protection and easy access ports.
-
Dual Connectivity Options: Features two RPSMA connectors and a miniPCIe slot for expanded wireless capabilities.
-
High Wireless Performance: Provides a 5GHz wireless data rate of up to 300 Mbit/s, supporting Wi-Fi 4 (802.11a/n) standards.
-
Mounting Versatility: Includes a mounting loop for towers or poles and a DIN rail mount for flexible installation options.
-
Included Accessories: Comes with a PoE injector, power supply unit, and multiple mounting options.
Specifications:
-
Product Code: RB912UAG-5HPnD-OUT
-
Architecture: MIPSBE
-
CPU: AR9342
-
CPU Core Count: 1
-
CPU Nominal Frequency: 600 MHz
-
Dimensions: 246 x 135 x 50 mm
-
RouterOS License: 4
-
Operating System: RouterOS
-
Size of RAM: 64 MB
-
Storage Size: 128 MB
-
Storage Type: NAND
-
MTBF: Approximately 100,000 hours at 25°C
-
Tested Ambient Temperature: -40°C to 70°C
Powering:
-
Number of DC Inputs: 1 (PoE-IN)
-
Max Power Consumption: 12 W
-
Cooling Type: Passive
-
PoE In: Passive PoE
-
PoE In Input Voltage: 8-30 V
Wireless Specifications:
-
Wireless 5 GHz Max Data Rate: 300 Mbit/s
-
Wireless 5 GHz Number of Chains: 2
-
Wireless 5 GHz Standards: 802.11a/n
-
Wireless 5 GHz Chip Model: AR9342
-
Wireless 5 GHz Generation: Wi-Fi 4
Ethernet:
-
10/100/1000 Ethernet Ports: 1
Peripherals:
-
Number of SIM Slots: 1 Modem (Mini SIM)
-
MiniPCI-e Slots: 1
-
Number of USB Ports: 1
-
USB Power Reset: Yes
-
USB Slot Type: USB Type A
-
Max USB Current (A): 1
Other:
-
PCB Temperature Monitor: Yes
-
Voltage Monitor: Yes
-
Beeper: Yes
Certification & Approvals:
-
Certification: CE, EAC, ROHS
Wireless Specifications:
-
5 GHz Transmit (dBm) and Receive Sensitivity:
-
6MBit/s: Transmit 30 dBm, Receive Sensitivity -96 dBm
-
54MBit/s: Transmit 27 dBm, Receive Sensitivity -78 dBm
-
MCS0: Transmit 30 dBm, Receive Sensitivity -96 dBm
-
MCS7: Transmit 26 dBm, Receive Sensitivity -75 dBm
Conclusion:
The Mikrotik RB912UAG-5HPnD-OUT BaseBox 5 provides robust outdoor wireless connectivity with its durable design and comprehensive feature set. Its ability to support dual-band configurations and a wide range of mounting options ensures versatility in various deployment scenarios. With reliable performance in harsh environments and included accessories, this device is well-suited for demanding networking applications.
