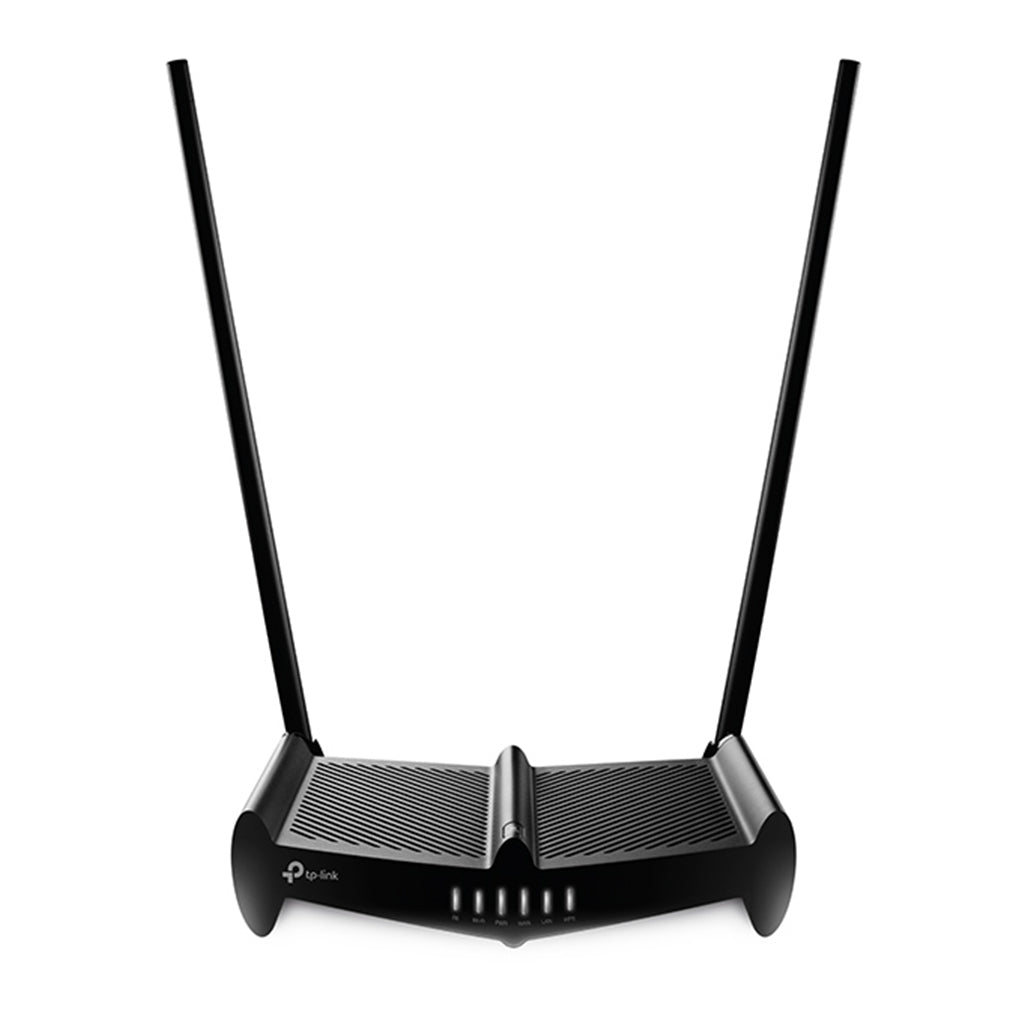

The TP-Link TL-WR841HP High Power Wireless N Router is engineered to deliver robust wireless performance and extensive coverage, making it an ideal choice for homes or offices requiring reliable network connectivity. This router supports Wi-Fi 4 (IEEE 802.11n/b/g) standards and offers speeds of up to 300 Mbps on the 2.4 GHz band. With its high-power FEM (Front-End Module) technology and two detachable 9 dBi high-gain antennas, the TL-WR841HP enhances signal strength, ensuring comprehensive coverage throughout multi-bedroom homes.

In addition to its impressive range and performance, the TL-WR841HP provides multiple operating modes, including Router, Access Point, and Range Extender modes, catering to various networking needs. It is equipped with a range of security features such as SPI Firewall, access control, and various Wi-Fi encryption protocols including WPA2, ensuring a secure and stable network environment. Easy management through the Tether App or web interface further simplifies the setup and configuration process.

Key Features:

• Enhanced Signal Coverage: Equipped with two detachable 9 dBi high-gain antennas and high-power FEM technology, this router boosts signal strength and extends coverage to larger areas and multiple rooms.
• Flexible Operating Modes: Supports Router, Access Point, and Range Extender modes, providing flexibility to meet different networking requirements.
• Comprehensive Security: Features a range of security options including SPI Firewall, access control, IP & MAC binding, and multiple Wi-Fi encryption protocols such as WPA2 for enhanced network protection.
• User-Friendly Management: Allows easy setup and management via the Tether App or web interface, simplifying network configuration and monitoring.

Specifications:

• Wireless:

  • Standards: Wi-Fi 4 (IEEE 802.11n/b/g 2.4 GHz)
  • WiFi Speeds: N300
  • 2.4 GHz Speed: 300 Mbps (802.11n)
  • WiFi Range: Suitable for 4-bedroom houses
  • Antennas: 2× Detachable 9 dBi High-Gain Antennas

• High-Power FEM:

  • Improves transmission power to strengthen signal coverage

• WiFi Capacity: Legacy

• Working Modes:

  • Router Mode
  • Access Point Mode
  • Range Extender Mode

• Security:

  • Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
  • Guest Network: 1× 2.4 GHz Guest Network
  • WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

• Hardware:

  • Processor: Single-Core CPU

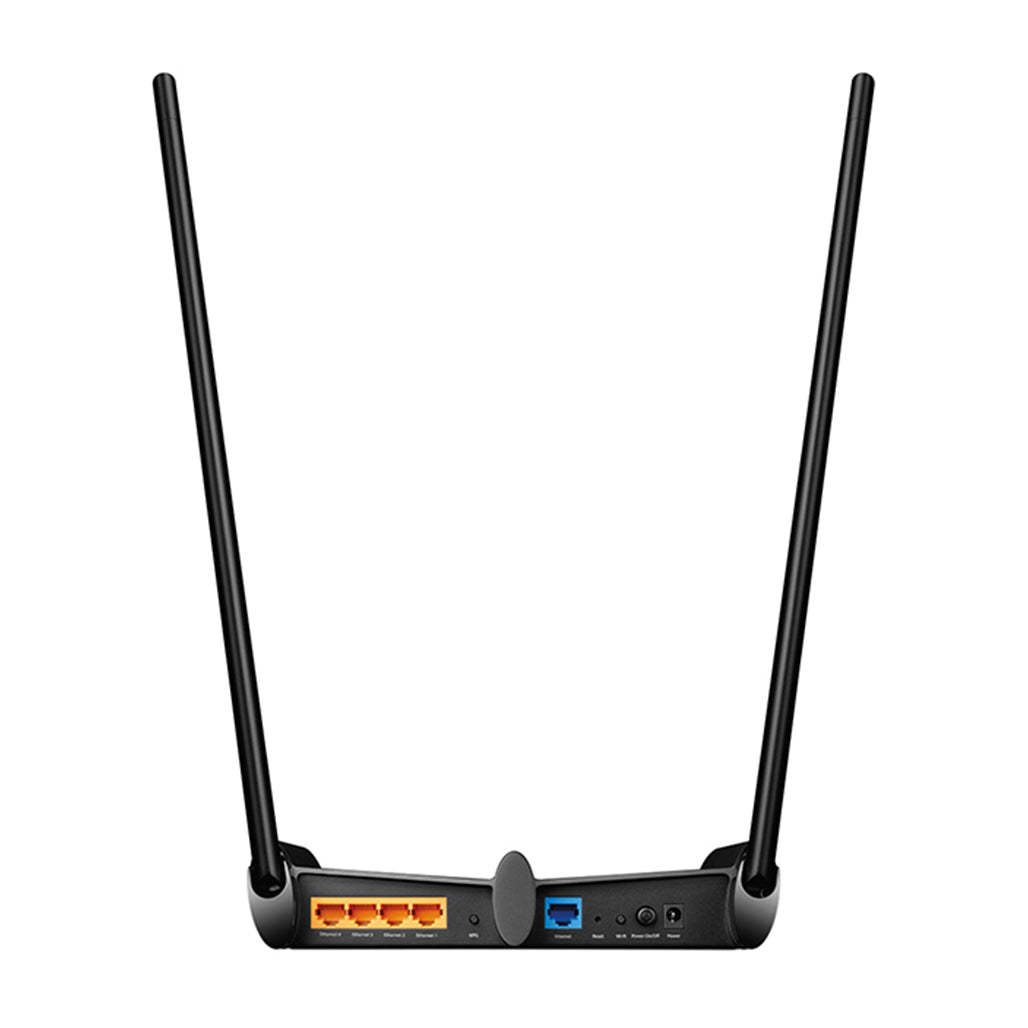

  • Ethernet Ports: 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
  • Buttons: Wi-Fi On/Off Button, Power On/Off Button, WPS Button, Reset Button
  • Power: 12 V ⎓ 1 A

• Software:

  • Protocols: IPv4, IPv6
  • Parental Controls: URL Filtering, Time Controls
  • WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
  • Quality of Service: QoS by Device
  • NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
  • IPTV: IGMP Proxy, IGMP Snooping
  • DHCP: Address Reservation, DHCP Client List, Server
  • DDNS: NO-IP, DynDNS
  • Management: Tether App, Webpage

• Other:

  • System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider (for internet access)
  • Certifications: FCC, CE, RoHS
  • Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉); Storage Temperature: -40℃~70℃ (-40℉ ~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

• Test Data:

  • WiFi Transmission Power: CE: <20dBm (2.4GHz); FCC: <30dBm
  • WiFi Reception Sensitivity: 270M: -71dBm@10% PER; 130M: -74dBm@10% PER; 108M: -74dBm@10% PER; 54M: -77dBm@10% PER; 11M: -91dBm@8% PER; 6M: -89dBm@10% PER; 1M: -97dBm@8% PER

• Physical:

  • Dimensions (W×D×H): 9.0 × 7.5 × 1.9 in (227.5 × 190 × 48.3mm)
  • Package Contents: Wi-Fi Router TL-WR841HP, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

Conclusion: The TP-Link TL-WR841HP High Power Wireless N Router delivers exceptional performance and extensive coverage, making it an excellent choice for those needing robust network connectivity across larger areas. Its high-power technology, multiple operational modes, and comprehensive security features combine to offer a reliable and secure networking solution. The router's user-friendly management options ensure that setup and maintenance are straightforward, providing a seamless experience for all users.
