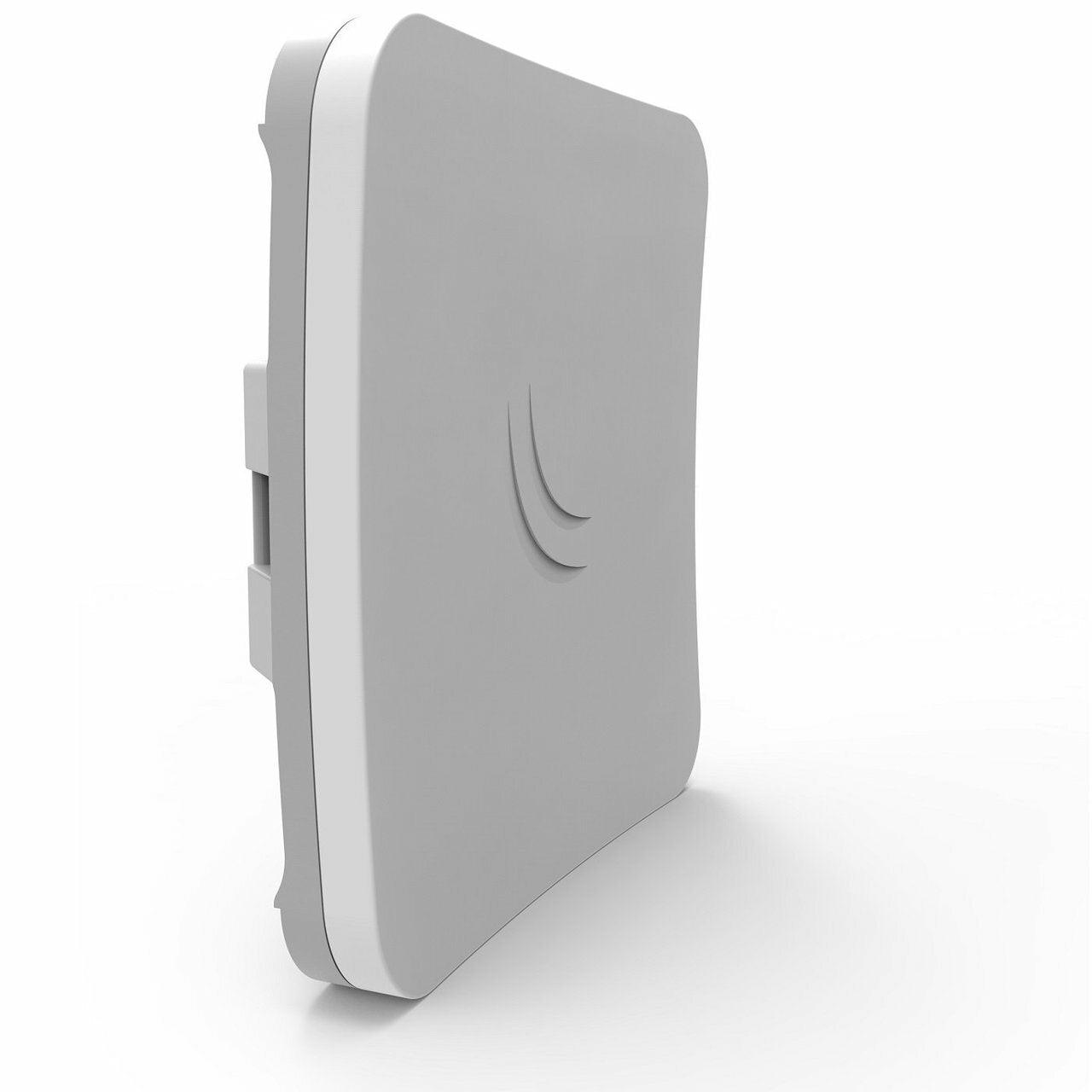

A Photo Of MikroTik SXTsq Lite5 - 16dBi 5GHz Dual Chain Integrated CPE/Backbone

MikroTik SXTsq Lite5 - 16dBi 5GHz Dual Chain Integrated CPE/Backbone

$49.00
$65.00
$49.00
Subtotal: $49.00
Order on Whatsapp
Vendor: MikroTik
SKU: RBSXTsq5nD-DK-K
Availability: Many In Stock
Product Type: Wireless Routers

Excluding VAT

The MikroTik SXTsq Lite5 is a high-performance, compact outdoor wireless device designed for reliable point-to-point connections and as a Customer Premises Equipment (CPE) unit. With its integrated 16dBi antenna and improved design, it offers extended range and durability, making it an ideal choice for establishing robust wireless links of up to 12 kilometers.

This updated model maintains the powerful 16dBi antenna gain of the previous SXT Lite5 but features a significantly slimmer profile—being twice as thin—while still delivering excellent performance. The SXTsq Lite5 is engineered to withstand various weather conditions and is easy to mount on both horizontal and vertical poles or masts. For precise alignment, the optional QuickMount Pro can be used, allowing for adjustment in any angle.

The device comes in two variants: the SXTsq Lite5-US, which is factory-locked to 5170-5250MHz and 5725-5835MHz frequencies, and the SXTsq Lite5 (International), which supports a wider frequency range of 5150-5875MHz, subject to country-specific regulations.

Key Features:

  • High Gain Antenna: Integrated 16dBi antenna for improved range and signal strength.
  • Compact and Lightweight: Slim design for easy handling and mounting.
  • Weatherproof: Durable construction for outdoor use in various weather conditions.
  • Flexible Mounting: Can be mounted on horizontal and vertical poles; QuickMount Pro available for precise alignment.
  • Frequency Variants: SXTsq Lite5-US for specific frequency bands; International version for broader range.

Specifications:

  • Product Code: RBSXTsq5nD
  • Architecture: MIPSBE
  • CPU: AR9344, 1 core, 600 MHz
  • Dimensions: 129 x 129 x 34 mm
  • RouterOS License: 3
  • Operating System: RouterOS
  • RAM: 64 MB
  • Storage Size: 16 MB
  • Storage Type: FLASH
  • MTBF: Approximately 100,000 hours at 25°C
  • Tested Ambient Temperature: -40°C to 70°C

Powering:

  • Number of DC Inputs: 1 (PoE-IN)
  • Max Power Consumption: 6 W
  • Cooling Type: Passive
  • PoE Input: Passive PoE
  • PoE Input Voltage: 10-30 V

Wireless Specifications:

  • Wireless 5 GHz Max Data Rate: 300 Mbit/s
  • Wireless 5 GHz Number of Chains: 2
  • Wireless 5 GHz Standards: 802.11a/n
  • Antenna Gain (5 GHz): 16 dBi
  • Wireless 5 GHz Chip Model: AR9344
  • Wireless 5 GHz Generation: Wi-Fi 4

Ethernet:

  • 10/100 Ethernet Ports: 1

Certification & Approvals:

  • Certification: CE, FCC, IC, EAC, ROHS
  • IP Rating: IP54

Wireless Specifications (5 GHz):

  • Transmit (dBm):
    • 6 MBit/s: 25 dBm
    • 54 MBit/s: 20 dBm
    • MCS0: 25 dBm
    • MCS7: 19 dBm
  • Receive Sensitivity:
    • 6 MBit/s: -96 dBm
    • 54 MBit/s: -80 dBm
    • MCS0: -96 dBm
    • MCS7: -75 dBm

Conclusion:

The MikroTik SXTsq Lite5 is an advanced solution for long-distance wireless connectivity and CPE applications. Its enhanced antenna design, compact form factor, and weatherproof build ensure reliable performance and durability in various environments. Whether you're setting up a point-to-point link or connecting remote locations, the SXTsq Lite5 offers the performance and flexibility needed to meet demanding networking requirements.
