MikroTik OmniTIK 5 PoE - 5GHz Dual Chain AP with 7.5dBi Antennas and 5x Ethernet Ports | RBOmniTikUPA-5HnD

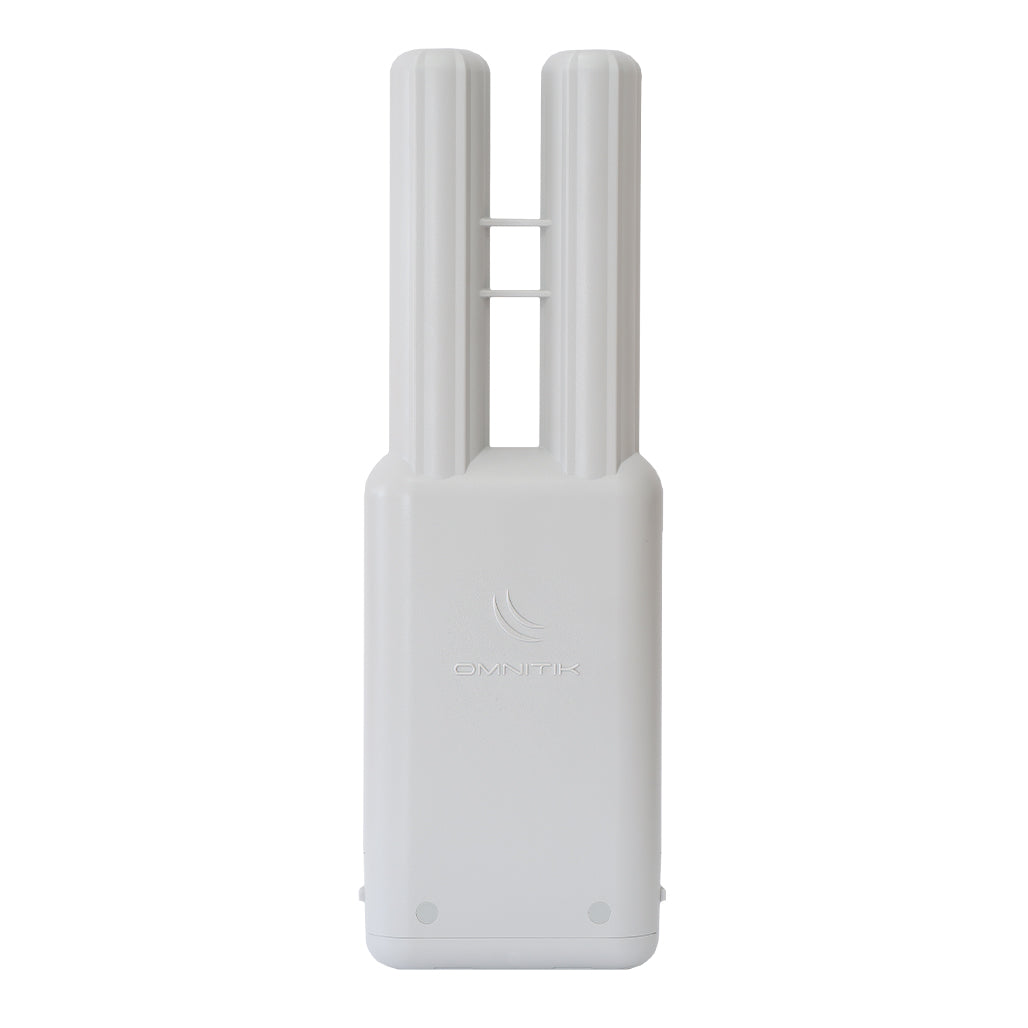

The MikroTik OmniTIK 5 PoE is a robust outdoor access point designed to deliver reliable 5GHz wireless connectivity with dual-polarized omni antennas. This high-performance AP supports 802.11a/n standards and is capable of delivering up to 300 Mbit/s wireless throughput. Its weatherproof and durable construction ensures reliable operation in various environmental conditions, making it an ideal choice for extending your network coverage outdoors.

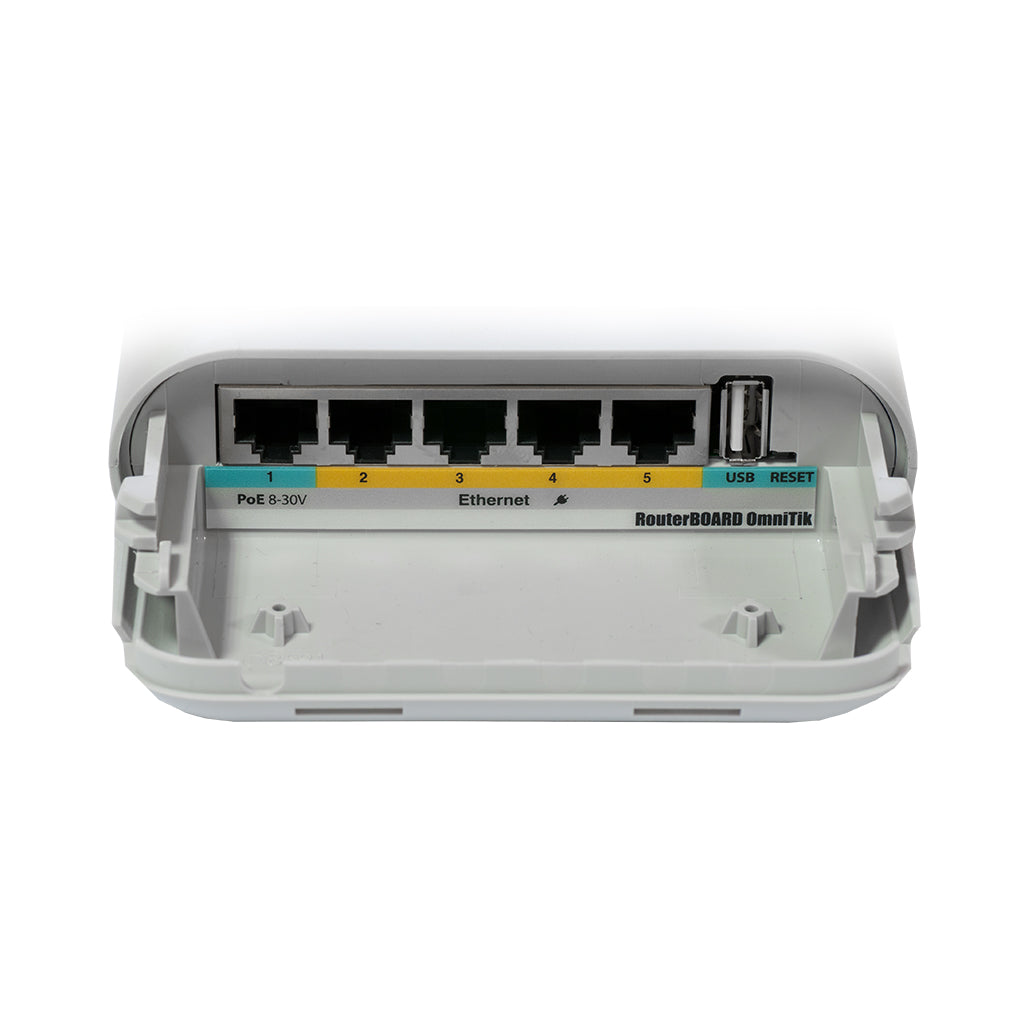

Equipped with five 10/100 Ethernet ports, including PoE output capabilities on ports 2-5, the OmniTIK 5 PoE provides flexibility in powering other PoE-enabled devices without the need for additional power adapters. The device also features customizable LED signal indicators and a USB port for connecting 3G modems or storage drives. The OmniTIK UPA integrates seamlessly with other MikroTik devices, offering a versatile solution for a wide range of networking needs.

Key Features:

• Outdoor-Ready Design: The weatherproof and rugged enclosure is built to withstand harsh outdoor conditions, ensuring dependable performance in various environments.
• Dual-Polarized Antennas: Integrated 7.5dBi antennas provide enhanced signal strength and coverage for 5GHz wireless networks.
• Flexible Power Options: PoE output on ports 2-5 allows for the powering of additional PoE devices, simplifying installation and reducing the need for extra power sources.
• Customizable LED Indicators: LED lights can be configured to display Ethernet activity, wireless signal strength, or other status information from RouterOS.
• USB Connectivity: Includes a USB port for adding 3G modems or storage drives, expanding the device's functionality.

Specifications:

• Product Code: RBOmniTikUPA-5HnD
• Architecture: MIPSBE
• CPU: AR9344
• CPU Core Count: 1
• CPU Nominal Frequency: 600 MHz
• Switch Chip Model: AR9344
• Dimensions: 368 x 125 x 55 mm
• RouterOS License: 5
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 59 W
• Max Power Consumption Without Attachments: 11 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 11-30 V

PoE-Out:

• PoE-Out Ports: Ether2-Ether5
• PoE Out: Passive PoE
• Max Out Per Port Output (Input 18-30 V): 1 A
• Max Total Out (A): 2 A

Wireless Specifications:

• Wireless 5 GHz Max Data Rate: 300 Mbit/s
• Wireless 5 GHz Number of Chains: 2
• Wireless 5 GHz Standards: 802.11a/n
• Antenna Gain dBi for 5 GHz: 7.5
• Wireless 5 GHz Chip Model: AR9344
• Wireless 5 GHz Generation: Wi-Fi 4

Ethernet:

• 10/100 Ethernet Ports: 5

Peripherals:

• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB Type A
• Max USB Current (A): 1

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP: IP54

Conclusion:

The MikroTik OmniTIK 5 PoE offers a robust and reliable solution for expanding 5GHz wireless networks in outdoor environments. With its dual-polarized antennas, multiple Ethernet ports with PoE output, and weatherproof construction, this access point ensures stable connectivity and ease of installation. The inclusion of customizable LED indicators and USB connectivity further enhances its functionality, making it a versatile choice for various networking applications.
