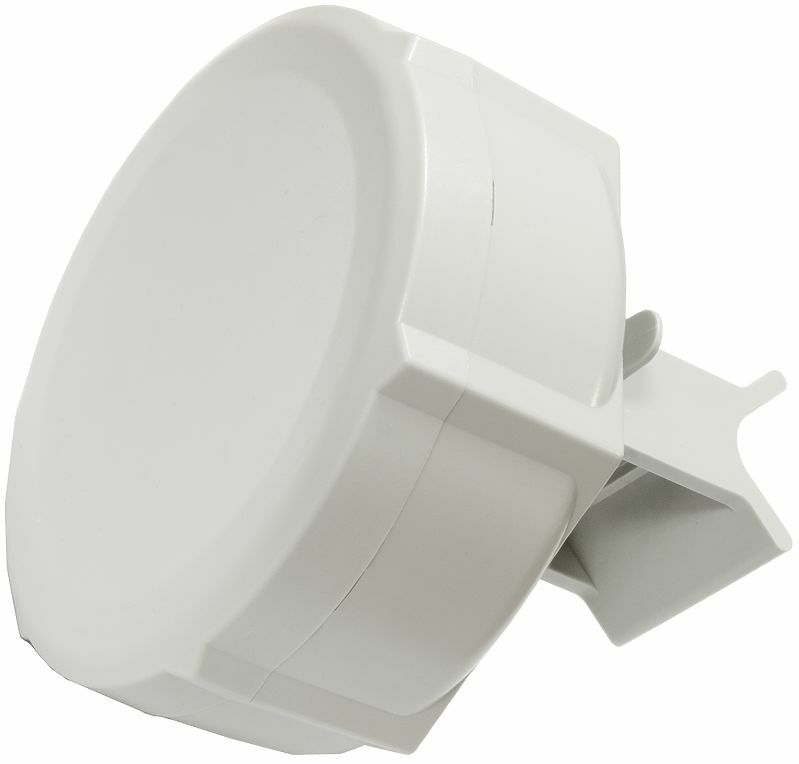

MikroTik SXT 6 RBSXTG-6HPnD: High-Power Dual Chain 16dBi 5.9-6.4GHz Wireless System with Integrated Antenna

The MikroTik SXT 6 RBSXTG-6HPnD represents a high-performance solution for licensed 5.9-6.4GHz frequency bands, designed to provide reliable and high-speed wireless connectivity. This device is equipped with a 16dBi dual-chain antenna and a 28-degree beamwidth, making it suitable for use as both a base station and a customer premises equipment (CPE). Additionally, two units can be paired to establish a point-to-point link, offering robust and stable communication over long distances.

Operating with RouterOS Level 4 license, the SXT 6 is engineered to meet the rigorous demands of professional wireless networking. Its passive cooling system ensures efficient operation even under extreme temperatures, ranging from -40°C to 70°C. It is important to note that this product is intended exclusively for licensed frequency bands, and its use is subject to regional regulations and availability.

Key Features:

• High-Power Antenna: The integrated 16dBi dual-chain antenna with a 28-degree beamwidth provides excellent signal strength and coverage, making it ideal for long-range point-to-point connections and base station setups.
• Licensed Frequency Band: Designed for the 5.9-6.4GHz frequency range, this device supports licensed band operations, ensuring compliance with regulatory requirements for specific regions.
• RouterOS Integration: The device operates with RouterOS Level 4, offering advanced configuration options and features for professional network management.
• Robust Build Quality: Engineered to withstand harsh environmental conditions, the SXT 6 operates effectively in temperatures ranging from -40°C to 70°C.
• Powering Flexibility: The device supports passive PoE with an input voltage range of 7-30 V, providing versatile powering options for different installation scenarios.

Specifications:

• Product code: RBSXTG-6HPnD
• Architecture: MIPSBE
• CPU: AR9344
• CPU core count: 1
• CPU nominal frequency: 600 MHz
• Dimensions: 140 x 140 x 56 mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested ambient temperature: -40°C to 70°C

Powering:

• Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 14 W
• Cooling type: Passive
• PoE in: Passive PoE
• PoE in input Voltage: 7-30 V

Wireless Specifications:

• Wireless 6 GHz Max data rate: 300 Mbit/s
• Wireless 6 GHz number of chains: 2
• Wireless 6 GHz standards: 802.11a/n
• Antenna gain dBi for 6 GHz: 16
• Wireless 6 GHz chip model: AR9344
• Wireless 6 GHz generation: Wi-Fi 4

Ethernet:

• 10/100/1000 Ethernet ports: 1

Peripherals:

• Number of USB ports: 1
• USB Power Reset: Yes
• USB slot type: USB type A
• Max USB current (A): 1

Other:

• PCB temperature monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: EAC

In summary, the MikroTik SXT 6 RBSXTG-6HPnD is a powerful and reliable wireless system designed for licensed frequency bands. Its high-gain antenna, durable build, and advanced RouterOS capabilities make it an excellent choice for establishing robust and high-speed wireless connections in demanding environments.
