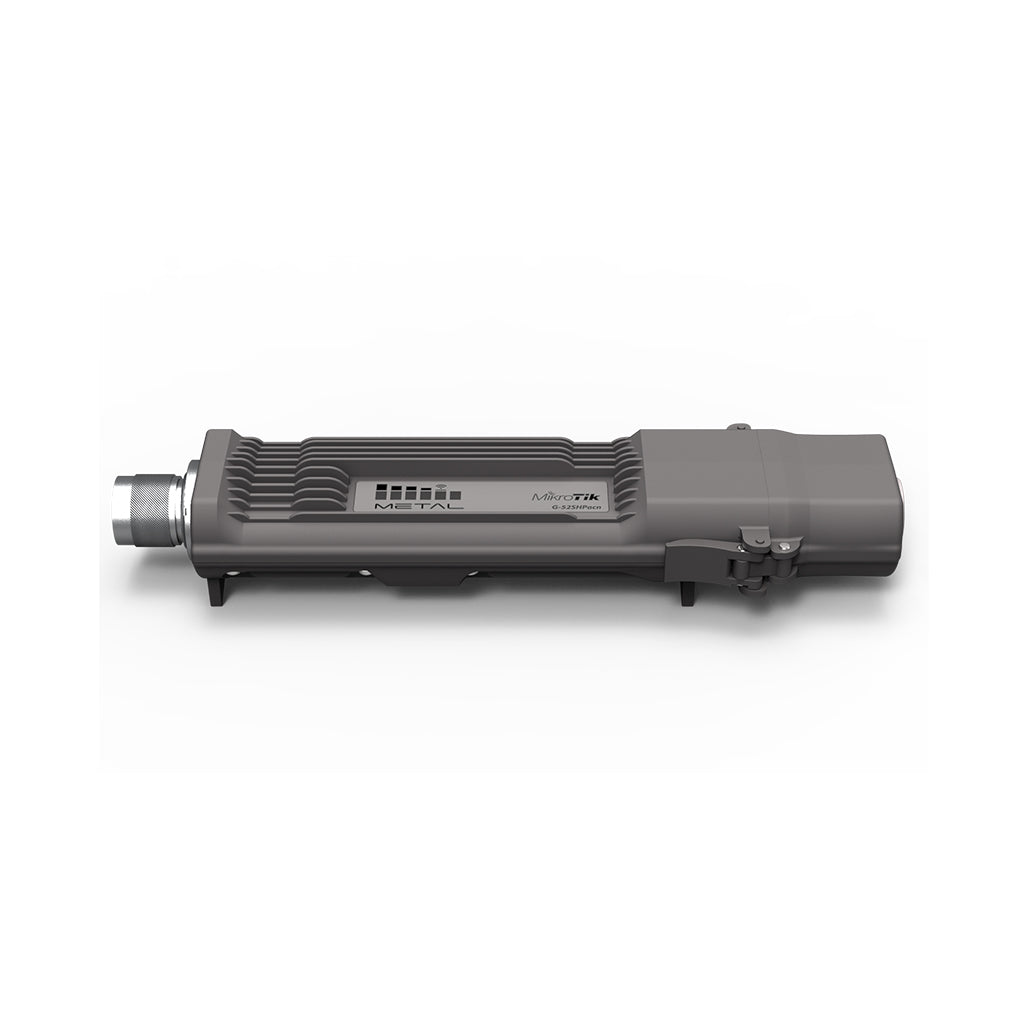

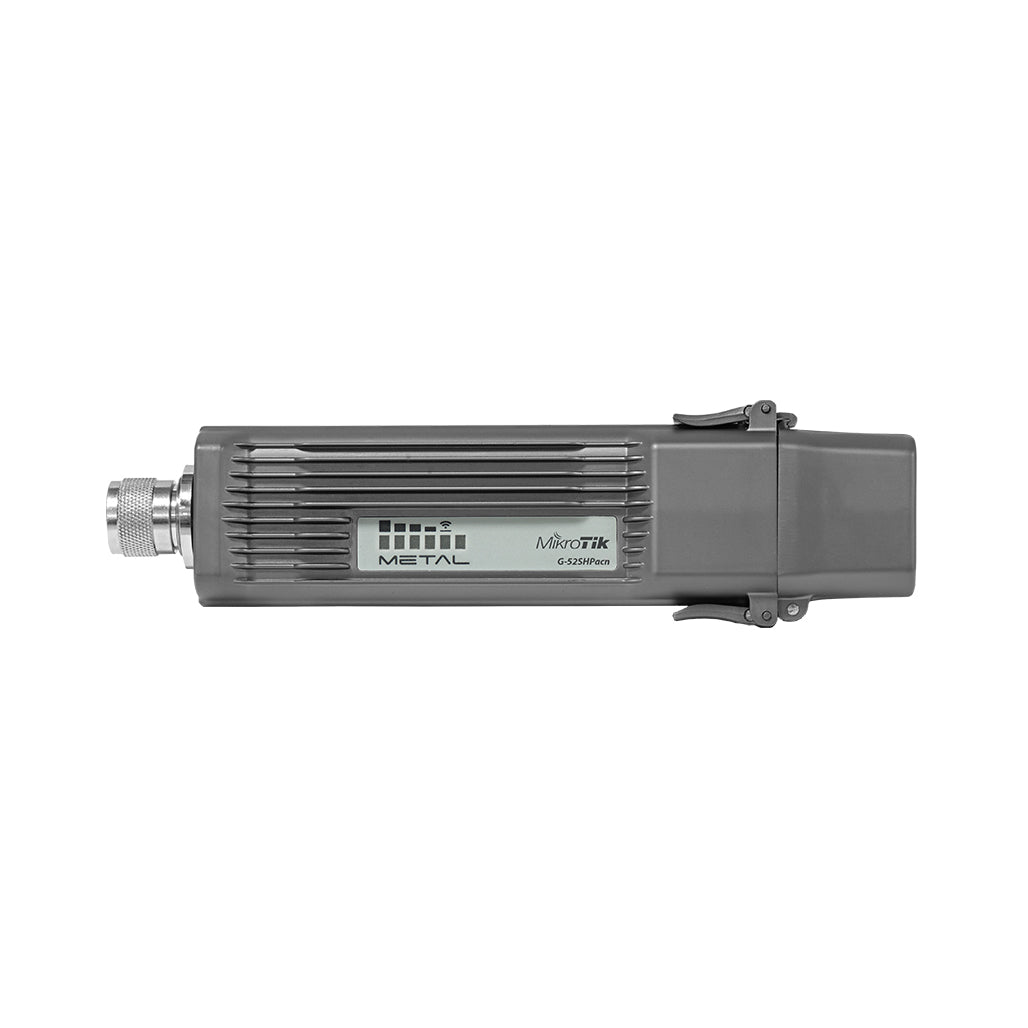

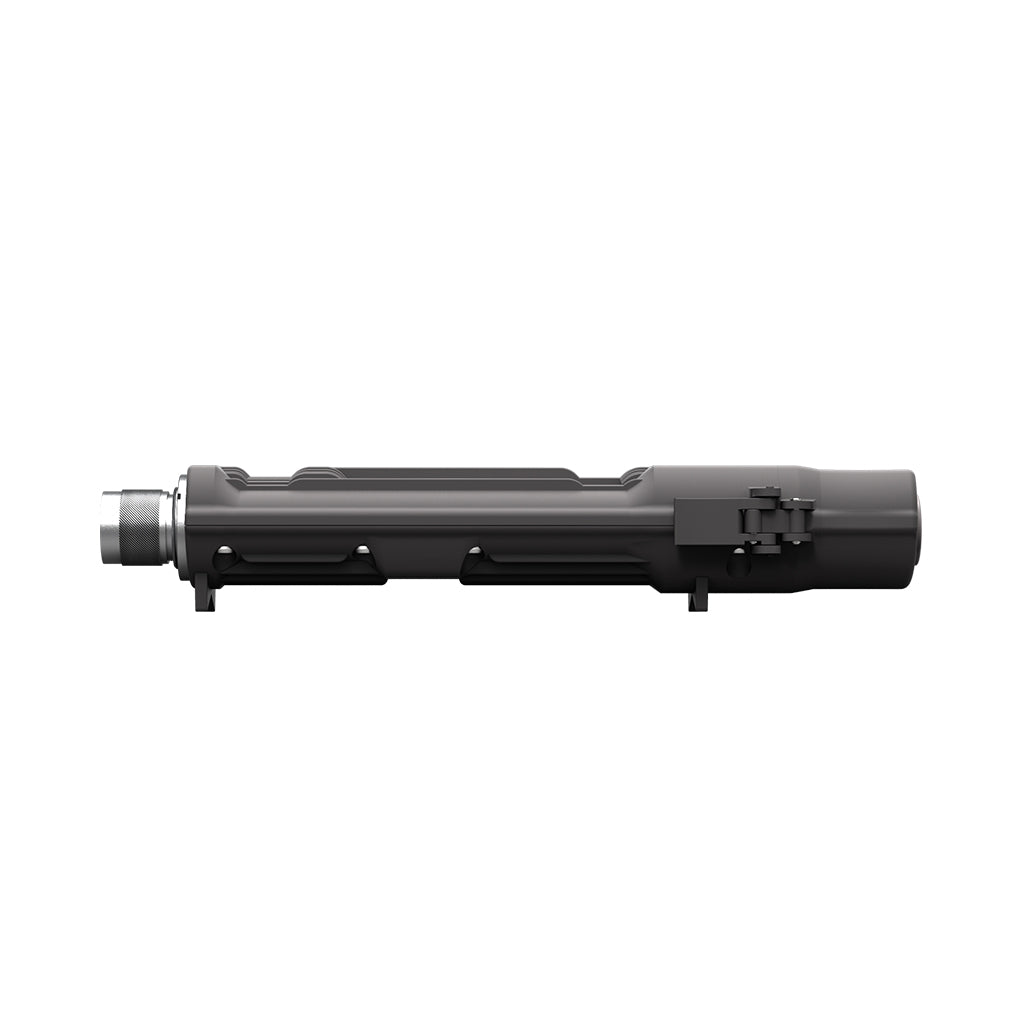

MikroTik Metal 52 ac - Dual-Band AP/Backbone/CPE with 802.11ac Support, High TX Power, and Omni Antenna | RBMetalG-52SHPacn

The MikroTik Metal 52 ac is a versatile outdoor wireless device designed for high-performance applications, including access points, backbone connections, and CPE (Customer Premises Equipment). With support for 802.11ac, this device ensures high-speed wireless connections across both 2.4 GHz and 5 GHz bands, making it suitable for a wide range of networking scenarios.

The Metal 52 ac features a powerful CPU, high transmit power, and a robust design, providing reliable connectivity even in challenging environments. Its Gigabit Ethernet port maximizes the benefits of 802.11ac, while the included omni antenna ensures broad coverage. Available in both international and USA frequency versions, this device is adaptable to various regional requirements.

Key Features:

• Dual-Band Capability: Supports both 2.4 GHz and 5 GHz frequencies, offering flexibility in deployment and improved network efficiency.
• High-Speed Wireless: Equipped with 802.11ac support, enabling high-speed data rates up to 433 Mbit/s.
• Powerful Performance: Features a high TX power and a QCA9889 chip for enhanced wireless performance.
• Versatile Use: Ideal for AP, backbone, and CPE applications, providing reliable connectivity for various setups.
• Robust Design: With an IP55 rating and a tested temperature range of -40°C to 70°C, the Metal 52 ac is built to withstand harsh outdoor conditions.

Specifications:

• Product Code: RBMetalG-52SHPacn
• Architecture: MIPSBE
• CPU: QCA9556
• CPU Core Count: 1
• CPU Nominal Frequency: 720 MHz
• Dimensions: 215 x 60 x 38 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 11 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 10-30 V

Wireless Specifications:

• Wireless 2.4 GHz/5 GHz Max Data Rate: 433 Mbit/s
• Wireless 2.4 GHz/5 GHz Number of Chains: 1
• Wireless 2.4 GHz/5 GHz Standards: 802.11a/n/ac, 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz/5 GHz: 6
• Wireless 2.4 GHz/5 GHz Chip Model: QCA9889
• Wireless 2.4 GHz/5 GHz Generation: Wi-Fi 5

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP55

Conclusion:

The MikroTik Metal 52 ac is a high-performance outdoor wireless device that excels in providing reliable connectivity for a variety of applications. With its dual-band support, high-speed wireless capabilities, and durable construction, it offers a robust solution for extending and enhancing your wireless network. Whether used as an access point, backbone, or CPE, this device delivers exceptional performance and flexibility in demanding environments.
