MikroTik RBcAP2nD Ceiling Access Point | Dual-Chain 2.4GHz, 650MHz CPU

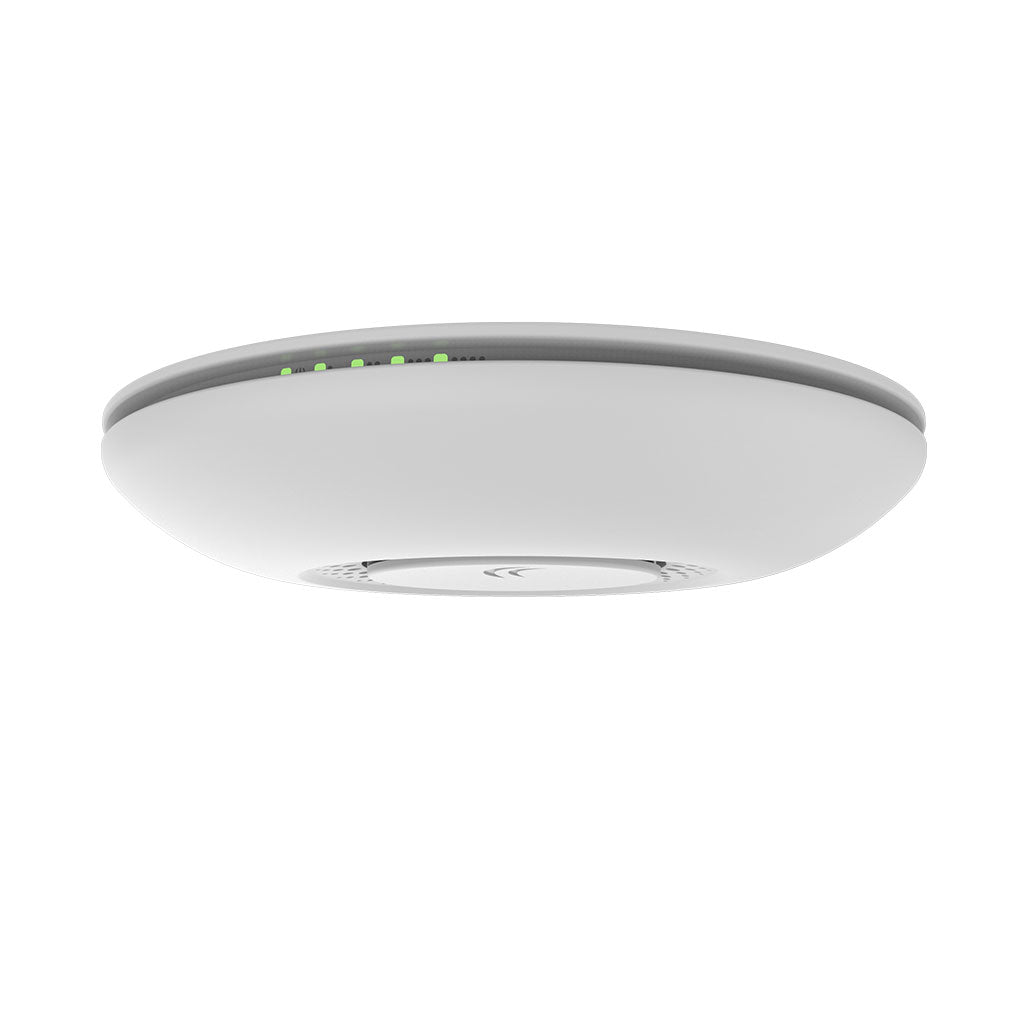

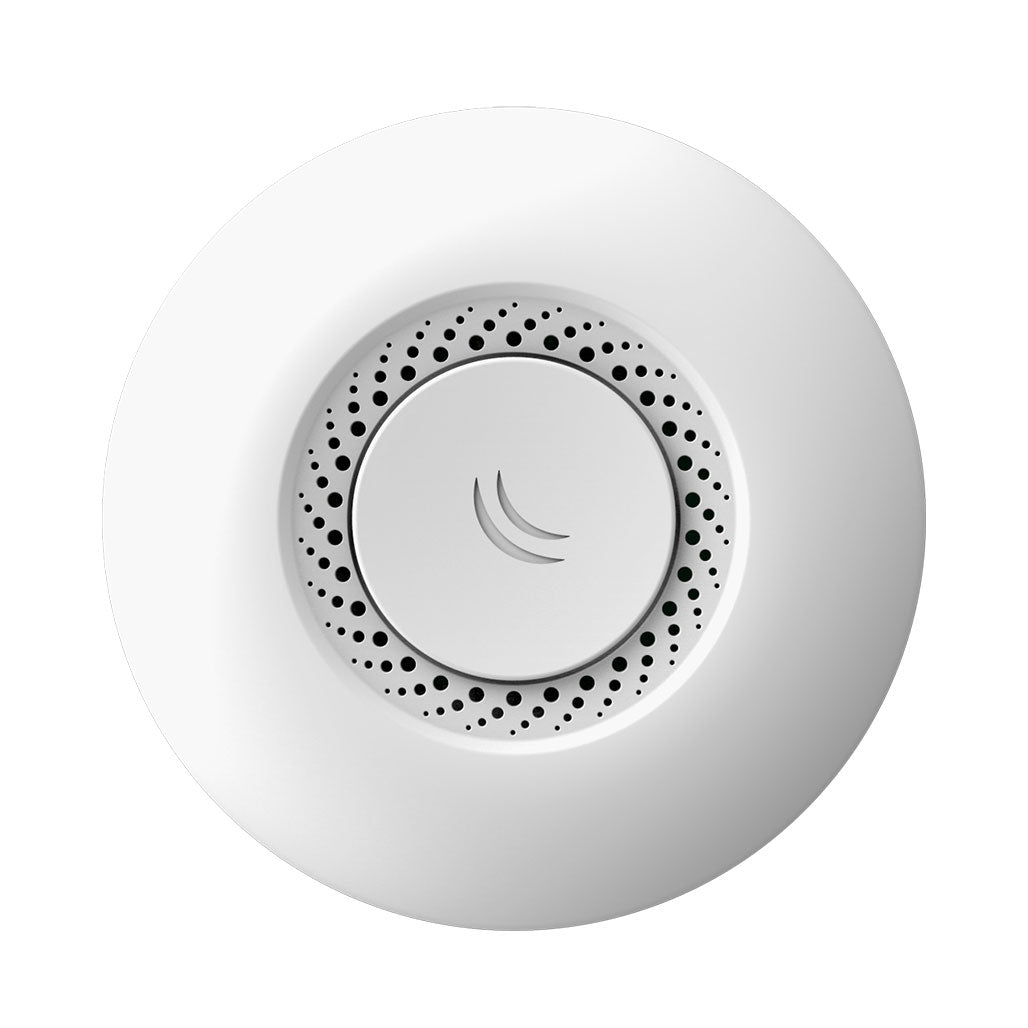

The MikroTik RBcAP2nD is a sleek and efficient ceiling-mounted access point designed for 2.4GHz wireless networks. With its inconspicuous design, this ceiling AP is ideal for deployment in environments such as hotels, airports, shopping malls, and other hospitality venues. The cAP-2nD supports 802.11b/g/n standards, ensuring broad compatibility and reliable performance.

This access point integrates seamlessly with MikroTik's CAPsMAN (Controlled Access Point System Manager), allowing centralized management of multiple APs from a single RouterBOARD device—eliminating the need for a separate controller machine. The RBcAP2nD is designed to be easily installed with the included wall/ceiling mount, PoE injector, power adapter, screws, and screw anchors.

Key Features:

• Discreet Design: The compact and low-profile design allows the cAP-2nD to blend effortlessly into various environments, making it suitable for use in public and commercial spaces.
• Efficient Wireless Performance: Operates on the 2.4GHz band with a maximum data rate of 300 Mbit/s, leveraging Wi-Fi 4 (802.11b/g/n) technology for reliable connectivity.
• Centralized Management: Compatible with MikroTik's CAPsMAN, enabling centralized control of all your access points from a single RouterBOARD device without needing a separate controller.
• Flexible Power Options: Supports Power over Ethernet (PoE) with a wide input voltage range, providing flexibility in installation.
• Complete Installation Kit: Includes all necessary components for installation, including a wall/ceiling mount, PoE injector, power adapter, screws, and screw anchors.

Specifications:

• Product Code: RBcAP2nD
• Architecture: MIPSBE
• CPU: QCA9533
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• Dimensions: 185 mm diameter, 31 mm height
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Wireless Capabilities:

• Wireless 2.4 GHz Max Data Rate: 300 Mbit/s
• Wireless 2.4 GHz Number of Chains: 2
• Wireless 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 2
• Wireless 2.4 GHz Chip Model: QCA9533
• Wireless 2.4 GHz Generation: Wi-Fi 4

Ethernet:

• 10/100 Ethernet Ports: 1

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 4 W
• Cooling Type: Passive
• PoE In: 802.3af/at
• PoE In Input Voltage: 11-57 V

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP20

Other:

• Mode Button: Yes

Wireless Specifications:

• 2.4 GHz Transmit (dBm) and Receive Sensitivity:
  • 1MBit/s: Transmit 22 dBm, Receive Sensitivity -96 dBm
  • 11MBit/s: Transmit 22 dBm, Receive Sensitivity -89 dBm
  • 6MBit/s: Transmit 20 dBm, Receive Sensitivity -93 dBm
  • 54MBit/s: Transmit 18 dBm, Receive Sensitivity -74 dBm
  • MCS0: Transmit 20 dBm, Receive Sensitivity -93 dBm
  • MCS7: Transmit 16 dBm, Receive Sensitivity -71 dBm

Conclusion:

The MikroTik RBcAP2nD ceiling access point offers an elegant and practical solution for enhancing wireless connectivity in commercial and public spaces. Its compact design, combined with reliable performance and centralized management capabilities, makes it an excellent choice for deploying robust Wi-Fi networks in a variety of settings.
