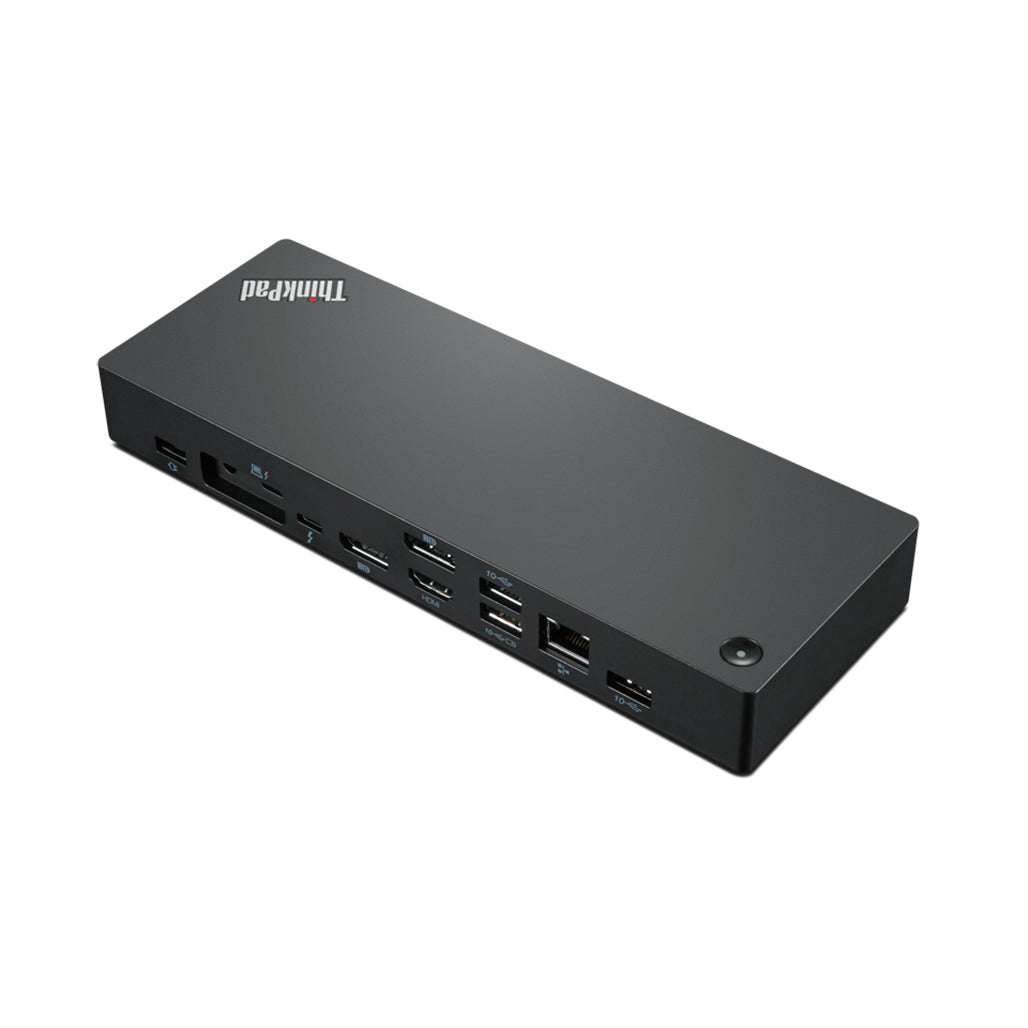

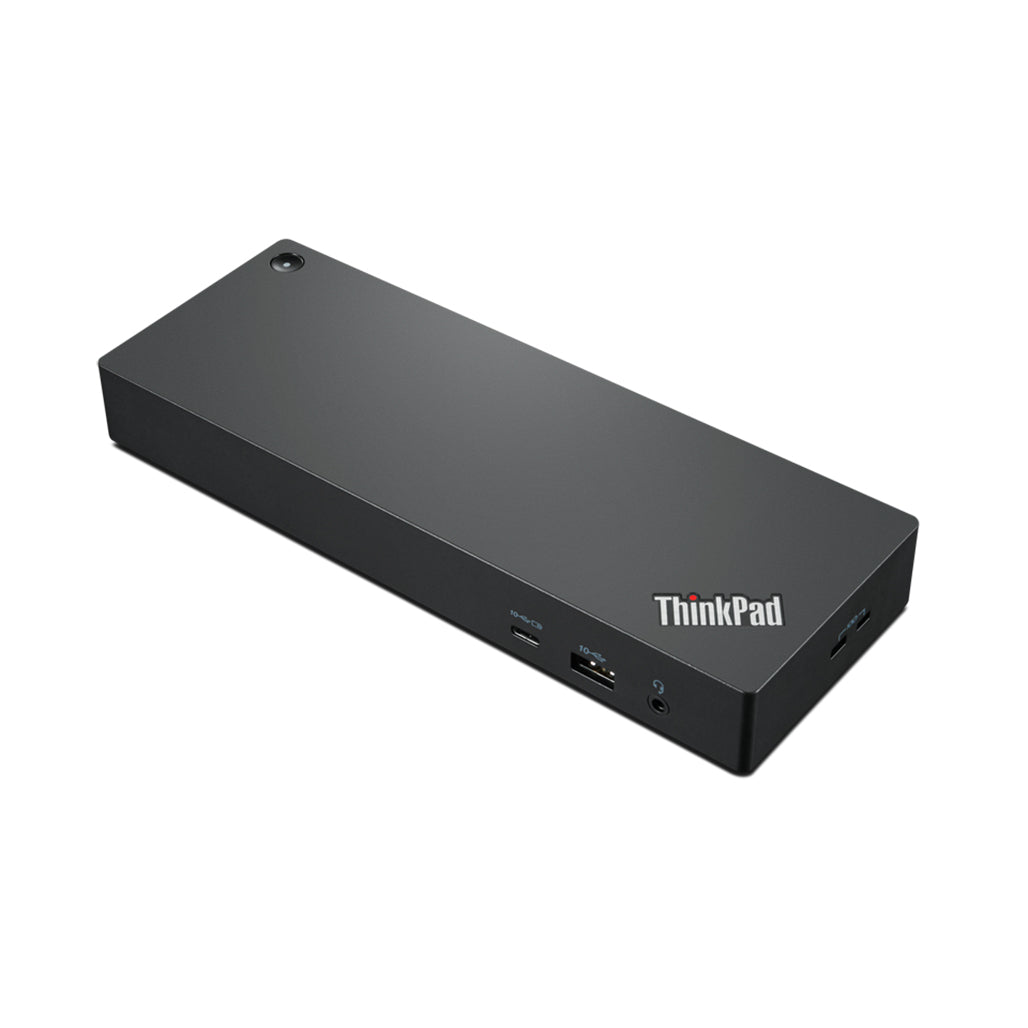

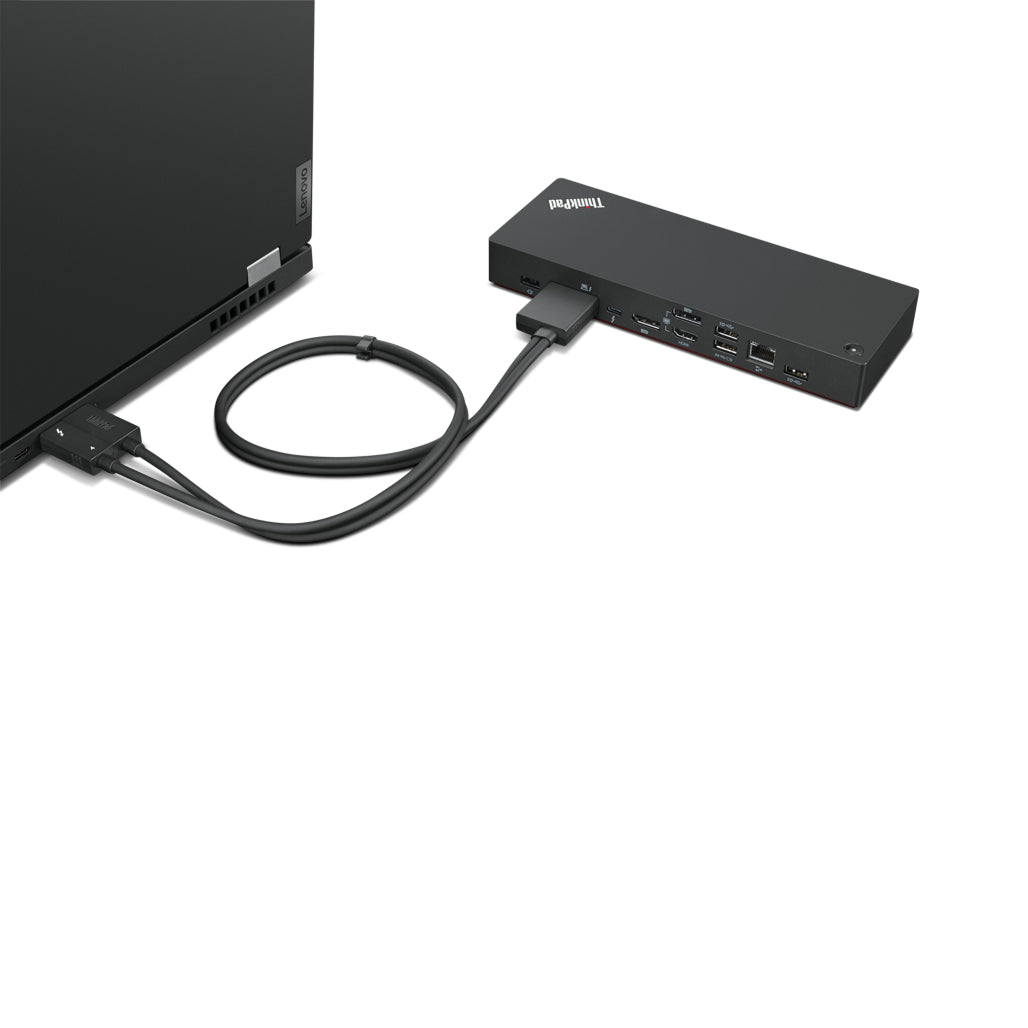

Lenovo ThinkPad Thunderbolt 4 Workstation Dock – 230W PD, 8K/4K Display Support, High-Speed Data Transfer

Designed for demanding professionals, the Lenovo ThinkPad Thunderbolt 4 Workstation Dock offers a cutting-edge docking solution with maximum performance for power users. This advanced docking station ensures seamless connectivity with support for single 8K@30Hz or up to four 4K@60Hz displays, ideal for multitasking, content creation, and high-resolution workflows. With up to 230W power delivery, it efficiently charges high-performance ThinkPad workstations while maintaining system stability and performance. Enhanced with high-speed data transfer rates of up to 40Gbps and dual Thunderbolt 4 ports, this dock optimizes workstation productivity across multiple monitors and high-bandwidth peripherals.

Supporting both Windows 10 and Windows 11 64-bit systems, this dock meets the standards of modern hybrid work environments. IT administrators benefit from silent firmware upgrades and vPro/AMT pass-through support, which enhance remote management capabilities. A sturdy and compact design includes multiple USB-A and USB-C ports, HDMI 2.1, DisplayPort 1.4, Gigabit Ethernet, and an audio combo jack, providing a complete solution for connectivity and expansion. The Lenovo ThinkPad Thunderbolt 4 Workstation Dock is engineered to meet enterprise-level performance and compatibility requirements in one efficient, future-ready package.

Key Features

• High-Performance Power Delivery (Up to 230W):
  Workstations receive efficient, high-wattage charging, reducing downtime and ensuring continuous productivity for intensive applications.

• Multi-Display Output Capabilities:
  Supports a single 8K display at 30Hz or up to four 4K displays at 60Hz—delivering sharp, ultra-high-definition visuals for professionals working in design, editing, finance, and analysis.

• Blazing-Fast Data Transfers:
  Achieves data transfer rates up to 40Gbps depending on host and peripherals, enabling rapid file transfers, video streaming, and peripheral performance without lag.

• Enterprise-Grade Remote Management:
  Equipped with vPro/AMT pass-through, it supports IT departments in managing and updating systems remotely with minimal disruption.

• Silent Firmware Upgrades:
  Updates are applied without interrupting user workflows, maintaining productivity during enhancements.

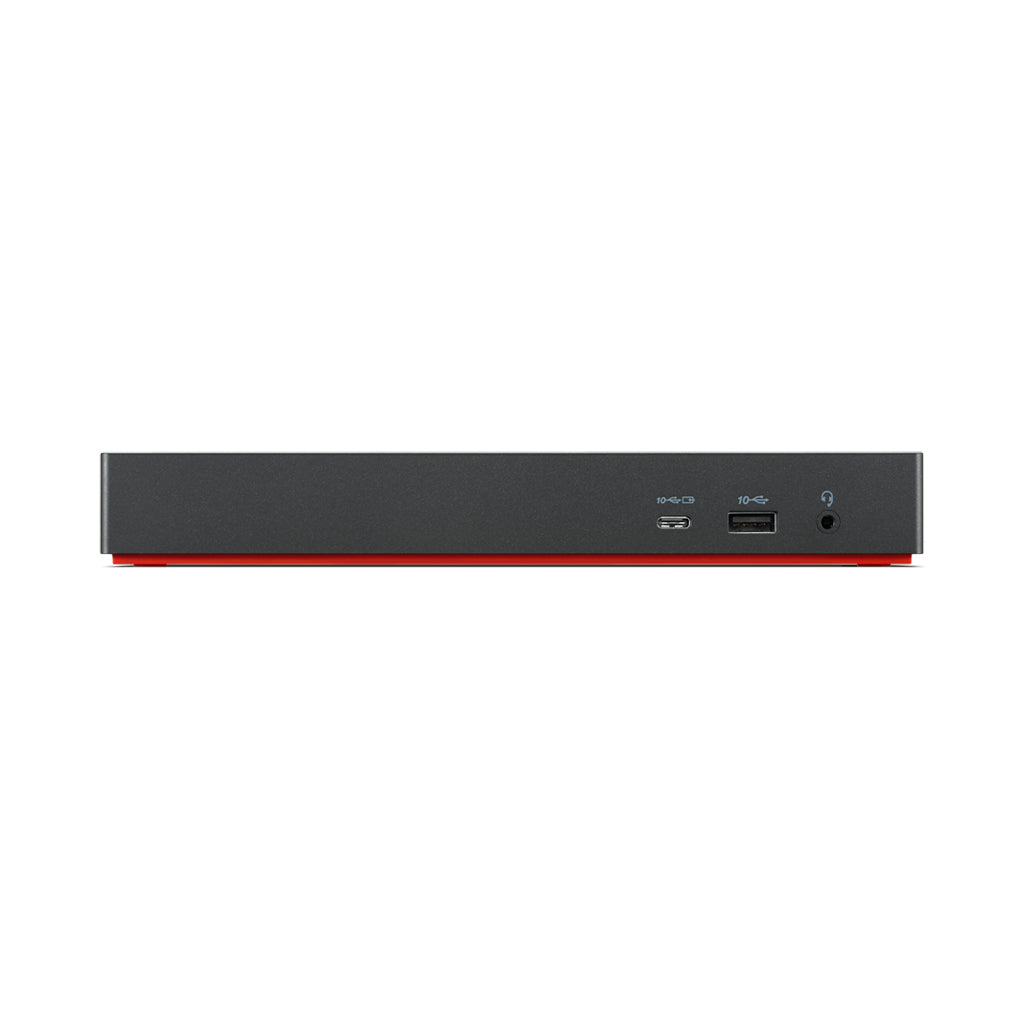

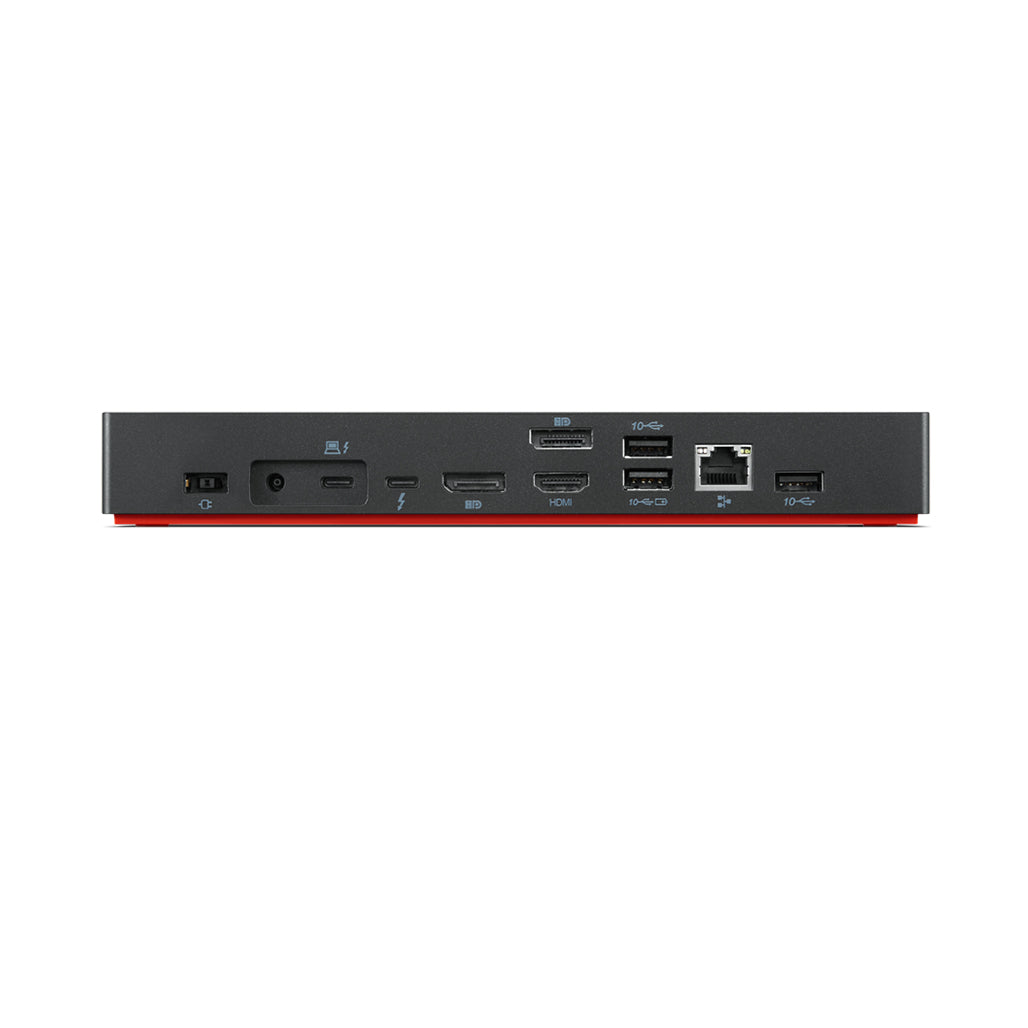

• Full Range of Connectivity Ports:
  Includes USB-A, USB-C, Thunderbolt, HDMI 2.1, DP 1.4, Ethernet, and audio ports, ensuring complete compatibility with modern workstations and accessories.

• Robust Security Options:
  Offers both NanoSaver and MicroSaver lock slots to secure physical hardware in shared or corporate environments.

Specifications

• USB Ports:
  4× USB-A 3.2 Gen 2 (1 always on), 1× USB-C 3.2 Gen 2

• Thunderbolt Ports:
  1× Thunderbolt (host), 1× Thunderbolt (device)

• Video Outputs:
  1× HDMI 2.1, 2× DisplayPort 1.4

• Maximum Display Support:
  1× 8K @ 30Hz, 4× 4K @ 60Hz

• Ethernet:
  1× Gigabit Ethernet

• Audio:
  1× 3.5mm Audio Combo Jack

• Power Delivery:
  Max Output: 230W, Input: 20V 15A, Charging Port: DC-IN, Power Plug: Slim Tip

• Power Button:
  Yes

• Operating Systems:
  Windows 10 64-bit, Windows 11 64-bit

• Driver Required:
  Yes

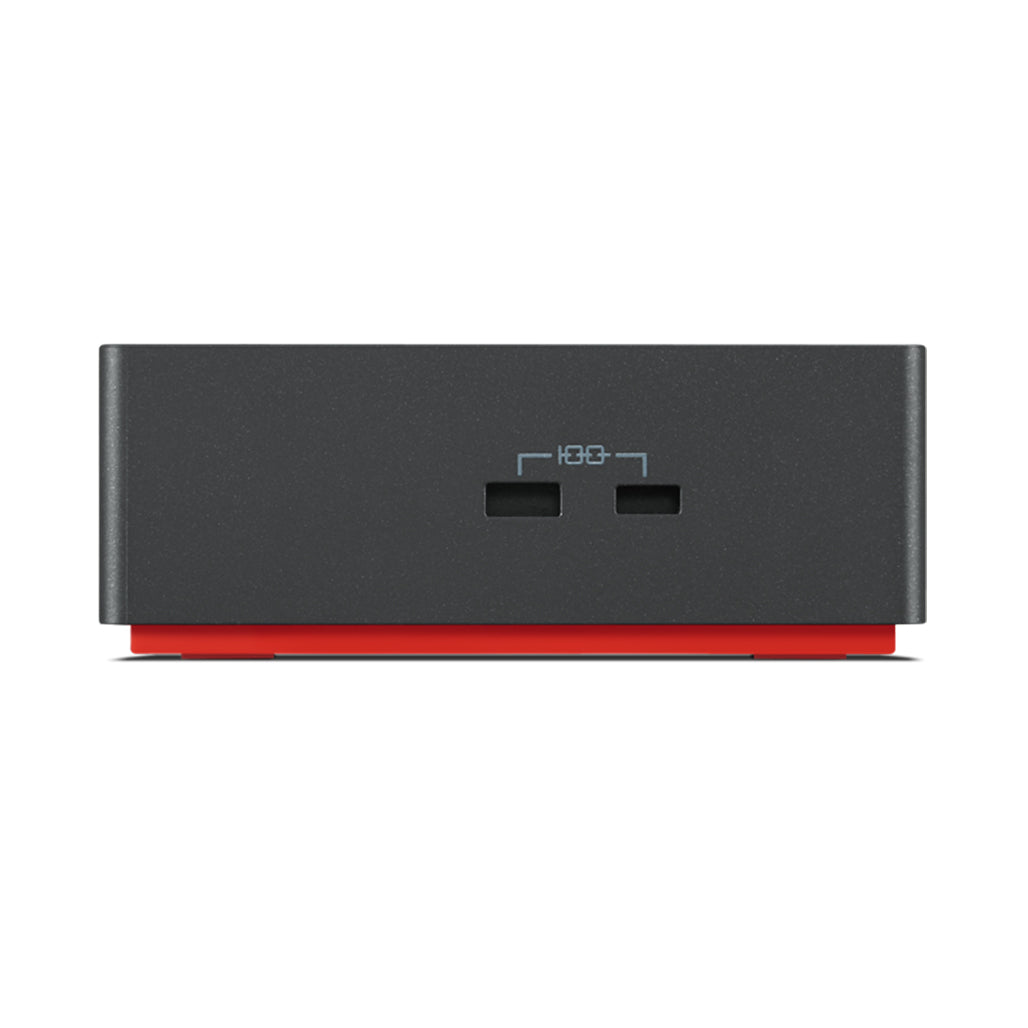

• Security Features:
  1× NanoSaver lock slot, 1× MicroSaver lock slot

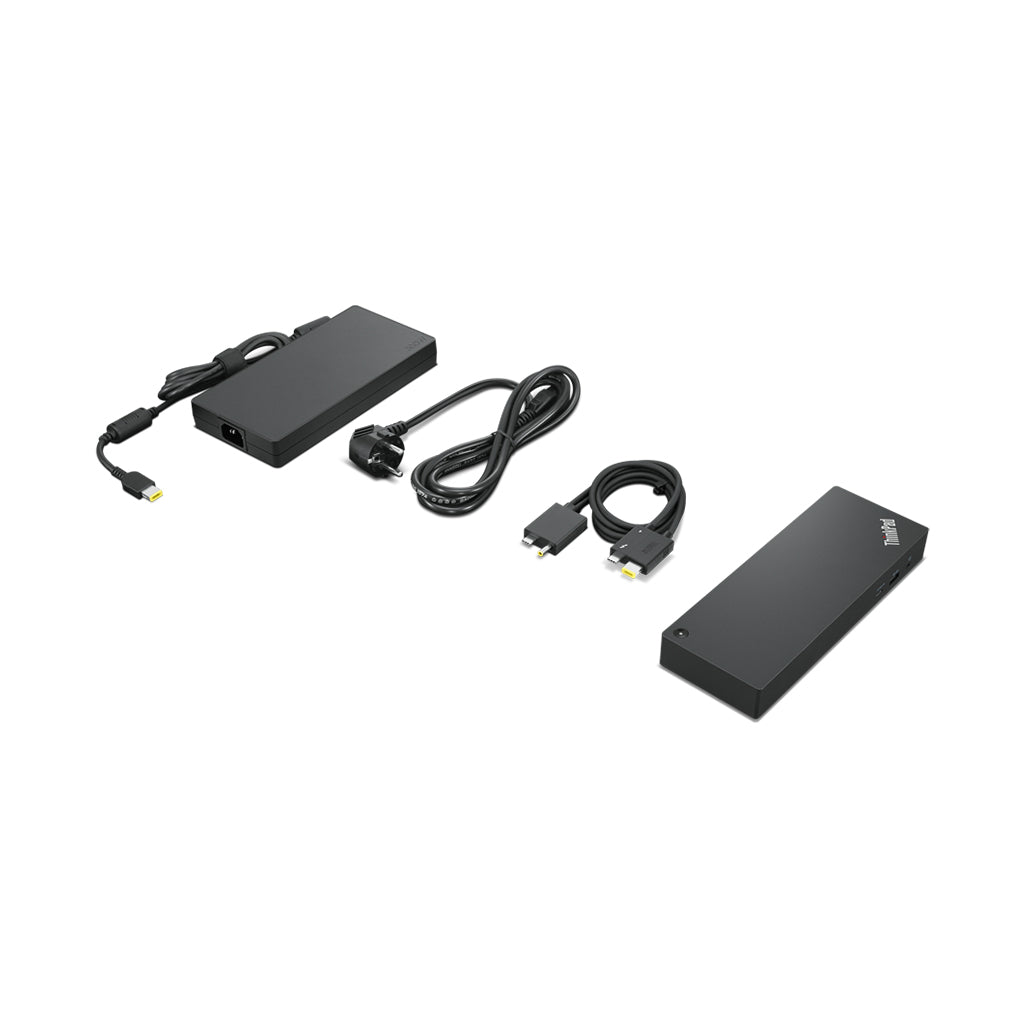

• Included Accessories:
  300W AC Power Adapter, 1× Power Cord, 0.7m Thunderbolt 4 Split Cable

• Environmental Conditions:
  Operating Temperature: 0°C–40°C, Relative Humidity: 5%–95%

• Physical Dimensions:
  Product Weight: 0.45kg, Packed Weight: 1.9kg
  Product Size (L×D×H): 220×80×30mm
  Packed Dimensions (L×D×H): 270×195×85mm

• Certifications:
  CE-EMC, TUV Mark, KCC, Serbia Kvalitet, CU EAC

• Product Packaging:
  Brown box

• Product Color:
  Black/Red

Conclusion
The Lenovo ThinkPad Thunderbolt 4 Workstation Dock has been crafted to meet the needs of professionals who demand reliable performance, robust connectivity, and versatile display support. With unmatched power delivery, cutting-edge data speeds, and enterprise-level manageability, it provides a solid and future-ready solution for maximizing productivity in any modern workspace.
